Safety sign projectors create visible warnings, symbols, crosswalks, or boundaries on floors and walls without applying paint or tape to the surface. For US warehouses, factories, loading docks, and logistics centers, the right supplier depends on much more than projector wattage: buyers should compare projected illuminance, mounting geometry, ambient light, enclosure rating, image options, controls, electrical requirements, and local support.
This guide presents ten credible manufacturers and specialist suppliers serving the US market. It is a sourcing shortlist, not an official ranking. Some companies manufacture in the United States, while others manufacture abroad and sell or support projects in the USA.
A safety sign projector is an industrial lighting device that creates a visible warning, instruction, symbol, crosswalk, or boundary on a floor or wall. A typical LED gobo projector sends light through a small image carrier called a gobo and then through an optical lens. The lens focuses the artwork onto the selected surface, producing messages such as STOP, FORKLIFT TRAFFIC, PPE REQUIRED, NO ENTRY, or a custom plant-specific warning.
The projector is normally fixed to a ceiling, beam, wall, or structural bracket above the operating area. Because only light reaches the floor, tires, pallets, foot traffic, scrubbers, oil, and routine cleaning do not directly scrape away the sign. The hardware remains above the traffic zone, while the projected message appears where workers naturally look when walking or operating equipment.
The final image is affected by five connected elements:
Light output: the projector must create enough contrast against ambient lighting.
Gobo artwork: the symbol, wording, colors, and line thickness must remain recognizable at the required size.
Lens and projection ratio: the optical system determines image size at a given mounting distance.
Mounting geometry: height, offset, and angle influence focus, distortion, and viewing direction.
Surface conditions: floor color, reflectivity, texture, contamination, and competing markings affect readability.
A projector can operate continuously or only when needed. Timer, motion-sensor, door-switch, forklift-detection, crane-control, or machine-control integration can turn a static visual marker into a condition-based warning. However, a sensor-triggered system requires a clear operating sequence and regular functional testing; adding automation does not eliminate the need for a site risk assessment.

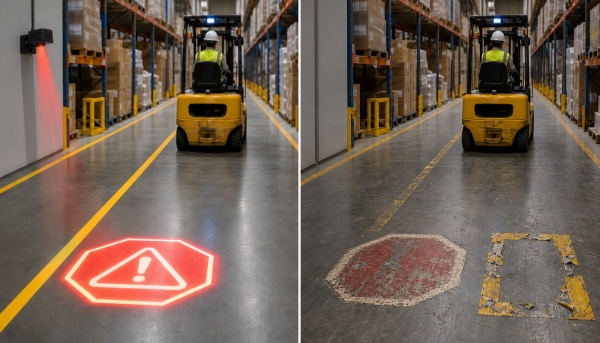

The main reason is simple: traditional floor signs often deteriorate exactly where warnings matter most. Forklift intersections, loading bays, pedestrian crossings, production aisles, washdown areas, and machine approaches are exposed to traffic, dirt, abrasion, liquids, and layout changes. Paint and adhesive signs can work well, but maintaining them in these locations can require repeated preparation, application, curing time, and temporary closure of the area.
Projected signage moves the wearable part of the system away from the floor. The warning remains optical rather than physical, so normal traffic does not peel or grind it away. This can be valuable when a facility has a recurring floor-marking problem rather than a one-time signage need.
Forklift tires, pallet dragging, wheeled carts, and mechanical floor scrubbers can fade paint and damage adhesive signs. A projected image cannot be physically torn by a passing vehicle. The projector and mounting system still require inspection, but the visible message is not consumed by traffic.
Repainting usually involves cleaning, removing damaged material, masking, applying the new marking, and allowing it to cure. In a continuously operating warehouse, the cost of closing an aisle may matter more than the paint itself. A correctly installed projector can reduce repeated floor-sign replacement work and the operational disruption associated with it.
Factories add equipment, warehouses change picking routes, and temporary projects create new restricted areas. Projected signage can often be moved by repositioning the unit or changed by replacing the gobo. This is more adaptable than grinding away paint, although every relocation still requires mounting and visibility validation.
A wall sign can be outside a driver’s or pedestrian’s immediate line of sight. A projected STOP symbol placed before a crossing or a warning displayed at a doorway can put the message closer to the decision point. Placement must be designed around the direction of travel so that the symbol is readable before a person enters the hazard area.
Some hazards are present only when a forklift approaches, a crane moves, a door opens, or a machine enters a specific state. A sensor-activated sign can communicate that change more directly than an always-visible warning. Conditional projection is especially useful when the detection logic is reliable and the projected instruction is easy to understand.
Projected signs are made of light, so forklift tires, boots, carts, and cleaning equipment do not abrade the message. This is the clearest advantage over paint, tape, and adhesive floor decals in heavy-traffic areas.
A projector can reduce recurring work such as removing old adhesive, cleaning a marking area, masking a design, repainting, and waiting for a coating to cure. Maintenance is shifted toward cleaning the projector lens, checking focus and alignment, inspecting mounting hardware, and testing any controls.
Many gobo systems allow the image carrier to be replaced. Facilities can update wording, language, symbols, or branding without replacing the whole projector. A relocated projector can support a new traffic layout, provided the electrical connection, mounting structure, and new image position are approved.
Standard symbols are useful, but some facilities need site-specific messages, bilingual instructions, numbered bays, directional arrows, or custom restricted-zone graphics. A custom glass gobo can reproduce more detail than a simple painted stencil, subject to optical and viewing limitations.
Light can remain visible over joints, textured concrete, or surface contamination that would make an adhesive sign difficult to install. This does not mean projection works on every surface: dark, glossy, highly reflective, wet, or strongly illuminated floors may require testing and higher optical performance.
The projector can be connected to a timer, switch, motion sensor, vehicle detector, door position, or machine signal. This enables warnings to appear at relevant moments and can help distinguish an active hazard from a general background message.
The purchase price is normally higher than one painted or adhesive sign. The economic case improves when conventional markings require frequent replacement, labor is expensive, aisle closure disrupts production, or many similar sites can use a standardized design. Lifecycle cost should include equipment, installation, electricity, inspections, cleaning, replacement gobos, controls, and eventual projector replacement—not just the initial quote.
The projector does not create a floor-mounted obstruction. This can simplify cleaning and material movement, although overhead installation introduces its own requirements for secure brackets, secondary retention where appropriate, cable routing, and safe maintenance access.
No marking method is universally superior. Paint and tape remain economical and effective in many stable, moderate-traffic areas. Projected signs become attractive when wear, downtime, contamination, or changing layouts create a persistent maintenance problem.
Comparison factor |
Safety sign projector |
Painted floor sign |
Adhesive floor sign or tape |
|---|---|---|---|
Initial investment |
Higher equipment and installation cost |
Usually low to moderate |
Usually low to moderate |
Traffic wear |
Image is not physically contacted |
Can fade, chip, or abrade |
Can peel, tear, lift, or scuff |
Floor preparation |
Limited surface preparation, but optical testing is needed |
Cleaning, removal, masking, and curing may be needed |
Clean, dry, compatible surface required |
Operational downtime |
Often limited to mounting and commissioning |
Area may need closure during preparation and curing |
Usually short, but removal and replacement recur |
Visibility |
Active light can provide strong contrast in suitable conditions |
Depends on pigment, cleanliness, and wear |
Depends on print, cleanliness, adhesion, and wear |
Bright daylight |
Can be challenging and requires validation |
Often remains visible if color contrast is adequate |
Often remains visible if clean and intact |
Dirty or wet surface |
No physical sign to peel, but contrast can still decline |
Dirt or water may obscure the marking |
Dirt, water, or chemicals may damage or obscure it |
Layout changes |
Projector can be moved and gobo changed |
Old marking normally must be removed or covered |
Sign can be replaced but may leave residue |
Custom message |
Custom gobos support symbols, text, and multiple colors |
Custom stencil and paint possible |
Custom printing is widely available |
Power required |
Yes |
No |
No |
Maintenance focus |
Lens, alignment, mounting, cooling, electrical system |
Cleaning and repainting |
Cleaning, edge inspection, and replacement |
Sensor activation |
Possible |
Not possible without a separate illuminated system |
Not possible without a separate illuminated system |
Failure mode |
Sign disappears if power, LED, control, or alignment fails |
Gradual wear is usually visible |
Gradual wear or detachment is usually visible |
Best fit |
High-wear, changeable, or condition-based warnings |
Stable layouts and broad permanent markings |
Quick, economical markings on suitable clean floors |
A safety sign projector is worth evaluating when floor signs repeatedly fail under forklift traffic, repainting requires costly shutdowns, washdown or contamination damages adhesive materials, the same warning must move with changing layouts, or a sensor-triggered message would communicate an intermittent hazard more effectively.
Traditional markings may be more practical for long continuous aisle lines, low-risk areas with little traffic, outdoor locations in strong direct sunlight, facilities without suitable mounting structures or power, and applications where a passive marking must remain visible during a power failure. Many sites use a hybrid system: permanent paint for general traffic routes, physical barriers for separation, and projected signs at the highest-wear or highest-attention points.
GoboSource, operated by Globus New Media, is a US-based projection specialist with a dedicated industrial virtual-sign product range. Its catalog combines ECO Spot LED projectors, standard safety gobos, custom gobos, virtual line projectors, and control modules. That makes it a useful starting point for buyers who need both the optical hardware and the image carrier from one supplier.
The company is particularly relevant for fixed STOP, CAUTION, pedestrian crossing, forklift traffic, and restricted-area signs. Buyers should provide projection distance, desired image diameter, surface color, ambient light, operating schedule, and indoor or outdoor exposure so that the projector and lens can be selected as a system.
TOPTREE manufactures industrial visual-warning products, including customizable LED gobo projectors for signs on floors or walls. The current range supports multiple power configurations, single-color, two-color, or full-color gobos, custom projected images, and OEM/ODM requirements. Its industrial floor safety sign projector is intended for warehouses, docks, cleanrooms, factories, and other high-traffic facilities.
TOPTREE is particularly relevant to distributors, integrators, and multi-site buyers who need custom artwork, product configuration, private labeling, or scalable supply. The company also offers virtual line laser systems for boundaries and lanes; these should be specified separately because a line laser is not the same product as an LED gobo sign projector.
For a useful proposal, send TOPTREE the installation height, required image dimensions, floor or wall photos, ambient-light readings, available voltage, operating hours, indoor or outdoor conditions, quantity, control method, and gobo artwork. Buyers can then request a project-specific quotation.
Image Projection is a Miami-based projection company focused on custom projected imagery. Its safety range uses LED or laser systems to display exchangeable signs and lines on floors or walls, with US-compatible power options. The company emphasizes application assistance, standard safety graphics, and custom designs.
Image Projection is a practical candidate for facilities that want help turning a safety requirement into a complete projection layout rather than buying a light by wattage alone. Confirm the required mounting hardware, electrical connection, gobo lead time, control method, and replacement-part availability in the quotation.
LTBLtech develops the LightCop industrial projection system. LightCop uses a high-intensity LED and glass gobo to project traffic-control or hazard messages onto a floor. Systems can be continuously powered, switched, flashed, or paired with radar control so the message appears when traffic is detected.
The sensor option makes LTBLtech relevant at forklift crossings, overhead-crane areas, and locations where an always-on warning may lose attention. A site assessment should define the detection direction, activation logic, delay time, false-trigger risks, and the safe behavior expected when the image appears.
ALERT Safety Products supplies industrial sign projectors, LED and laser line projectors, sensors, and related warning products through US industrial channels. Its solutions can project static floor or wall messages or activate a warning when a forklift or pedestrian approaches.
This flexibility suits custom traffic-management projects, but buyers should separate the specification into projector performance, sensor performance, controller logic, and sign artwork. Request a functional description showing exactly what is displayed in normal, warning, and fault conditions.
Creative Safety Supply offers the SignCast family of virtual floor signs. The range includes S200 and S300 sign projectors, stock or custom gobo images, and a separate virtual line projector. It is attractive to US buyers who want recognizable product packages, standard safety messages, and direct purchasing access.
SignCast can be considered for high-traffic areas where adhesive signs or painted symbols wear quickly. Compare the actual projected sign size and contrast at the intended distance; a long maximum projection distance does not by itself guarantee adequate readability in a brightly lit facility.
Rite-Hite’s Safe-T-Signal is an adjacent but important option. It is not a conventional interchangeable-gobo floor-sign projector. Instead, the ceiling-mounted system uses microwave sensors and high-visibility LED stop or yield symbols to manage two-, three-, or four-way warehouse intersections. Under defined multi-direction traffic conditions, it can also illuminate the floor.
Safe-T-Signal is therefore best compared with active intersection-warning systems, not with a basic projector that displays one permanent sign. It may suit blind corners where traffic detection and right-of-way communication are more important than custom floor artwork.
Ergomat offers industrial safety sensors and warning systems with North American support. Its product materials include virtual sign gobo projectors, line projectors, spot projectors, and configurations in which vehicle or pedestrian sensors change the projected warning.
Ergomat is a strong candidate when a facility needs a coordinated detection-and-display solution. During evaluation, ask for a sequence-of-operation drawing, sensor coverage plan, installation responsibilities, commissioning procedure, and a method for testing the system after maintenance or layout changes.
AccuformNMC is well known in the US facility-identification market and offers sign and line projectors alongside conventional signs, tags, labels, and floor-marking products. Its projector category includes LED sign projectors, crosswalk projectors, LED line projectors, laser line projectors, standard lenses, custom gobo lenses, and sensor accessories.
This broad catalog is useful when a plant wants projected signs to fit into a larger visual-workplace or compliance program. Buyers should still ask who manufactures the selected projector, which warranty applies, and whether the quoted image remains readable under measured site lighting.
Laserglow Technologies, based in Canada and active across North America, offers SafetyCast virtual sign projectors and VirtuaLine projected-line systems. SafetyCast uses LED projection for high-contrast signage, while VirtuaLine products create laser boundaries. The two technologies can be combined with switches, doors, sensors, or machine states to create an active visual warning zone.
Laserglow is a relevant choice for engineered applications around automated equipment, restricted zones, and process hazards. Buyers should review laser classification and accessible exposure for line products, plus the control-system behavior and risk assessment for any automated activation.
A projected STOP, YIELD, or FORKLIFT TRAFFIC message can be placed before a crossing. Sensors may activate the warning only when a vehicle approaches. Projection should complement speed control, mirrors, horns, right-of-way rules, training, and physical separation where feasible.
Projected crosswalks, walking-person symbols, directional arrows, or boundary lines can reinforce pedestrian routing. A projection is not a physical barrier, so it should not be the only control where workers could step directly into high-speed vehicle traffic.
Facilities can display STOP, DO NOT ENTER, BAY CLOSED, or directional warnings at dock approaches and door thresholds. Outdoor or open-door conditions require special attention because daylight can wash out a projection.
Projected warnings can identify the operating envelope of cranes, robots, automated equipment, or moving machinery. A conditional sign may be linked to equipment status, but control integration must be designed so workers understand what an illuminated, inactive, or failed display means.
Where coatings or adhesive signs are difficult to maintain, an overhead optical system may reduce material on the floor. The projector, wiring, brackets, and enclosure must still suit moisture, cleaning chemicals, temperature, and hygiene requirements.
Projectors are useful for seasonal production cells, temporary restricted zones, construction interfaces, and warehouses with changing routes. Repositioning should be controlled rather than informal; the new image must be checked from the actual pedestrian and operator approach.
Projected signs have important limitations that a responsible supplier should discuss openly.
They require power. A passive floor sign remains visible during an outage, while an unprotected projector does not. Emergency applications may need backup power or a separate compliant sign.
Ambient light can overpower the image. Direct sunlight, bright dock doors, reflective floors, or newly upgraded lighting can reduce contrast.
The image can be blocked. Pallets, vehicles, stored goods, smoke, dust in the optical path, or people standing under the beam may obscure the projection.
Mounting geometry matters. Low ceilings, long offsets, vibration, or limited structures may make a clear undistorted image difficult.
Projection is not guarding. Light cannot stop a forklift, contain a machine hazard, or prevent a fall.
Automated systems can create false or missed activations. Sensor coverage and control logic must be tested under real traffic conditions.
Maintenance still exists. Lenses require cleaning, brackets require inspection, focus can shift, fans or heat sinks need suitable airflow, and LEDs eventually lose output.
Human factors still matter. Too many projections, ambiguous colors, unfamiliar symbols, or warnings that activate constantly can reduce attention.
The strongest projects use projected signs as one layer within a larger safety system. They combine a clear operating rule, appropriate engineering controls, worker training, inspection, and a defined response when the projector is unavailable.
Define what people must notice and do: stop before a forklift aisle, remain outside a crane zone, wear eye protection, follow a crosswalk, or avoid an automated machine envelope. A bright image is useful only when the message, placement, and expected response are unambiguous.
Projector lumens describe source output, while visibility depends on the light reaching the surface, image area, surface reflectance, angle, competing light, dust, and viewer position. Ask suppliers to validate projected illuminance or demonstrate the proposed unit under comparable conditions. Outdoor daylight is substantially harder than a controlled indoor aisle.
Provide the vertical height, horizontal offset, projection angle, desired image width and height, and viewing direction. Excessive off-axis mounting can distort a circular or square sign. Confirm whether the supplier will compensate the gobo artwork for perspective distortion.
Check voltage and frequency, power connection, operating temperature, dust or water exposure, washdown chemicals, vibration, and mounting structure. Ask for model-specific documentation rather than assuming that one enclosure rating or certification applies to an entire product family.
Decide whether the sign is continuous, timer-controlled, switch-activated, sensor-activated, or linked to a door, forklift, crane, machine, or programmable controller. Dynamic warnings can attract attention, but poor detection logic creates nuisance activations and may train people to ignore the system.
Confirm warranty coverage, spare-part lead time, replacement gobo availability, remote support, and installer requirements. If the plant layout changes, document who is permitted to move the projector and how the new position will be validated.
RFQ item |
Information to provide |
|---|---|
Application |
Hazard, audience, required action, and operating area |
Projection |
Floor or wall, sign wording/symbol, colors, desired dimensions |
Geometry |
Mounting height, offset, angle, available structure, viewing direction |
Lighting |
Ambient-light readings at the surface during worst-case operation |
Environment |
Indoor/outdoor, dust, moisture, washdown, chemicals, temperature, vibration |
Electrical |
Available voltage, frequency, plug or hardwire preference |
Controls |
Always on, timer, manual switch, sensor, door, machine, or PLC trigger |
Compliance |
Required listings, documentation, site rules, and authority approval |
Commercial |
Quantity, delivery location, target date, warranty, spares, installation |
Customization |
Artwork file, language, logo restrictions, OEM packaging, labeling |
Shortlist suppliers whose technology matches the hazard and environment.
Send the same site-data package and RFQ table to every candidate.
Compare projected performance at the surface, not wattage alone.
Request a drawing showing projector position, image size, and detection zones.
Test one representative location under worst-case lighting and traffic.
Have safety, operations, maintenance, and electrical teams review the result.
Document acceptance criteria for image readability, activation, and mounting.
Train affected workers on the meaning of the projected warning.
Add cleaning, alignment, function testing, and gobo inspection to maintenance.
Revalidate the system after layout, lighting, process, or control changes.
TOPTREE offers a focused combination of industrial lighting manufacturing, configurable LED gobo projectors, custom images, low-quantity project support, and OEM/ODM capability. Buyers can source a sign projector for fixed warnings and explore a separate laser line projector solution when the application requires a boundary rather than a symbol.
The practical advantage is specification flexibility. Instead of forcing every installation into one wattage or image format, a project can be discussed around mounting distance, sign size, light level, color, housing, controls, quantity, and channel requirements. US importers should confirm the exact model’s electrical configuration, documentation, delivery terms, warranty process, and any site-specific listing requirements before purchase.
No. This is a shortlist of manufacturers and specialist suppliers serving the USA. It includes US-based manufacturers and distributors, a Canadian manufacturer serving North America, and an international OEM supplier. Buyers should verify the manufacturing origin, inventory location, service model, and import responsibilities for the specific product quoted.
No projector is automatically “OSHA compliant” for every application. In the United States, employers remain responsible for hazard assessment, required signs and colors, visibility, training, maintenance, and the overall control system. Confirm applicable federal, state, local, electrical, fire, and site requirements with the responsible safety professional or authority.
It can replace or supplement paint or tape where surface wear and maintenance are the main problems, provided the projection remains visible and communicates the required message. It should not replace physical separation or guarding where contact with a vehicle, machine, edge, or suspended load must be prevented.
There is no universal wattage or lumen value. Required brightness depends on ambient illuminance at the floor, image size, projection distance, lens efficiency, surface reflectance, angle, and viewing position. A site trial or supplier calculation using measured conditions is more reliable than a wattage comparison.
Some models have weather-resistant housings, but daylight visibility, rain, temperature, mounting, electrical protection, and surface conditions must all be validated. A projector that works well in a dim warehouse may not create a readable sign in direct sunlight.
A conventional fixed-gobo projector displays one installed image at a time, although the gobo can usually be replaced. Some systems use rotating gobos, multiple optical heads, digital projection, or controls to change messages. Ask how the mechanism affects brightness, reliability, maintenance, and lead time.
Provide site photos, floor or wall material and color, mounting height and offset, desired sign dimensions, ambient-light measurements, voltage, hours of use, environmental exposure, quantity, control method, and artwork. These inputs allow TOPTREE to recommend a more defensible configuration instead of selecting by power alone.
The US market offers several credible routes to projected safety signage: dedicated gobo manufacturers, facility-safety brands, sensor-system specialists, integrators, and international OEMs. The “best” supplier is application-specific. A fixed LED STOP sign, a laser walkway boundary, and a sensor-controlled intersection warning solve different problems and should not be treated as interchangeable products.
Start with a documented hazard and measured site conditions, then compare candidates using the same RFQ. For custom signs, multiple power configurations, virtual lines, or OEM/ODM sourcing, review TOPTREE’s industrial safety product range and submit the site data needed for a project-specific recommendation.
