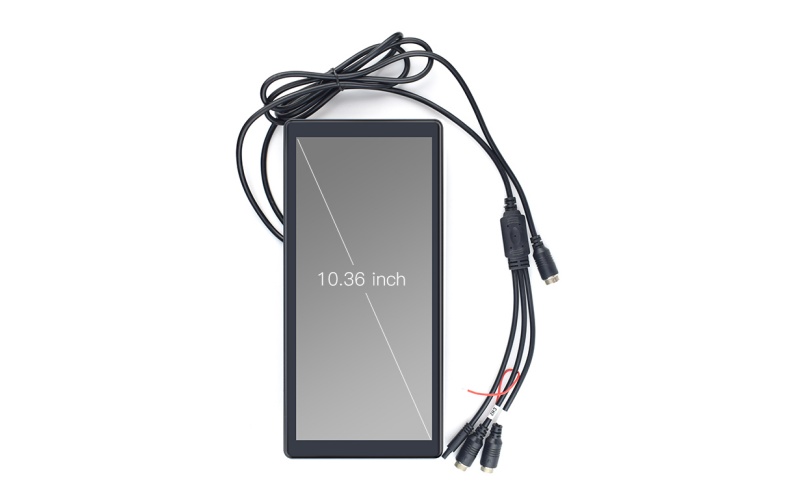

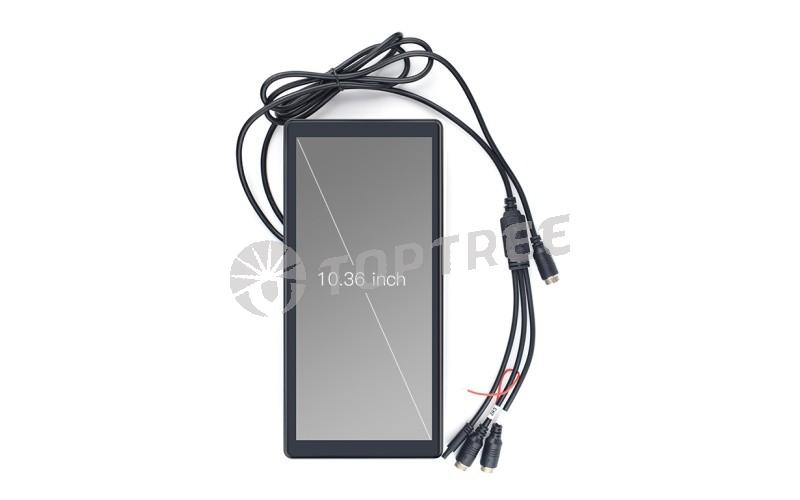

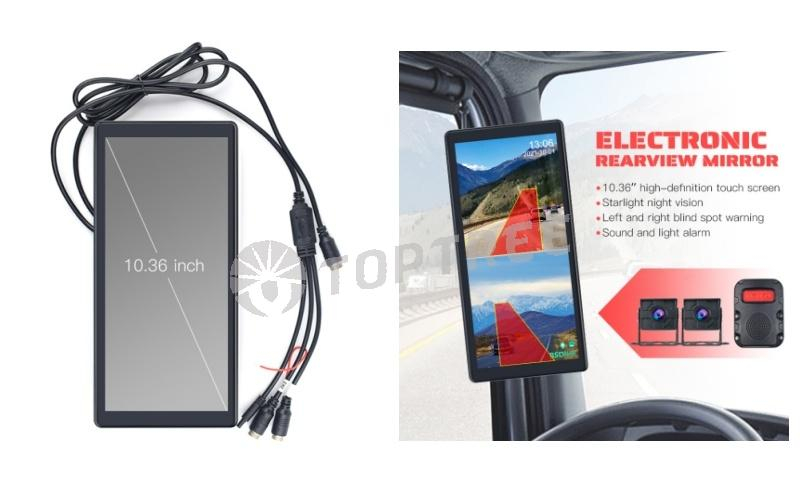

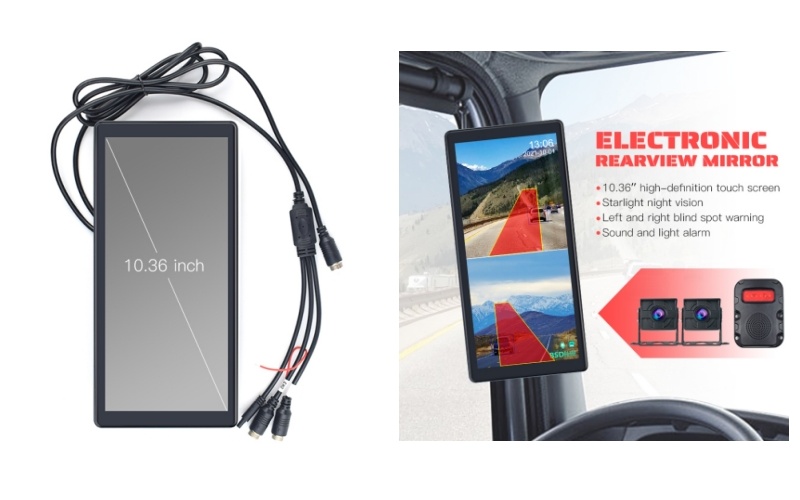

10.36 Inches Commercial Truck Bus Camera Monitor System for Safety and Security
Looking for a state-of-the-art commercial truck camera system that caters not just to trucks but to all vehicles? Your search ends with TOPTREE. You never miss a beat, ensuring the utmost safety, minimized risks, and optimal efficiency. This unparalleled blend of features has made us the first choice for businesses across multiple sectors.
Experience the precision of our high-resolution recording, capturing every detail around the clock. The Camera Monitoring System improves the truck's aerodynamics and reduces the energy consumption. It offers improved direct vision, enhanced night vision and reduced blind spot areas close to the truck.
Features:
Improved vision
The removal of the mirrors results in increased direct vision since there are no mirror housings blocking any parts of your view. The Camera Monitoring System also means improved rear view vision during rain as well as a reduction in disturbance from direct sunlight. All contributing to a better driver experience.
Zoom out
When precise manouvers are needed, the Camera Monitoring System assists by letting you zoom in for a more focused view, or zoom out for a wider angle. A smart toggle lets you shift between different fields of view, narrow or wide angle.
Cameras for you view

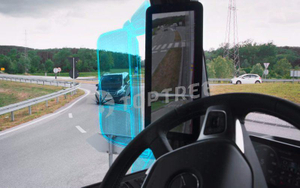

The Camera Monitoring System includes two cameras. One on the driver side and one on the passenger side. The cameras provide main rearview and wide-angle rearview.

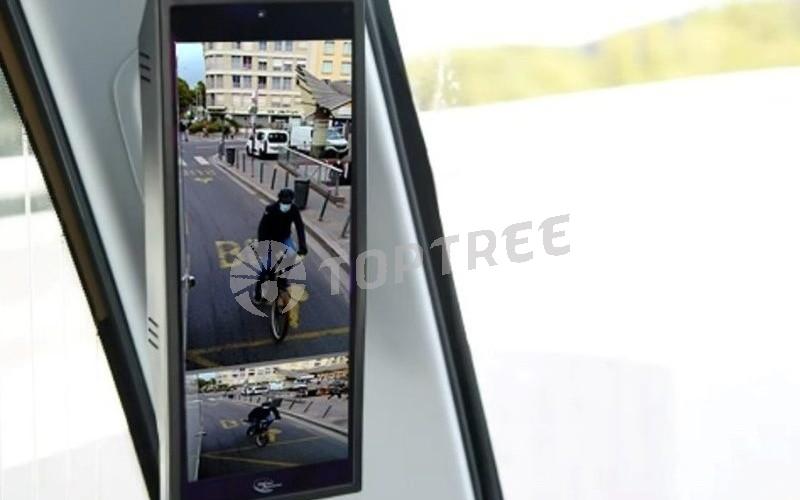

Multiple displays
The system offers multiple views on different screens. The main rearview and the wide-angle rearview are shown on the monitors. The front close-up mirror is right where you expect it to be, and it offers a perfect view of the area near the truck in front of the cab.
Specifications:
Screen Type: TFT-LCD
Screen size: 10.36 inches
Pixels: Number of Pixels: 720 (RGB) * 1600 (pixel)
Screen backlight: LED
Brightness: 800cd/m2
Visual range: Active Display Area: 248 (W) x 113 (H) mm
Viewing angle: 80/80/80/80 (L/R/U/D)
Power supply: DC InPut 12V-24V MAX: 35V
Power Consumption: About 6W
Signal interface (s): 2 channels 720P video input
Video format: System: PAL/NTSC/AUTO
Language Menu: China, UK, Japan, South Korea
Operation Method: Touch screen, buttons, infrared remote control (customized)
Image mirroring: Left/Right
Wake free voice control: Open screen, close screen, open front/left/right/back road

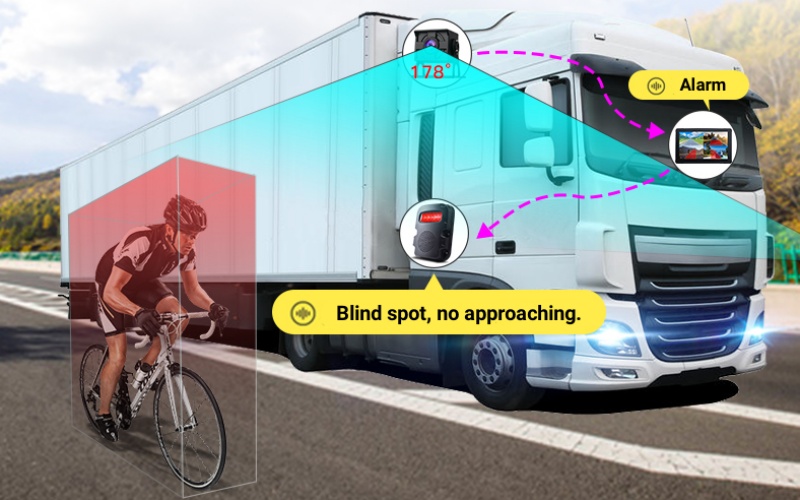

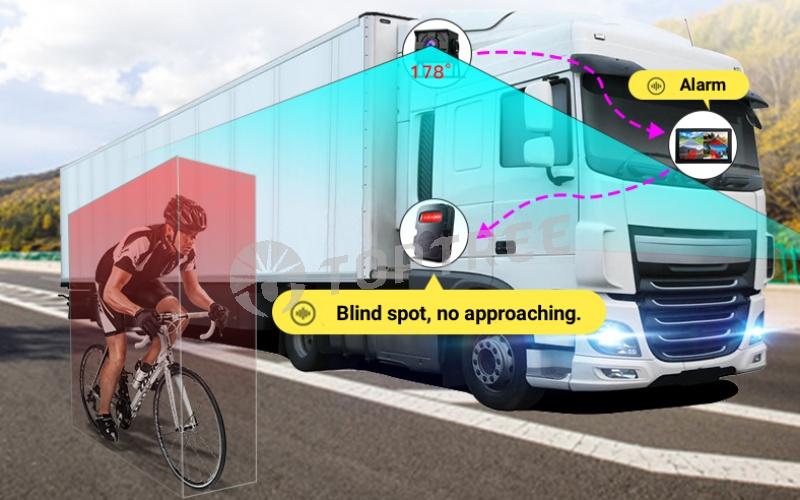

Blind spot warning function: BSD: Supports dual blind spot warning, adjustable warning range, and supports pedestrian reminder (sound and light alarm)
Video storage: Regular high-speed TF card, supporting up to 256G (self purchased)
Operating Temperature: -20-70 ℃

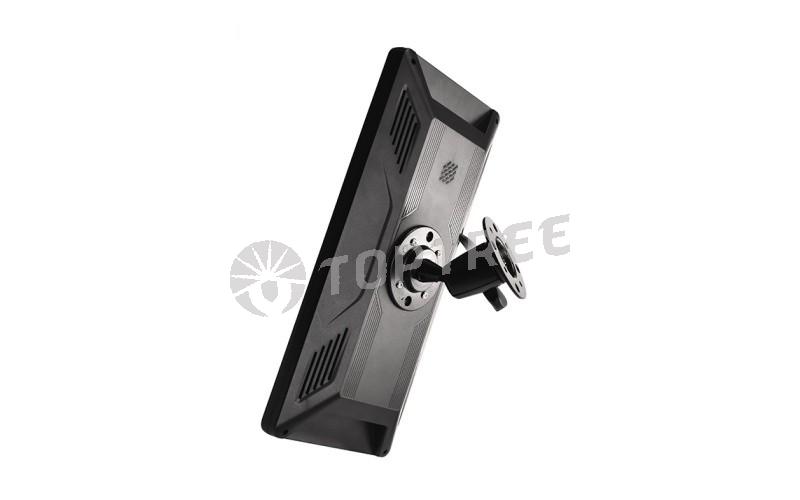

Outline Dimension: 128 (W) x 270 (H) mm
