720P 1080P Truck Side Mirror Camera LED Electronic Rearview Mirror Blind Spot Cover

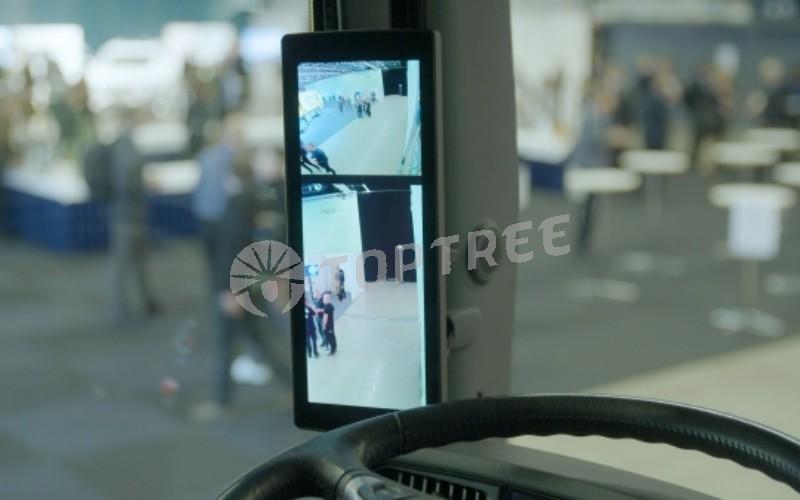

The Digital Mirror System enhances driver visibility by providing a clearer and wider view around the truck – during the day, at night, and in inclement weather. The large high-def interior displays put the mirror view image in an easier-to-see position keeping the driver's eyes closer to the road. Technology innovations allow you to track your vehicle around a corner through any driving environment.
Whether reversing, driving or parking, this fully integrated, multi-camera solution gives visibility into common vehicle blind spot areas. Built with larger vehicles in mind, the two camera system, with optional cameras to personalize the experience, and customized user interface.
Components of a Truck Camera Mirror System:
1. Cameras: High-definition cameras are mounted on strategic locations around the truck, such as the sides and rear.

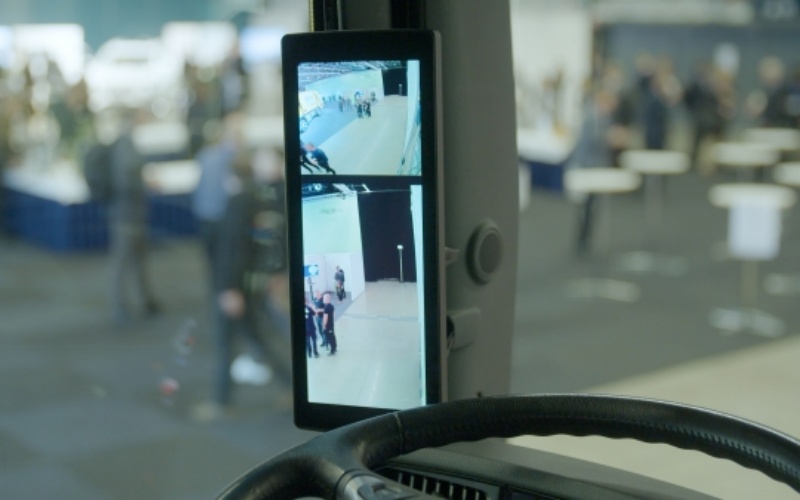

2. Displays: Inside the truck’s cabin, there are displays (often screens integrated into the dashboard) that show real-time footage from the cameras.
3. Software and Processing: Advanced software processes the camera feeds to provide clear, real-time images to the driver.
Advantages:
1. Improved Visibility: Camera systems can offer a wider field of view compared to traditional mirrors, reducing blind spots and enhancing overall visibility.
2. Better in Low Light: Cameras can provide enhanced visibility in low-light conditions or adverse weather, where traditional mirrors might be less effective.
3. Customization: Drivers can often adjust camera angles and settings for optimal visibility, enhancing safety and comfort.
4. Reduced Aerodynamic Drag: Removing traditional mirrors can improve the truck's aerodynamics, potentially leading to fuel savings over time.
Specifications:

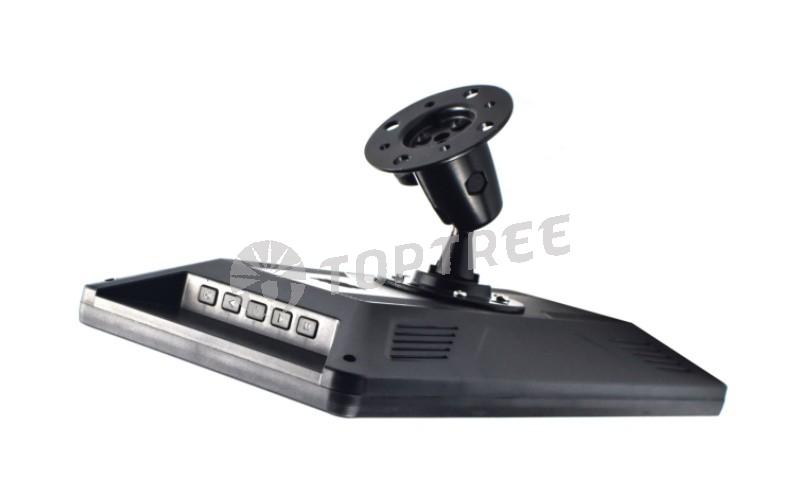

Screen Type: TFT-LCD

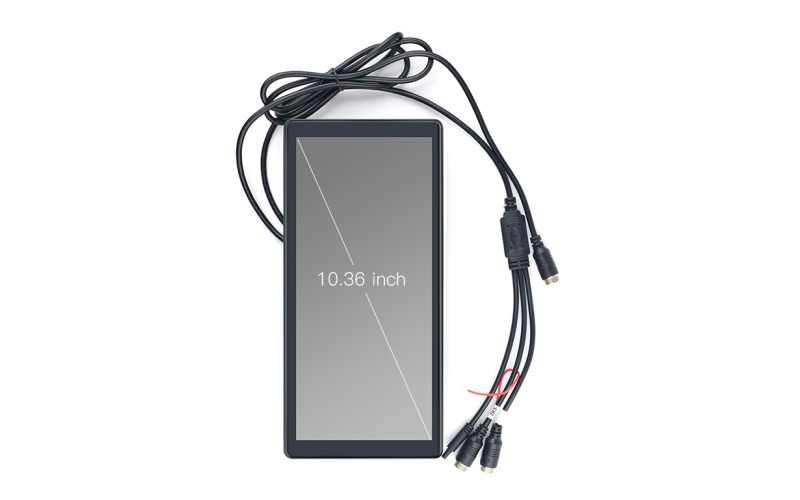

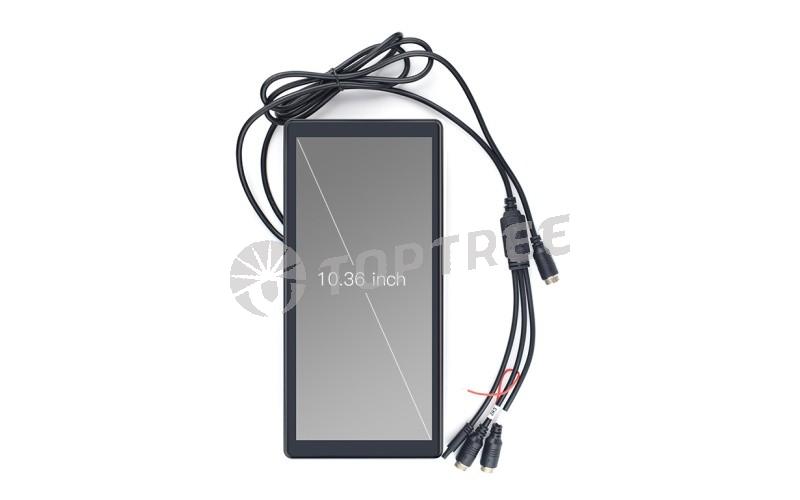

Screen size: 10.36 inches
Pixels: Number of Pixels: 720 (RGB) * 1600 (pixel)
Screen backlight: LED
Brightness: 800cd/m2
Visual range: Active Display Area: 248 (W) x 113 (H) mm
Viewing angle: 80/80/80/80 (L/R/U/D)
Power supply: DC InPut 12V-24V MAX: 35V
Power Consumption: About 6W
Signal interface (s): 2 channels 720P video input
Video format: System: PAL/NTSC/AUTO
Language Menu: China, UK, Japan, South Korea

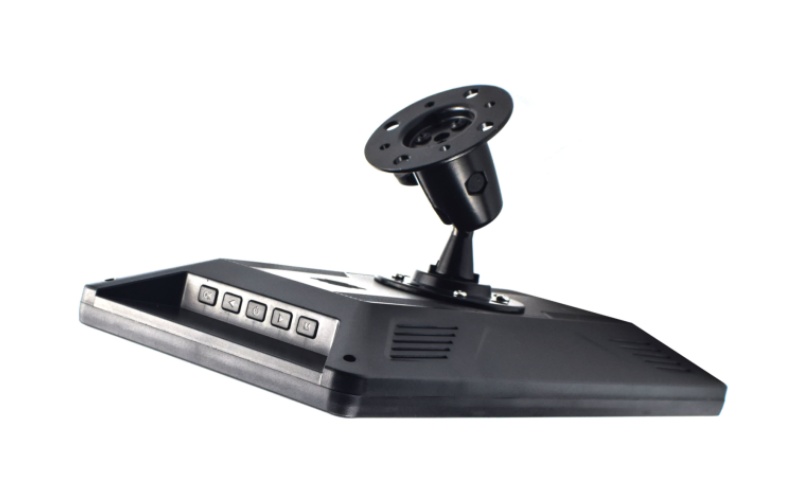

Operation Method: Touch screen, buttons, infrared remote control (customized)
Image mirroring: Left/Right
Wake free voice control: Open screen, close screen, open front/left/right/back road

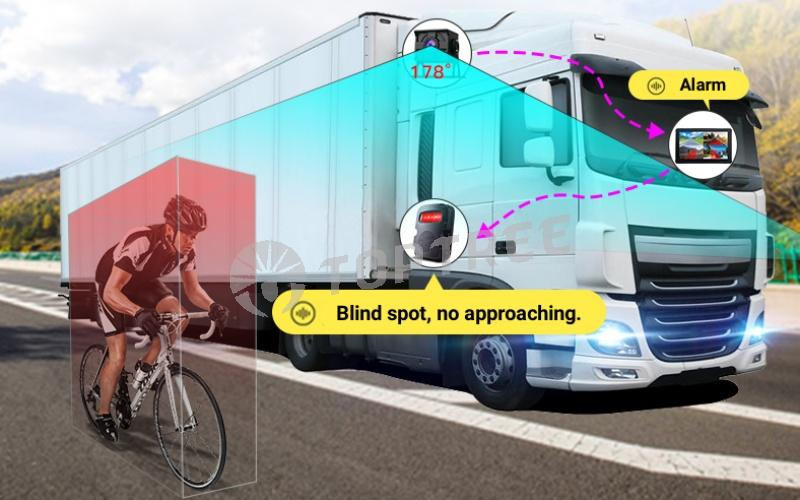

Blind spot warning function: BSD: Supports dual blind spot warning, adjustable warning range, and supports pedestrian reminder (sound and light alarm)
Video storage: Regular high-speed TF card, supporting up to 256G (self purchased)
Operating Temperature: -20-70 ℃
Outline Dimension: 128 (W) x 270 (H) mm
