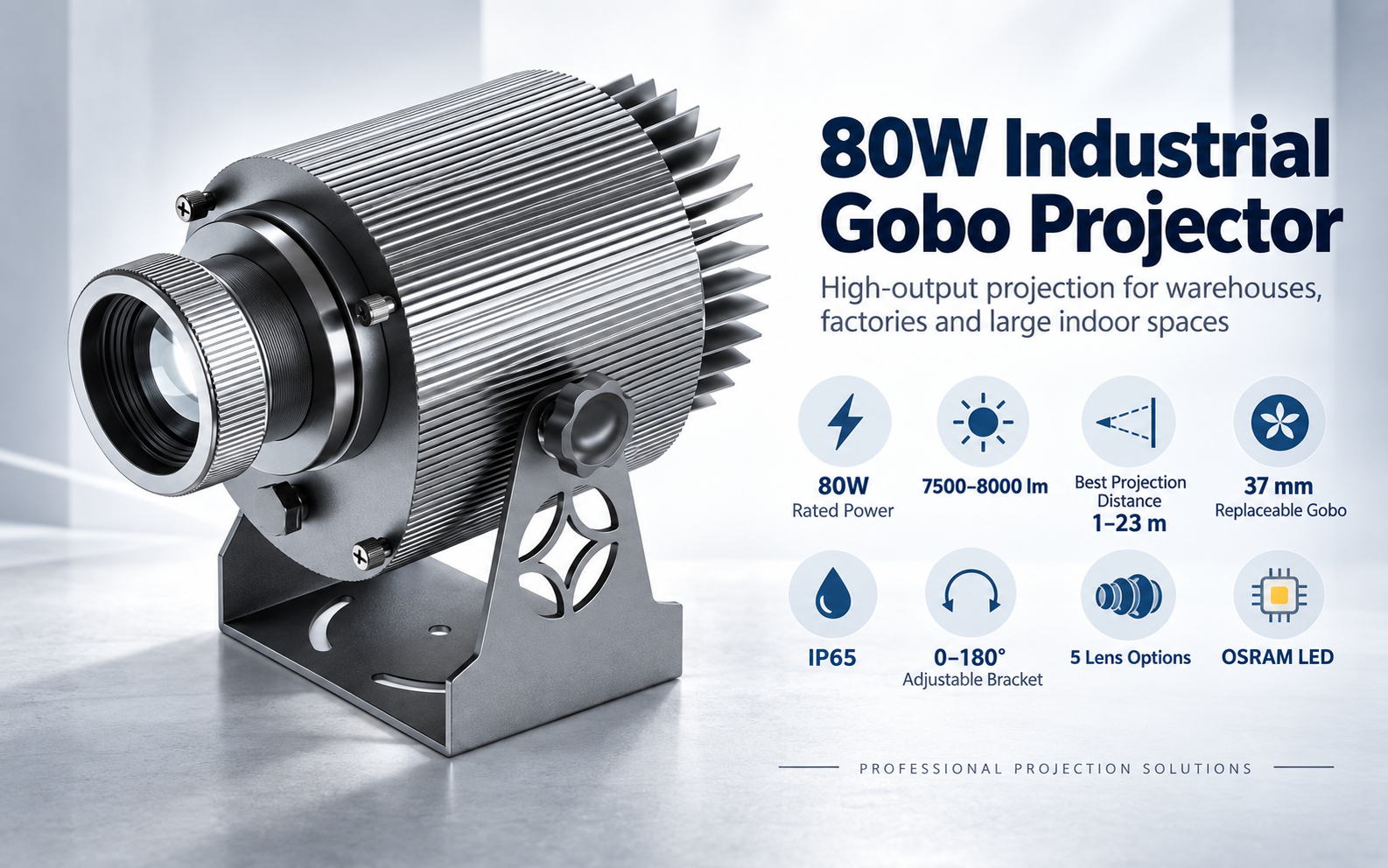

7,500–8,000 lm
At least 30,000 hours
80w
IP65

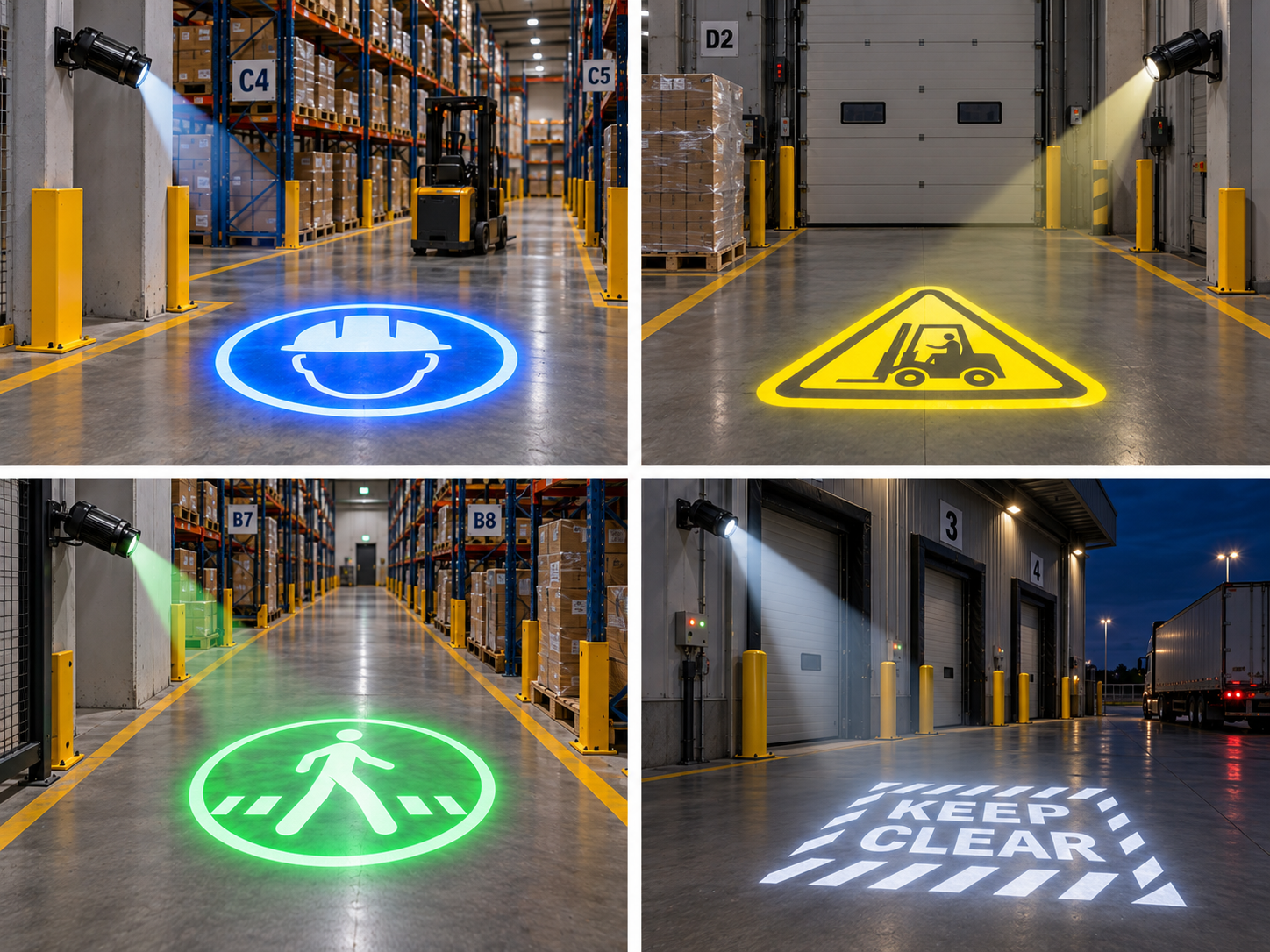

In a large warehouse or factory, painted markings can fade, become hidden by pallets or require downtime to change. An 80W LED gobo projector places clear safety symbols, boundaries and directional graphics where operators and visitors need them.

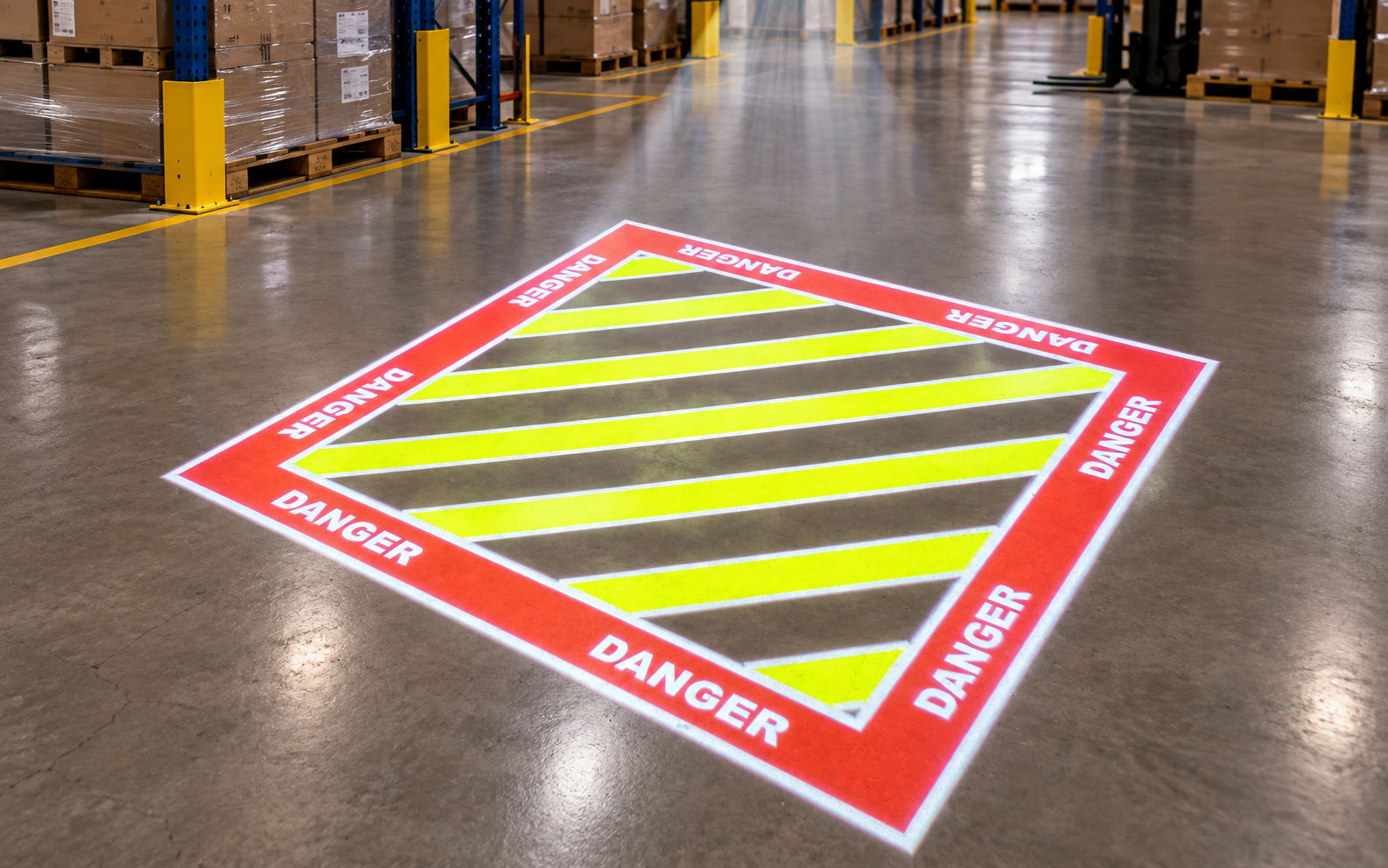

Mark areas below or beside crane operations with a visible warning symbol so the boundary is easier to understand from a distance.

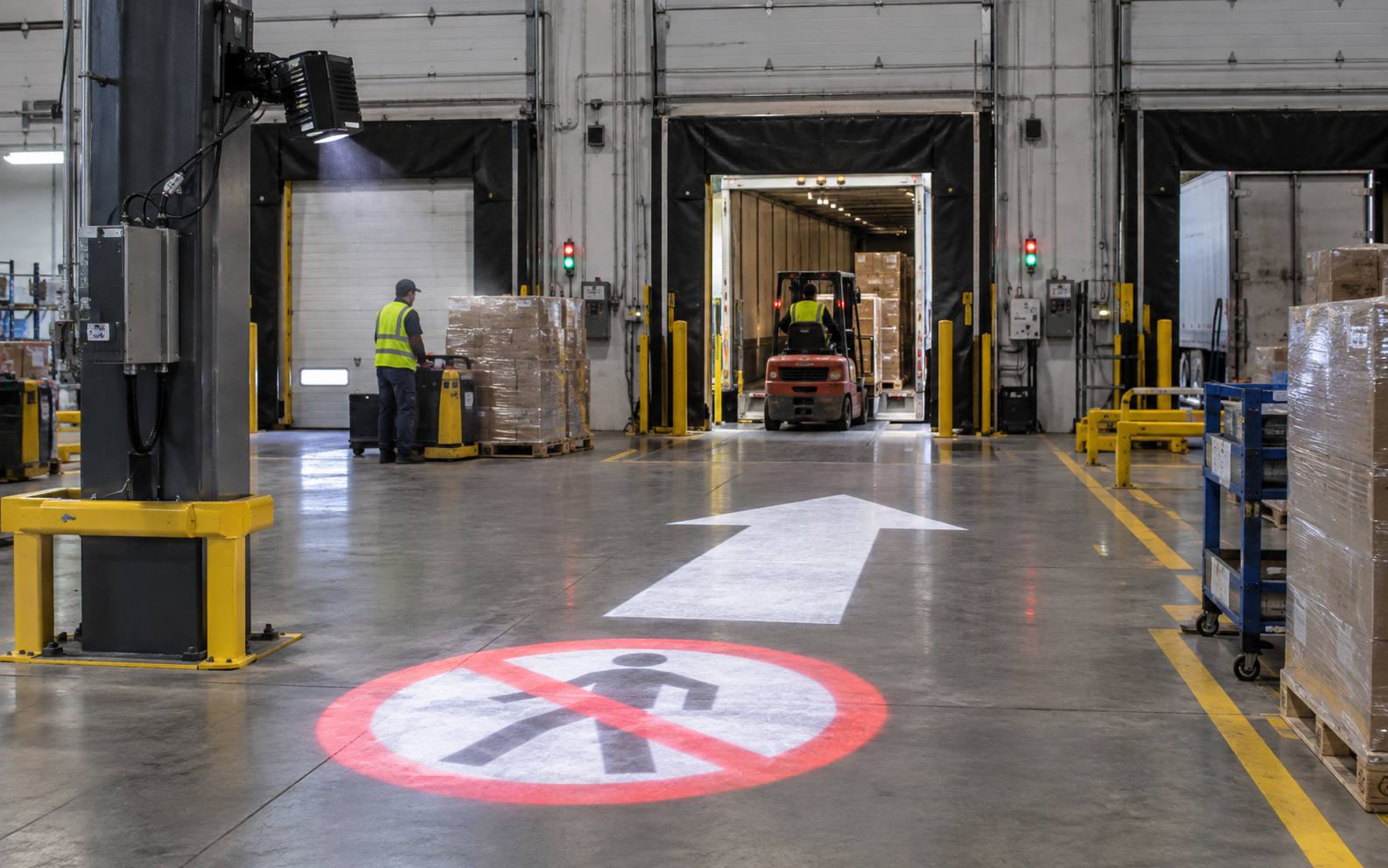

Use projected lane symbols and crossing graphics at intersections, dock approaches and mixed-traffic areas.
Project temporary staging limits, directional arrows or restricted-zone graphics when pallets, vehicles and work cells change frequently.
Identify machine access areas, inspection points and service zones without adding permanent floor paint.
Use this table to select a power level according to projection distance, image size and ambient light.
Specification | 35W | 50W | 80W | 100W | 120W |
|---|---|---|---|---|---|
Listed luminous flux | 3,000–3,500 lm | 4,500–5,000 lm | 7,500–8,000 lm | 9,500–10,000 lm | 11,500–12,000 lm |
LED service life | ≥30,000 h | ≥30,000 h | ≥30,000 h | ≥30,000 h | ≥30,000 h |
Recommended projection distance | 1–9 m | 1–16 m | 1–23 m | 1–26 m | 1–30 m |
Gobo size | 37 mm | 37 mm | 37 mm | 37 mm | 37 mm |
Lens options | 11° / 17° / 28° standard / 36° / 53° | ||||
Bracket adjustment | 0–180° | ||||
Available effects | Water ripple / pattern / special effects | ||||
Housing finish | Silver-white or black | ||||
Use a rigid wall, column or overhead structure. Keep the projected area clear of pallets, vehicles and moving equipment, then lock the adjustable bracket after aiming.

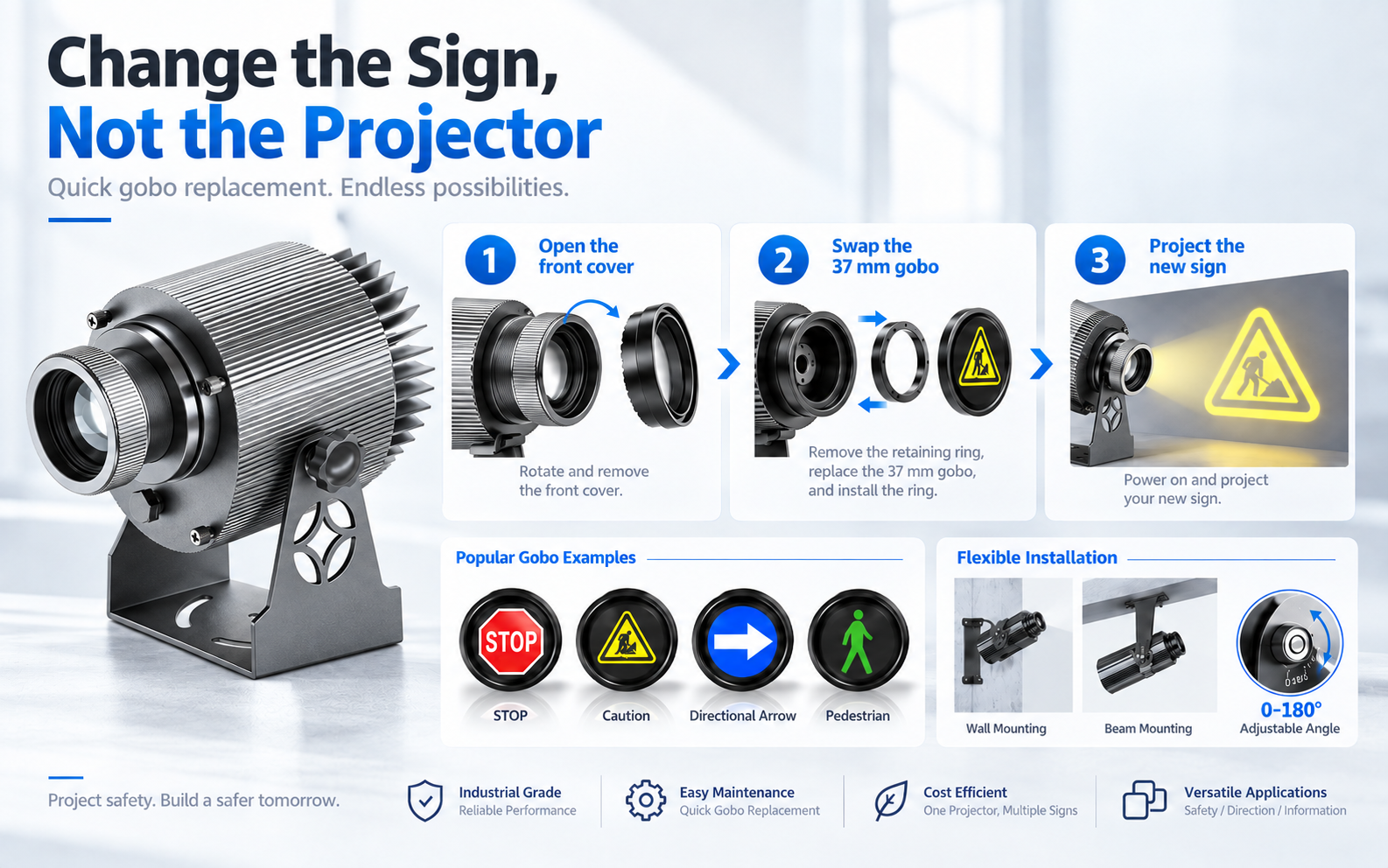

Disconnect power and allow the fixture to cool. Remove the front cover, release the retaining ring, replace the gobo and reinstall the components before checking focus and orientation.
Choose 80W when the target surface is farther away, the image needs to be larger or the installation is in a broad industrial area. The recommended range is 1–23 m.
The projector is IP65-rated for indoor and outdoor use, but it must not be immersed in water. Mounting and electrical protection should suit the site.
Yes. The 37 mm gobo is replaceable. Provide the artwork and confirm the compatible gobo specification before production.
The 28° lens is standard. Other lenses and water-ripple, pattern or special effects should be confirmed with the order.
Send your site photo, mounting height, projection distance, desired image width and safety graphics. We can help match the 80W output, lens and gobo to your working area.
