TPN140
LED
7 Inch
Red / Blue
140W
10-32V
Spot / Line
IP67
2 Years
CE, RoHS, LVD, ISO, Patents
Custom logo, packaging
7 INCH 140W CRANE SAFETY ZONE LIGHT
PRODUCT INFORMATION：
Description:

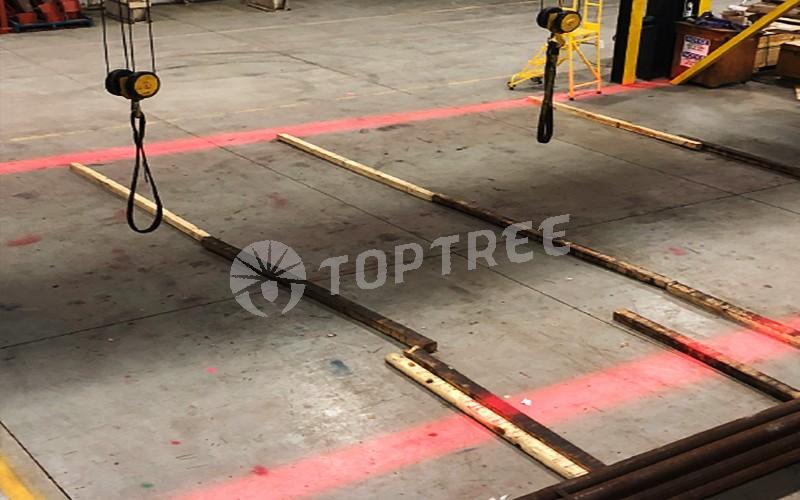

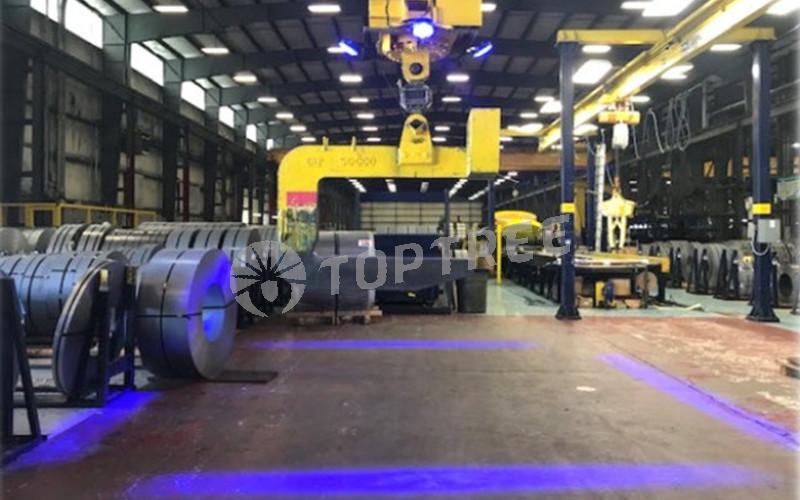

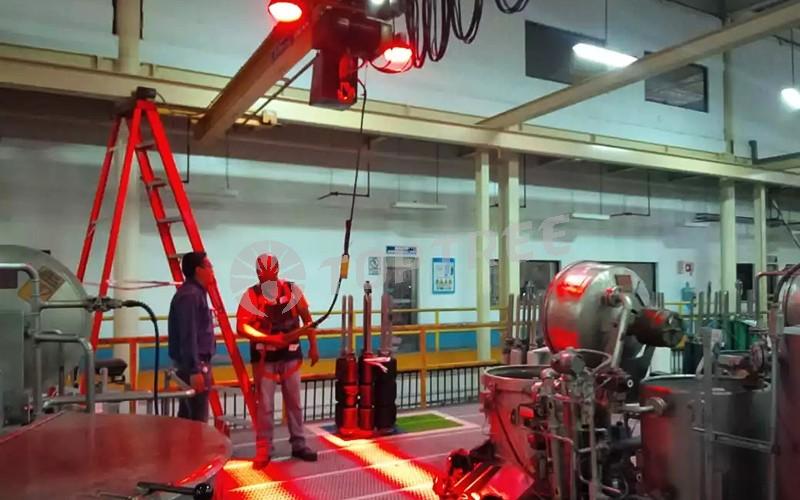

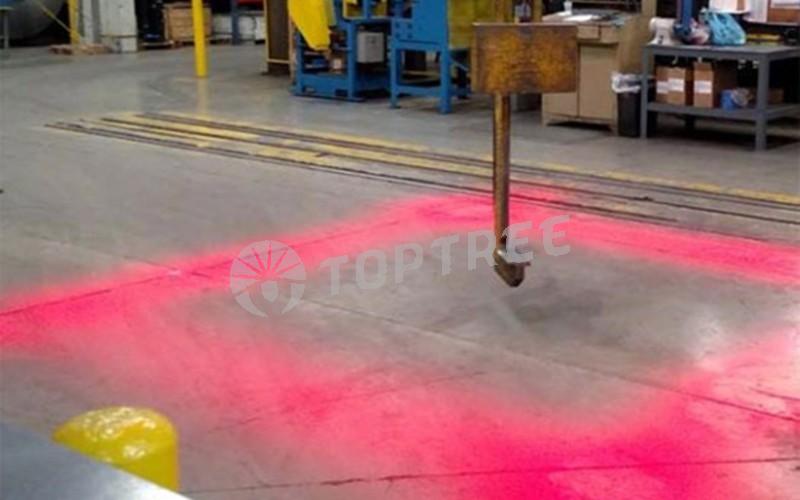

Led spotlight mounted on overhead crane.Available in red or blue.150 degree up/down mounting bracket allows precise positioning of beam on floor below.Beam is usually positioned so pedestrians below are aware of the presence of the hook above them.
Red LED safety lights project a bright red-colored beam of light to give workers and pedestrians clear visual warning. Red is a highly visible color that’s often used to signal potential danger. Our products allow construction equipment such as cranes to project these red visual warnings which is more effective than sound alarm systems.
Features:
1. Smaller size with light weight, more flexible for installation and application 2. Higher brightness 3. More appropriate for standard environment 4. Also good to be used on big industrial trucks |
Specification
Part: TPN140 Wattage: 140W Current Draw: 11.6A@12V, 5.8A@24V Operating Voltage:10-32V Beam Pattern: Spot/Line Lens Material: PC Housing Material: Aluminium Alloy IP Rating: IP67 Working Temperature: -45-80℃ | Mounting Hardware: M10 Bracket Adjustment: 150 degree up/down. Cable Length: 3 meters (9.84') Connectivity: cable Lifetime: 50000 Hours Approval: CE RoHS Warranty: 2 Years Packing: One light in one Individual box, 6PCS in one carton. G.W.:20KG; Size:54*27.5*48.5cm |

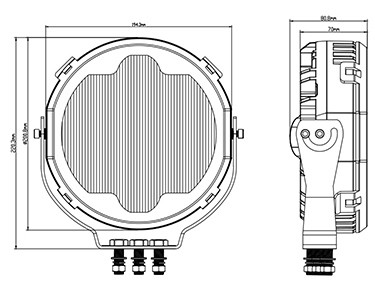

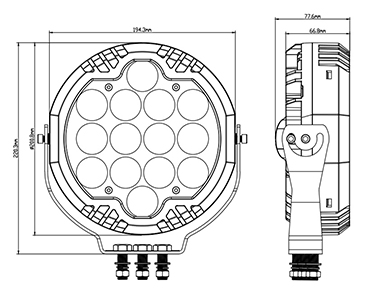

PRODUCT DIMENSIONS
 |  |  |
North American Master Distributor for US and Canada
www.forklifttrainingsystems.com
info@forklifttrainingsystem.com
614-583-5749
