TOPTREE LED Beacon Safety Warning Lights Emergency Strobe Lights for Vehicles

TOPTREE LED Beacon Safety Warning Lights Emergency Strobe Lights for Vehicles

This beacon lights provide the utmost versatility. This LED Beacon features multiple mounting options and the brightest LED chips in the industry. This LED light packs a very powerful punch in an extremely small package. The LED Beacon is a rugged and low profile LED light that provides 360-degree warning.

FEATURES:

- Ultra-compact design with high light intensity

- Small but mighty, diameter 110mm

- 3 different mounting options-Screws/Magnetic/Flexible Din

- 10 different flash patterns

- Approval in accordance with ECE (R10 and R65 TA1/TB1/TR1) and SAE (J845 Class 1) CISPR 25 Class 3

- IP67 waterproof

- Fit for agricultural vehicle, tractor, engineering truck etc.

SPECIFICATIONS:

(TP-W003-11A Screw mounting)

Theorectical power: 24W

PCS LED´s : 24PCS*1W(3030)

Voltage : 10-30 VDC

Consumption (w) : 22.5W(amber);19.5W(red); 16W(blue)

IP-class: IP67

Colour housing: Black

Colour lens: Amber/Red/Blue

Connection: open end

Mounting method: Screws

Material housing: ADC12

Material lens: Polycarbonate

Operating temperature: -40°C–+65°C

Size:φ110*45mm（screws)

Memory function, synchronization function at least 4pcs

(TP-W003-12A Magnetic mounting)

Theorectical power: 24W

PCS LED´s : 24PCS*1W(3030)

Voltage : 10-30 VDC

Consumption (w) : 22.5W(amber);19.5W(red); 16W(blue)

IP-class: IP67

Colour housing: Black

Colour lens: Amber/Red/Blue

Connection: cigar lighter

Mounting method: Magnetic

Material housing: ADC12

Material lens: Polycarbonate

Operating temperature: -40°C–+65°C

Size: φ110*55.8mm(magnetic)

Memory function, synchronization function at least 4pcs

(TP-W003-13A Flexible DIN)

Theorectical power: 24W

PCS LED´s : 24PCS*1W(3030)

Voltage : 10-30 VDC

Consumption (w) : 22.5W(amber) ;19.5W(red); 16W(blue)

IP-class: IP67

Colour housing: Black

Colour lens: Amber/Red/Blue

Connection: open end

Mounting method: Flexible DIN

Material housing: ADC12

Material lens: Polycarbonate

Operating temperature: -40°C–+65°C

Size: φ113.4*110.5mm(flexible DIN)

Memory function, synchronization function at least 4pcs

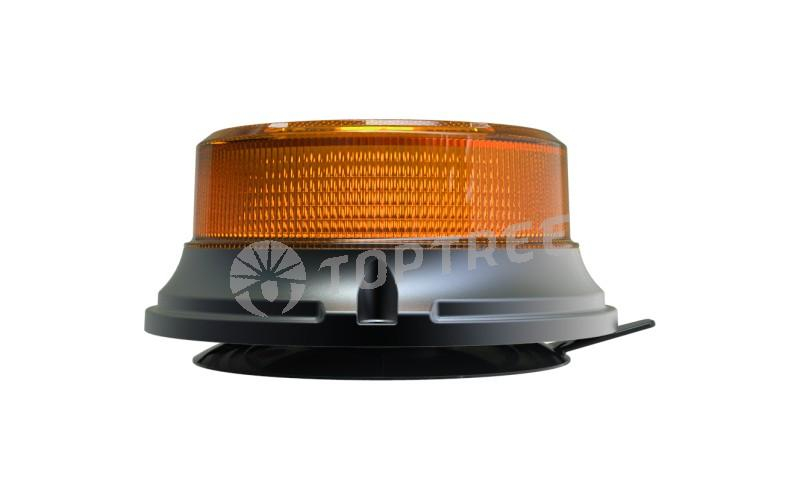

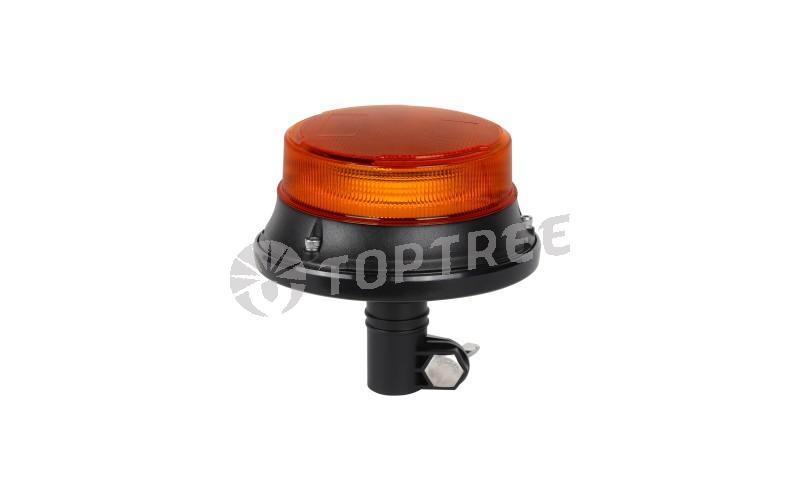

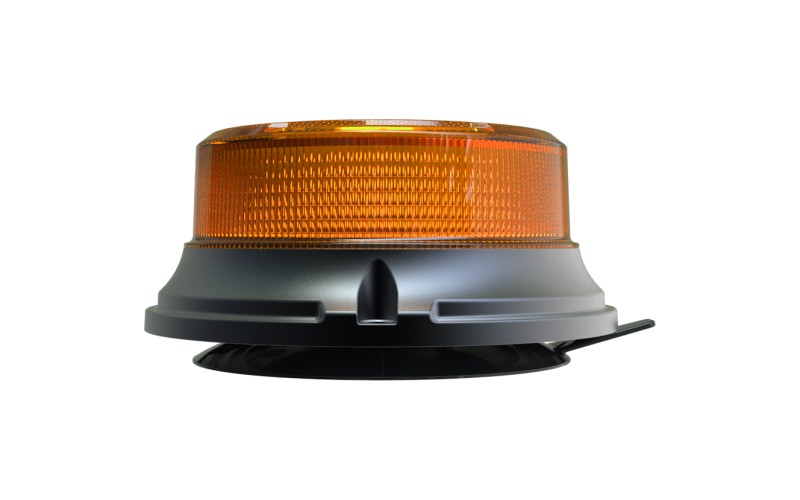

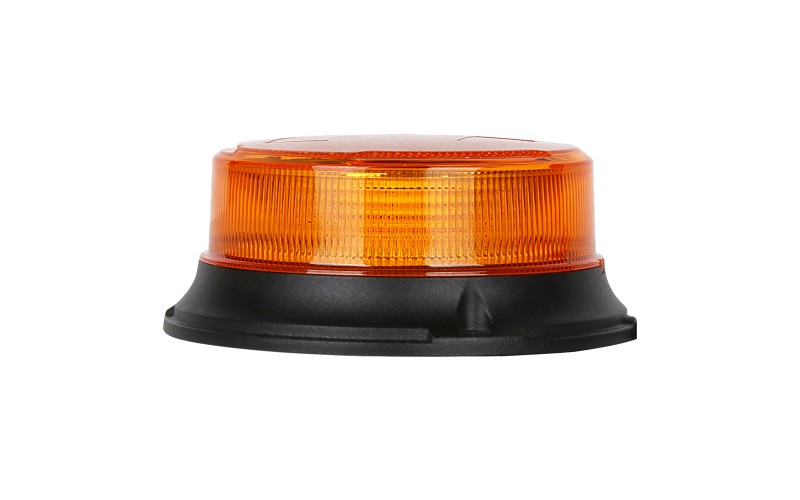

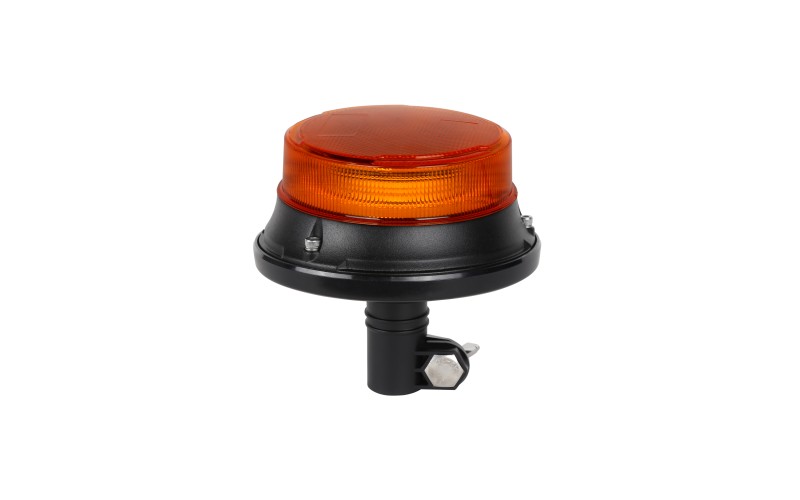

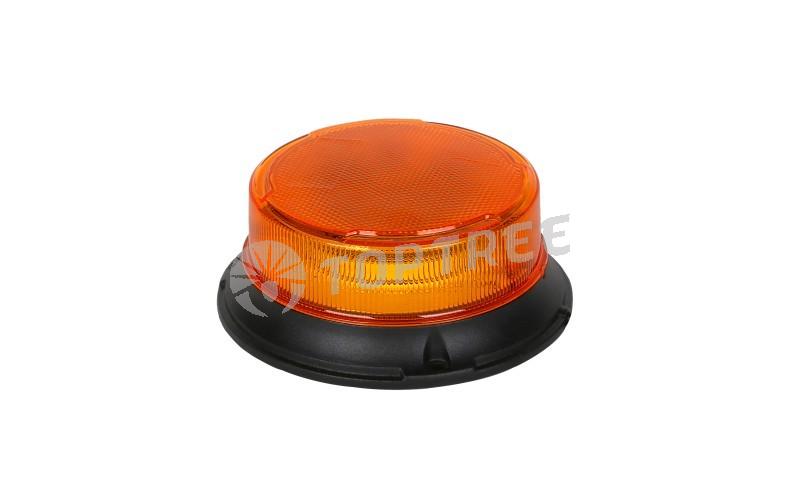

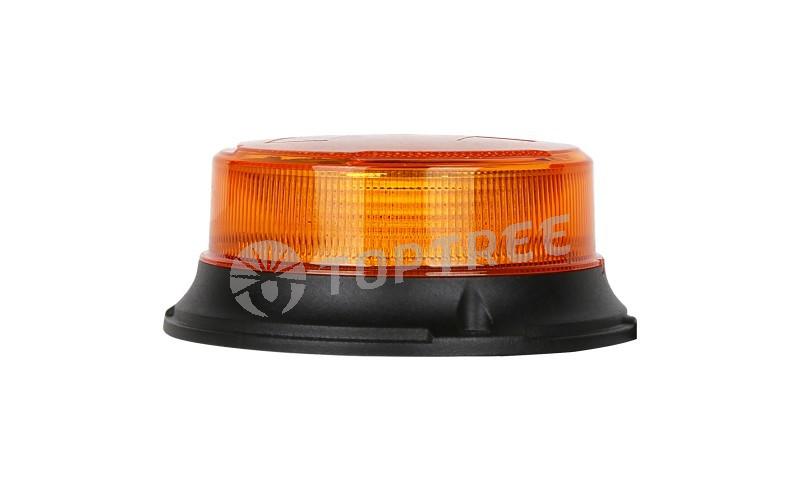

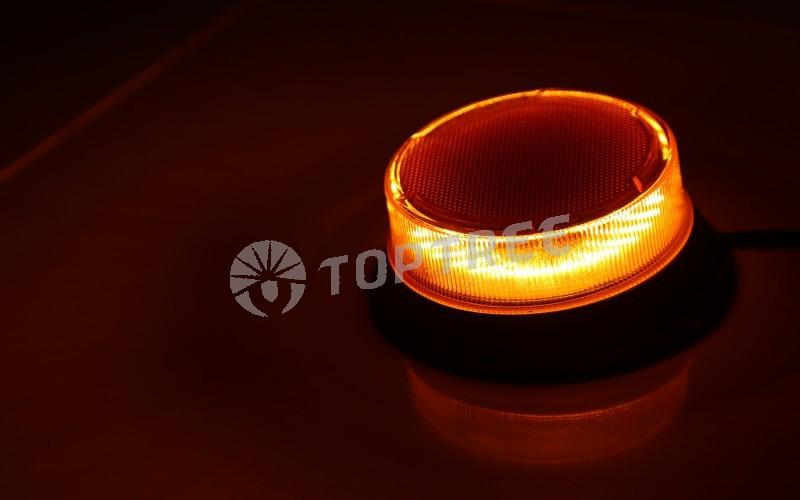

PICTURES:
