English
TPJG01
0.02A@12V, 0.008A@24V
200mW
10-80V
Red/Green Line
IP67
2 Years
CE RoHS
Custom logo, packaging
TOPTREE TPJG01 Forklift Laser Safety Light – Green / Red Line Beam
Enhance Forklift Safety with a Visible Laser Zone

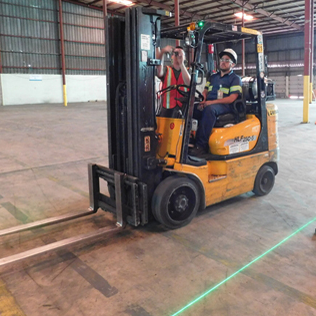

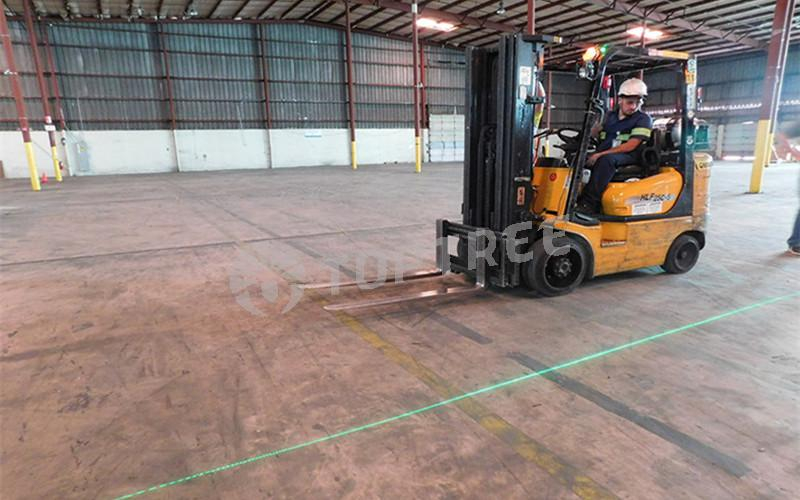

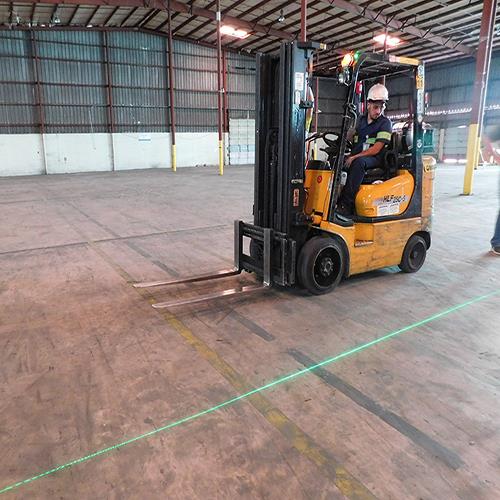

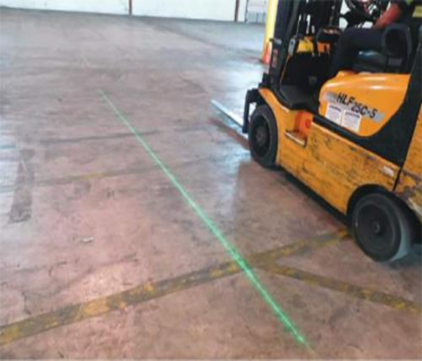

The TOPTREE TPJG01 Forklift Laser Safety Light projects a bright green (or optional red) laser line onto the floor, helping operators and pedestrians identify the forklift’s danger zone. This visual safety boundary reduces accidents and enhances workplace awareness in warehouses, factories, and logistics centers.
With a 9–80V wide voltage range, the TPJG01 is compatible with all forklift types — diesel, gas, or electric. Its compact 3×3 cm body, magnetic base, and adjustable mounting bracket make installation fast and maintenance simple.
★ Projects a clear exclusion zone around the forklift to improve pedestrian safety
★ Compatible with 9–80V systems, suitable for all forklift models

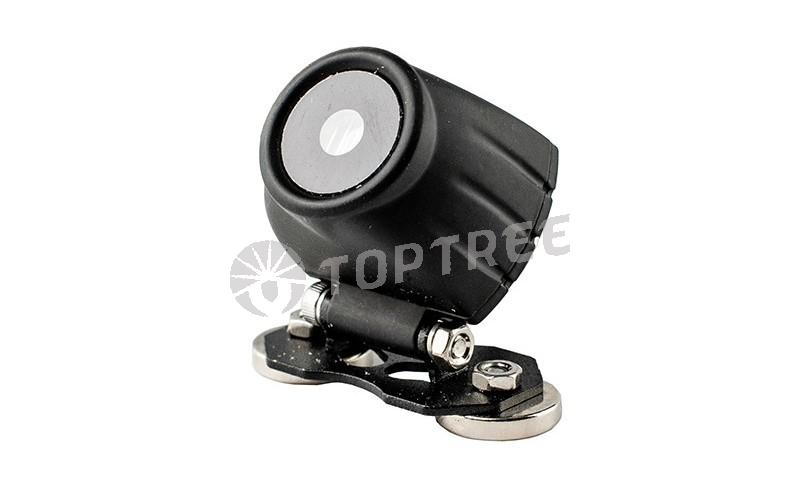

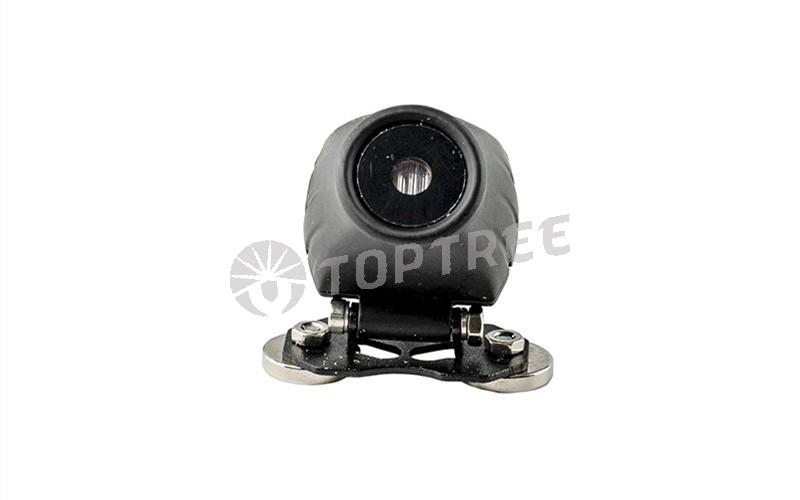

★ Compact design (3×3 cm) and magnetic mount for easy installation
★ Durable aluminum housing (ADS12) with excellent heat dissipation
★ IP67 waterproof and dustproof for harsh industrial environments
★ Factory direct supply, with global OEM/ODM and distributor opportunities
● Warehouses and distribution centers
● Manufacturing and logistics facilities
● Forklift and AGV pedestrian safety systems
● OEM integration or retrofit projects
● Dealers and safety product distributors
| Specification | Details |
|---|---|
| Model | TPJG01 |
| Wattage | 200MW |
| Operating Voltage | 10-80 V |
| Current Draw | 0.02A@12V, 0.008A@24V |
| Beam Pattern | Red/Green Line |
| Housing Material | ADS12 casting aluminium with heat sink |
| Lens Material | Polycarbonate (PC) |
| IP Rating | IP67 |
| Operating Temperature | –45 °C to +80 °C |
| Mounting Hardware Included | M10/M8 bracket, angle adjustable 150° up/down |
| Life Span | Approx. 50,000 hours |
| Warranty | 2 years (standard) |
| Cable Length | 0.25 meters (0.82') |
| Connectivity | Cable |
| Approval | CE RoHS |
| Packing | One light in one Individual box, 20PCS in one carton. G.W.:5kg; Size:34*27*21cm |
● Improve Pedestrian Safety: A visible laser line establishes a clear exclusion zone, helping prevent accidents between forklifts and pedestrians.
● High Compatibility & Flexibility: Works with a broad voltage range (10-80V) and minimal change needed across fleets.
● Durable for Industrial Use: Designed to withstand tough warehouse conditions with IP67 protection, rugged housing, and long life.
● Easy Installation & Retro-fit: Compact, magnetic design makes mounting quick, reducing downtime and disruption.
● Factory Direct + Distributor Friendly: Toptree offers direct factory pricing, OEM/ODM support, and global distributor partnerships—ideal for safety equipment channel sales.
Q1: Can I choose between red and green laser colors?
Yes. The TPJG01 comes standard with a green laser for best visibility. Red is available upon request.
Q2: Will it fit my forklift?
Yes — its 9–80 V range supports almost all forklifts, reach trucks, and AGVs.
Q3: How do I install it?
Simply mount the light using the magnetic base or the included adjustable bracket. Connect to the vehicle’s power system — no complex setup required.
Q4: Is it safe for operators’ eyes?
Yes. The light complies with Class III laser safety standards and is safe when used as directed.
Q5: Can I become a distributor?
Yes! We are seeking regional distributors and safety partners globally. Contact us for details.
1. Industry-Leading Expertise
With over 10 years of experience in industrial safety solutions, we specialize in developing advanced visual warning systems for warehouses, logistics, and hazardous zones.
2. In-House R&D and Engineering
We own a professional R&D team focused on lighting technology, ensuring continuous innovation and customization capability for clients with different safety needs.
3. Certified Quality and Compliance
All products meet international safety and quality standards (CE, RoHS, etc.). Every unit undergoes strict QC testing before shipment.
4. Scalable Production Capacity
We operate a modern manufacturing facility with scalable production lines, supporting bulk orders and fast lead times without compromising quality.
5. Global Client Base
Trusted by Fortune 500 companies, regional distributors, and safety integrators across North America, Europe, Southeast Asia, and the Middle East.
6. Reliable After-Sales Service
Our dedicated support team offers fast response, technical guidance, and warranty support to ensure long-term satisfaction.
At our manufacturing facilities, we employ a range of advanced testing equipment to guarantee the highest product quality and reliability. Each piece of equipment plays a vital role in inspecting, measuring, and validating product performance before shipment.
Drop and Vibration Test
EMC Test
Hi-Low Test
IP69K Standard
Lumen Test
Optical test Dark Room
Salt Spray Test
SMT
UV Accelerated Weathering Tester
Vehicle lighting test system for DOT
