Crane warning lights can mean three different products: floor-projection lights that travel with an overhead load, signal beacons that communicate crane status, or aviation obstruction lights fitted to tall cranes. This guide compares ten suppliers that manufacture in Germany, maintain a German sales presence, or actively serve German buyers. It is a practical sourcing shortlist, not an official ranking.
For an indoor overhead crane, begin with TOPTREE, Konecranes, Schminke Krantechnik, Aledo, or GoboPro. For machine-status signaling, compare Pfannenberg and WERMA. For tower-crane aviation marking, Lanthan and Quantec Signals are more relevant.
A crane warning light is a visual signaling device fitted to a crane, hoist, trolley, or nearby structure to make a lifting hazard or crane operating state easier to notice. Depending on the design, the light may project a colored spot beneath the hook, draw one or more lines around the load path, display a symbol on the floor.
For indoor overhead cranes, the most common products are downward-facing LED lights. The light moves with the bridge, trolley, or hook and creates a visible reference on the floor. A spot normally shows an approximate hook position. A line, rectangle, or circle communicates a wider area that pedestrians should avoid. These systems are often called crane safety lights, crane zone lights, overhead crane warning lights, or virtual exclusion-zone lights.
Crane warning lights are awareness aids rather than active protective devices. A basic projector does not detect a person, stop the crane, calculate the falling-load zone, or confirm that an area is safe. It should support—not replace—the site’s lifting plan, pedestrian controls, training, alarms, guarding, supervision, and prohibition on standing beneath suspended loads.
An industrial LED, lens, and reflector or optical assembly shape the emitted light into a spot, line, circle, square, or symbol. The fixture is normally mounted to the trolley or crane structure and aimed toward the floor. When connected to the appropriate crane circuit, the light can operate continuously while the crane is energized or switch in response to travel, hoisting, remote-control mode, or another defined condition.
The projected pattern moves with its mounting point. A trolley-mounted spot can follow the hook area, while bridge-mounted line lights can indicate the approaching edges of the crane. Four line projectors may be arranged to form a rectangular boundary, although the final geometry changes with mounting height, lens angle, and crane movement. Commissioning must confirm that the projection corresponds to the intended warning area throughout the operating range.
Visibility is not determined by wattage alone. Lens efficiency, beam angle, projection distance, floor reflectance, ambient illumination, dust, steam, shadows, and viewing direction all affect what workers can see. A lower-power focused light may outperform a higher-wattage wide beam in a particular setting, so a representative site test is more useful than comparing wattage in isolation.
Painted lines and fixed signs remain in one place, while a bridge crane and its load move through the building. A crane-mounted light can follow the trolley or bridge and provide a changing visual cue near the current lifting activity.
Machinery noise, hearing protection, and multiple audible alarms can make sound difficult to interpret. A distinct floor projection adds a separate visual channel. It should complement any required audible signal rather than automatically replacing it.
A downward spot can give the operator and nearby personnel another reference for the approximate hook position, especially when the hook is high or surrounding equipment makes it difficult to see. The light is a positioning aid, not a precision measuring instrument.

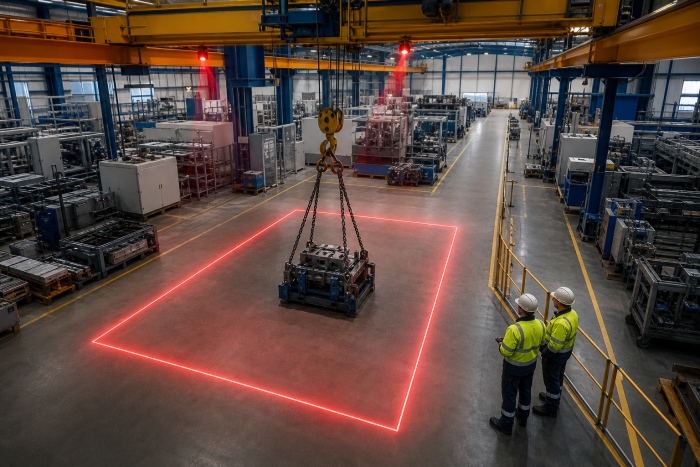

A spot can indicate location, parallel lines can show an approach corridor, and four lines or a circle can make a larger exclusion zone more intuitive. Custom gobo projectors can display a warning symbol or short instruction when the mounting height and ambient light allow it to remain legible.
Crane warning lights are often sold by color, beam pattern, light output, voltage, and intended mounting height. “Model” should therefore mean more than a wattage number. The correct configuration combines a suitable color, optical pattern, electrical design, housing, bracket, and control method.
Option |
What workers see |
Common use |
Main limitation |
|---|---|---|---|
Red spot light |
One bright red point or circle |
Hook-position awareness and a simple danger cue |
Does not show the full load footprint |
Blue spot light |
One bright blue point or circle |
Hook-position awareness where blue contrasts better with the floor |
May conflict with existing site or vehicle signals |
Red line light |
One sharp red line |
Marking an approach edge or one side of a danger zone |
Multiple units are needed for a closed boundary |
Blue line light |
One sharp blue line |
Boundary marking where blue offers better site contrast |
Color suitability must be tested and standardized |
Four-line zone system |
Rectangle or square around the working area |
Making a wider moving exclusion zone visible |
Requires alignment of several fixtures and allowance for load size |
Gobo symbol projector |
Warning triangle, STOP symbol, or custom marking |
Communicating a specific instruction or changing status |
Detailed symbols lose clarity in bright light or at long distances |
Flashing beacon or signal tower |
Colored flashing or steady status signal |
Crane motion, remote mode, overload, fault, or readiness |
Does not show where the suspended-load zone is located |
Aviation obstruction light |
Red or white light visible around a tall structure |
Marking tower and mobile cranes to aircraft |
Not a pedestrian warning system |
Red is widely understood as a danger or stop-related color and creates an intuitive warning in many factories. It is often a sensible starting point for a moving exclusion boundary. However, red may be less distinctive where the floor, process equipment, vehicle lamps, or other warning devices already produce strong red signals.
Blue can create high visual contrast in some industrial environments and is commonly offered for crane spot and line projectors. It is not automatically more visible, and its meaning is not universal. Blue should be checked against plant color conventions, emergency signals, vehicle lighting, and the actual floor under both daytime and night-shift conditions.
Do not install red and blue together simply because both are available. One consistent color is usually easier to understand unless the site has deliberately defined separate meanings for each color and trained personnel accordingly.
A spot is best when the main question is “Where is the hook or center of the load?” It uses one fixture, is comparatively simple to aim, and can assist positioning. The weakness is that a point does not show the width of the load or the required clearance around it.
A line is better when the main question is “Which boundary should people not cross?” One line can mark an approaching edge; two can indicate a corridor; four can outline a rectangle. Line systems require more careful alignment and should be positioned outside the foreseeable load envelope rather than tightly around an empty hook.
TOPTREE manufactures visual safety lighting for cranes, forklifts, and industrial vehicles and supplies buyers in Germany through international sales. Its crane range includes red or blue LED lights that project a spot beneath the hook or a line around a moving hazard zone. The company is particularly relevant to distributors, crane retrofitters, and buyers seeking private-label or application-specific orders.
The TOPTREE crane safety light range covers several output levels for different mounting heights and ambient-light conditions. The TPN140, for example, is presented as a 140 W spot-or-line unit with 10–32 V DC input, an IP67 housing, and an adjustable mounting bracket. Buyers should still validate visibility at the actual installation height and measured floor illuminance before approving a model.
Best for: OEM/ODM sourcing, distributors, replacement projects, red or blue floor marking, and facilities that need a configurable beam pattern.
Konecranes offers one of the clearest crane-specific retrofit portfolios available to German buyers. Its safety-light packages use red or blue light to reflect the hook, trolley, or bridge position on the floor. Published options include spots and lines for lower installation heights, plus projector packages that draw circles or squares at greater heights.
The main advantage is integration support. Konecranes can evaluate mechanical fixing, crane power, control logic, and compatibility as part of a broader retrofit. The packages are described as compatible with multiple types and makes of lifting equipment, although the mechanical installation may vary.
Hamburg-based Pfannenberg develops industrial signaling equipment and publishes a dedicated crane-lighting application. Its solutions address operating status, wind, load, remote control, motion, and overload signals on mobile, tower, and container cranes. This is status signaling rather than a floor-projected exclusion zone.
Pfannenberg highlights its Quadro LED-TL traffic light for crane applications, including automatic brightness adjustment for day and night use. The company also provides optical and acoustic signaling devices, which is useful when a risk assessment calls for more than one warning channel.
Schminke Krantechnik offers the SAFETYSPOT KRAN for German industrial users. The system projects visible red and green warning spots onto the work area below the hoist so personnel can notice an approaching crane or suspended load. The supplier states that the light can activate automatically when the crane is switched on.
Schminke is attractive when the project also needs crane-service knowledge. A local specialist can assess mounting access, cable routing, switching, and inspection requirements rather than supplying only a loose fixture.
Aledo supplies CRANE-series LED projectors designed to outline danger zones around large suspended loads. Its German application page describes gobo-glass projection for overhead cranes at mounting heights of five metres or more, including a 300 W configuration.
A gobo is a patterned insert that shapes projected light into a symbol, line, or boundary. This approach is useful when a simple spot does not communicate enough information. However, the buyer must define the required projection size, floor brightness, mounting distance, switching behavior, and gobo artwork before quotation.
GoboPro markets projectors specifically for cranes, factories, steel mills, shipyards, construction sites, and warehouses. Its crane solution can project boundaries or messages such as a stop marking beneath active equipment. The projected content can also change with equipment status when the projector is connected to the appropriate control signal.
GoboPro is a strong candidate when custom communication matters more than a standard red or blue line. Buyers should test legibility at the intended mounting distance and ambient lux level. A detailed symbol may work in a dim hall but become difficult to read on a bright or reflective floor.
Lanthan manufactures aviation obstruction-light systems in Germany and offers a dedicated Tower Crane System. Its crane package is a preassembled, plug-and-play system for two to four low-intensity obstacle lights, with backup power options. Lanthan also offers pendulum-mounted solutions intended to keep lights upright on mobile cranes.
This category warns aircraft; it does not warn pedestrians beneath an indoor overhead crane. The correct configuration depends on the crane height, location, operating envelope, aviation-authority requirements, and the applicable marking concept. Buyers should obtain project-specific confirmation instead of selecting only by candela value.
Quantec Signals develops obstruction-warning systems for tower cranes. Its published crane control system can connect multiple individual or redundant lights and includes power provision and an interface for potential monitoring integration. The company positions its solutions around German AVV requirements and ICAO guidance.
Quantec should be shortlisted when redundancy, monitoring, centralized control, or a complete tower-crane lighting architecture is more important than buying a single beacon. As with any aviation application, the site approval basis should be established before the equipment schedule is finalized.
WERMA is a German signaling-device manufacturer with a broad portfolio of beacons, signal towers, horns, and system-connected indicators. It also publishes obstruction-light products for marking structures in accordance with the relevant planning requirements.
WERMA is most useful when the crane warning light is part of a machine-control system: for example, a green state for ready, amber for restricted operation, and red for a fault or hazardous state. Signal meaning must be documented consistently across the facility, and the selected device must suit the viewing distance, ambient brightness, ingress exposure, voltage, and control interface.
HELLA’s VISIOTECH LED Projection Module projects a recognized hazard symbol or danger-zone marking. The product is promoted for dynamic hazardous situations and uses a rugged housing designed for shock, vibration, dust, and water exposure. Its published application examples focus on mobile equipment rather than overhead cranes.
For that reason, HELLA belongs on the shortlist as an adjacent technology supplier, not as a turnkey overhead-crane specialist. A crane integrator must verify projection geometry, mounting security, electrical compatibility, control logic, and whether the displayed symbol is suitable for the site risk assessment.
Decide whether the light must show a position, boundary, operating state, or tall structure. If several messages are needed, separate devices may be clearer than asking one fixture to do everything.
Measure the vertical and horizontal distance from the proposed mounting point to the target area. Record the brightest ambient-light condition, floor material and color, operating temperature, dust, water, vibration, and any corrosive or potentially explosive atmosphere.
Select a spot for location, a line for an edge, several lines or a ring for an area, and a beacon for status. Then compare red and blue on the actual floor and confirm that the chosen color has one unambiguous meaning in the facility.
Check available voltage, AC/DC supply, current, protection, connector, and cable length. Define exactly when the light activates. A light that stays on when the crane is inactive may eventually lose its warning value; a light connected to motion or lifting status may provide a clearer signal when correctly engineered.
The bracket must withstand crane vibration and keep the beam aligned. Confirm mounting access, fastener locking, secondary retention where required, cable strain relief, clearance from moving parts, and whether the installation affects the crane’s inspection or conformity documentation.
Run a controlled trial during the brightest and darkest working periods. View the projection from pedestrian approaches, operator positions, and likely blind spots. Confirm that personnel understand the intended meaning without confusing it with other colored signals.
Include lens cleaning, bracket inspection, alignment checks, cable inspection, functional testing, and replacement-parts availability in the maintenance plan. A working lamp can still be ineffective if the lens is dirty or the beam has shifted away from the intended zone.
Choosing only by wattage without considering optics, height, ambient light, and projected area.
Using a spot when the site expects the light to represent the full suspended-load zone.
Mixing red and blue projections without defining and training workers on separate meanings.
Treating an IP rating as evidence that a fixture is approved for an explosive atmosphere.
Assuming a light is an active pedestrian-detection or crane-stopping system.
Mounting the boundary too close to the hook without considering large, long, or swinging loads.
Connecting the light without reviewing crane voltage, controls, protective devices, and modification requirements.
Skipping a daytime visibility test because the projection looks bright during a night-shift trial.
Failing to inspect alignment after vibration, maintenance, or accidental contact with the fixture.
TOPTREE is a practical alternative when a buyer needs dedicated downward-projection lights rather than a general industrial beacon. Its product range includes compact crane warning lights and high-output zone lights with red or blue spot/line options. Buyers can review the wider crane safety lighting solution to compare layouts for hook indication and moving boundaries.
The main sourcing advantages are product specialization, multiple form factors, low-voltage options, and support for distributor or OEM requirements. TOPTREE can also combine crane lighting with related virtual line laser systems, but LED and laser products must be evaluated separately because their optical risks, visibility, and installation rules differ.
For a useful recommendation, send TOPTREE the crane type, mounting height, photos, measured lighting conditions, supply voltage, target beam shape and size, quantity, destination, and customization needs through the contact page.
There is no universal best supplier. Konecranes and German crane-service specialists suit integrated retrofits; TOPTREE suits configurable projected warning lights and OEM sourcing; Pfannenberg and WERMA suit status signaling; Lanthan and Quantec suit aviation obstruction lighting. Choose by warning function, site conditions, integration scope, and service requirements.
Neither color is always better. Visibility depends on the floor, ambient lighting, competing signals, and the site’s established color logic. Conduct an on-site trial and prevent the new light from conflicting with emergency, traffic, or machine-status meanings already in use.
One spot can show the hook position, while two lines may indicate an approach corridor and four line projectors can outline a box. The correct number depends on the load envelope, crane travel, mounting height, obstructions, and the risk assessment.
Not automatically. Noise, hearing protection, visibility, blind spots, and local procedures determine which warning channels are needed. A combined visual and audible solution may be appropriate, but the decision should follow the machinery and workplace risk assessment.
Requirements depend on crane type, intended warning function, location, and the applicable rules. Aviation obstruction marking may be required for certain tall structures or locations, while indoor projected zone lights are usually supplementary risk controls. Obtain competent, project-specific advice rather than treating one product claim as legal approval.
There is no single limit. Supplier portfolios include solutions for different heights, but usable visibility depends on light output, optics, pattern size, ambient lux, surface color, and contamination. Give the supplier the actual distance and require a representative trial or documented calculation.
The strongest shortlist depends on what “crane warning light” means for the project. TOPTREE, Konecranes, Schminke, Aledo, and GoboPro focus on making an indoor crane or suspended-load zone visible. Pfannenberg and WERMA provide status signaling. Lanthan and Quantec address aviation obstruction marking, while HELLA offers adjacent projection technology for engineered integrations.
Start with the risk and the message the light must convey. Then compare suppliers using mounting height, visibility, projection geometry, power, control logic, environmental resistance, documentation, installation support, and total lifecycle service. That process will produce a defensible purchase decision instead of a specification based only on wattage or price.
