Overhead crane LED warning lights project a bright spot, line, or box-shaped boundary onto the floor beneath a moving crane. They give workers a visual cue that follows the hook or load, which is valuable in noisy factories where an audible alarm may be difficult to locate. Buyers in Turkey can source these products from domestic signaling companies and international specialists that support export or project orders. The ten suppliers below offer crane-specific projection lights or closely related industrial warning systems. Selection should be based on mounting height, beam pattern, floor contrast, voltage, vibration, enclosure protection, documentation, and a site test—not wattage alone.
An overhead crane LED warning light is a directional luminaire mounted on the bridge, trolley, hoist, or another engineered crane location. It points downward and projects a bright shape on the floor. Because the light moves with the crane or trolley, it can draw attention to the changing operating area more effectively than a fixed painted boundary.
The light does not detect people, stop the crane, measure load swing, or prove that an area is safe. It is not the same as a rotating beacon, stack light, projected laser line, anti-collision sensor, load indicator, or audible alarm. Each device communicates a different condition. A site may use several together, provided workers understand what each signal means.
An overhead crane can move while many workers are looking at machines, materials, or vehicles at floor level. Factory noise, hearing protection, structural obstructions, and repeated alarms can make it hard to identify where a sound is coming from. A moving floor projection adds a location-based visual cue.
The strongest applications are usually high-noise manufacturing bays, steel processing, mold handling, assembly plants, warehouses, maintenance facilities, and shipyard workshops. Warning lights can also give the crane operator a visual reference for hook positioning. Benefits may include earlier awareness, clearer communication of crane movement, easier retrofit than a complete detection system, and lower marking wear than floor paint.
The limitations are equally important. Bright sunlight or strong high-bay lighting can wash out the projection. Dark, colored, wet, polished, or cluttered floors change contrast. Dust on the lens reduces output. A line can be mistaken for the exact edge of danger even though loads vary in size and may swing beyond it. Workers can also become accustomed to a projection that remains on continuously.

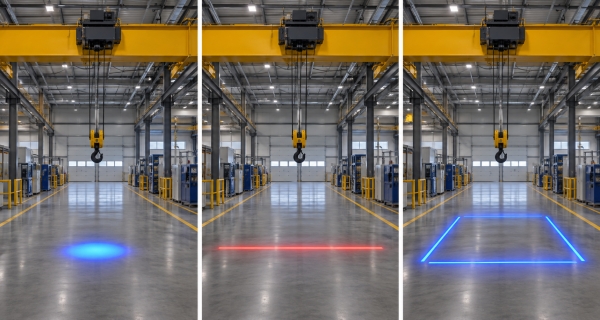

Pattern | What it communicates | Suitable applications | Main limitation |
|---|---|---|---|
Spot | Approximate position of the hook, trolley, or moving crane reference | Hook positioning and simple pedestrian awareness | Does not show load width or travel boundary |
Single line | A moving boundary on one side of the crane path | Pedestrian aisles beside a runway or process line | One line may not make the full restricted area obvious |
Two parallel lines | A corridor beneath or beside the crane travel path | Long bays and predictable load movement | Corridor width must allow for the largest load and possible swing |

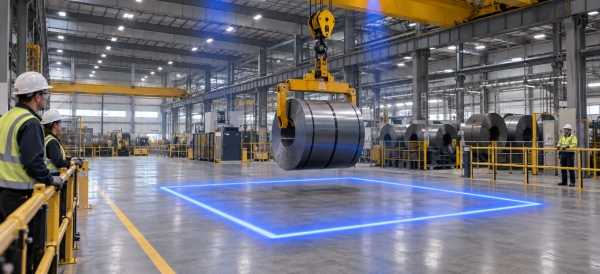

Four-line box | A visible perimeter around the working area | Defined lifting cells and high-pedestrian areas | Requires more lights, wiring, aiming, and maintenance |
Projected symbol | A word or pictogram on the floor | Fixed-language or site-specific warnings | Image clarity falls quickly when angle, distance, or floor condition changes |
Beacon or stack light | Crane state, direction, or alarm condition | Control panels, bridge ends, and general status communication | Does not show the moving hazard location on the floor |
Color should be chosen through a contrast test and aligned with the site’s signaling rules. Blue often stands out on warm-toned or neutral concrete; red may fit an established danger convention. Neither color is universally superior. Avoid using the same color for two different instructions in the same work area.
Mucco Signal is a direct Turkish source for crane safety lighting. Its BL188 product family uses power LEDs and offers red, blue, and white versions in an industrial housing. Published information includes low-voltage DC options, an IP68 protection rating, a stated operating range of -20°C to +50°C, and a two-year warranty. The company also provides drawings and technical-document requests for project work.
Mucco is a logical supplier to contact when local-language communication, domestic delivery, and accessible technical support matter. Buyers should avoid assuming every BL188 variant has identical electrical or optical performance. Ask for the exact SKU, beam shape, current draw, connector or cable arrangement, bracket, projected size at the planned height, and a current declaration package.
TOPTREE manufactures overhead crane safety lights in red and blue spot or line configurations. The range is designed to mount on the crane and project a moving visual reference onto the floor. A spot can indicate the approximate hook position, while line lights can mark a travel-side boundary. Multiple line units can form a visible box around the working area.
For demanding installations, the TPN140 crane safety zone light is published with a 10–32 V DC input, spot or line beam options, an adjustable bracket, and an IP67-rated housing. TOPTREE supports samples, OEM/ODM projects, and volume sourcing. An accurate proposal requires crane height, bridge and trolley arrangement, floor photos, ambient light, voltage, desired pattern, cable length, quantity, and mounting constraints.
SharpEagle offers an overhead crane light in line-beam and spot configurations. Published specifications describe a 72 W, 9–48 V DC product with red light options, an adjustable bracket, and a stated service-life figure. The design targets factories, warehouses, and other sites where the projected cue should move with the crane.
The broad input range can be useful for retrofits, but the electrical interface still needs engineering review. Request the precise current at the crane’s operating voltage, switching method, inrush behavior, cable protection, lens included with the order, and confirmation of the projected spot or line dimensions at the actual mounting height.
Maxtree markets crane warning safety lights that use high-power LEDs to project a focused spot or line beneath an overhead crane. Its product literature includes red, blue, or white choices, low-voltage inputs, adjustable mounting, and rugged industrial housings.
Because Maxtree product pages and distributor listings can show different descriptions, use the manufacturer’s current quotation and data sheet as the purchasing reference. Confirm model code, rated power, delivered optics, IP rating, operating temperature, cable length, labeling, warranty, and whether a sample is available for a Turkish site trial.
TER Tecno Elettrica Ravasi supplies industrial control and signaling products for lifting and machinery applications. Its crane and forklift safety-light range includes red, blue, and white light, with point, linear, and U-shaped projection options. Published material describes low-voltage operation and protection against dust, water, and UV exposure, depending on the selected model.
TER is relevant when a buyer wants the warning light considered alongside pendant controls, limit switches, rotary limit switches, and other crane components. Ask for a model-specific optical drawing, supply voltage, connector detail, enclosure rating, operating temperature, conformity documents, and the sales or service route for Turkey.
Seyconel offers an LED safety light for overhead cranes, gantries, and semi-gantries. The product is available in white, blue, and red and can project a point or line. The supplier also describes using three or four units to create triangle or box-shaped floor boundaries, which makes it relevant for buyers considering more than a single hook-position marker.
For a multi-light layout, request a plan that shows where each unit will be attached and how the lines will overlap at working height. Confirm the supplied power source, bracket, lens, cable, synchronization or switching method, enclosure rating, spare availability, and freight terms before comparing the package with single-light offers.
Transmon’s Crane Warning Light Alert is presented as a high-powered LED spot or line system for overhead-crane workplaces. The concept is to give floor personnel a moving visual warning when factory noise or repeated alarms reduce the effectiveness of sound alone. It may be attractive for projects where the light needs to be switched through an existing crane-control circuit.
Buyers should ask whether the proposed light is supplied as a standalone unit or a complete kit with lens, bracket, harness, protection, and controls. The quotation should identify the supported voltage, current, beam color, projected dimensions, environmental rating, instructions, warranty, and route for technical support in Turkey.
Crane Ex Services supplies an LED overhead-crane spot/line light and presents it within a wider crane inspection, modernization, and engineering offer. The standard concept uses a lens cover to change a spot into a line, and the company discusses using multiple units to form a visible zone around the hook or load.
Razorlux manufactures heavy-duty industrial LED luminaires and markets crane safety-light products with multiple wattages, beam angles, and input options. The range may interest steel plants, shipyards, mining operations, and high-bay facilities where vibration, dust, moisture, or corrosive exposure are important design considerations.
Xinruilai Lighting supplies industrial projection products, including overhead-crane LED warning lights and customizable safety-pattern projectors. Its listed crane product uses a high-power LED source, aluminum housing, tempered-glass lens, stainless bracket, and AC power supply. Custom projection makes the company relevant where a facility wants a symbol rather than a simple spot or line.
Decide whether workers need to see the hook position, crane travel direction, one edge of the operating area, or a complete moving perimeter. A supplier cannot choose the correct optic from crane capacity alone. The largest load, expected swing, pedestrian route, forklift traffic, and lifting sequence all affect the design.

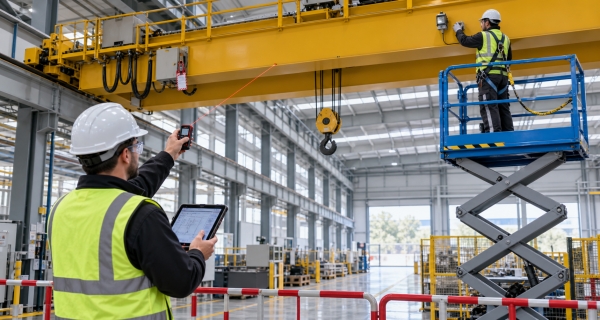

Record the distance from the proposed mounting point to the floor at the highest and lowest relevant crane positions. Measure ambient light during the brightest operating period and photograph the floor dry, wet, clean, and dirty if those states occur. Ask the supplier for projected size and expected appearance at that distance. A trial from the operator’s and pedestrian’s viewpoints is more reliable than a lumen figure.
Crane auxiliary circuits vary. Confirm nominal voltage, permitted range, AC or DC, current draw, inrush, fuse or breaker requirements, grounding, connector, cable movement, and whether the light will switch with the main crane, trolley movement, hoist movement, or a separate control. The crane manufacturer or a qualified crane engineer should approve the connection.
Specify dust, water, washdown, oil mist, vibration, heat, cold, corrosion, outdoor exposure, and hazardous-area classification. An IP rating addresses defined dust and water ingress tests; it does not automatically prove chemical, impact, vibration, salt, or explosion protection. Request evidence for every condition that matters.
For a product placed on the Turkish market, request the applicable conformity declaration, technical data sheet, installation and maintenance instructions, labels, wiring diagram, and Turkish-language information where required. Confirm warranty handling, replacement lead time, spare lenses and brackets, and whether the supplier can review a mounting drawing before shipment.
A useful quotation covers the complete installed concept, not only the lamp. Give each supplier the same information and ask them to list assumptions and exclusions in writing.
Quote input | Information to send | Why it changes the price or model |
|---|---|---|
Crane and task | Crane type, number of cranes, capacity, travel arrangement, load types, and operating hours | Defines quantity, duty, and mounting approach |
Dimensions | Mounting height, bridge and trolley dimensions, desired warning distance, and largest load footprint | Determines optic, output, bracket, and number of lights |
Site visuals | Wide photos, floor close-ups, a short operating video, and a simple layout | Reveals obstructions, floor contrast, pedestrian routes, and cable paths |
Lighting conditions | Ambient-light readings and photos from the brightest shift | Helps the supplier recommend color, beam, and trial requirements |
Electrical data | Supply voltage, AC/DC, available circuit, control signal, cable length, and connector preference | Prevents incompatible drivers and missing electrical accessories |
Environment | Temperature, dust, moisture, washdown, vibration, corrosion, and hazardous-area status | Determines enclosure, materials, testing, and certification needs |
Warning concept | Spot, line, two-line corridor, four-line box, color, and activation logic | Establishes the actual equipment count and control scope |
Ask for the exact model number, itemized accessories, unit and total price, lead time, packing dimensions, freight basis, warranty process, and validity period. If the floor projection is central to the purchase decision, include a sample or site trial in the first quotation. Do not release a volume order from a generic product photo.
One spot light may be enough to show an unloaded hook position. A line on each side usually needs two units, while a four-sided box commonly needs four. The correct number depends on the warning message, crane geometry, load size, mounting points, and blind approaches.
Visibility depends on floor color, ambient light, dust, reflections, distance, and human factors. Blue can contrast well with many factory floors, while red may align with an established danger signal. Test both colors at the intended height and avoid conflicting site color codes.
No. Visual projection and audible warnings address different senses and conditions. The risk assessment should decide how lights, alarms, operator communication, signs, barriers, and procedures work together. A failed or obscured light must not remove the controls needed for safe lifting.
Not by themselves. A projected line shows a selected reference, while the true hazard area changes with load dimensions, rigging, travel speed, height, and swing. Use a conservative offset and train workers that the projection is a warning cue, not permission to stand close to a suspended load.
Only if the selected model matches the circuit and the connection is approved. Verify voltage range, AC or DC, current, protection, grounding, switching, cable movement, and electromagnetic compatibility. A qualified person should design and perform the installation.
Send crane photos, mounting height, bridge and trolley dimensions, largest load size, floor and lighting conditions, supply voltage, desired color and beam pattern, quantity, installation location, and required delivery date. Buyers can compare TOPTREE’s spot and line beam options, and contact the project team for a model-specific proposal.
Select one representative crane and prove the concept before a plant-wide rollout. Ask two or three qualified suppliers for drawings and itemized quotations based on the same site data, then test the preferred color and beam pattern from real viewing positions. A successful system is not merely bright: it communicates one clear message, remains visible through normal operating conditions, integrates safely with the crane, and is inspected often enough to stay correctly aimed.
