English
TPN140
7 Inch
140W
Red / Blue
Spot / Line
1PCS
CE, RoHS, LVD, ISO, Patents
The TOPTREE 7‑inch Crane Safety Zone Light projects a powerful red or blue spot or line beam onto the ground below an overhead crane or hoist, creating a clear warning zone that alerts pedestrians and vehicles to moving loads—enhancing site safety dramatically
| Wattage | 140W | Working Temperature | -45-80℃ |
| Current Draw | 11.6A@12V, 5.8A@24V | Bracket Adjustment | 150 degree up/down |
| Operating Voltage | 10-32V | Cable Length | 3 meters (9.84') |
| Beam Pattern | Spot/Line | Connectivity | cable |
| Lens Material | PC | Lifetime | 50000 Hours |
| Housing Material | Aluminium Alloy | Approval | CE RoHS |
| IP Rating | IP67 | Warranty | 2 Years |
When a single warning spot isn't enough to cover the entire hazard area, you need a more powerful, comprehensive solution. The Toptree 140W Crane Safety Zone Light projects an ultra-bright line of red or blue light. When used in combination, these lights "draw" a complete, enclosed "Safety Zone" or "No-Go Zone" on the ground around the crane hook.
This moving safety zone provides all ground personnel with the most intuitive and expansive safety warning, effectively eliminating catastrophic accidents caused by inadvertently entering a lifting zone.
 |  |  |  |
●Dual Color Options:
Red or blue LEDs to fit your facility’s safety regulations.
●Switchable Beam Patterns:
Includes snap-on lens for spot (hook point) or line (safety boundary) beams.
●Compact & Durable:
ust 7 inches—lightweight die-cast aluminum housing with IP67 protection for outdoor and indoor use.
●Wide Voltage Compatibility:
Accepts 10–32 V DC, ideal for 12 V or 24 V crane circuits.
●High Performance:
140 W draws ~11.6 A @12 V or 5.8 A @24 V; delivers ~14,000 lm lumens.
●Precision Bracket:
150° adjustable mounting bracket for accurate beam placement.
●Long Lifespan & Warranty:
Up to 50,000 h LED life and backed by a 2-year warranty.
Installation is highly flexible.

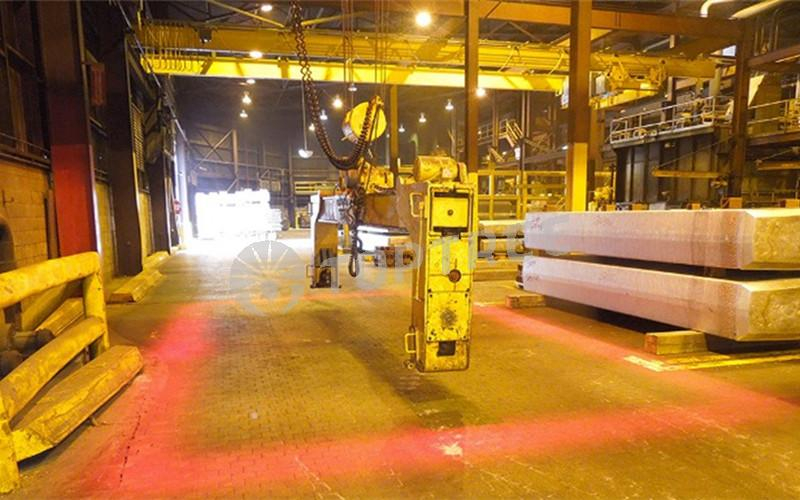

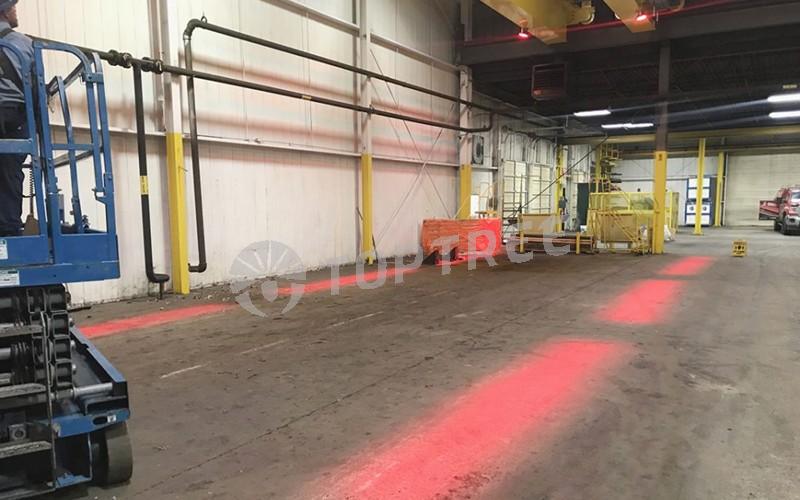

Side Lines: Install one light on each side of the crane's travel path to create parallel safety lanes.
The "Safety Box": The recommended solution. Install four lights, one at each corner of the crane structure, aimed downwards to project a complete, moving rectangular boundary on the floor.
○ Factories & Warehouses – For overhead bridge or gantry cranes

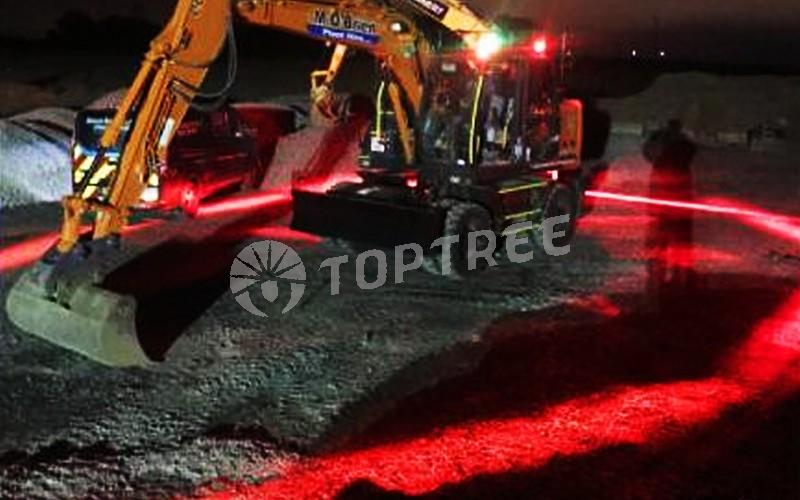

○ Construction Sites – Enhance safety around crane lifting zones
○ Shipping Yards & Terminals – Guide operators and alert ground crews
○ Maintenance & Fabrication Workshops – Mark operational zones during overhead lifts
Toptree’s Overhead Crane Safety Lights are developed and manufactured to meet the highest international safety and quality standards. We are proud to offer a range of certifications that ensure reliability, performance, and compliance in industrial environments.
We are proud to hold:
○ Appearance Design Patent Certificates
○ Utility Model Patent Certificates
○ ISO Quality Management System Certification
○ RoHS Compliance for environmental safety
○ CE & LVD Certifications for EU market standards
Built for Industrial Use
Our certifications are not just paperwork—they reflect our commitment to:
★ Worker safety in hazardous environments
★ Product durability under harsh operating conditions
★ Full support for safety audits and compliance inspections
Utility Model Patent Certificate
Design Patent Certificate
Quality Management System Certification
CE Certification
LVD Certification
RoHS Compliance
1. How many 140W lights are needed to create a full "Safety Zone"?
To create a complete rectangular "box" around the hazard area, you will need four (4) lights. Each light is mounted on one side/corner of the crane, projecting one side of the box. For creating parallel safety lanes along the crane's travel path, you would need two (2) lights.
2. Do overhead cranes need warning lights?
Yes, absolutely. In noisy industrial environments where audible alarms are often ineffective, overhead crane warning lights are critical. They provide a clear, unmissable visual signal on the floor, showing everyone the exact location and travel path of the hook, which is essential for preventing serious accidents.
3. What color options are available?
Toptree crane spot lights are available in red and blue, both highly visible in industrial environments.
4. What’s the difference between spot and line beams?
○Spot beam: A circular light for tracking crane hooks.
○Line beam: A straight beam to mark danger zones.
5. Why choose Red vs. Blue for the warning light? Which is better?
Both colors are highly effective. The choice often depends on the color of your facility's floor and ambient lighting. Blue often appears slightly brighter to the human eye and stands out well on concrete floors. Red is universally associated with "danger" or "stop" and provides excellent contrast on lighter-colored or dusty floors. We recommend testing a sample in your environment, but both are proven to significantly enhance safety.
6. Can this light withstand harsh industrial environments (heat, dust, vibration)?
Yes, absolutely. It's specifically designed for these conditions. The die-cast aluminum housing provides excellent durability and heat dissipation, while the IP67 rating means it's completely sealed against dust and water. It is also engineered to be shock and vibration-resistant, ensuring reliable performance in demanding environments like steel mills and foundries.
7. What is the lifespan of the LED, and is there a warranty?
The high-quality CREE LEDs used in our lights have a rated lifespan of over 50,000 hours, ensuring years of maintenance-free operation. We stand by our quality with a 1-year warranty that covers any manufacturing defects.
8. How many warning lights do I need for one crane?
For most applications, one spot light per hoist/hook is sufficient to clearly mark its position. However, for very large cranes or for creating a larger safety zone, some customers choose to install two or four lights.
9. What is the recommended mounting height?
The light is effective at a wide range of heights. The ideal mounting height is typically between 15 to 30 feet (5 to 10 meters). At this range, the spot on the floor remains bright and well-defined. The adjustable bracket allows you to fine-tune the angle for optimal visibility at any height.
10. Do you offer OEM or customized products?
Yes, we provide OEM and ODM customization, including private labeling, custom light colors, beam patterns, and packaging.
1. Industry-Leading Expertise
With over 10 years of experience in industrial safety solutions, we specialize in developing advanced visual warning systems for warehouses, logistics, and hazardous zones.
2. In-House R&D and Engineering
We own a professional R&D team focused on lighting technology, ensuring continuous innovation and customization capability for clients with different safety needs.
3. Certified Quality and Compliance
All products meet international safety and quality standards (CE, RoHS, etc.). Every unit undergoes strict QC testing before shipment.
4. Scalable Production Capacity
We operate a modern manufacturing facility with scalable production lines, supporting bulk orders and fast lead times without compromising quality.
5. Global Client Base
Trusted by Fortune 500 companies, regional distributors, and safety integrators across North America, Europe, Southeast Asia, and the Middle East.
6. Reliable After-Sales Service
Our dedicated support team offers fast response, technical guidance, and warranty support to ensure long-term satisfaction.
At our manufacturing facilities, we employ a range of advanced testing equipment to guarantee the highest product quality and reliability. Each piece of equipment plays a vital role in inspecting, measuring, and validating product performance before shipment.
Drop and Vibration Test
EMC Test
Hi-Low Test
IP69K Standard
Lumen Test
Optical test Dark Room
Salt Spray Test
SMT
UV Accelerated Weathering Tester
Vehicle lighting test system for DOT
Have questions or need a custom quote? Our expert team is here to help you find the perfect warehouse and pedestrian safety laser solutions tailored to your needs. Contact us today for fast, professional service and support.
Changzhou Toptree Auto Lamp Co.,Ltd
Phone: +86 519 8119 3809
Email: info@toptreesafety.com
WhatsApp: +86-15051960989
We look forward to partnering with you to enhance workplace safety.
North American Master Distributor for US and Canada
Website: www.forklifttrainingsystems.com
Email: info@forklifttrainingsystem.com
Phone: 614-583-5749
