TP917
4.25A@12V, 2.125A@24V
51W (17pcs*3w Cree led)
10-30V
Spot /Flood
IP67
2 Years
CE RoHS

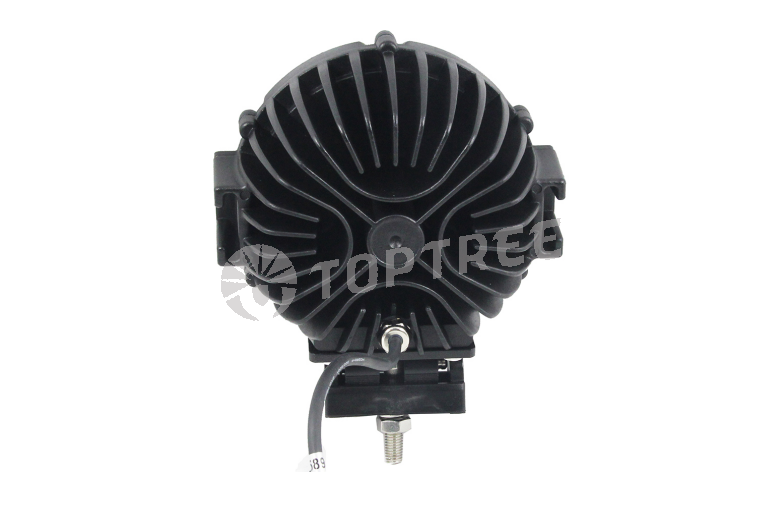

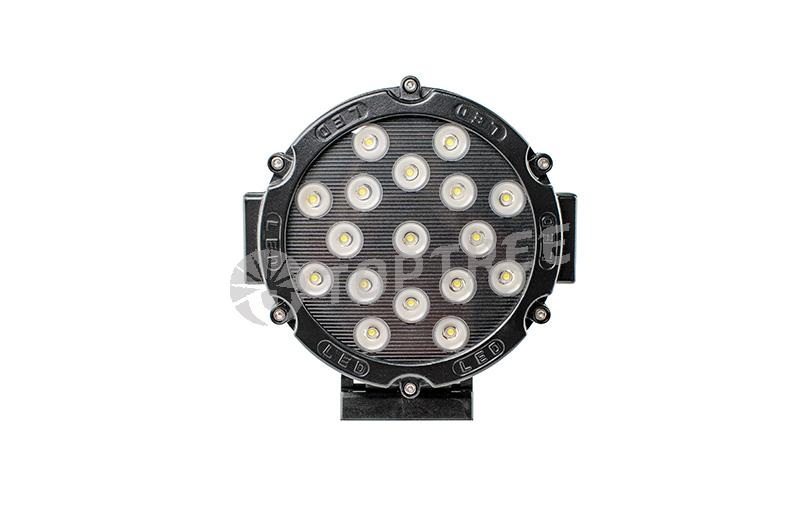

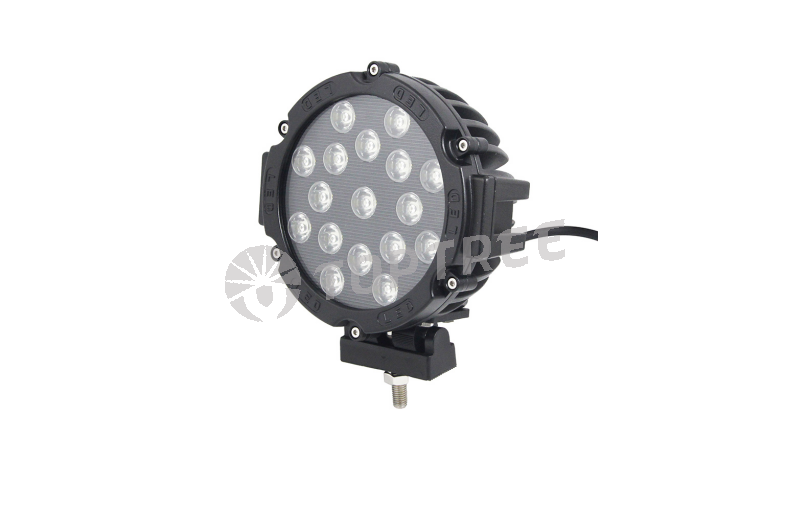

7inch LED Work Lights Flood Round Truck 4X4 Tractor Driving Lamp
PRODUCT INFORMATION：
Description:
Thickness of our printed circuit board is 1.6mm, heavy copper layers are used for high current or to help dissipate heat.
Our circuit is made to resist the interference from overcurrent & overvoltage attacks.Thereby improve the stability of LEDs.
Each light is designed with a thicker aluminum housings, the aluminum housing is made of eco-friendly aluminum and its powder coated, making it fully resistant to corrosion.
Features:
Unique Cooling System Design, improving Heat Reduction and Energy Saving.
The lighting distance is much longer than normal bulbs.
Environmentally sealed silicone adhesive, Effective waterproof IP68 and shockproof
Wide Voltage Range 10-30V DC.
Specification
Part: TP917 Wattage: 51W (17pcs*3w Cree led) Raw Lumen: 3700 lm Current Draw: 4.25A@12V, 2.125A@24V Operating Voltage:10-30V Color Temperature: 6000K Beam Pattern: Spot /Flood Lens Material: PC Housing Material: Aluminium Alloy IP Rating: IP67 Working Temperature: -45-80℃ Mounting Hardware: M10 Bracket Adjustment: 150 degree up/down. Cable Length: About 40cm (15') Lifetime: 50000 Hours | Approval: CE RoHS Warranty: 2 Years Packing: One light in one Individual box, 6PCS in one carton. G.W.:16KG; Size: 46*25*37CM
|
APPLICATIONS
