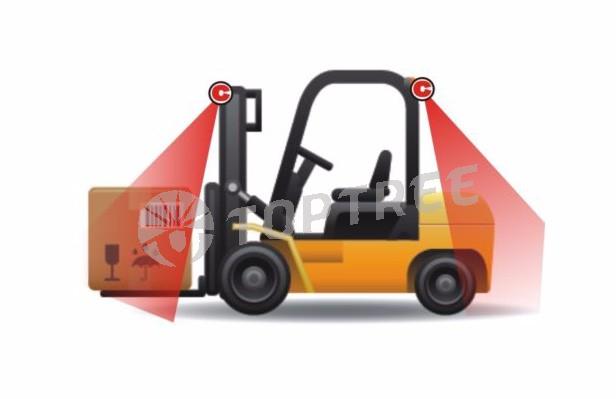

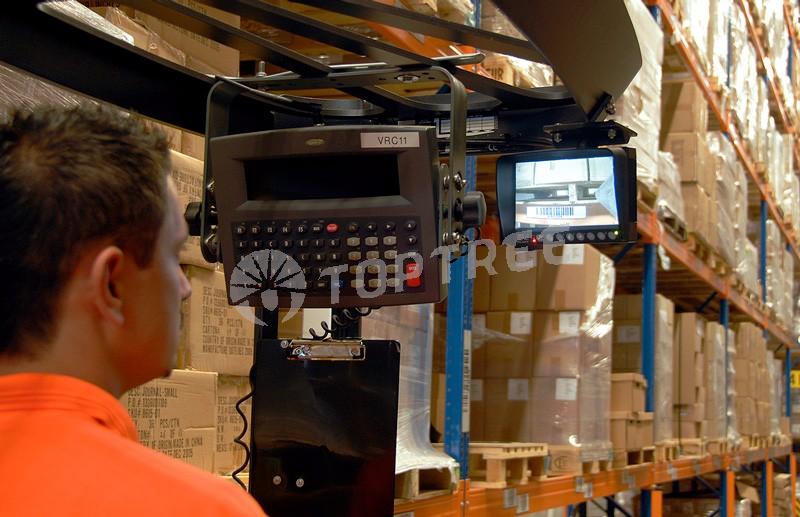

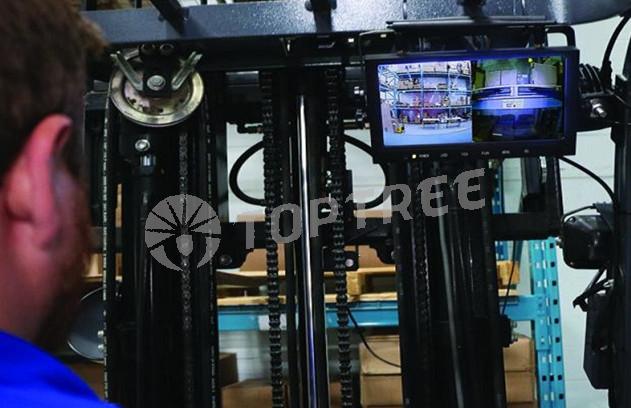

Digital Forklift Truck Camera Monitor System

Parts:TP02-111s3CH

LCD size:7"

Resolution :800 x3(RGB) x480(H)

Contrast:500:1

Brightness:400 cd/m²

Viewing Angle:U: 50 / D: 70, R/L: 70

Aspect Ratio: 4: 3 / 16:9

Channel:3 channels

System Format:PAL / NTSC

Power Consumption Max.:6W

Loudspeaker:one 15x24mm round loudspeaker.

Audio output:1W

Input voltage:DC 10-32V

Time Delay :120ms

Dot pitc:0.192 (H) × 0.1805 (V).

Operating Temperature:-20~+70ºC, RH 90%

Storage Temperature:-30~+80℃, RH 90%

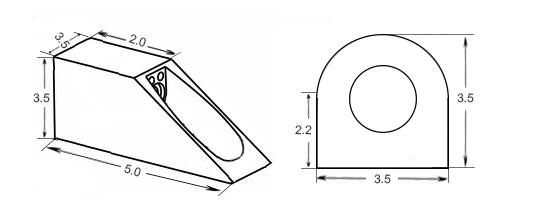

Parts:TP02-2158

Image Device 1/3" CMOS

TV System：PAL / NTSC

Current Consumption：Max. 300 mA

Power Supply：DC 12 V

Lens ：2.8mm,3.6mm optional

Lens Angle：120° ,92°

Resolution：700 TV Lines

Minimum Illumination：0 Lux (day) IR：No

Microphone：Yes

Anti-vibration：10 g

AGC：Auto

S/N Ratio：Better than 50 dB(AGC OFF)

White Balance：Auto

BLC：Auto

Operating Temperature：-20°C~60°C, RH 90% MAX.

Storage Temperature：-40°C~80°C, RH 90% MAX.

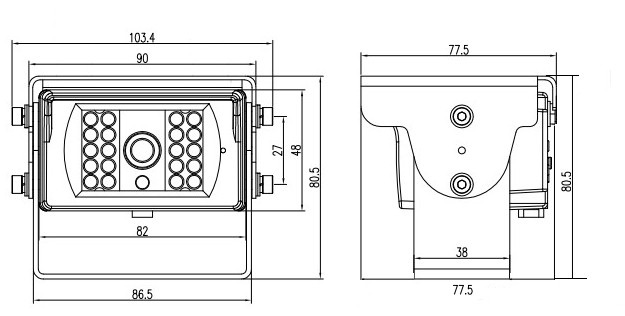

Parts：TP02-7132

Image Device：1/3'' CMOS

TV System：PAL / NTSC

Effective Pixels ：728(H)*488(V)pixels

Resolution：600TVL

Microphone：No

AGC：Auto

White Balance：Auto

S/N Ratio：Better than 48 dB(AGC OFF)

BLC：Auto

Frame Rate：PAL:25/fs NTSC:30f/s

Day / Night：AUTO( Level Adjust)

Mirror：No

Current Consumption：Max. 300 mA

Power Supply：DC 12 V

Connection：4 PIN

Anti-vibration：10 g

Operating Temperature：-20°C~70°C, RH 95% MAX.

Storage Temperature：-40°C~80°C, RH 95% MAX.

Lens ：2.5mm

LED lights：8pcs IR LED

Lens Angle：110°

Sync.：System Internal

Minimum Illumination ：0.1 Lux (day), 0 Lux (with IR)

Electronic Shutter：AOTO:1/50-1/100,000 Sec.(PAL) / 1/60-1/100,000 Sec.(NTSC)

Video Output ：Composite Signal (1.0 Vp-p, 75 Ω)
