HIGH RESOLUTION DIGITAL WIRELESS SYSTEM
PRODUCT INFORMATION：
Features
★ ABS monitor housing endure high temperature. | ★7" High resolution color TFT-LCD. | |
★ Power input:8V-32V DC. | ★Monitor circuit has protector for battery reverse(+/-). | |
★LED backlight display with constant voltage constant current circuit protection. It can solve LED working temperature problems (the limit of LED backlight's current) and prolong life. | ★Monitor OSD menu can set each channel camera image in 4 mode NOR/MIR/UP/ DOWN;the priority for each mode; each trigger cable can be set to trigger to any display mode; time delay setting. | |
★Two channels digital wireless signal transmission. It supports sub-screen and two screens. | ★ Camera waterproof: IP69K. |
Specification

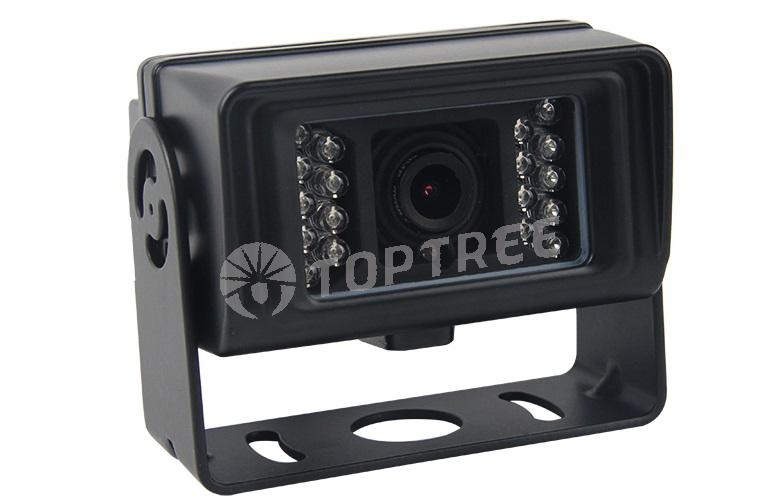

Parts:TP01-723H2 Display Device：Color TFT-LCD Size：7" Digital Screen Operation Frequency ：2400 ~ 2483.5MHz Receiving Sensitivity：≤-86dBm(1MHZ QPSK MD300RE) Resolution：800×(RGB)×480 View Angle (LR/UD)：L/R: 70/70 U/D: 50/70 Contrast Ratio：500:1 Luminance(cd/m )：450 Response Time (ms)：25 Load Dump：DC 12+87V/400ms Operating Temperature：-20℃～+60℃ Storage Temperature：-30℃～+80℃ operating voltage range：DC8V～32V （ 5W Max） Dimension( L x W x T) ：(185X122X28mm) Transmission Power：18dBm with Power control | Parts:TP01-8275 Camera：Color CMOS Camera Image Pick-up Device：1/3" Color CMOS Picture Elements：NTSC:720(H)X480(V);PAL:720(H)X480(V) Horizontal Resolution：500 TV Lines Minimum illumination：0 Lux At Night ( IR LED ON) View Angle：120° Waterproof rating：IP69K Shockproof Rating：10G operating voltage range：DC11~32V Dimension：106(W) x 75(H) x 70.4(D) mm |

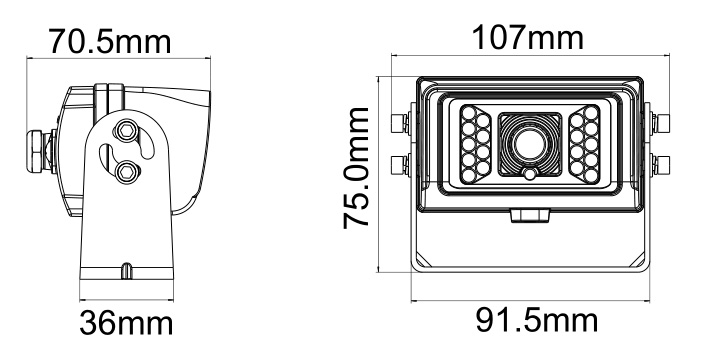

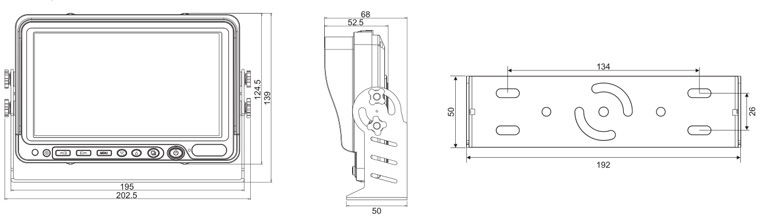

PRODUCT DIMENSIONS

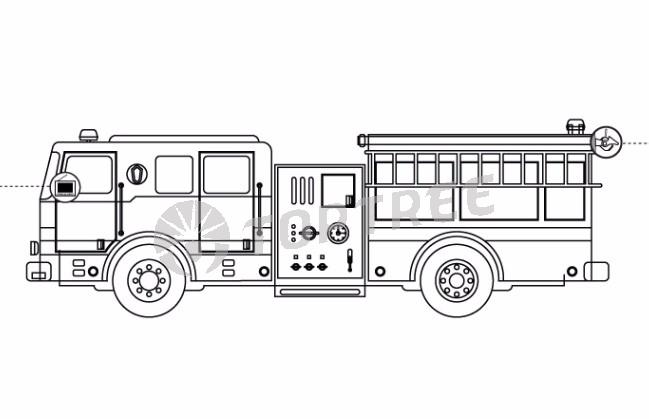

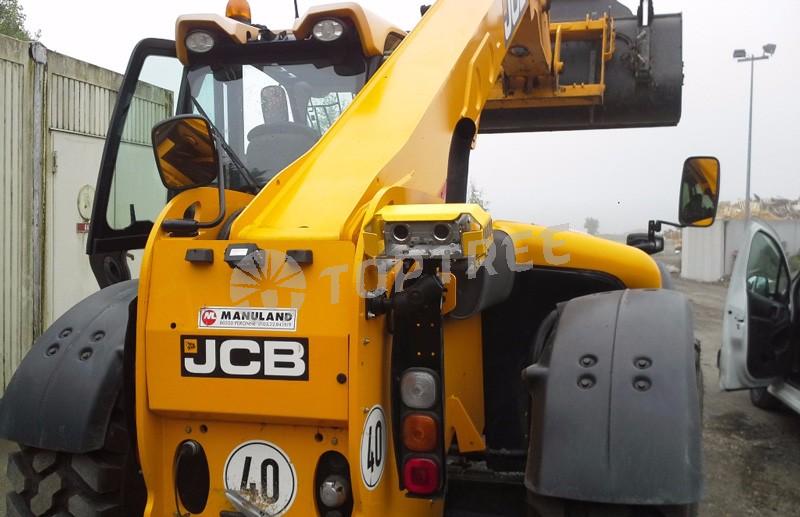

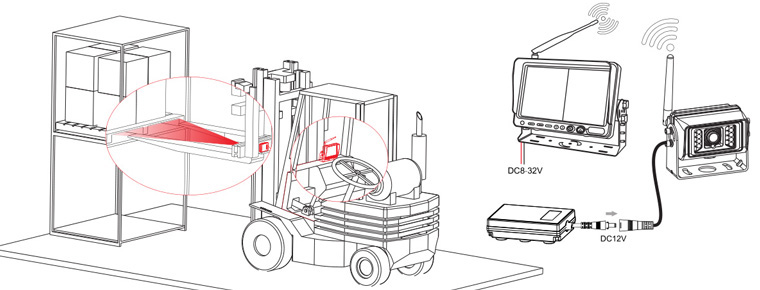

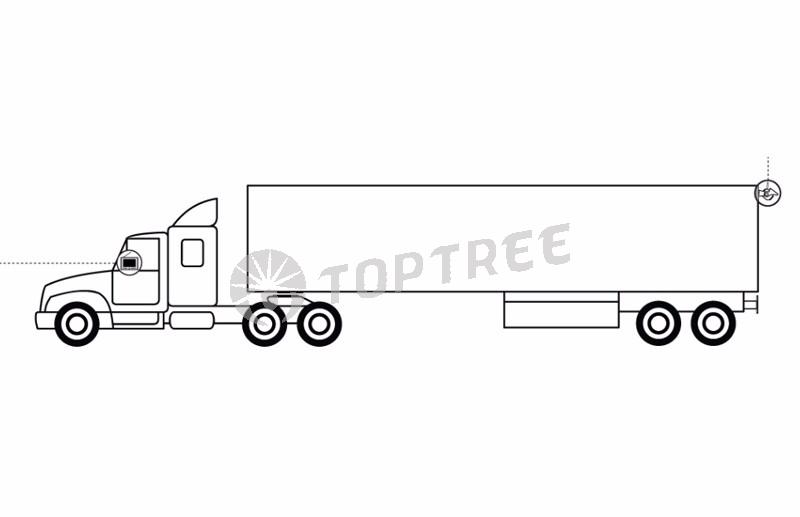

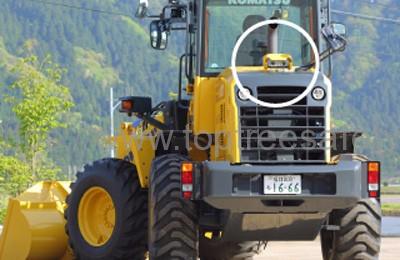

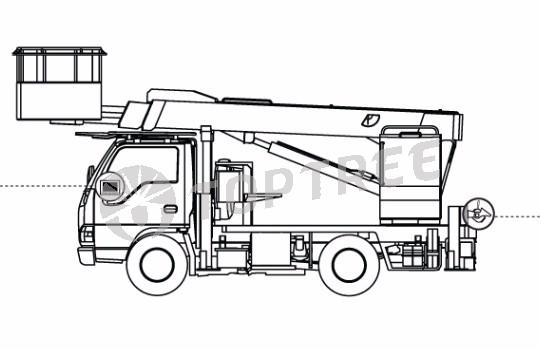

APPLICATIONS
