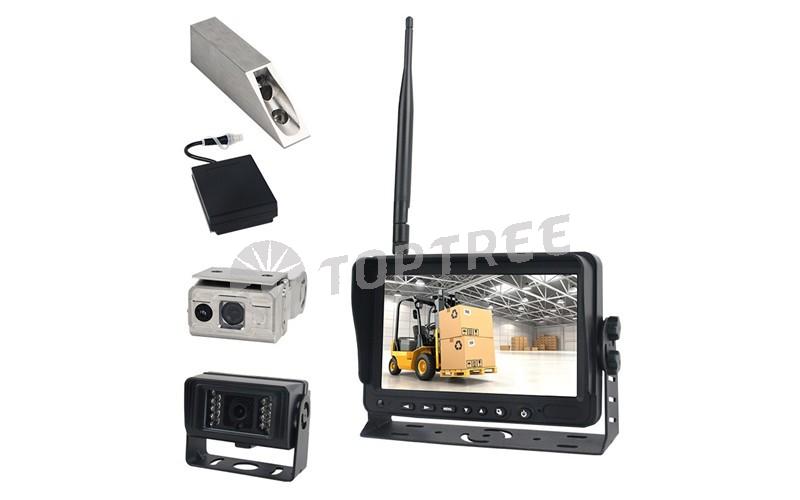

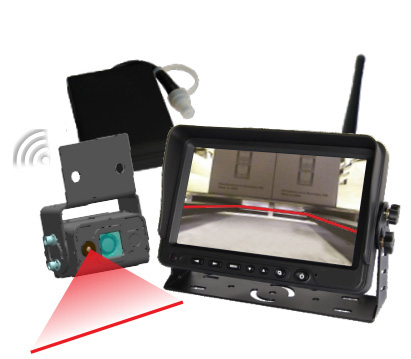

WIRELESS DIGITAL REARVIEW SYSTEM FOR FORKLIFT
PRODUCT INFORMATION：
Features
● 2.4G wireless transmission, advance point to point transmission, long transmission distance up to 100m (under flat ground without barrier), strong anti-interference ability. ·
● Millisecond time delaying to 130mS.
● Integrated image and laser lines for positioning, red beam are able to adjust thickness and horizontal, which allows the arms put within the plates accurately.
● Camera housing made from 304 stainless steel, anti-collision, anti-explosion, and anti-water.
● Wireless camera without cable arrangement, direct power from mobile power bank can last 8 hours, easy to install.
● Excellent performance, clear image, high grade color reproduction.
Specification

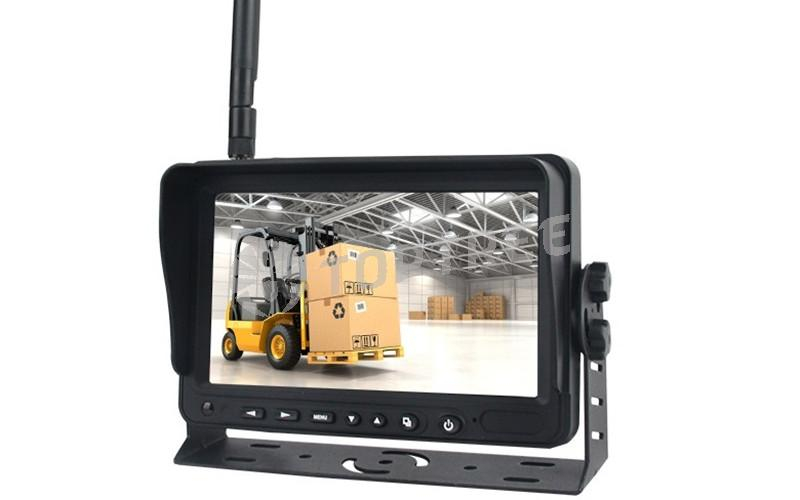

Parts:TP01-723H2 Display Device：Color LCD Size：7" Digital Screen Operation Frequency ：2400 ~ 2483.5MHz Receiving Sensitivity：≤-86dBm(1MHZ QPSK MD300RE) Resolution：800×(RGB)×480 View Angle (LR/UD)：L/R: 70/70 U/D: 50/70 Contrast Ratio：500:1 Luminance(cd/m )：450 Response Time (ms)：25 Load Dump：DC 12+87V/400ms Operating Temperature：-20℃～+60℃ Storage Temperature：-30℃～+80℃ operating voltage range：DC8V～32V （ 5W Max） Dimension( L x W x T) ：(185X122X28mm) Transmission Power：18dBm with Power control | Parts:TP01-8575 Camera：Wireless Digital Waterproof Shockproof Forklift Camera Image Sensor：1/3" Color CMOS Effective Pixels：NTSC:960(H)X480(V);PAL:960(H)X480(V) Horizontal Resolution：600 TV Lines Usable Illumination：1 Lux View Angle:65° Waterproof rating:IP67 Shockproof Rating:10G operating voltage range:DC12V Dimension:72.5mm×105mm×52.5mm |

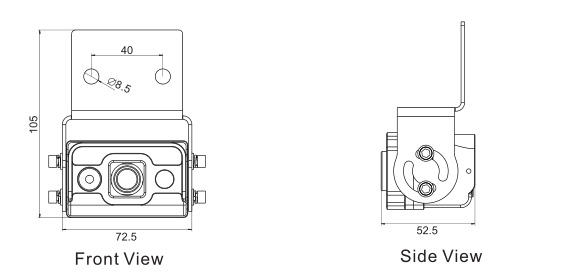

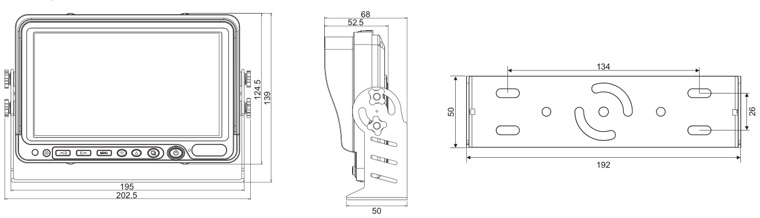

PRODUCT DIMENSIONS

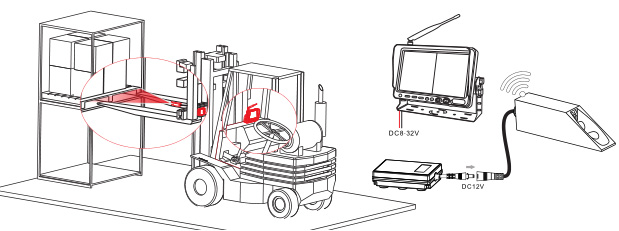

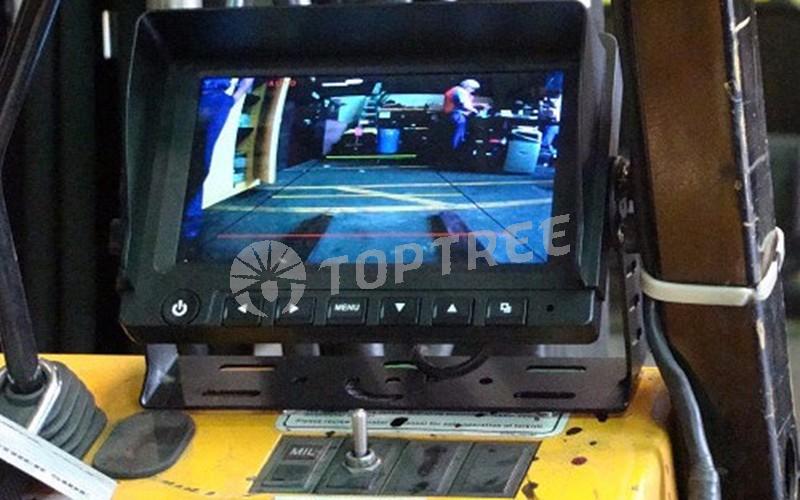

APPLICATIONS
