TPJG01
0.02A@12V, 0.008A@24V
200mW
10-80V
Red/Green Line
IP67
2 Years
CE RoHS
Custom logo, packaging

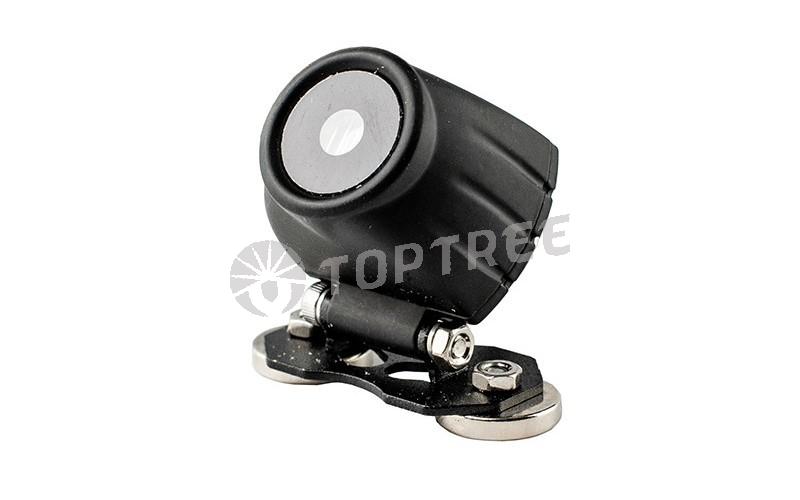

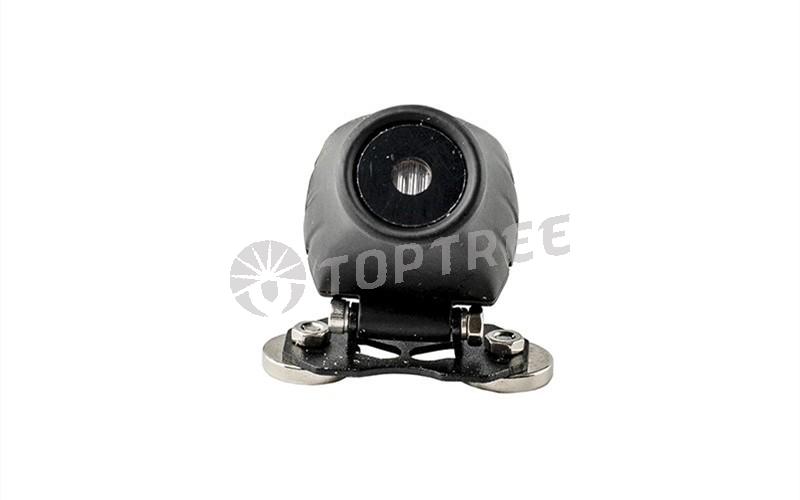

TPJG01 Laser Red Zone Light – Forklift Safety Laser Line Light
Create a Clear Safety “No-Go” Zone Around Your Forklift

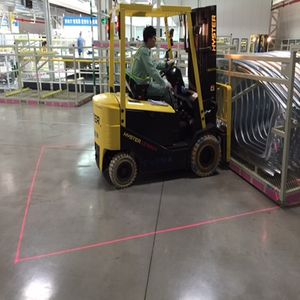

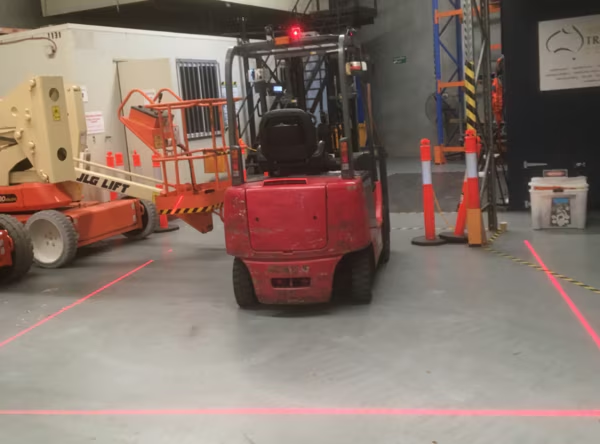

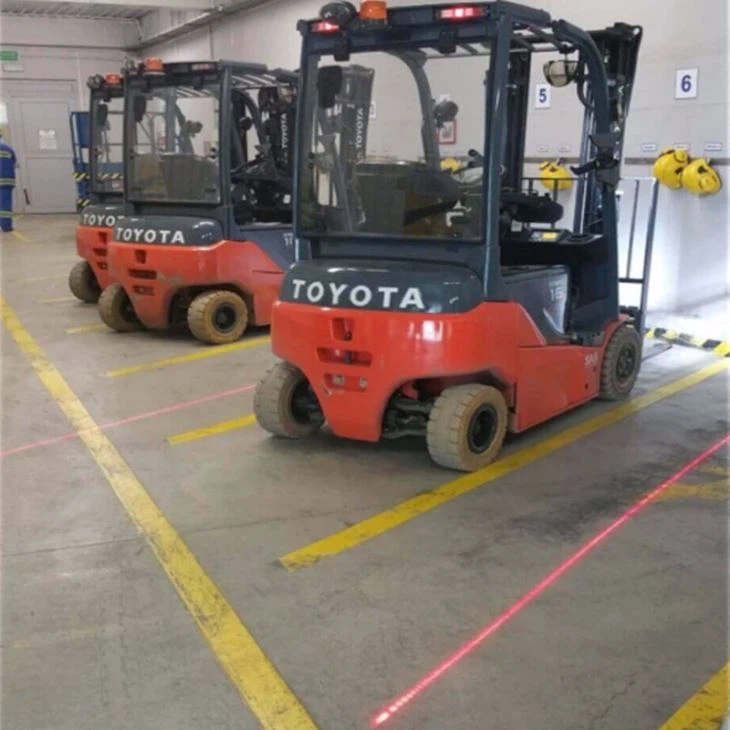

The TPJG01 Laser Red Zone Light is an advanced safety solution designed to project a vivid red or green line onto the floor around a forklift, clearly indicating a pedestrian exclusion zone and reducing foot-injuries and collisions in high-traffic warehouse, logistics and material-handling environments. Built by Toptree with factory-direct supply and global dealer opportunities, this product brings precision, durability and safety to your fleet.
★ Projects a high-brightness red or green line beam to visually define a “no-go” zone around the forklift.
★ 200 mW laser output power for strong visibility even indoors or in lit areas.
★ Wide voltage range: compatible with 10-80V (or 9-80V) systems—fits diesel, electric and gas forklifts.

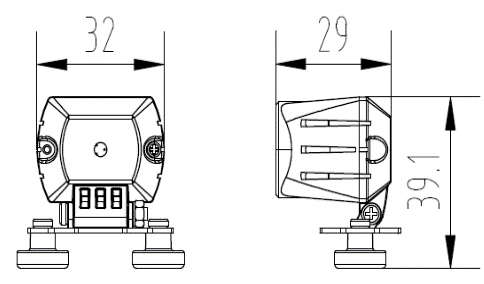

★ Compact size (~3 cm × 3 cm) with magnetic base and adjustable mounting bracket (150° up/down) for fast setup.
★ Rugged build: Aluminum die-cast housing (ADS12) with heat-sink, IP67 rating, operating temperature from -45 °C to +80 °C.
★ Long lifetime: approx. 50,000 hours, CE & RoHS approved, 2-year warranty.
★ Includes mounting hardware (M10/M8), wiring and bracket in package.
● Warehouses and distribution centres: provide a visual safety boundary for pedestrians around moving forklifts.
● Manufacturing & material handling: retrofits for existing fleets to boost pedestrian-safety protocols.
● Logistics & industrial zones: highlight exclusion zones to avoid side-swing incidents and foot crushes.
| Specification | Details |
|---|---|
| Model | TPJG01 |
| Wattage | 200MW |
| Operating Voltage | 10-80 V |
| Current Draw | 0.02A@12V, 0.008A@24V |
| Beam Pattern | Red/Green Line |
| Housing Material | ADS12 casting aluminium with heat sink |
| Lens Material | Polycarbonate (PC) |
| IP Rating | IP67 |
| Operating Temperature | –45 °C to +80 °C |
| Mounting Hardware Included | M10/M8 bracket, angle adjustable 150° up/down |
| Life Span | Approx. 50,000 hours |
| Warranty | 2 years (standard) |
| Cable Length | 0.25 meters (0.82') |
| Connectivity | Cable |
| Approval | CE RoHS |
| Packing | One light in one Individual box, 20PCS in one carton. G.W.:5kg; Size:34*27*21cm |
● Improve Pedestrian Safety: A visible laser line establishes a clear exclusion zone, helping prevent accidents between forklifts and pedestrians.
● High Compatibility & Flexibility: Works with a broad voltage range (10-80V) and minimal change needed across fleets.
● Durable for Industrial Use: Designed to withstand tough warehouse conditions with IP67 protection, rugged housing, and long life.
● Easy Installation & Retro-fit: Compact, magnetic design makes mounting quick, reducing downtime and disruption.
● Factory Direct + Distributor Friendly: Toptree offers direct factory pricing, OEM/ODM support, and global distributor partnerships—ideal for safety equipment channel sales.
Q1: Is this laser light suitable for all forklift types?
Yes — its wide voltage range (10-80V) and compact mounting make it compatible with gas, diesel and electric forklifts.
Q2: Does it require major modifications to the forklift?
No — the compact size, magnetic base and adjustable bracket mean fast installation with minimal changes.
Q3: Does it work outdoors or in bright light?
While optimized for indoor/factory use, the high-power 200mW laser line is visible even in well-lit environments; outdoor use may depend on sunlight conditions.
Q4: What color lines are available?
Standard options include red or green line projection; custom colours may be available on request.
Q5: What warranty and support are offered?
Standard 2-year warranty, CE & RoHS compliance; OEM/ODM customizations are supported via Toptree.
1. Industry-Leading Expertise
With over 10 years of experience in industrial safety solutions, we specialize in developing advanced visual warning systems for warehouses, logistics, and hazardous zones.
2. In-House R&D and Engineering
We own a professional R&D team focused on lighting technology, ensuring continuous innovation and customization capability for clients with different safety needs.
3. Certified Quality and Compliance
All products meet international safety and quality standards (CE, RoHS, etc.). Every unit undergoes strict QC testing before shipment.
4. Scalable Production Capacity
We operate a modern manufacturing facility with scalable production lines, supporting bulk orders and fast lead times without compromising quality.
5. Global Client Base
Trusted by Fortune 500 companies, regional distributors, and safety integrators across North America, Europe, Southeast Asia, and the Middle East.
6. Reliable After-Sales Service
Our dedicated support team offers fast response, technical guidance, and warranty support to ensure long-term satisfaction.
At our manufacturing facilities, we employ a range of advanced testing equipment to guarantee the highest product quality and reliability. Each piece of equipment plays a vital role in inspecting, measuring, and validating product performance before shipment.
Drop and Vibration Test
EMC Test
Hi-Low Test
IP69K Standard
Lumen Test
Optical test Dark Room
Salt Spray Test
SMT
UV Accelerated Weathering Tester
Vehicle lighting test system for DOT
