TPJG02
0.02A@12V, 0.008A@24V
200MW
10-80V
Red/Green Line
IP67
2 Years
CE RoHS
Custom logo, packaging
TOPTREE FORKLIFT LINE LASER GREEN PEDESTRIAN WARNING LIGHT (TPJG02)
PRODUCT INFORMATION：
Description:

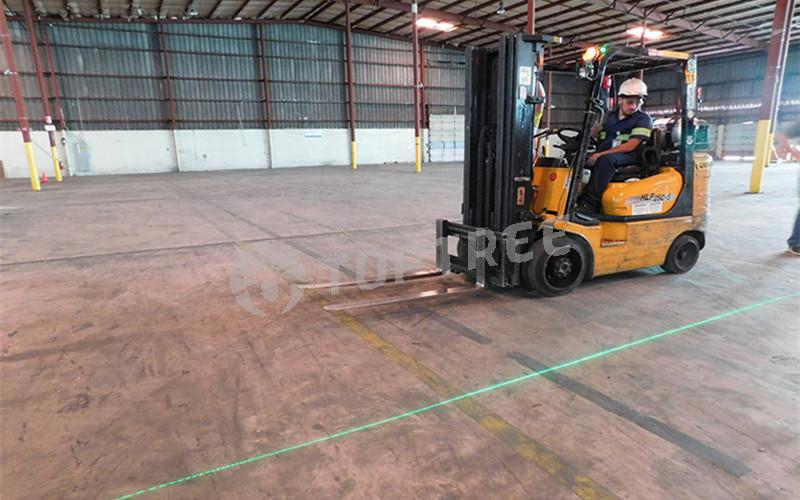

Nearly half of all forklift related accidents involve pedestrians. Having a visible light projection around the forklift reduces or eliminates pedestrian accidents. The bottom line is reduced claims and increased efficiency. Our Hazard Safety Products can help reduce or eliminate pedestrian related accidents in the workplace by projecting a highly visible warning line around moving material handling equipment. This is extremely effective in high-noise areas - where audible alarms can be drowned out, or where multiple alarms may confuse the pedestrian.
Features:
1. 200mw create a bright line beam
2. Aluminum body housing provides maximum protection
3. The package includes mounting bracket and wiring
4. Red/Green color.

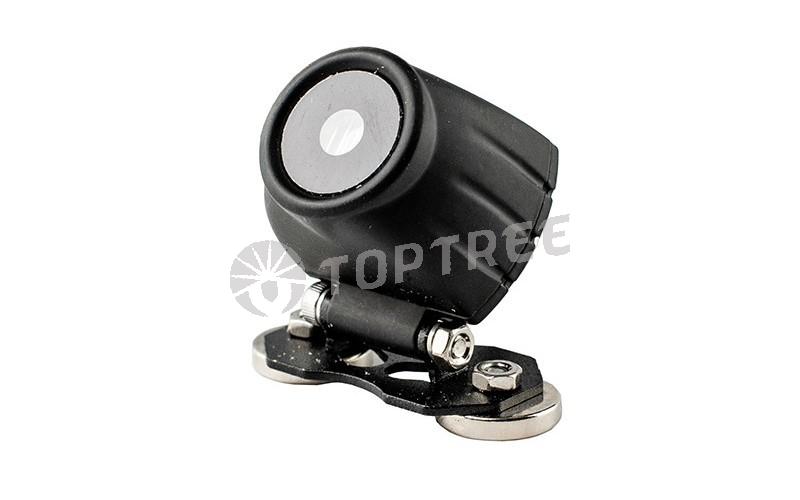

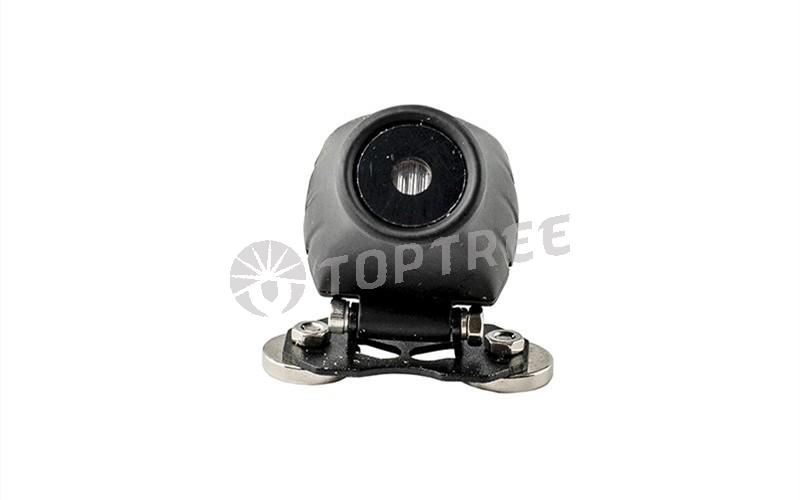

5. Small size and magnetic base is easy for mounting
Benefits:
● Ensure pedestrians are a safe distance from forklifts by creating a Hazard Zone
● Reduce incidents of human error injury - increases pedestrian and operator awareness of moving equipment or temporary machinery installations.
● High visibility illuminated projections provide the pedestrian with clear knowledge of their proximity to moving equipment.
● Audible alarms do not provide pedestrians with a sense of proximity to moving equipment due to ambient noise spikes in the work zone
Specification
Part: TPJG01 Wattage: 200MW Current Draw: 0.02A@12V, 0.008A@24V Operating Voltage: 10-80V Beam Pattern: Red/Green Line Lens Material: PC Housing Material: ADS12 Casting aluminium with heat sink IP Rating: IP67 Working Temperature: -45-80℃ Mounting Hardware: M10/M8 Bracket Adjustment: 150 degree up/down. Cable Length: 0.25 meters (0.82') Connectivity: Cable Lifetime: 50000 Hours | Approval: CE RoHS Warranty: 2 Years Packing: One light in one Individual box, 20PCS in one carton. G.W.:5kg; Size:34*27*21cm
|
TOPTREE FORKLIFT LINE LASER GREEN PEDESTRIAN WARNING LIGHT (TPJG02)
PRODUCT INFORMATION：
Description:
Nearly half of all forklift related accidents involve pedestrians. Having a visible light projection around the forklift reduces or eliminates pedestrian accidents. The bottom line is reduced claims and increased efficiency. Our Hazard Safety Products can help reduce or eliminate pedestrian related accidents in the workplace by projecting a highly visible warning line around moving material handling equipment. This is extremely effective in high-noise areas - where audible alarms can be drowned out, or where multiple alarms may confuse the pedestrian.
Features:
1. 200mw create a bright line beam
2. Aluminum body housing provides maximum protection
3. The package includes mounting bracket and wiring
4. Red/Green color.
5. Small size and magnetic base is easy for mounting
Benefits:
● Ensure pedestrians are a safe distance from forklifts by creating a Hazard Zone
● Reduce incidents of human error injury - increases pedestrian and operator awareness of moving equipment or temporary machinery installations.
● High visibility illuminated projections provide the pedestrian with clear knowledge of their proximity to moving equipment.
● Audible alarms do not provide pedestrians with a sense of proximity to moving equipment due to ambient noise spikes in the work zone
Specification
Part: TPJG01 Wattage: 200MW Current Draw: 0.02A@12V, 0.008A@24V Operating Voltage: 10-80V Beam Pattern: Red/Green Line Lens Material: PC Housing Material: ADS12 Casting aluminium with heat sink IP Rating: IP67 Working Temperature: -45-80℃ Mounting Hardware: M10/M8 Bracket Adjustment: 150 degree up/down. Cable Length: 0.25 meters (0.82') Connectivity: Cable Lifetime: 50000 Hours | Approval: CE RoHS Warranty: 2 Years Packing: One light in one Individual box, 20PCS in one carton. G.W.:5kg; Size:34*27*21cm
|
