TPZ01
6W
0.5A@12V, 0.25A@24V
10-110V
Flashing
IP67
2 Years
CE RoHS
Custom logo, packaging

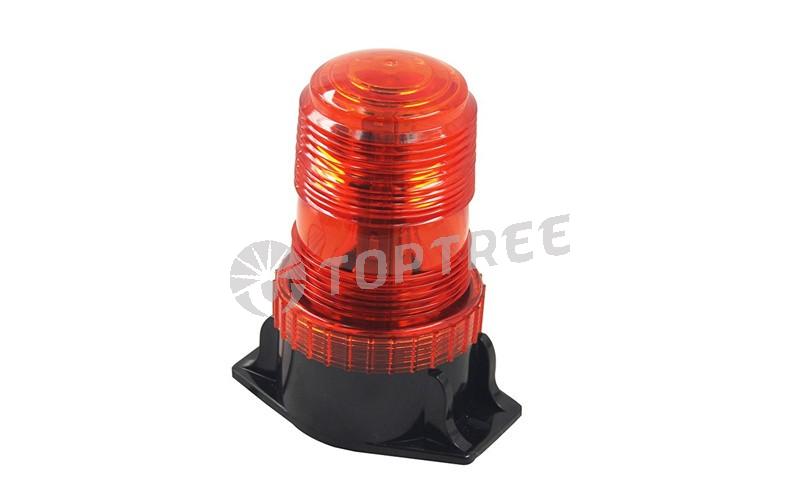

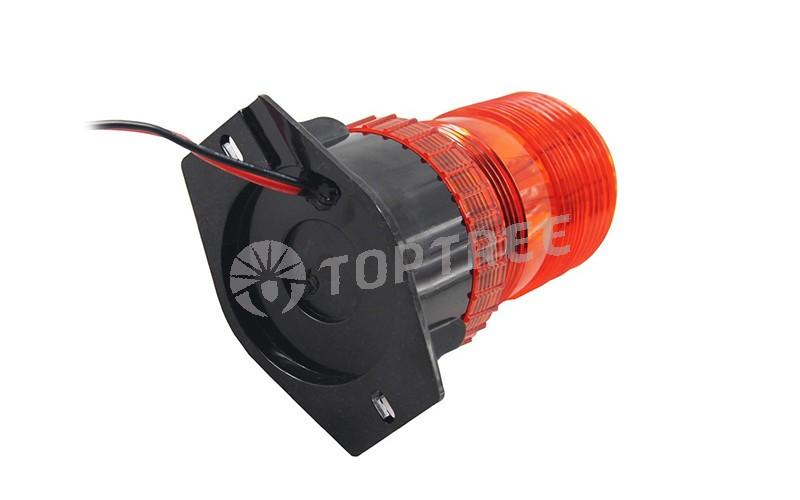

Amber LED Rotary Emergency Light Flash Strobe Beacon Warning Lamp for Car Truck
PRODUCT INFORMATION：
Description:
TPZ01 is a special warning beacon with wider voltage special design for forklift, Install by three screws and holes.
Features:
1. Super bright, high visibility
2. Wide range of applications especially suit for different kinds of forklifts.
3. Using ultra-bright LED light source
4. Easy for mounting
Specification
Part: TPZ01 Wattage: 6W Current Draw: 0.5A@12V, 0.25A@24V Operating Voltage: 10-110V Color Temperature: 6000K Beam Pattern: Flashing Lens Material: PC Housing Material: ADS12 Casting aluminium with heatsink IP Rating: IP67 Working Temperature: -45-80℃ Mounting Hardware: M10/M8 Bracket Adjustment: 150 degree up/down. Cable Length: 0.25 meters (0.82') Connectivity: Cable Lifetime: 50000 Hours | Approval: CE RoHS Warranty: 2 Years Packing: One light in one Individual box, 20PCS in one carton. G.W.:7kg; Size:41cm*23.5cm*30cm  |

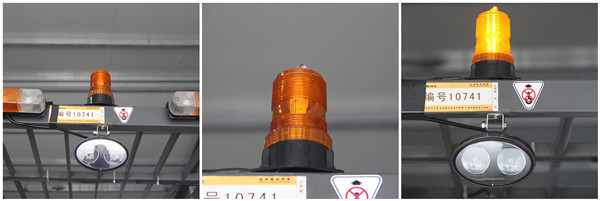

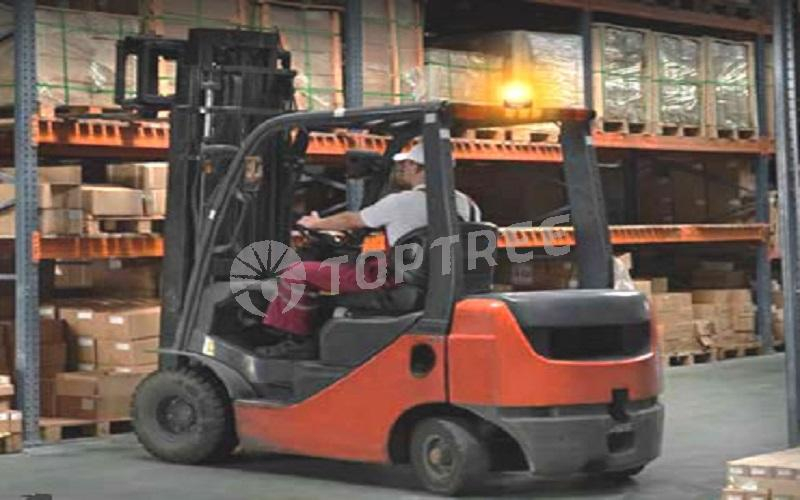

INSTALLATION EFFECT
Amber LED Rotary Emergency Light Flash Strobe Beacon Warning Lamp for Car Truck
PRODUCT INFORMATION：
Description:
TPZ01 is a special warning beacon with wider voltage special design for forklift, Install by three screws and holes.
Features:
1. Super bright, high visibility
2. Wide range of applications especially suit for different kinds of forklifts.
3. Using ultra-bright LED light source
4. Easy for mounting
Specification
Part: TPZ01 Wattage: 6W Current Draw: 0.5A@12V, 0.25A@24V Operating Voltage: 10-110V Color Temperature: 6000K Beam Pattern: Flashing Lens Material: PC Housing Material: ADS12 Casting aluminium with heatsink IP Rating: IP67 Working Temperature: -45-80℃ Mounting Hardware: M10/M8 Bracket Adjustment: 150 degree up/down. Cable Length: 0.25 meters (0.82') Connectivity: Cable Lifetime: 50000 Hours | Approval: CE RoHS Warranty: 2 Years Packing: One light in one Individual box, 20PCS in one carton. G.W.:7kg; Size:41cm*23.5cm*30cm |
INSTALLATION EFFECT
