Forklift Fork Tilt Level Indicators

A forklift level indicator is a visual aid that shows whether the forks are tilted high, near level, level, or low. The TOPTREE indicator uses red, amber, and green illuminated positions to give the operator a clear fork angle reference before pallet entry and during routine load handling.

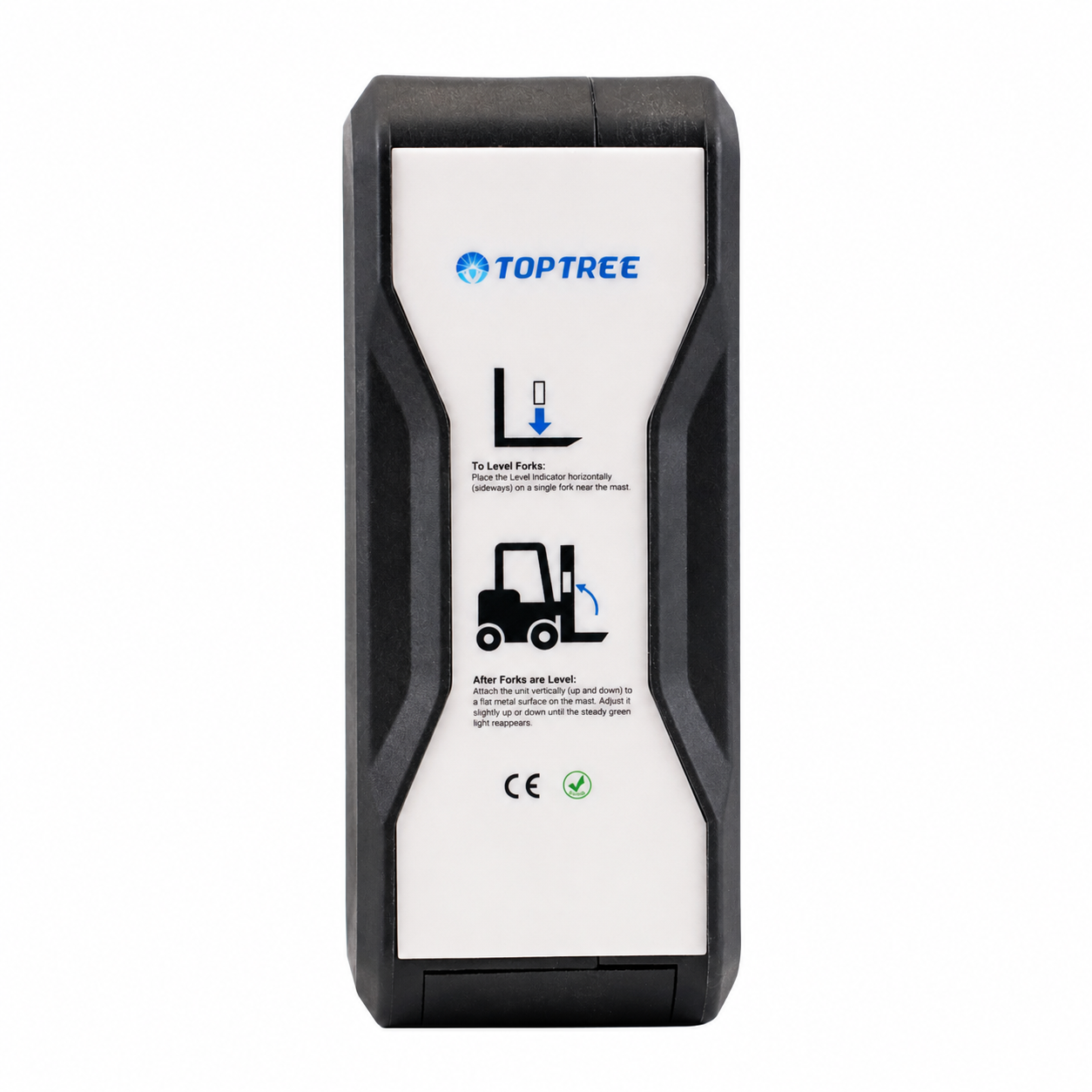

Place the indicator horizontally on one fork near the mast, then adjust the forks until the green level indication appears. Attach the unit vertically to a clean, flat metal surface on the mast and move it slightly up or down until the steady green indication appears again. This establishes the reference used during operation.

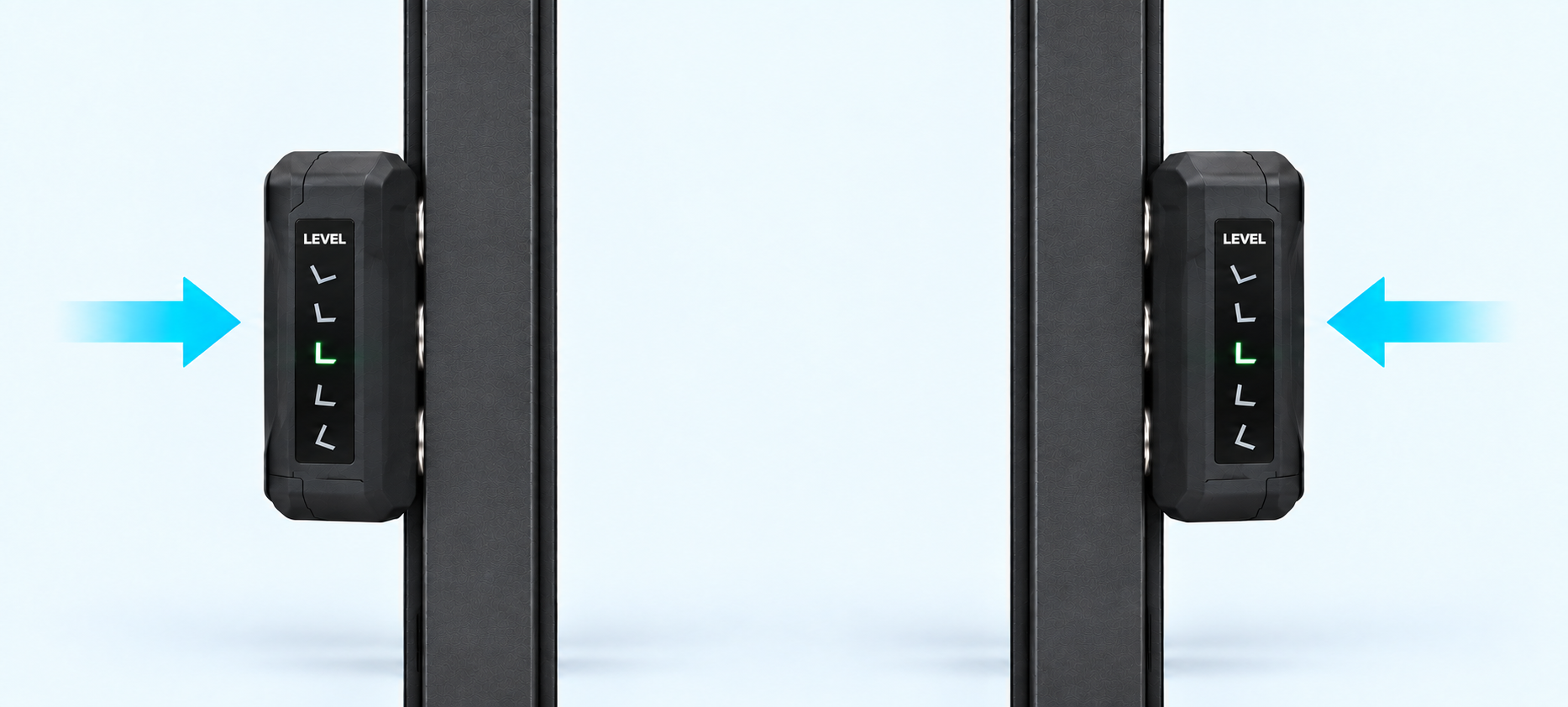

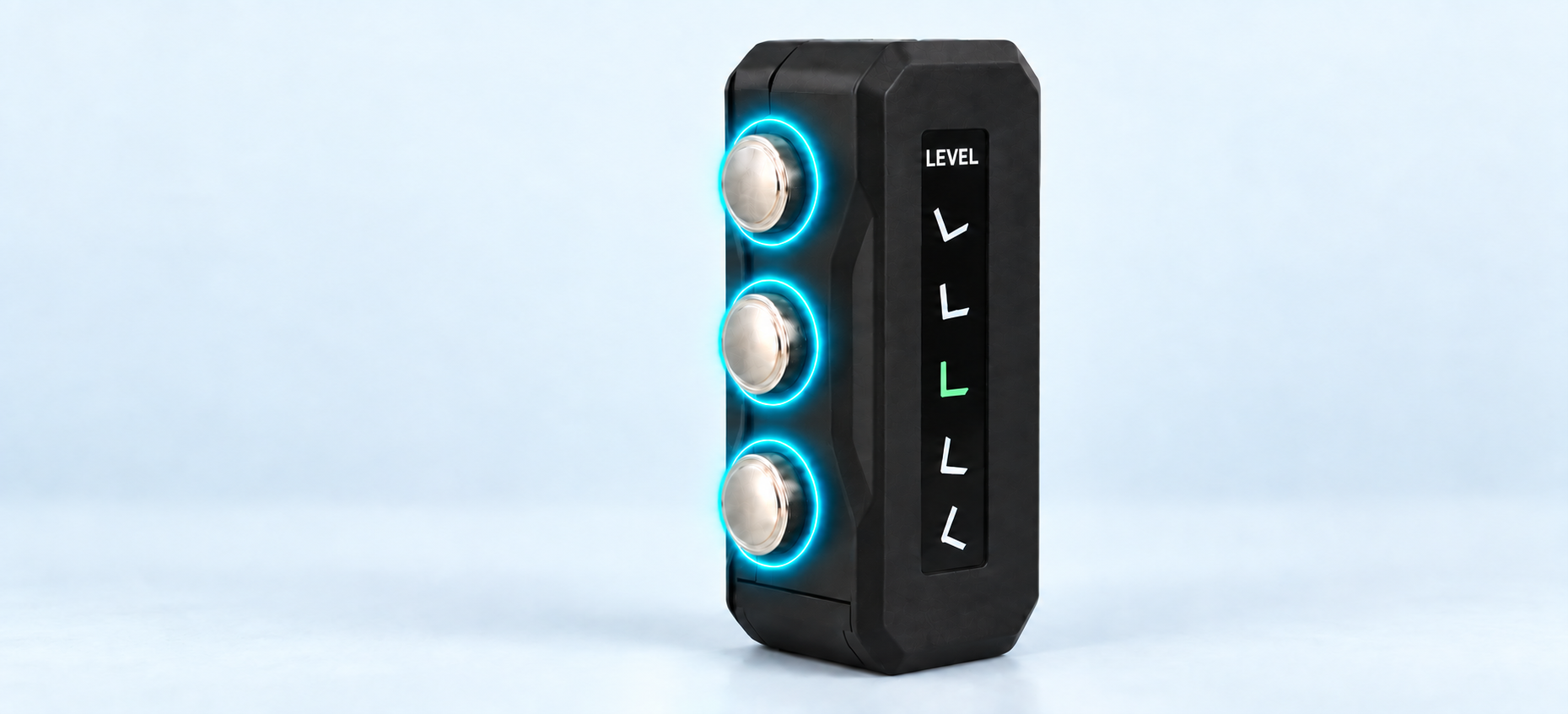

Mount the indicator vertically on a clean, flat metal surface of the forklift mast using its three integrated magnets. The dual-sided design allows installation on either side of the mast. Choose the side that gives the operator the clearest sightline without interfering with chains, rollers, hoses, or other moving parts.

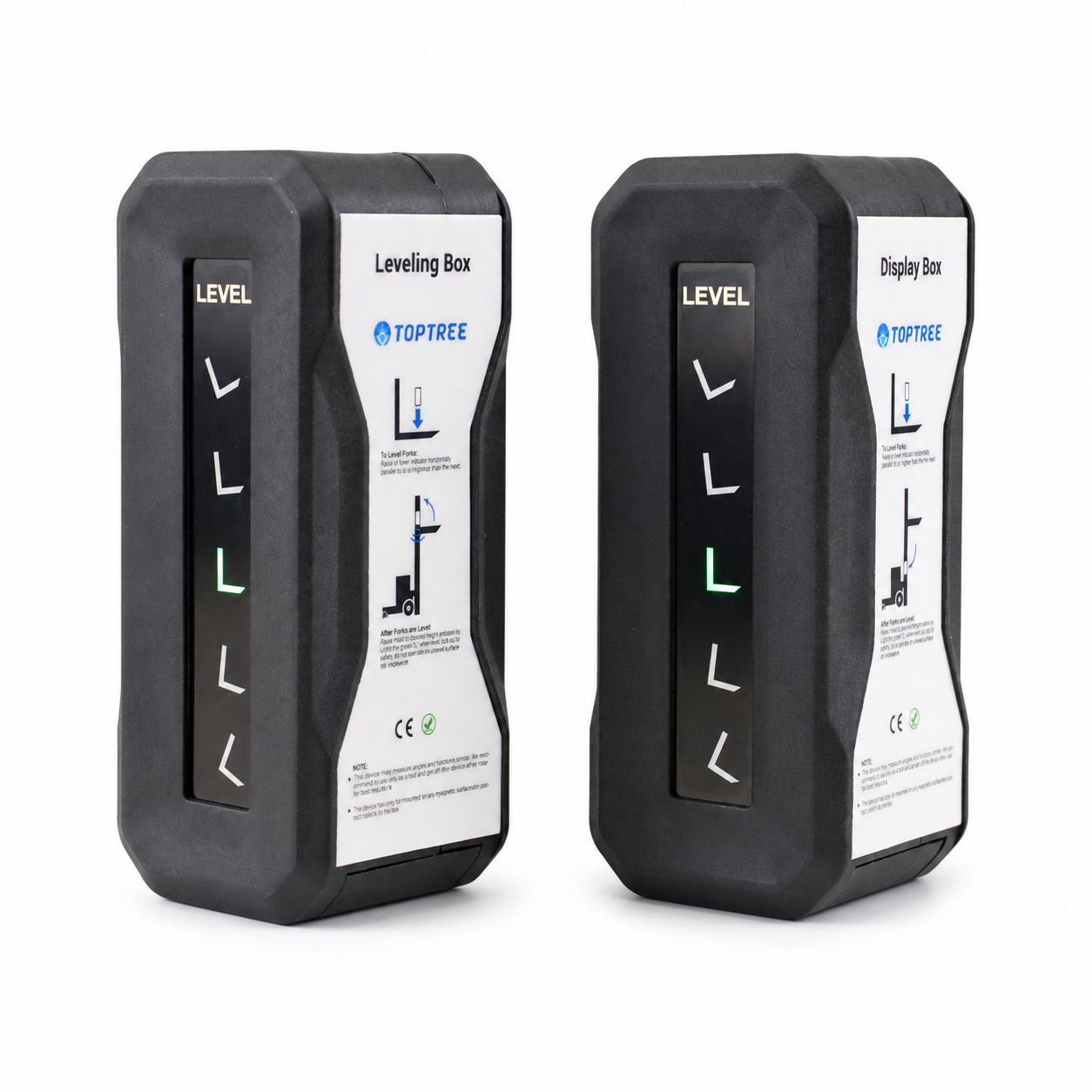

The direct-view configuration uses a single mast-mounted indicator that the operator reads directly. It suits forklifts with a clear sightline to the mast. The wireless configuration adds a paired operator-facing display, making the indication easier to see when the mast-mounted unit is partially obscured from the driving position.

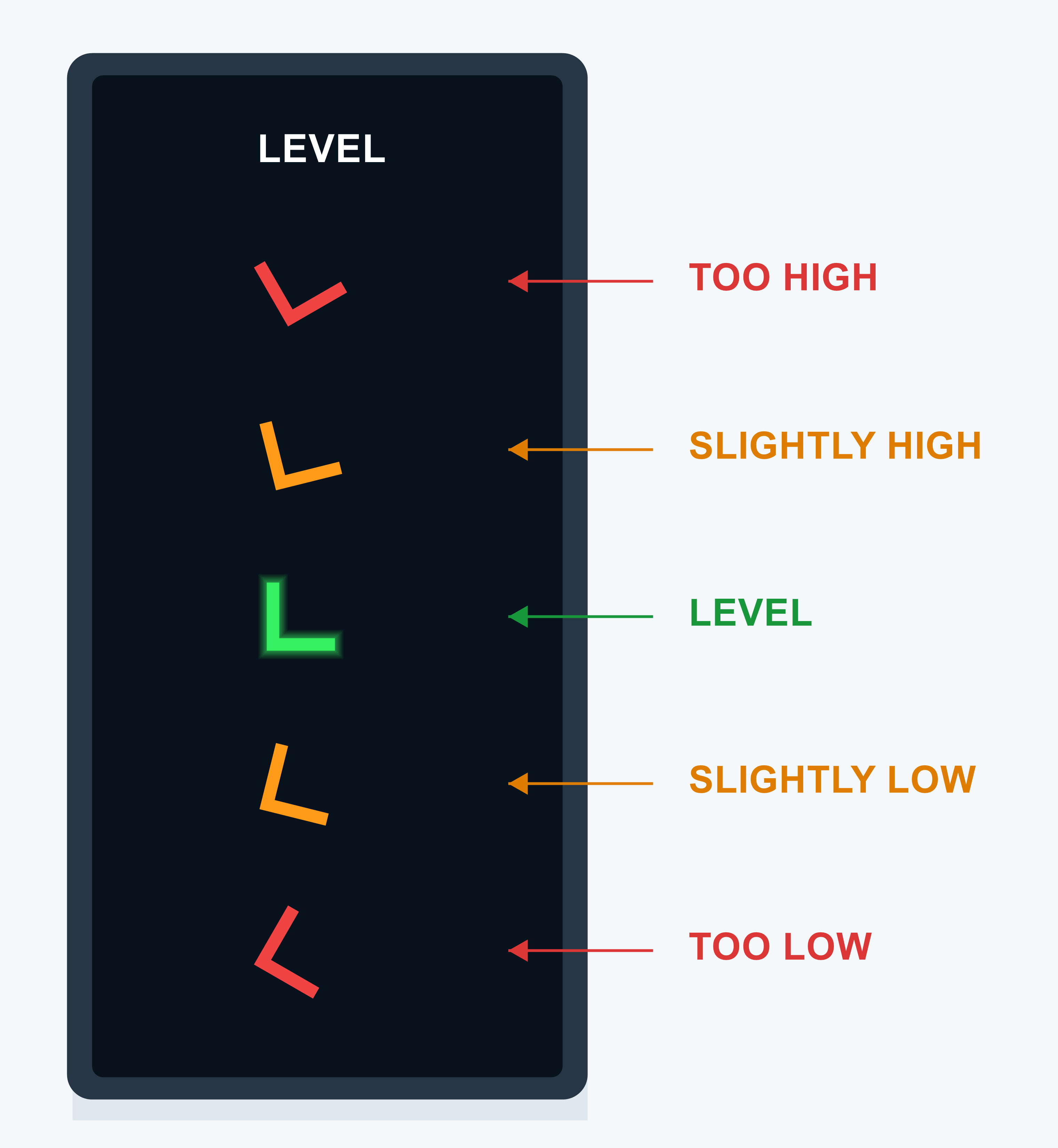

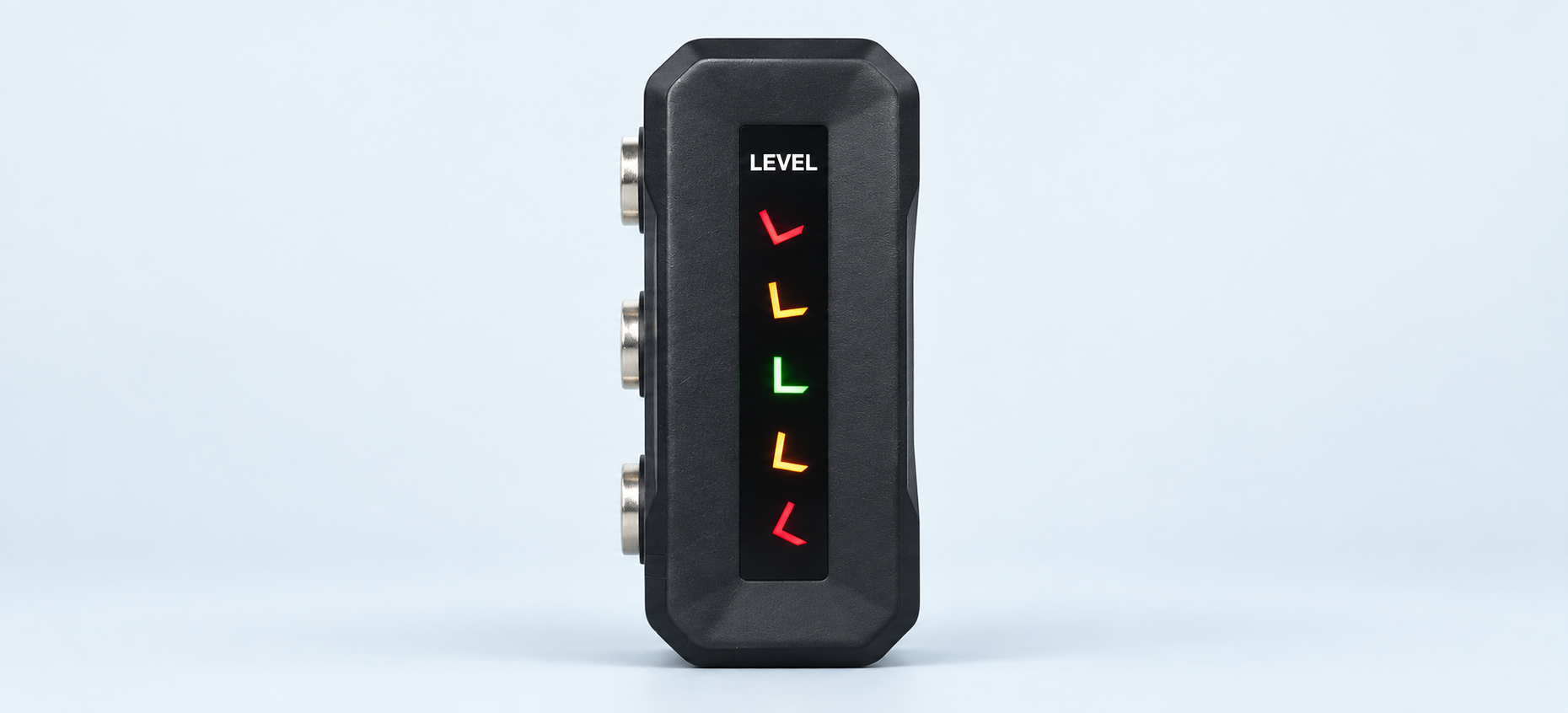

The five positions represent too high, slightly high, level, slightly low, and too low fork conditions. Red marks the outer high and low conditions, amber shows the forks approaching the level reference, and the center green position indicates the established level setting.

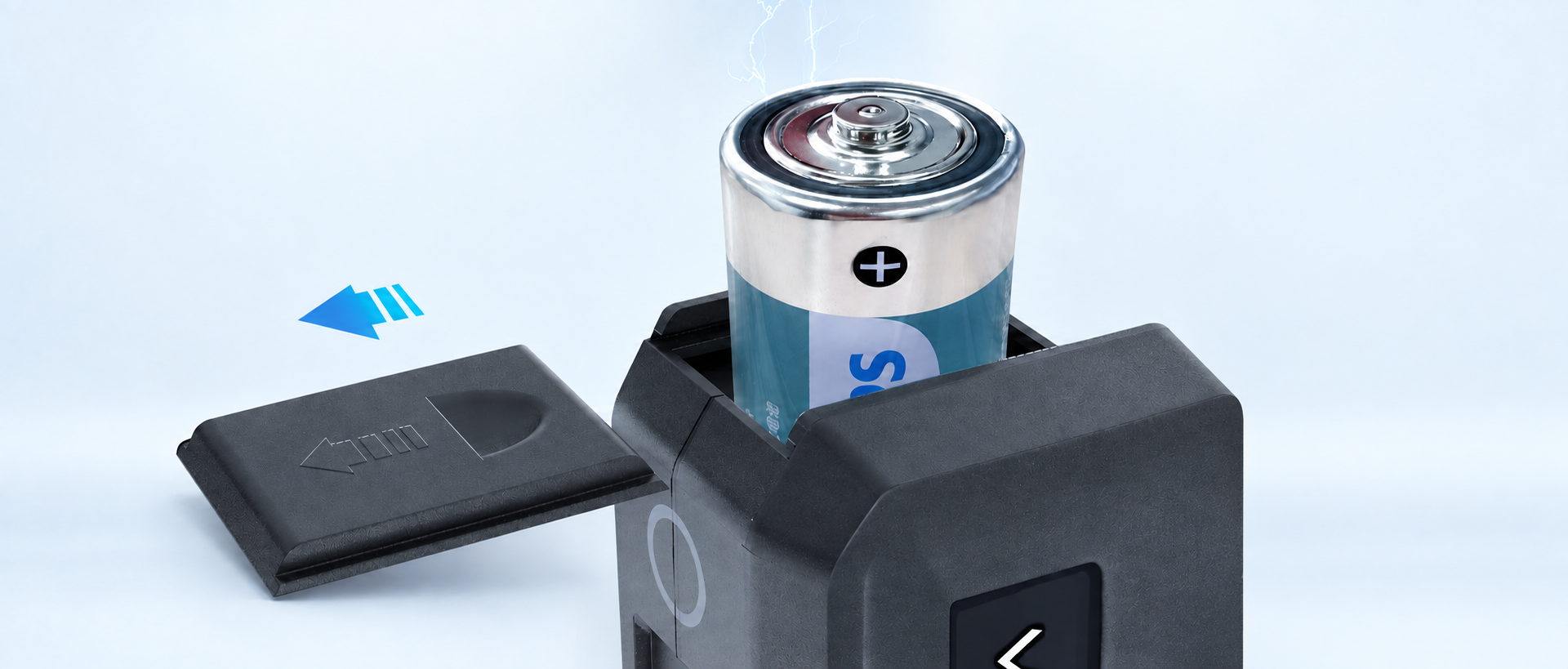

The indicator uses two standard D-cell batteries. They are accessed through the sliding cover at the bottom of the housing, allowing routine battery replacement without removing the unit from service for an extended period. Actual battery life varies with operating conditions and usage frequency.

Check whether the mast has a suitable flat magnetic mounting surface and whether the operator can clearly see the installed indicator. Choose direct view when the mast sightline is open and consider the wireless configuration when visibility is restricted. Forklift type, mast photos, mounting space, and operator viewing position are useful when confirming selection.

No. A fork angle indicator is a visual reference aid and does not replace operator training, daily forklift inspections, rated-capacity limits, stable-load requirements, or site-specific operating procedures. Operators should continue to follow the forklift manufacturer’s instructions and the safety rules established for the workplace.
