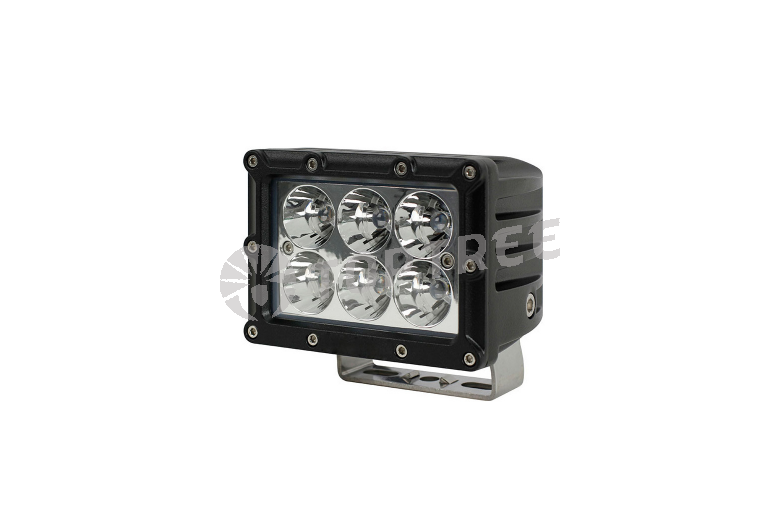

5 Inch 30W Mining Truck LED Work Light

The 5‑Inch 30W Mining Truck LED Work Light (TPN30) is built for extreme environments. It features six high-performance Cree LEDs delivering around 1,700 lumens. Encased in a thick, powder-coated die-cast aluminum housing that resists corrosion, the light is rated IP67 for waterproof and dust-proof protection. Operating on 12–48 V, it supports both spot and flood beam options. With a temperature range from –45 °C to 80 °C and a 150° adjustable mounting bracket, this work light is ideal for mining trucks, heavy machinery, and other rugged industrial applications.

Model:
TPN30
Light Source:
Cree LED
Current Draw:
2.5A@12V, 1.25A@24V
Wattage:
30W
Operating Voltage:
12-48V
Beam Pattern:
Spot /Flood
IP Rating:
IP67
Warranty:
2 Years
Certifications:
CE RoHS


Availability:



Inquire

Product Description

5 Inch 30W Mining Truck LED Work Light

PRODUCT INFORMATION：

Description:

Each light is designed with a thicker aluminum housings, the aluminum housing is made of eco-friendly aluminum and its powder coated, making it fully resistant to corrosion.

Features:

High technology Led Chip is CREE

Adjustable Mounting Brackets.

The suitable design for heating elimination.

The high performance of tight waterproof,dust-proof,quake-proof.

Anti explosion

The valid irradiation distance is much more longer than normal bulb.

Specification

Part: TPN30

Wattage: 30w (6pcs*5W Cree led)

Raw Lumen: 1700lm

Current Draw: 2.5A@12V, 1.25A@24V
