TP822
Cree LED
5.25A@12V, 2.625A@24V
63W
12-48V
Flood
IP67
2 Years
CE RoHS
Custom logo, packaging
ECE R10 63W Heavy Duty Work Light
PRODUCT INFORMATION：
Description:
Toptree heavy duty work light (TP822) has a higher power and brighter light beam. TP822 is an ECE R10 approved product and especially designed for agriculture and construction equipment. The ADC12 casting aluminium housing and 304 stainless mounting bracket make this lamp extremely resistant to shock, vibration, and corrosion, which also can adapt to the operation environment of agricultural and engineering machinery.
It is worth to mention that there is a waterproof integrated DT connector in the housing, which can connect the vehicle directly, as a result, it is easy for connecting.
Features:
1.The polycarbonate housing and lens are Impact- and corrosion-resistant
2. IP 67 : Completely sealed against dust and water.
3. Helps create a brighter working environment
4. Flood beam type
5. Easy for mounting
6. ECE R10
Specification
Part: TP822 Wattage:63w (9pcs*7W Cree led) Raw Lumen: 2700 lm Current Draw: 5.25A@12V, 2.625A@24V Operating Voltage:12-48V Color Temperature: 6000K Beam Pattern: Flood Lens Material: PC Housing Material: Aluminium Alloy IP Rating: IP67 Working Temperature: -45-80℃ Mounting Hardware: M10 Bracket Adjustment: 150 degree up/down. Cable Length: About 40cm (15') Lifetime: 50000 Hours | Approval: CE RoHS Warranty: 2 Years Packing: One light in one Individual box, 12PCS in one carton. G. W.:13KG; Size: 38.5*30.5*31CM
|

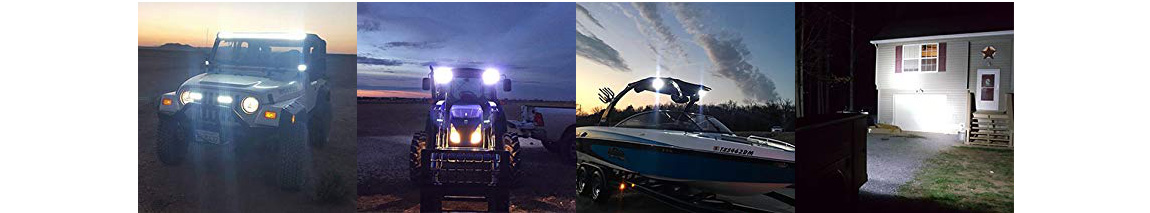

APPLICATIONS
ECE R10 63W Heavy Duty Work Light
PRODUCT INFORMATION：
Description:
Toptree heavy duty work light (TP822) has a higher power and brighter light beam. TP822 is an ECE R10 approved product and especially designed for agriculture and construction equipment. The ADC12 casting aluminium housing and 304 stainless mounting bracket make this lamp extremely resistant to shock, vibration, and corrosion, which also can adapt to the operation environment of agricultural and engineering machinery.
It is worth to mention that there is a waterproof integrated DT connector in the housing, which can connect the vehicle directly, as a result, it is easy for connecting.
Features:
1.The polycarbonate housing and lens are Impact- and corrosion-resistant
2. IP 67 : Completely sealed against dust and water.
3. Helps create a brighter working environment
4. Flood beam type
5. Easy for mounting
6. ECE R10
Specification
Part: TP822 Wattage:63w (9pcs*7W Cree led) Raw Lumen: 2700 lm Current Draw: 5.25A@12V, 2.625A@24V Operating Voltage:12-48V Color Temperature: 6000K Beam Pattern: Flood Lens Material: PC Housing Material: Aluminium Alloy IP Rating: IP67 Working Temperature: -45-80℃ Mounting Hardware: M10 Bracket Adjustment: 150 degree up/down. Cable Length: About 40cm (15') Lifetime: 50000 Hours | Approval: CE RoHS Warranty: 2 Years Packing: One light in one Individual box, 12PCS in one carton. G. W.:13KG; Size: 38.5*30.5*31CM
|
APPLICATIONS
