TP912
Bridgelux LED
1.5A@12V, 0.75A@24V
24W
10-30V
Spot/Flood
IP67
2 Years
CE RoHS
Led Square Lighting Auto PartsTruck 24w Car Led Work Light
PRODUCT INFORMATION:
Description:

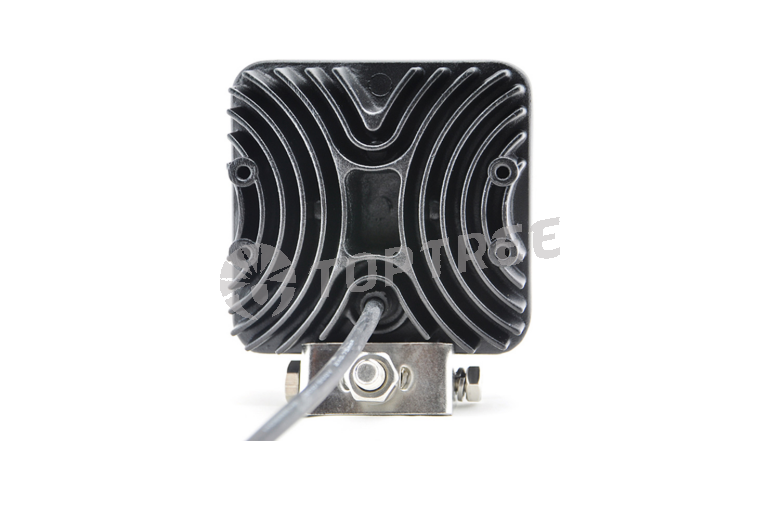

4 Inch 24W Square LED work light with Bridgelux LEDs, low power consumption and high luminous flux.10~30VDC operating voltage range. Back of the housing has large cooling ribs for optimized heat dissipation. Made of high quality Diecast Aluminum Housing Waterproof,dustproof,quakeproof,Anti explosion.Great for tractor,4x4s,trailer,marine and off-roading and as auxiliary light for SUV bumper and fire engine.
Features:
100% Brand new and high quality! Universal for 10-30V power sources. Low power consumption and long term lasting. Heavy duty aluminum alloy housing. | Waterproof and shockproof. The unique stackable modular design. Easy installation. Super compact. |
Specification
Part: TP912 Wattage: 24w (8pcs*3w Bridgelux led) Raw Lumen: 1300 lm Current Draw: 1.5A@12V, 0.75A@24V Operating Voltage:10-30V Color Temperature: 6000K Beam Pattern: Spot/Flood Lens Material: PC Housing Material: Aluminium Alloy IP Rating: IP67 Working Temperature: -45-80℃ Mounting Hardware: M10 Bracket Adjustment: 150 degree up/down. Cable Length: About 40cm (15') | Lifetime: 50000 Hours Approval: CE RoHS Warranty: 2 Years Packing: One light in one Individual box, 20PCS in one carton. G. W.:14KG; Size: 35*32*26CM
|
APPLICATIONS
Led Square Lighting Auto PartsTruck 24w Car Led Work Light
PRODUCT INFORMATION:
Description:
4 Inch 24W Square LED work light with Bridgelux LEDs, low power consumption and high luminous flux.10~30VDC operating voltage range. Back of the housing has large cooling ribs for optimized heat dissipation. Made of high quality Diecast Aluminum Housing Waterproof,dustproof,quakeproof,Anti explosion.Great for tractor,4x4s,trailer,marine and off-roading and as auxiliary light for SUV bumper and fire engine.
Features:
100% Brand new and high quality! Universal for 10-30V power sources. Low power consumption and long term lasting. Heavy duty aluminum alloy housing. | Waterproof and shockproof. The unique stackable modular design. Easy installation. Super compact. |
Specification
Part: TP912 Wattage: 24w (8pcs*3w Bridgelux led) Raw Lumen: 1300 lm Current Draw: 1.5A@12V, 0.75A@24V Operating Voltage:10-30V Color Temperature: 6000K Beam Pattern: Spot/Flood Lens Material: PC Housing Material: Aluminium Alloy IP Rating: IP67 Working Temperature: -45-80℃ Mounting Hardware: M10 Bracket Adjustment: 150 degree up/down. Cable Length: About 40cm (15') | Lifetime: 50000 Hours Approval: CE RoHS Warranty: 2 Years Packing: One light in one Individual box, 20PCS in one carton. G. W.:14KG; Size: 35*32*26CM
|
APPLICATIONS
