TP810B
0.83A@12V, 0.41A@24V
10W
10-30V
Spot /Flood
IP67
2 Years
CE RoHS

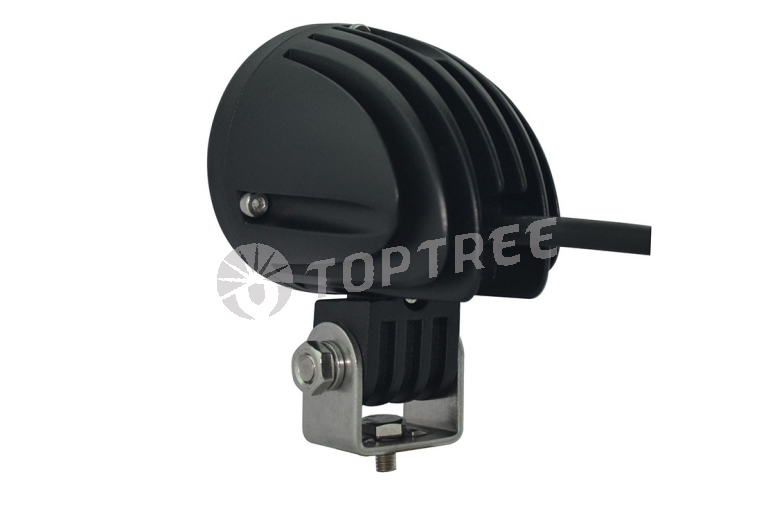

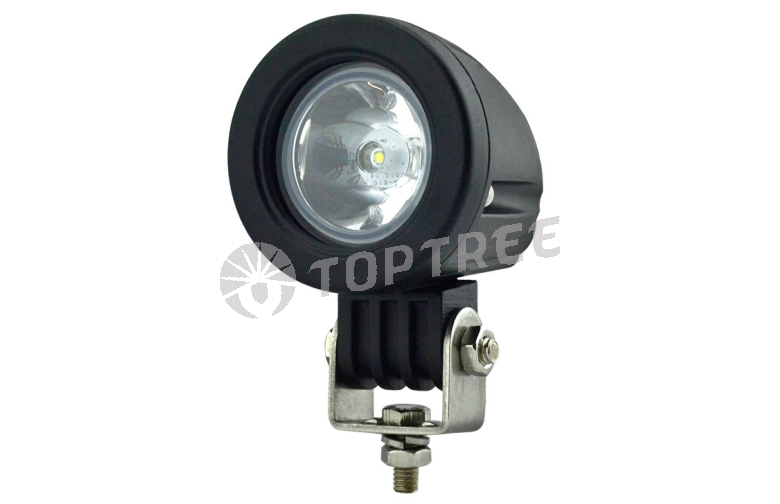

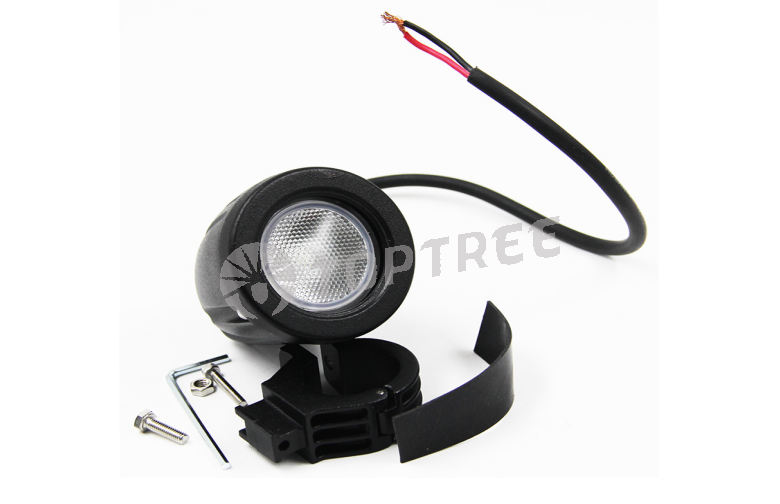

12V 24V 10W Cree LED Work Light Lamp Flood for Truck Off Road Light
PRODUCT INFORMATION：
Description:
Each light is designed with a thicker aluminum housings, the aluminum housing is made of eco-friendly aluminum and its powder caoted, makeing it fully resistant to corrosion.
Features:
Integrated Electronic Thermal Management (ETM)
New Generation LED is Driven to 96% Efficiency
Defined Optics Optimize Distance and Dept Advanced Heat Sink Designed to prolong the life of the LED
Each light in the finished testing must be passed through 8-10 hours
Specification
Part: TP810B Wattage: 10W ( 1pcs*10W Cree led) Raw Lumen: 900 lm Current Draw: 0.83A@12V, 0.41A@24V Operating Voltage:10-30V Color Temperature: 6000K Beam Pattern: Spot /Flood Lens Material: PC Housing Material: Aluminium Alloy IP Rating: IP67 Working Temperature: -45-80℃ Mounting Hardware: M8 Bracket Adjustment: 150 degree up/down. Cable Length: About 40cm (15') | Lifetime: 50000 Hours Approval: CE RoHS Warranty: 2 Years Packing: One light in one Individual box, 20PCS in one carton. G. W.:10KG; Size:54*25.5*15CM
|

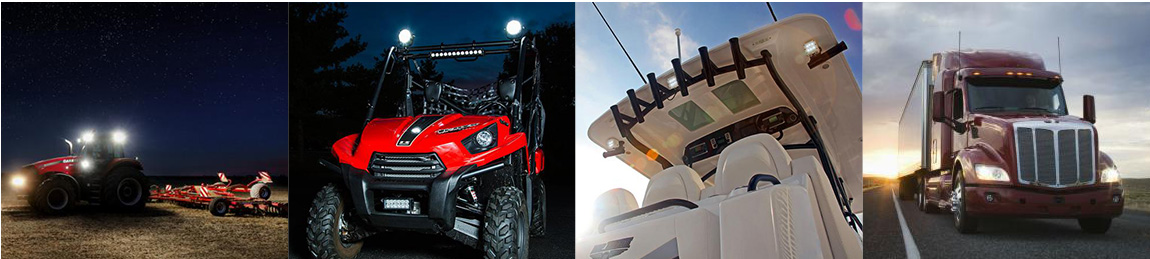

APPLICATIONS
12V 24V 10W Cree LED Work Light Lamp Flood for Truck Off Road Light
PRODUCT INFORMATION：
Description:
Each light is designed with a thicker aluminum housings, the aluminum housing is made of eco-friendly aluminum and its powder caoted, makeing it fully resistant to corrosion.
Features:
Integrated Electronic Thermal Management (ETM)
New Generation LED is Driven to 96% Efficiency
Defined Optics Optimize Distance and Dept Advanced Heat Sink Designed to prolong the life of the LED
Each light in the finished testing must be passed through 8-10 hours
Specification
Part: TP810B Wattage: 10W ( 1pcs*10W Cree led) Raw Lumen: 900 lm Current Draw: 0.83A@12V, 0.41A@24V Operating Voltage:10-30V Color Temperature: 6000K Beam Pattern: Spot /Flood Lens Material: PC Housing Material: Aluminium Alloy IP Rating: IP67 Working Temperature: -45-80℃ Mounting Hardware: M8 Bracket Adjustment: 150 degree up/down. Cable Length: About 40cm (15') | Lifetime: 50000 Hours Approval: CE RoHS Warranty: 2 Years Packing: One light in one Individual box, 20PCS in one carton. G. W.:10KG; Size:54*25.5*15CM
|
APPLICATIONS
