Precision Visual Docking Guidance for Safer and Faster Docking Operations
A Laser Line Docking System is a visual docking guidance solution designed to help truck, trailer, and marine vehicle drivers align accurately with loading docks during reversing.

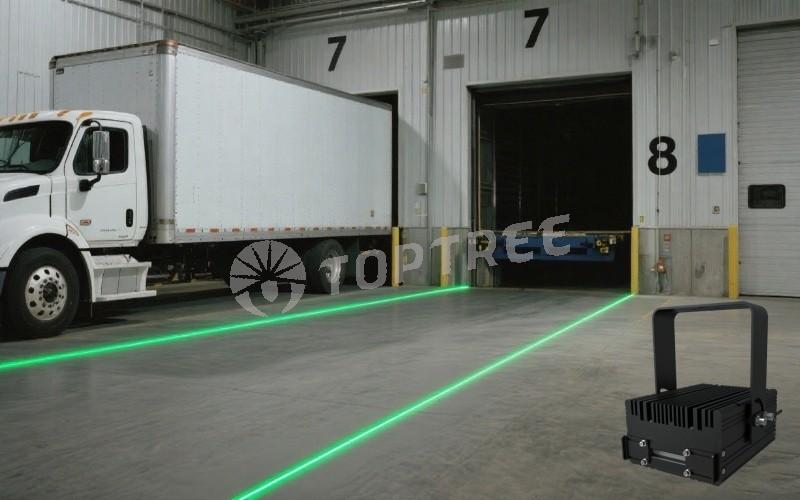

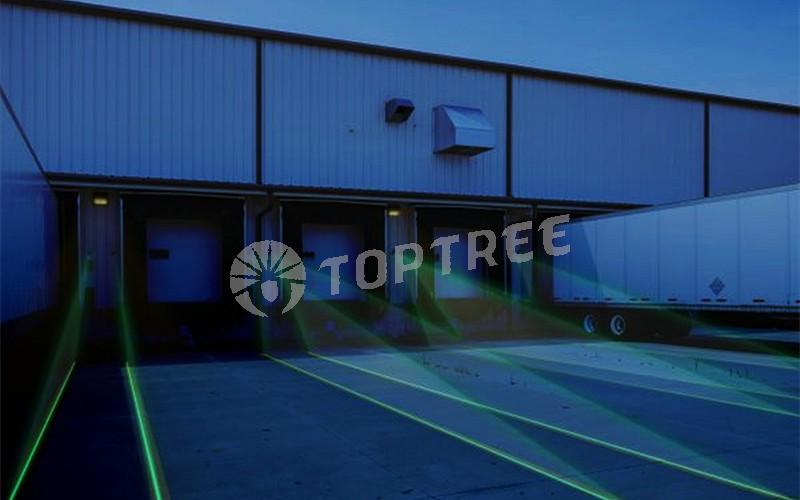

By projecting a highly visible straight laser line onto the ground or dock surface, the system provides a clear visual reference point, allowing drivers to center and position vehicles precisely without relying on mirrors, hand signals, or manual assistance.
This improves docking safety, reduces collision risks, and increases loading efficiency in warehouses, logistics centers, and marine docking areas.
Revolutionize your loading dock operations with the TOPTREE Safety Laser Docking System. This advanced laser docking system is the ultimate assistant for safely and efficiently guiding trucks, trailers, and even marine vessels to the loading dock. By projecting highly visible laser lines directly onto the ground, the system provides drivers with a clear visual guide, ensuring precise alignment and reducing the risk of costly errors and accidents during backing maneuvers.
Traditional methods like painted lines fade and require constant maintenance, but our laser docking system offers a durable, low-maintenance alternative that is visible on various surfaces, including asphalt, gravel, mud, and snow, and works effectively during morning, evening, and nighttime hours. Implement the TOPTREE laser docking system to minimize damage to trailers and docks, speed up loading and unloading times, and significantly boost safety, efficiency, and profitability at your facility.
Docking accidents and misalignment are common causes of:
- Vehicle and dock damage
- Worker injuries
- Loading delays
- Inefficient dock utilization
A laser docking system solves these problems by providing a constant, visible alignment guide.
● Unlike painted floor markings, the laser line does not fade or wear out.
● Unlike mirrors, it provides a fixed, objective reference for drivers.
● Unlike manual spotters, it reduces labor dependency and human error.
○ Projects Bright Laser Lines: Provides clear visual guidance for accurate docking.
○ Highly Visible: Laser lines are easily seen in wing mirrors and on diverse surfaces.
○ Eye Safe: Class 3R laser ensures safety for personnel.
○ Durable & Low Maintenance: Replaces traditional painted lines and tape.
○ Weather-Resistant: IP67 rating offers protection against moisture
○ Long Service Life: Built with quality laser diodes for extended use.
○ Easy Installation: Simple plug-and-play setup.
○ Increase Safety: Guide drivers precisely to prevent accidents and damage.
○ Improve Efficiency: Faster and more accurate trailer docking procedures.
○ Reduce Costs: Minimize damage to valuable assets like trucks, trailers, and docks.
○ Enhance Profitability: Streamline operations and reduce downtime.
○ Reliable Guidance: Works effectively in various environmental conditions.
| Specification | Description |
| Size(without bracket) | 205*139.5*84mm |
| Weight | 4.3kg |
| Light Color | Green/Red |
| Output Power | 0-4 mW |
| Voltage | 85-305VAC |
| Wavelength | 520nm (green light: 1000mw) 638nm(red light: 1200mw) |
| Input power | 9W (green light) 10W (red light) |
| Operating Temperature | –10°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Laser Line Covering Angle | 110 degrees (green light) 109 degrees (red light) |
More details? Contact us now!

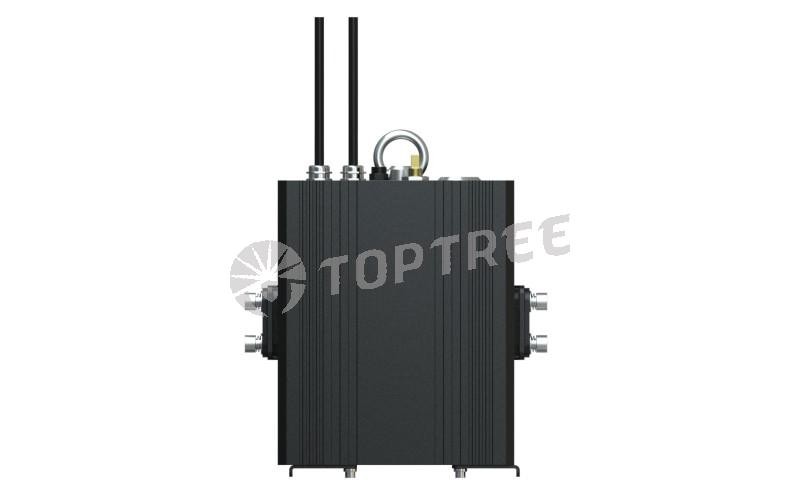

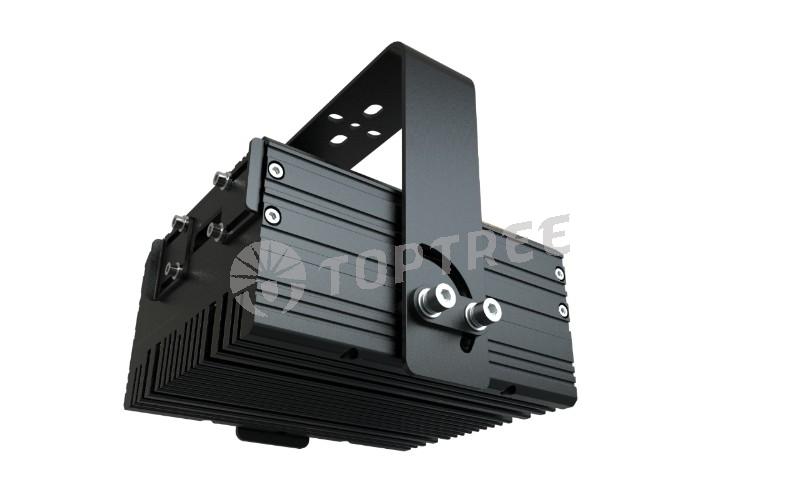

Compact, durable housing with optimized dimensions for precise warehouse marking. Engineered for reliable performance in warehouse environments with adjustable laser projection angles.
 Laser Projector Structure |  Laser Projector Size |
The laser docking system is mounted above or near the loading dock entrance.

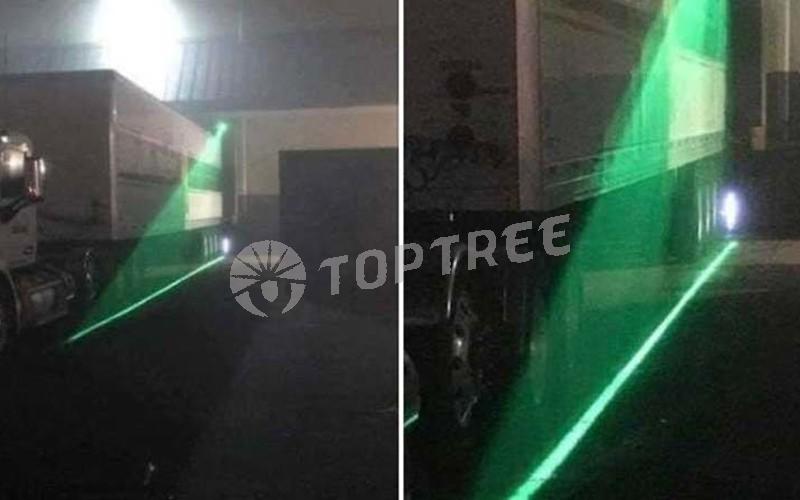

When activated, it projects a straight, high-visibility laser line onto the ground or dock surface. During reversing, drivers align the center of the truck or trailer with the projected laser line, allowing precise positioning every time.
The system operates continuously and does not require manual intervention, making it ideal for high-traffic docking areas.

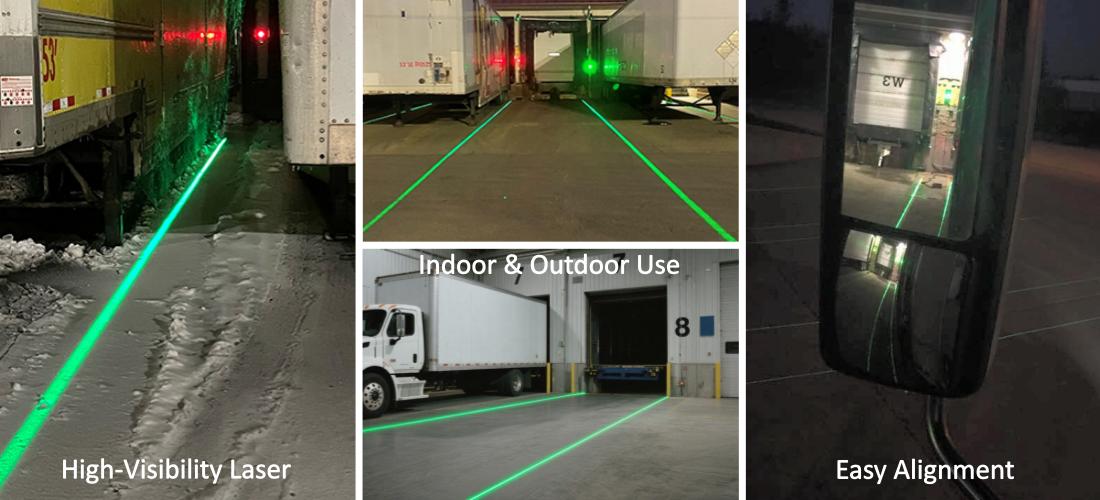

Provides accurate visual guidance for trucks backing into loading bays, reducing turnaround time and dock congestion.
Improves docking safety in busy facilities with multiple vehicles and limited visibility.
Offers reliable alignment guidance for vehicle docking and cargo handling operations in marine environments.
Suitable for factories and plants requiring frequent truck docking under harsh or low-light conditions.
This system is also widely used to define warehouse pedestrian pathways, forklift exclusion zones, and industrial safety lanes,
particularly in:
● Distribution centers and logistics warehouses
● Manufacturing plants with forklift traffic
● Loading dock pedestrian safety zones
● AGV (automated guided vehicle) navigation areas
● Temporary or reconfigurable safety walkways
● Indoor/outdoor industrial hazard zones
 |  |  |  |

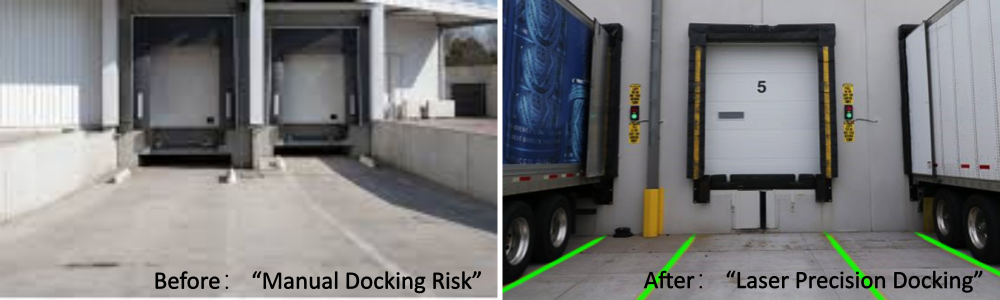

| Docking Method | Accuracy | Safety | Efficiency |
|---|---|---|---|
| Manual hand signals | Low | Low | Low |
| Mirrors | Medium | Medium | Medium |
| Guide rails | High | Medium | Medium |
| Laser line docking system | High | High | High |
Laser docking systems provide a consistent and reliable visual reference that outperforms traditional methods, especially in low-light or high-traffic docking environments.
At TOPTREE, we take product safety, innovation, and compliance seriously. Our laser line projectors are backed by a full suite of certifications and patents, ensuring both regulatory approval and technical excellence.
We are proud to hold:
● Appearance Design Patent Certificates
● Utility Model Patent Certificates
● ISO Quality Management System Certification
● RoHS Compliance for environmental safety
● CE & LVD Certifications for EU market standards
These certifications not only demonstrate our commitment to quality and innovation, but also provide our global clients with the confidence to deploy TOPTREE products in demanding industrial environments.
Utility Model Patent Certificate
Design Patent Certificate
Quality Management System Certification
CE Certification
LVD Certification
RoHS Compliance
1. What is a laser line docking system used for?
A laser line docking system is used to guide trucks, trailers, and vehicles during docking by providing a clear visual alignment reference.
2. Can the system be used outdoors or in marine environments?
Yes. With proper IP-rated housing, the system is suitable for outdoor docks, warehouses, and marine docking areas.
3. Is a laser docking system safe for workers' eyes?
Yes. The product uses a Class 3R industrial laser that is safe for normal occupational use when installed correctly. It does not require protective goggles or special training.
4. Does the laser line remain visible in daylight or low-light conditions?
The system uses a high-intensity industrial laser that remains clearly visible in low-light, night-time, and most daylight conditions. This makes it ideal for 24/7 operations, indoor facilities, and partially outdoor loading docks.
5. How does a laser docking system improve safety compared to traditional methods?
Unlike mirrors, painted lines, or manual spotters, a laser docking system provides a consistent, fixed visual reference that does not depend on human judgment. This significantly reduces human error, prevents dock impacts, and improves overall loading dock safety.
6. Does using a laser docking system help reduce docking time?
Yes. By providing a clear and immediate visual reference, drivers can align their vehicles more quickly and accurately. This reduces docking time, improves turnaround efficiency, and helps facilities handle higher traffic volumes.
7. Is the system easy to install and integrate into existing docks?
Yes. The Laser Line Docking System is designed for easy installation and can be mounted on walls, ceilings, or dock structures. It integrates seamlessly with existing loading dock layouts without requiring major structural modifications.
8. What types of vehicles can use this laser docking guidance system?
The system is suitable for a wide range of vehicles, including trucks, trailers, forklifts, and service vehicles. It is commonly used in logistics terminals, industrial facilities, warehouses, and port operations.
9. Can the laser line docking system operate in harsh industrial environments?
Yes. The system is designed for industrial use and can operate reliably in environments with dust, vibration, and temperature variations. This makes it suitable for factories, plants, and other demanding industrial facilities.
10. Do you offer OEM or private label options?
Absolutely. We support full OEM/ODM customization, including logo , packaging, user manuals, and product labeling to match your brand.
1. Industry-Leading Expertise
With over 10 years of experience in industrial safety solutions, we specialize in developing advanced visual warning systems for warehouses, logistics, and hazardous zones.
2. In-House R&D and Engineering
We own a professional R&D team focused on lighting technology, ensuring continuous innovation and customization capability for clients with different safety needs.
3. Certified Quality and Compliance
All products meet international safety and quality standards (CE, RoHS, etc.). Every unit undergoes strict QC testing before shipment.
4. Scalable Production Capacity
We operate a modern manufacturing facility with scalable production lines, supporting bulk orders and fast lead times without compromising quality.
5. Global Client Base
Trusted by Fortune 500 companies, regional distributors, and safety integrators across North America, Europe, Southeast Asia, and the Middle East.
6. Reliable After-Sales Service
Our dedicated support team offers fast response, technical guidance, and warranty support to ensure long-term satisfaction.
At our manufacturing facilities, we employ a range of advanced testing equipment to guarantee the highest product quality and reliability. Each piece of equipment plays a vital role in inspecting, measuring, and validating product performance before shipment.
Drop and Vibration Test
EMC Test
Hi-Low Test
IP69K Standard
Lumen Test
Optical test Dark Room
Salt Spray Test
SMT
UV Accelerated Weathering Tester
Vehicle lighting test system for DOT
