At least 20,000 hours
Green, red or blue
10W-30W
Warehouses, factories, loading docks
Why Choose a 30W High-Power Laser Line?
Even when mounted 10 meters above the floor, the 30W laser can still create a clear, visible safety line for high-bay industrial environments.
Up to 16m projection distance, making the 30W model better suited for large warehouses and high-ceiling facilities than lower-power models.
Designed for long aisles, large work zones and elevated mounting positions where lower-power laser lines may not provide sufficient reach.
Create visible safety boundaries without paint or floor tape that can wear under forklifts, carts and heavy traffic.
Use a green line to guide pedestrian walkways or a red line to show a forklift boundary at an aisle, dock or loading point.
Mark the edge of a guarded machine cell, restricted work area or material-handling route without adding a physical obstruction to the floor.

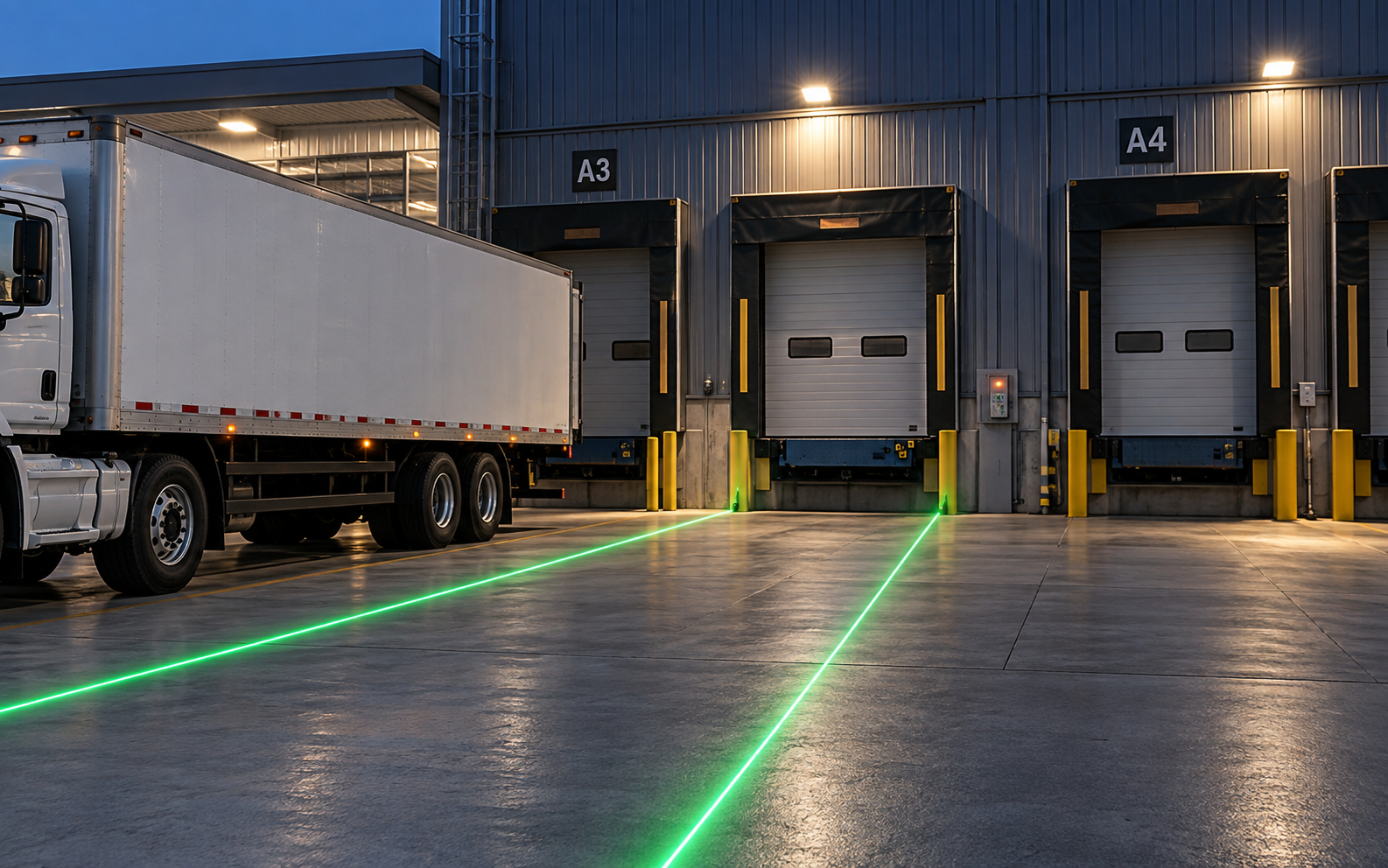

Project a visible stop or clearance line at an indoor loading bay, vehicle staging area or delivery interface.

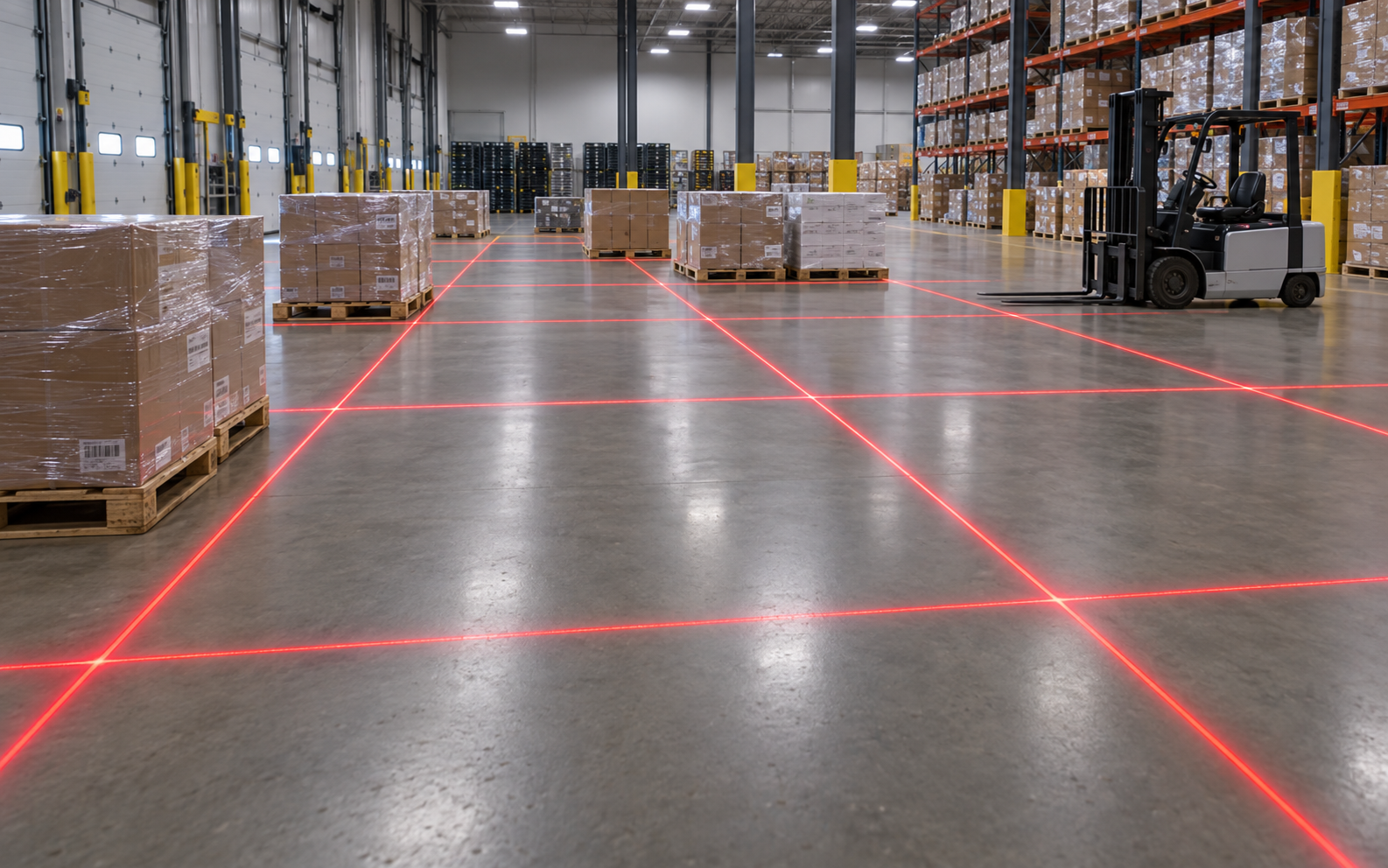

Combine red, green and blue lines to separate pedestrian, vehicle and equipment routes where several movements share one open space.
Values below are taken from the supplied Straight-Line Laser Light 10W–30W specification sheet. Confirm the final model and local installation requirements before ordering.
Item | 10W model | 20W model | 30W model |
|---|---|---|---|
Available colors | Green, red or blue | ||
Light source | Laser | ||
Projection distance | 1–6 m | 1–12 m | 1–16 m |
Operating temperature | −20°C to +60°C | ||
Input voltage | AC 100–240 V, 50/60 Hz | ||
Forward voltage | 12 V | ||
Adjustable angle | 0–180° | ||
Installation | Wall, ceiling or tabletop | ||
Service life | At least 20,000 hours | ||

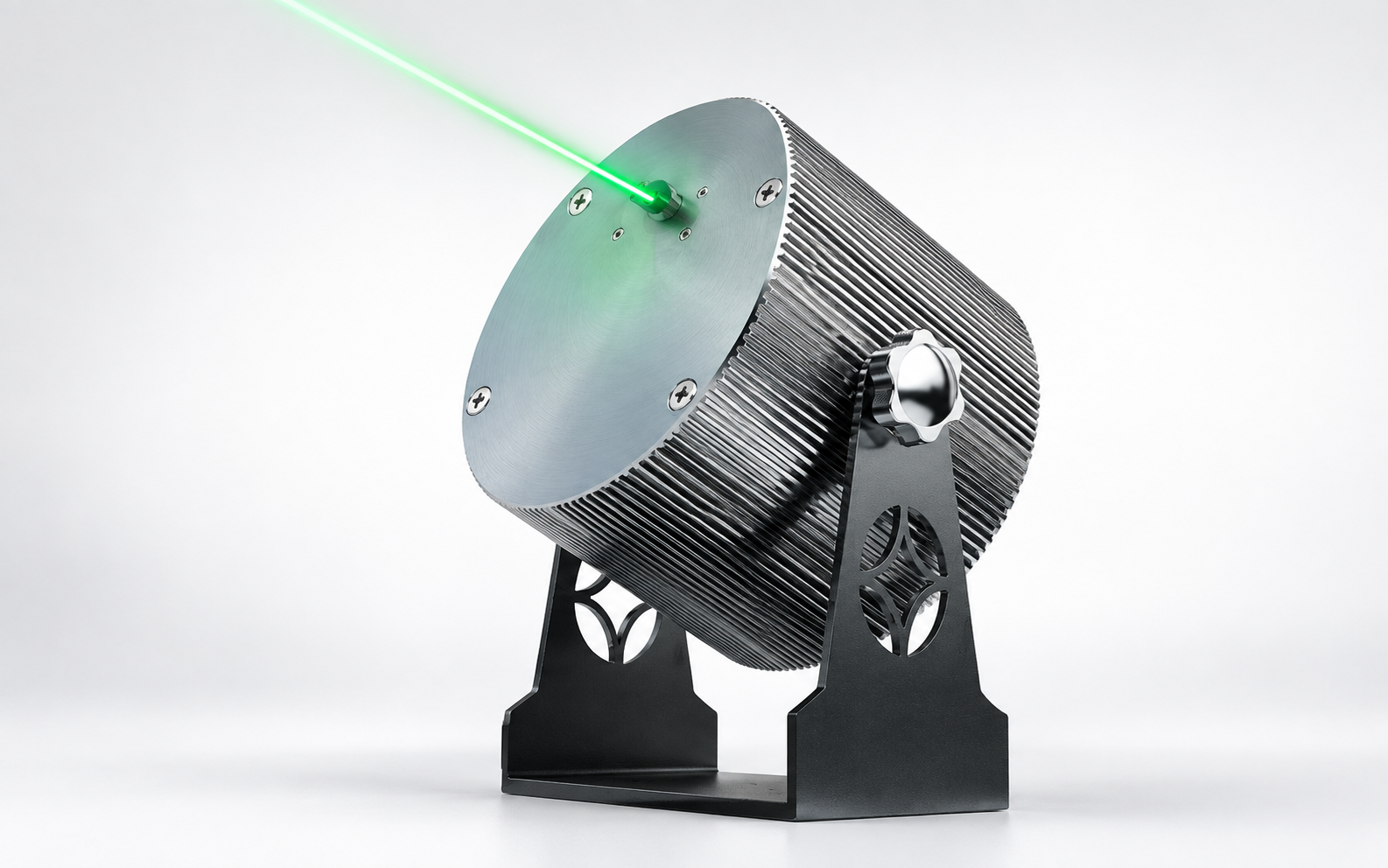

Heat dissipation | Aluminum fixture body | ||
See the straight-line projection effect and typical industrial setup in the product video.
Which power should I choose?
Use the required projection distance as the starting point: 10W is specified for 1–6 m, 20W for 1–12 m and 30W for 1–16 m. Final selection should also consider ambient light and surface conditions.
Can I choose the line color?
Yes. The specification sheet lists green, red and blue options. Tell us your preferred color when requesting a quotation.
How can the fixture be installed?
It supports wall, ceiling or tabletop installation. The bracket provides 0–180° angle adjustment for alignment.
What input power is required?
The listed input is AC 100–240 V, 50/60 Hz, with a 12 V forward voltage. Confirm the wiring and local electrical requirements before installation.
What information should I send for a quotation?
Send the model power, line color, projection distance, mounting position, target surface and estimated quantity. We can then confirm a suitable configuration and lead-time options.
Plan a visible safety route for your siteShare your projection distance, preferred color, installation position and quantity. Our team can recommend the matching 10W, 20W or 30W model and prepare a project quotation. |
