1 unit
Laser 3R, CE, RoHS, LVD, ISO, Patents
Custom logo, packaging
Warehouses, factories, loading docks
Say goodbye to paint and tape. Our Virtual Floor Marking System uses laser technology to project crisp, adjustable walkways and safety zones directly onto warehouse floors. This Laser Walkway solution offers a clean, dynamic, and low-maintenance alternative—perfect for environments with shifting workflows, high traffic, or regular layout changes.
Ideal for pedestrian lanes, forklift routes, buffer zones, and more, it boosts efficiency and safety around the clock.
| Specification | Description |
| Size(without bracket) | 205*139.5*84mm |
| Weight | 4.3kg |
| Light Color | Green/Red |
| Output Power | 0-4 mW |
| Voltage | 85-305VAC |
| Wavelength | 520nm (green light: 1000mw) 638nm(red light: 1200mw) |
| Input power | 9W (green light) 10W (red light) |
| Operating Temperature | –10°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Laser Line Covering Angle | 110 degrees (green light) 109 degrees (red light) |
More details? Contact us now!
Compact, durable housing with optimized dimensions for precise warehouse marking. Engineered for reliable performance in warehouse environments with adjustable laser projection angles.
Laser Projector Structure |
Laser Projector Size |
Projected, Not Painted
Our Virtual Laser Walkway system is a modern tool for proactive safety management. It creates a clear, unmissable visual boundary that commands attention and directs behavior.
By projecting light onto the floor, you create a safety system that is immune to physical damage. It's a permanent, professional solution that meets the demands of a dynamic, modern facility and helps you achieve safety compliance with a "set and forget" tool.
○ Flexible and Reconfigurable
No more repainting or taping. With laser walkways, you can instantly adjust your floor layout to meet changing workflows, safety zones, or traffic patterns.
○ Always Visible – Day or Night
Laser lines are sharp, bright, and clear, even under strong warehouse lighting, in cold storage, or in dusty environments. Green and red are especially effective in high-visibility areas.
○ No Wear, No Maintenance
Unlike painted or taped lines that fade, peel, or get dirty, virtual laser lines require zero upkeep. Set it once and it runs reliably with no mess.
○ Industrial-Grade Durability
Designed with IP67 waterproof and dustproof aluminum housing, the system performs in harsh industrial environments — from freezer rooms to outdoor loading areas.
○ Improved Safety and Traffic Flow
Clear visual guidance reduces collision risks between forklifts and pedestrians, keeps operators in safe zones, and improves on-site compliance.
Quick Setup in 3 Steps:
Mounting: Secure the projector on the ceiling, beam, or structure above the area to be marked using the provided adjustable bracket.
Power Supply: Connect to standard AC 85–305V – no special wiring needed.
Alignment: Adjust the angle and focus for your required line length and coverage.
This laser walkway system is widely used to define warehouse pedestrian pathways, forklift exclusion zones, and industrial safety lanes,
particularly in:

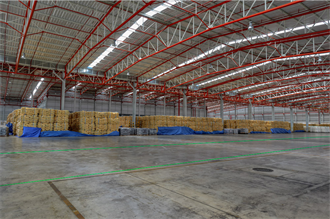

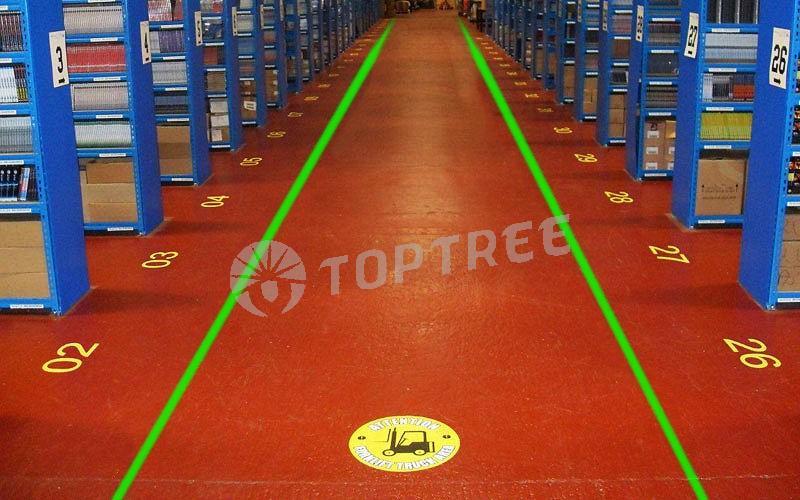

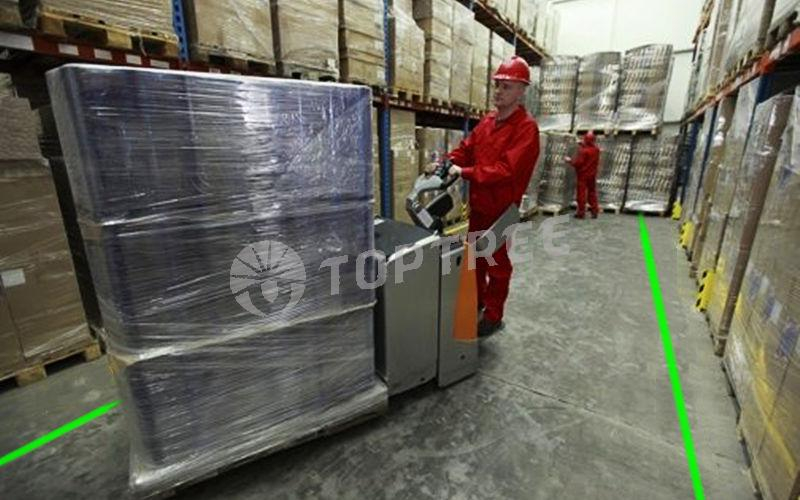

● Warehouse and Distribution Centers – Define clear walkways and forklift routes

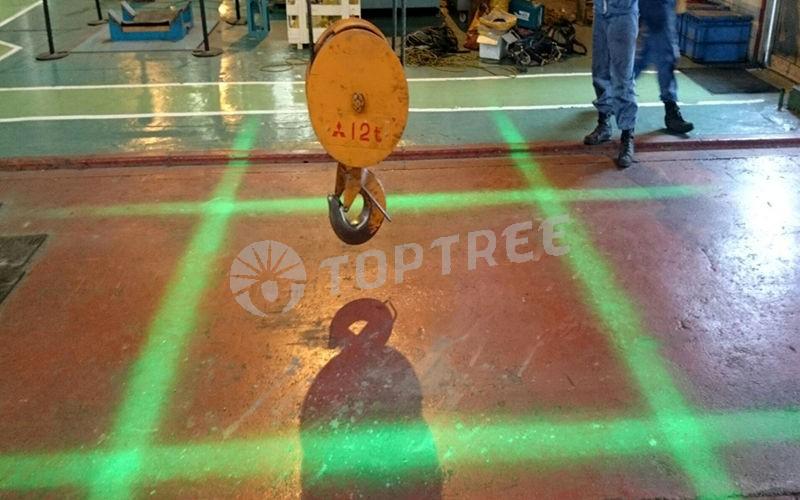

● Heavy Equipment Work Zones – Mark danger zones around cranes or press machines

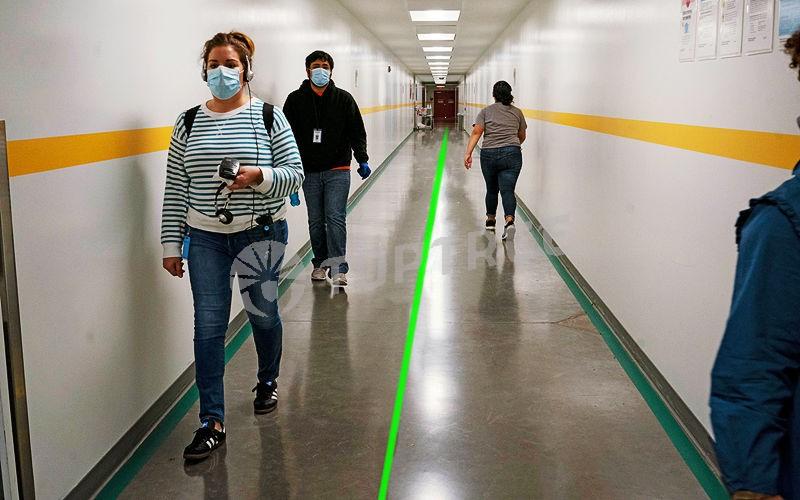

● Pedestrian Safety – Create virtual crossing paths in production areas
● EV Charging Stations or Parking – Permanent-looking lines with zero floor damage
● Food, Cleanroom & Pharma Plants – Avoid surface contamination with non-contact projection
● Flexible Layouts – Project lines where frequent re-zoning is needed
| Lase Floor Marking |  Parking Laser Lines |  Laser Docking Lines |  Laser Walkway Lines |
1. What is a virtual floor marking system?
It's a laser projector that creates virtual safety lines and walkways on warehouse floors—no paint or tape needed.
2. How does a virtual laser line improve workplace safety?
A virtual laser line provides a visual boundary for pedestrians, separating them from forklift or crane traffic zones. It prevents unauthorized access to hazardous areas and reduces the risk of accidents by clearly marking safe walking paths.
3. Is the laser safe for human eyes?
Yes. The lasers are FDA Class 3R compliant and safe for industrial use. No safety goggles are required when installed and operated as instructed.
4. What are the benefits over traditional floor tape or paint?
○No wear and tear or fading
○Easy to relocate when layout changes
○No downtime for repainting
○Always visible and consistent
○Safer in dusty or high-traffic areas
5. Will it work on different types of floors?
Yes. The laser line can be projected on concrete, epoxy, tile, or painted surfaces. Floor condition does not affect visibility.
6. Can the laser line length and projection area be adjusted?
Yes. The mounting height and angle determine the size of the projected line. You can easily customize the projection to fit different walkway widths or workspaces.
7. Can I deploy multiple units?
Definitely. Combine several units to form walkways, zones, or cross-lane guidance—fully scalable.
8. Is it suitable for cold storage or high-temperature environments?
Yes. The device is built to operate in temperatures from -10°C to +60°C, making it ideal for cold warehouses, refrigerated areas, and factory floors.
9. What maintenance does it require?
None. This is a fully sealed unit with 30,000+ hours lifespan. Occasional lens cleaning may be helpful in dusty environments.
10. How do I order or get a quotation?
You can contact us via email or form. We support global shipping, flexible MOQ, and can deliver OEM-branded products.
1. Industry-Leading Expertise
With over 10 years of experience in industrial safety solutions, we specialize in developing advanced visual warning systems for warehouses, logistics, and hazardous zones.
2. In-House R&D and Engineering
We own a professional R&D team focused on lighting technology, ensuring continuous innovation and customization capability for clients with different safety needs.
3. Certified Quality and Compliance
All products meet international safety and quality standards (CE, RoHS, etc.). Every unit undergoes strict QC testing before shipment.
4. Scalable Production Capacity
We operate a modern manufacturing facility with scalable production lines, supporting bulk orders and fast lead times without compromising quality.
5. Global Client Base
Trusted by Fortune 500 companies, regional distributors, and safety integrators across North America, Europe, Southeast Asia, and the Middle East.
6. Reliable After-Sales Service
Our dedicated support team offers fast response, technical guidance, and warranty support to ensure long-term satisfaction.
At our manufacturing facilities, we employ a range of advanced testing equipment to guarantee the highest product quality and reliability. Each piece of equipment plays a vital role in inspecting, measuring, and validating product performance before shipment.
Drop and Vibration Test
EMC Test
Hi-Low Test
IP69K Standard
Lumen Test
Optical test Dark Room
Salt Spray Test
SMT
UV Accelerated Weathering Tester
Vehicle lighting test system for DOT
At TOPTREE, we take product safety, innovation, and compliance seriously. Our laser line projectors are backed by a full suite of certifications and patents, ensuring both regulatory approval and technical excellence.
We are proud to hold:
○ Appearance Design Patent Certificates
○ Utility Model Patent Certificates
○ ISO Quality Management System Certification
○ RoHS Compliance for environmental safety
○ CE & LVD Certifications for EU market standards
These certifications not only demonstrate our commitment to quality and innovation, but also provide our global clients with the confidence to deploy TOPTREE products in demanding industrial environments.
Utility Model Patent Certificate
Design Patent Certificate
Quality Management System Certification
CE Certification
LVD Certification
RoHS Compliance
Have questions or need a custom quote? Our expert team is here to help you find the perfect warehouse and pedestrian safety laser solutions tailored to your needs. Contact us today for fast, professional service and support.
Changzhou Toptree Auto Lamp Co.,Ltd
Phone: +86 519 8119 3809
Email: info@toptreesafety.com
WhatsApp: +86-15051960989
We look forward to partnering with you to enhance workplace safety.
North American Master Distributor for US and Canada
Website: www.forklifttrainingsystems.com
Email: info@forklifttrainingsystem.com
Phone: 614-583-5749
