Define Safe Pedestrian Walkways with High-Visibility Virtual Laser Lines
Virtual Laser Line Projectors are industrial safety systems designed to project bright, highly visible laser lines on the floor to clearly define pedestrian walkways, vehicle lanes, and safety zones.
Unlike traditional paint or tape markings, virtual laser lines are maintenance-free, instantly visible, and easy to reconfigure, making them ideal for modern warehouses, factories, and logistics facilities.
A Virtual Laser Line Projector is an industrial laser safety device that creates a continuous, high-visibility line on the floor to visually separate pedestrians from vehicles and hazardous areas.

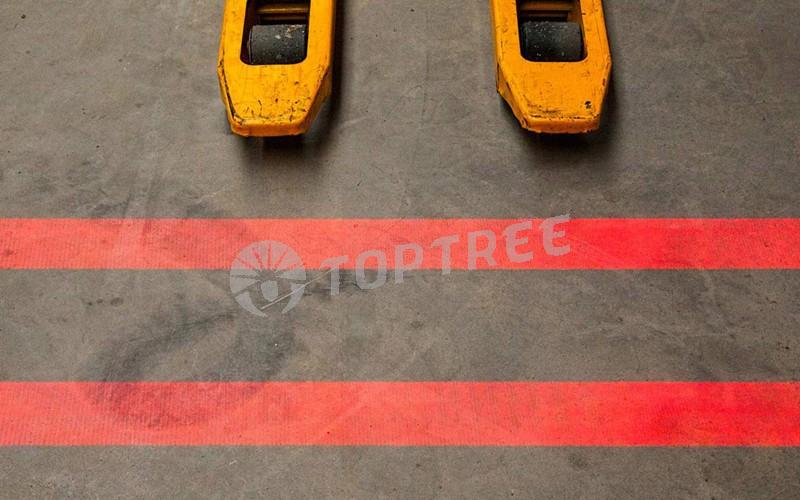

The projected laser line acts as a virtual floor marking, improving awareness and reducing the risk of accidents without physical markings.
The projector is mounted on a wall, ceiling, or structural beam above the designated area.

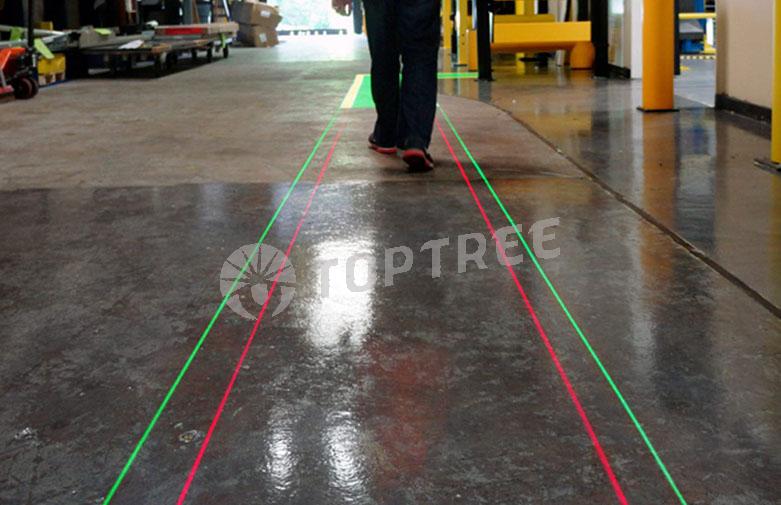

Once powered on, it projects a straight laser line onto the floor, forming a clear visual boundary for pedestrian walkways or safety zones.
The line remains visible in both low-light and bright industrial environments and does not degrade over time like painted or taped markings.
Over a 3–5 year operating period, traditional floor paint and tape markings often require frequent replacement due to heavy traffic, cleaning chemicals, and surface wear. This results in repeated labor costs, material expenses, and production downtime.
A Virtual Laser Line Projector eliminates these recurring issues by providing a permanent, highly visible safety line that never fades or peels.
In high-traffic industrial environments, facilities using virtual laser floor marking systems typically experience:
● Up to 70% reduction in floor marking maintenance
● Improved pedestrian compliance due to constant visibility
● No shutdowns for repainting or tape replacement
● Consistent safety marking regardless of floor condition
| Traditional Floor Marking | Virtual Laser Line Projector |
|---|---|
 |  |
| Fades and wears out | No wear, no fading |
| Requires repainting | Zero ongoing maintenance |
| Difficult to change layout | Instantly repositionable |
| Low visibility in poor lighting | High visibility at all times |
Virtual laser floor marking provides a long-term, cost-effective safety solution for dynamic industrial environments.
● Ultra-Bright Laser Core
Delivers a powerful beam of light, ensuring exceptional visibility on any surface, from concrete to epoxy.
● IP67 Weatherproof Rating
The rugged, sealed housing is completely dust-tight and waterproof, built to withstand harsh industrial conditions.
● 50,000+ Hour Lifespan
This energy-efficient virtual line projector is designed for years of reliable, continuous operation.
● Multiple Color Options
Choose from Safety Green or Warning Red to match your specific safety needs.
● Adjustable Line Length
Easily customize the projection length to perfectly fit your walkway or zone requirements.
Create durable, projected walkways and safety lines that eliminate the need for constant repainting and maintenance.
★ Zero Wear & Tear: Say goodbye to faded, peeling, and damaged floor markings forever.
★ Highly Visible: Ultra-bright lines are clear and sharp, even in well-lit environments.
★ Easy Installation: Mount, aim, and project. Your new safety system is ready in minutes.
★ Boosts OSHA Compliance: A modern solution to enhance your facility's safety standards.
| Specification | Description |
| Size(without bracket) | 205*139.5*84mm |
| Weight | 4.3kg |
| Light Color | Green/Red |
| Output Power | 0-4 mW |
| Voltage | 85-305VAC |
| Wavelength | 520nm (green light: 1000mw) 638nm(red light: 1200mw) |
| Input power | 9W (green light) 10W (red light) |
| Operating Temperature | –10°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Laser Line Covering Angle | 110 degrees (green light) 109 degrees (red light) |
More details? Contact us now!
Compact, durable housing with optimized dimensions for precise warehouse marking. Engineered for reliable performance in warehouse environments with adjustable laser projection angles.
Laser Projector Structure |
Laser Projector Size |
1. MOUNT: Securely install the projector on a ceiling, beam, or wall mount.
2. AIM: Point the projector lens at the desired floor area.
3. PROJECT: Power on the unit to instantly create a crisp, highly visible virtual line.
A virtual laser line projector is the ideal solution when:
● Floor paint or tape wears out quickly due to vehicle traffic
● Pedestrian walkways need to remain clearly visible at all times
● Facility layouts change frequently
● Maintenance downtime must be minimized
● Pedestrians and vehicles operate in the same working area
● Both safety compliance and operational efficiency are priorities
Virtual laser line projectors are used in industrial environments to clearly mark pedestrian walkways and safety zones, especially where vehicles and people operate in the same area. They provide a highly visible, maintenance-free alternative to floor paint or tape.

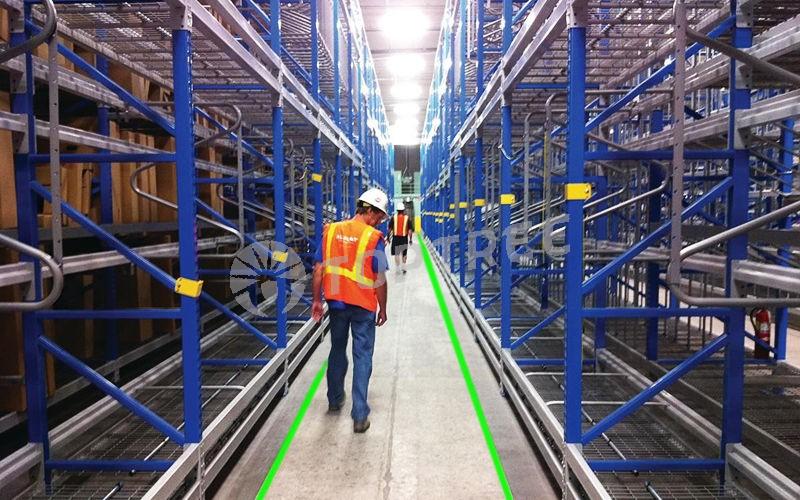

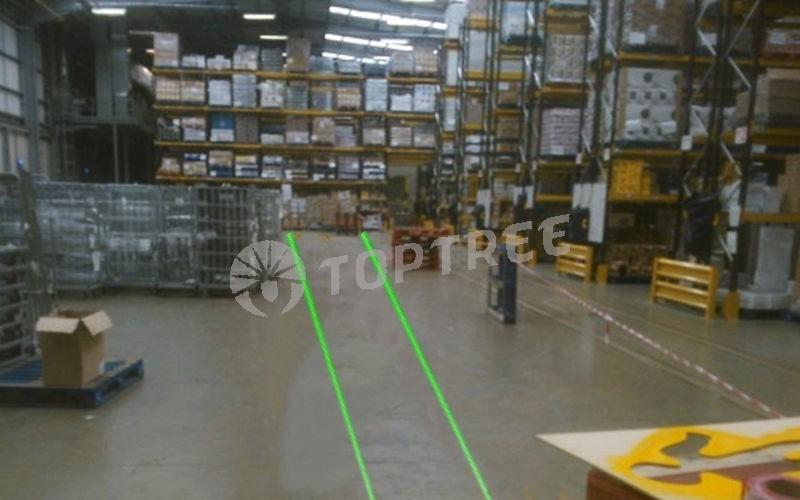

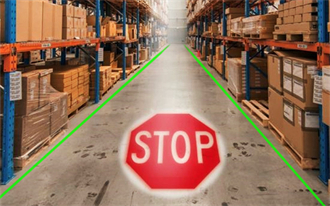

● Warehouses & Distribution Centers
Defines pedestrian walkways in busy warehouses, helping reduce forklift-related accidents and keeping traffic organized without worn floor markings.
● Logistics & Fulfillment Facilities
Improves safety in high-traffic logistics environments where constant vehicle movement quickly damages traditional floor markings.

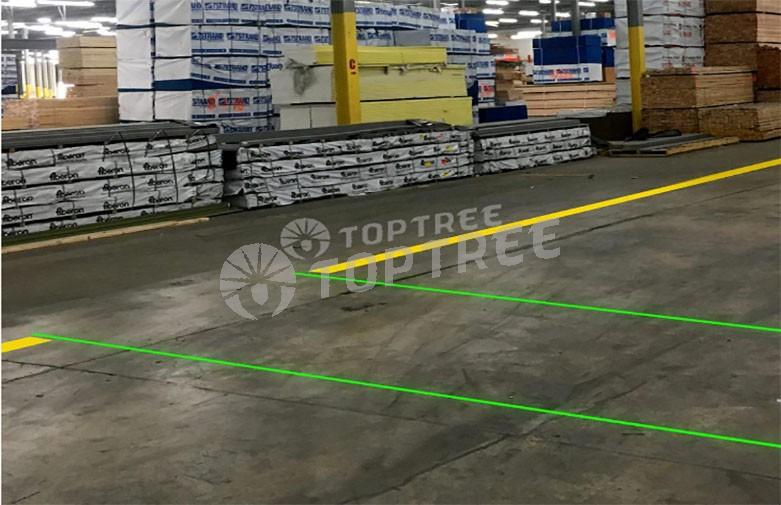

● Manufacturing & Industrial Plants
Suitable for factories with heavy equipment or changing layouts, providing flexible safety guidance without interrupting operations.
● Ports, Yards & Large Industrial Sites
Maintains clear pedestrian guidance in outdoor or semi-outdoor areas where paint and tape degrade due to weather and heavy use.
● AGV & Automated Facilities
Helps separate pedestrian paths from AGV or robot traffic, improving visibility and awareness in automated environments.

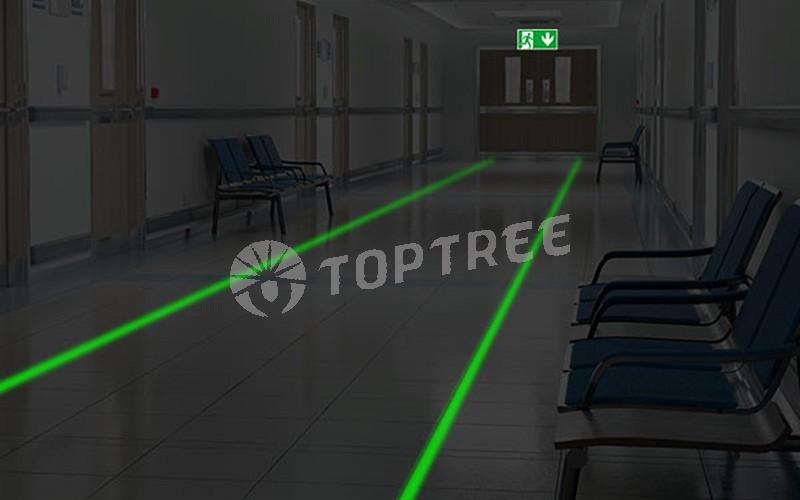

Other Application：
 |  |  |  |
While OSHA and most industrial safety standards do not mandate a specific floor marking technology, they require clear visual separation between pedestrian walkways and vehicle traffic.
Virtual laser line projectors help facilities support these safety requirements by:
● Clearly defining pedestrian pathways
● Improving visibility in low-light and high-glare environments
● Maintaining consistent safety markings without deterioration
● This supports safer working conditions and improved compliance in industrial facilities.
1. How do I determine the right number of projectors for my space?
Our safety specialists can help! Simply provide us with the dimensions of your area, the mounting height, and the ambient light conditions, and we will provide a free layout and product recommendation.
2. Is the projected line visible in bright, daytime conditions?
Yes. We offer various power models, and our high-output units are specifically designed to project a bright, clear line even in well-lit factories and outdoor-facing areas. Our team can help you select the right power for your environment.
3. Is the light safe for workers' eyes?
Absolutely. Our products are classified as Class 3R devices, which are considered safe for incidental viewing and do not pose a hazard when used as intended. They are designed to be projected on the floor, away from direct eye-level.
4. Is a virtual laser line better than floor paint or tape?
Yes. Unlike paint or tape, virtual laser lines do not fade, peel, or require replacement, making them a maintenance-free and cost-effective solution for industrial environments.
5. Where are virtual laser line projectors typically used?
They are commonly used in warehouses, manufacturing plants, logistics centers, fulfillment facilities, and other industrial environments where pedestrians and vehicles operate together.
6. Can the laser line length and projection area be adjusted?
Yes. The mounting height and angle determine the size of the projected line. You can easily customize the projection to fit different walkway widths or workspaces.
7. Are virtual laser lines safe for pedestrians?
Yes. Virtual laser line projectors used for pedestrian safety are designed for visual guidance and operate within controlled output levels suitable for industrial environments.
8. Is it suitable for cold storage or high-temperature environments?
Yes. The device is built to operate in temperatures from -10°C to +60°C, making it ideal for cold warehouses, refrigerated areas, and factory floors.
9. What is the installation and maintenance like?
Installation is simple with wall or ceiling brackets. Unlike traditional painted lines, laser systems are easy to adjust, and the light source lasts for years with minimal upkeep.
10. Can virtual laser lines replace physical safety barriers?
Virtual laser lines provide visual guidance and awareness but do not replace physical barriers. They are most effective when used alongside proper traffic management and safety procedures.
At TOPTREE, we take product safety, innovation, and compliance seriously. Our laser line projectors are backed by a full suite of certifications and patents, ensuring both regulatory approval and technical excellence.
We are proud to hold:
● Appearance Design Patent Certificates
● Utility Model Patent Certificates
● ISO Quality Management System Certification
● RoHS Compliance for environmental safety
● CE & LVD Certifications for EU market standards
These certifications not only demonstrate our commitment to quality and innovation, but also provide our global clients with the confidence to deploy TOPTREE products in demanding industrial environments.
Utility Model Patent Certificate
Design Patent Certificate
Quality Management System Certification
CE Certification
LVD Certification
RoHS Compliance
1. Industry-Leading Expertise
With over 10 years of experience in industrial safety solutions, we specialize in developing advanced visual warning systems for warehouses, logistics, and hazardous zones.
2. In-House R&D and Engineering
We own a professional R&D team focused on lighting technology, ensuring continuous innovation and customization capability for clients with different safety needs.
3. Certified Quality and Compliance
All products meet international safety and quality standards (CE, RoHS, etc.). Every unit undergoes strict QC testing before shipment.
4. Scalable Production Capacity
We operate a modern manufacturing facility with scalable production lines, supporting bulk orders and fast lead times without compromising quality.
5. Global Client Base
Trusted by Fortune 500 companies, regional distributors, and safety integrators across North America, Europe, Southeast Asia, and the Middle East.
6. Reliable After-Sales Service
Our dedicated support team offers fast response, technical guidance, and warranty support to ensure long-term satisfaction.
At our manufacturing facilities, we employ a range of advanced testing equipment to guarantee the highest product quality and reliability. Each piece of equipment plays a vital role in inspecting, measuring, and validating product performance before shipment.
Drop and Vibration Test
EMC Test
Hi-Low Test
IP69K Standard
Lumen Test
Optical test Dark Room
Salt Spray Test
SMT
UV Accelerated Weathering Tester
Vehicle lighting test system for DOT
Have questions or need a custom quote? Our expert team is here to help you find the perfect warehouse and pedestrian safety laser solutions tailored to your needs. Contact us today for fast, professional service and support.
Changzhou Toptree Auto Lamp Co.,Ltd
Phone: +86 519 8119 3809
Email: info@toptreesafety.com
WhatsApp: +86-15051960989
We look forward to partnering with you to enhance workplace safety.
