9W (green light); 10W (red light)
205*139.5*84mm
Green/Red
85-305VAC
Line
Laser 3R, CE, RoHS, LVD, ISO, Patents
Tired of Misaligned Truck Docking?
Crooked trailers, constant adjustments, and wasted time — inaccurate docking is more than just a headache.

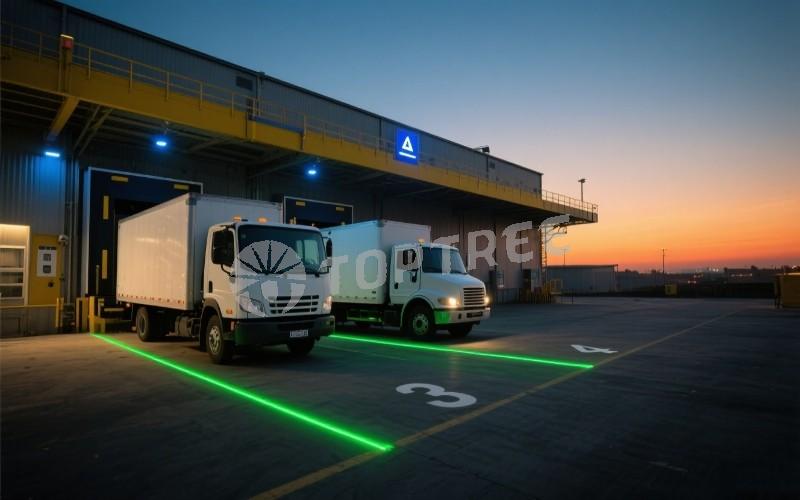

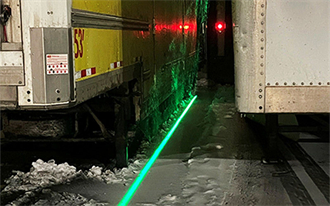

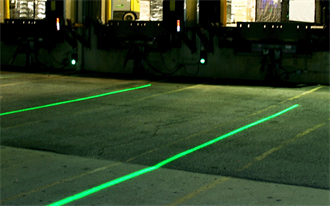

Our Green Docking Laser Line projects a clear visual guide on the ground, helping drivers align with precision every time.
No more guesswork. No more delays. Just smooth, safe, and accurate docking.

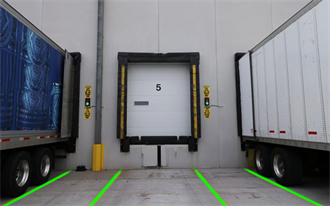

Laser Line Guides for Loading Bays

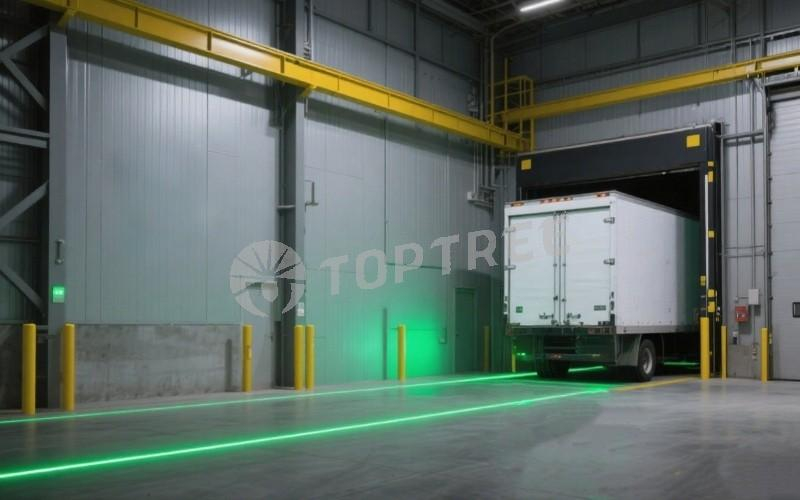

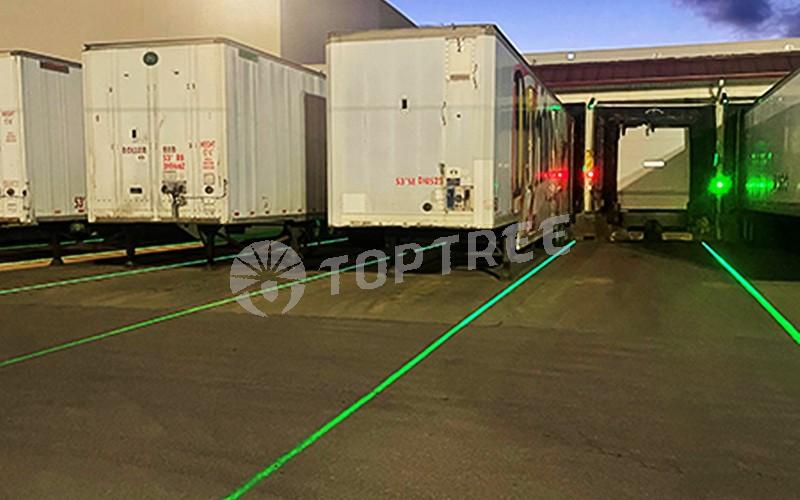

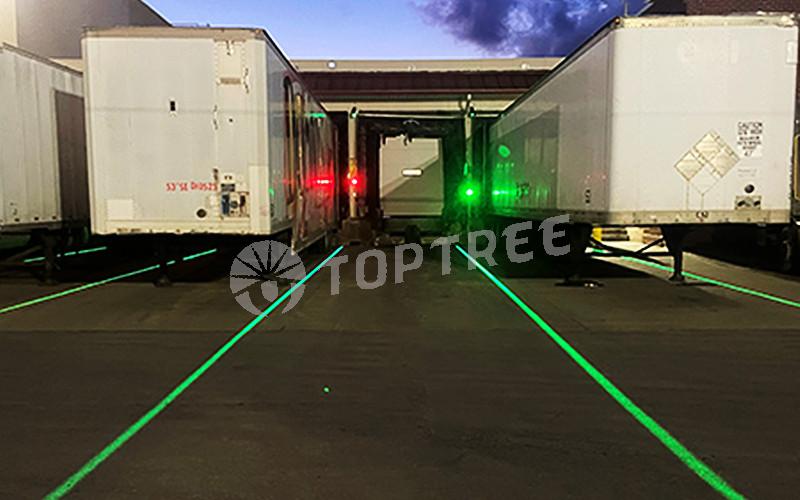

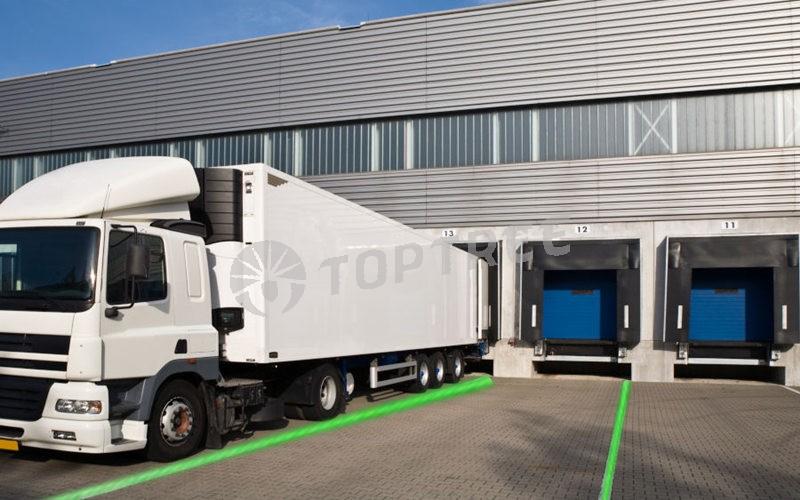

The Green Docking Laser Line is a high-visibility truck docking solution designed to project clear laser guidelines on the ground, assisting drivers in aligning trailers or containers with precision during the docking process. This system significantly enhances safety, prevents misalignment or damage, and reduces docking time—especially useful in low-visibility environments or 24/7 warehouse operations.
Compared to traditional reflective or painted guides, this laser line docking system offers dynamic, maintenance-free, and weather-resistant performance.
Typical Applications:
- Truck and Trailer Docking Bays
- Logistics and Distribution Centers
- Refrigerated Warehouses
- Outdoor Loading Areas
- Ports, Container Yards, and Freight Terminals
 |
|  |  |
| Specification | Description |
| Size(without bracket) | 205*139.5*84mm |
| Weight | 4.3kg |
| Light Color | Green/Red |
| Output Power | 0-4 mW |
| Voltage | 85-305VAC |
| Wavelength | 520nm (green light: 1000mw) 638nm(red light: 1200mw) |
| Input power | 9W (green light) 10W (red light) |
| Operating Temperature | –10°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Laser Line Covering Angle | 110 degrees (green light) 109 degrees (red light) |

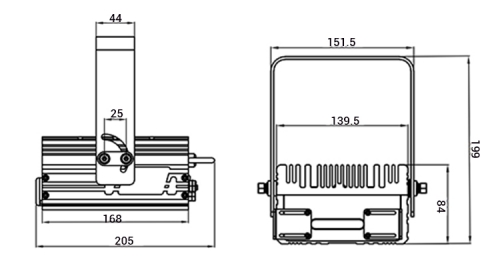

Compact, durable housing with optimized dimensions for precise warehouse marking. Engineered for reliable performance in warehouse environments with adjustable laser projection angles.

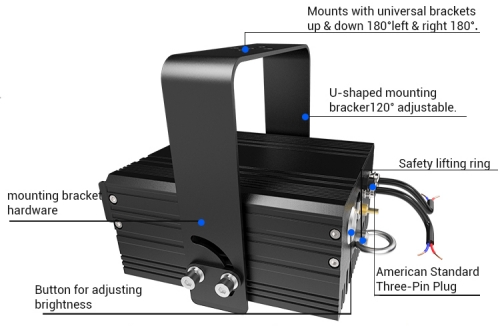

 Laser Projector Structure |  Laser Projector Size |
● Faster, More Confident Docking: Drivers can acquire the line instantly, without hesitation.
● Reduced Driver Strain: Less squinting and uncertainty means a less stressful, safer process.
● Peak Performance, 24/7: Guarantees maximum visibility whether it's high noon or midnight.

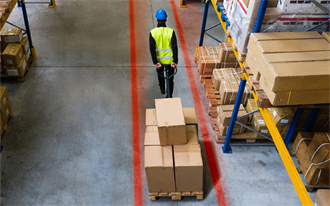

This laser walkway system is widely used to define warehouse pedestrian pathways, forklift exclusion zones, and industrial safety lanes,
particularly in:
○ Warehouses and Distribution Centers
○ Manufacturing Plants and Workshops
○ Areas with Overhead Cranes
○ Forklift and Heavy Equipment Traffic Zones
○ Loading Docks (for internal pathways)
○ Creating Safety Barriers and Restricted Areas

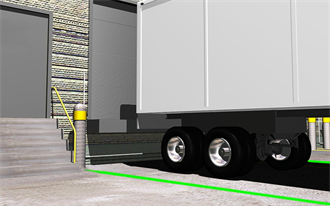

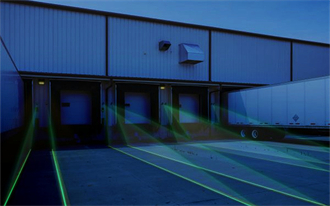

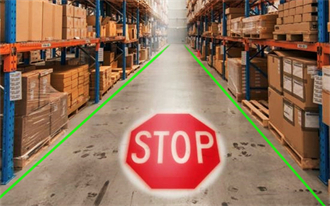

 Lase Floor Marking |  Parking Laser Lines |  Laser Docking Lines |  Laser Walkway Lines |
At TOPTREE, we take product safety, innovation, and compliance seriously. Our laser line projectors are backed by a full suite of certifications and patents, ensuring both regulatory approval and technical excellence.
We are proud to hold:
○ Appearance Design Patent Certificates
○ Utility Model Patent Certificates
○ ISO Quality Management System Certification
○ RoHS Compliance for environmental safety
○ CE & LVD Certifications for EU market standards
These certifications not only demonstrate our commitment to quality and innovation, but also provide our global clients with the confidence to deploy TOPTREE products in demanding industrial environments.
 Utility Model Patent Certificate |  Design Patent Certificate |  Quality Management System Certification |  CE Certification |  LVD Certification |  RoHS Compliance |
1. What is the purpose of a green docking laser line?
The green laser line acts as a visual guide for truck drivers to accurately align with the dock or trailer position, especially during night operations or in poor weather.
2. Does it work on all surfaces?
The laser is visible on most surfaces including concrete, asphalt, and epoxy floors. For glossy or uneven ground, height adjustment may improve clarity.
3. Will the laser damage the floor?
No. It’s a non-contact visual projection – no floor impact.
4. What are the benefits over traditional floor tape or paint?
○No wear and tear or fading
○Easy to relocate when layout changes
○No downtime for repainting
○Always visible and consistent
○Safer in dusty or high-traffic areas
5. Is the line visible in bright, outdoor conditions?
Absolutely. For maximum daytime visibility, we highly recommend the green laser option, as the human eye is significantly more sensitive to green light.
6. Can the laser line length and projection area be adjusted?
Yes. The mounting height and angle determine the size of the projected line. You can easily customize the projection to fit different walkway widths or workspaces.
7. Will it work at night or in foggy/rainy conditions?
Yes. The laser beam cuts through low-light, fog, and even rain — giving you a reliable docking line 24/7.
8. Is this system suitable for cleanrooms or food-grade facilities?
Yes. Because it doesn’t require physical marking, it’s ideal for clean or contamination-sensitive environments.
9. What is the lifespan and warranty?
Our laser guides are engineered for over 50,000 hours of operation. We stand by our quality with a comprehensive 1-year warranty.
10. Is customization available?
Yes! We offer OEM & ODM services – choose laser color, line width, housing design, and even add your company logo.
1. Industry-Leading Expertise
With over 10 years of experience in industrial safety solutions, we specialize in developing advanced visual warning systems for warehouses, logistics, and hazardous zones.
2. In-House R&D and Engineering
We own a professional R&D team focused on lighting technology, ensuring continuous innovation and customization capability for clients with different safety needs.
3. Certified Quality and Compliance
All products meet international safety and quality standards (CE, RoHS, etc.). Every unit undergoes strict QC testing before shipment.
4. Scalable Production Capacity
We operate a modern manufacturing facility with scalable production lines, supporting bulk orders and fast lead times without compromising quality.
5. Global Client Base
Trusted by Fortune 500 companies, regional distributors, and safety integrators across North America, Europe, Southeast Asia, and the Middle East.
6. Reliable After-Sales Service
Our dedicated support team offers fast response, technical guidance, and warranty support to ensure long-term satisfaction.
At our manufacturing facilities, we employ a range of advanced testing equipment to guarantee the highest product quality and reliability. Each piece of equipment plays a vital role in inspecting, measuring, and validating product performance before shipment.
Drop and Vibration Test
EMC Test
Hi-Low Test
IP69K Standard
Lumen Test
Optical test Dark Room
Salt Spray Test
SMT
UV Accelerated Weathering Tester
Vehicle lighting test system for DOT
Have questions or need a custom quote? Our expert team is here to help you find the perfect warehouse and pedestrian safety laser solutions tailored to your needs. Contact us today for fast, professional service and support.
Changzhou Toptree Auto Lamp Co.,Ltd
Phone: +86 519 8119 3809
Email: info@toptreesafety.com
WhatsApp: +86-15051960989
We look forward to partnering with you to enhance workplace safety.
