MAG-EX-LN-02P-30B
12-24VDC/100-277Vac 50-60Hz
Provides 3000K to 6500K
120°
-40 °C to +55 °C
120-140lm/W
30W
IP66

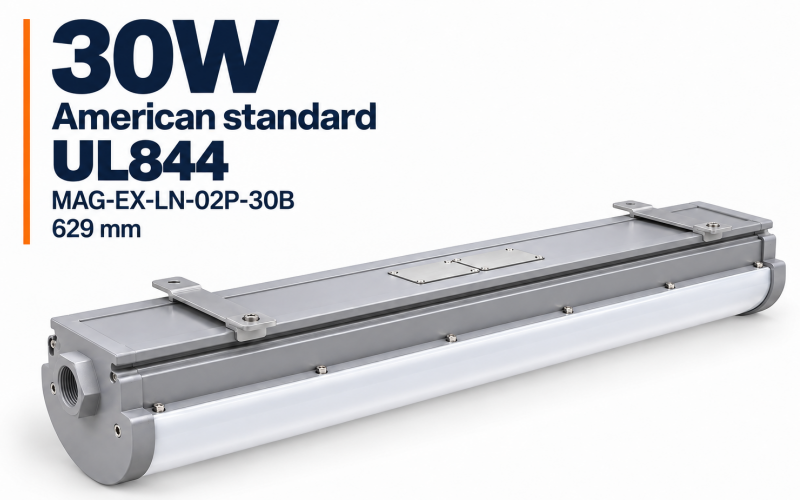

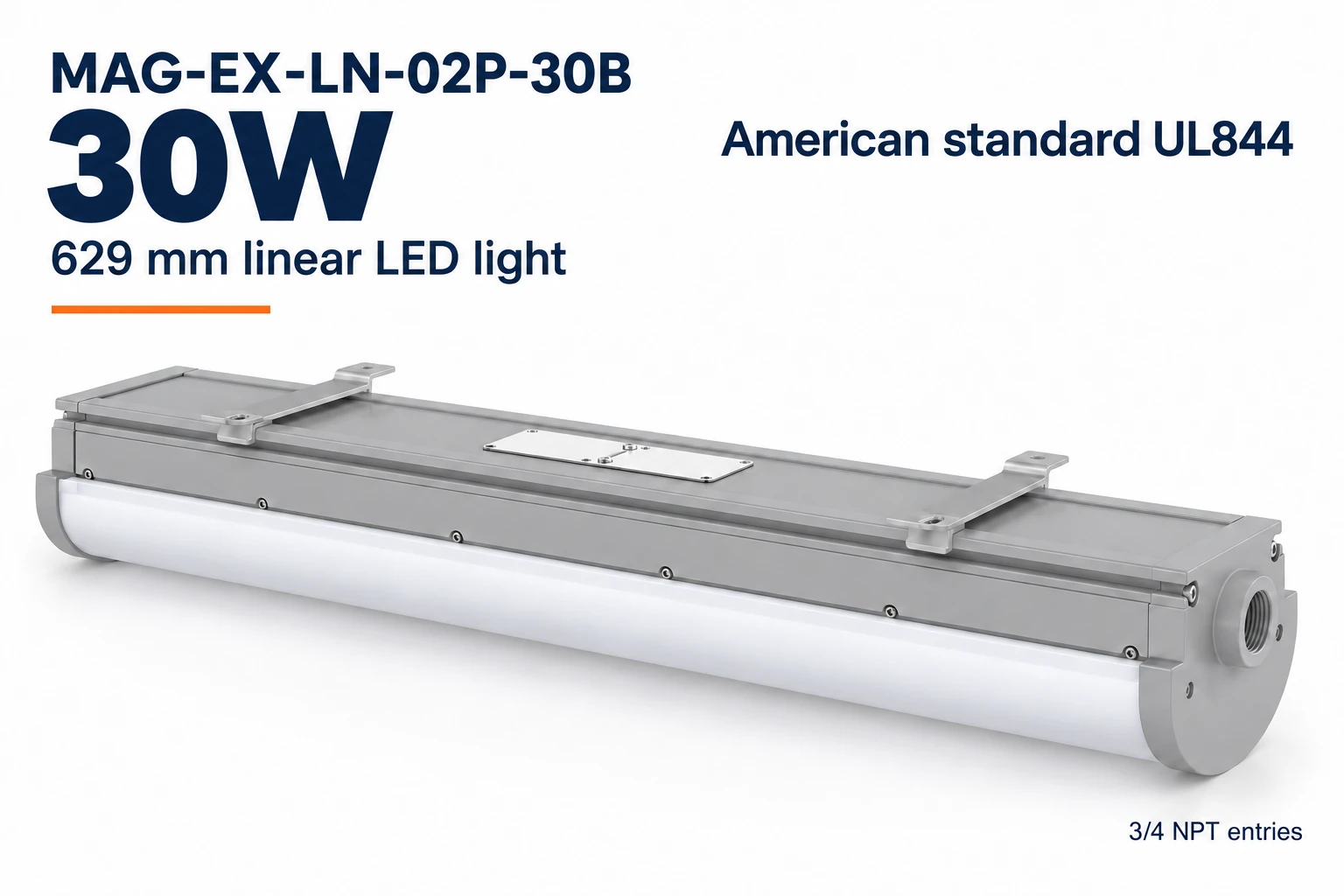

MAG-EX-LN-02P-30B is a compact 30W linear LED light for industrial walkways, equipment areas and service spaces. The 629 mm fixture combines a 120° beam with an aluminum alloy housing and an IP66 enclosure. American standard UL844. AC and DC input options, five mounting arrangements and optional emergency lighting are available.
Parameter | Specification |
|---|---|
Product model | MAG-EX-LN-02P-30B |
Product type | LED explosion proof linear light |
Version | American standard UL844 |
Rated power | 30W |
Ingress protection | IP66 |
Luminous efficacy | 120-140 lm/W |
Input voltage | AC100-277V, 50-60Hz or DC12-24V |
Color temperature | 3000K to 6500K |
CRI | ≥70 |
Beam angle | 120° |
Power factor | >0.95 |
THD | <10% |
Rated lifetime | 50,000 hours, L70 |
Operating temperature | -40°C to +55°C |
Power supply | High-efficiency LED driver |
Surge protection | 4 kV / 6 kV surge-protection design |
Housing | Aluminum alloy enclosure |
Cover | High-transmittance PC cover |
Product size | 629 × 125 × 168.7 mm |
Emergency function | Optional |
The 30B puts a 30W LED light source into a 629 mm linear body. It suits layouts where a longer fixture would take up too much space, including equipment access areas, service passages and local work positions. Its 120° beam spreads light across the surrounding area rather than concentrating it into a narrow spot.
A diffusing PC cover softens direct views of the LEDs. Choose a color temperature from 3000K to 6500K to match the lighting schedule or surrounding fixtures. Luminous efficacy is 120–140 lm/W, with CRI ≥70.
The aluminum alloy housing transfers heat away from the light source. Its shock- and vibration-resistant construction is suited to industrial equipment areas, while the IP66 enclosure protects the internal assembly from dust and water exposure.
The PC cover has light transmission above 90% and an anti-glare design. It protects the light source without exposing individual LEDs directly to view. The cover is corrosion resistant; compatibility with specific cleaning chemicals should be checked for the intended site.
AC100–277V, 50–60Hz and DC12–24V configurations are available. Specify the required input when ordering: these are driver options, not a single universal AC/DC input.
The AC configuration has a power factor above 0.95 and total harmonic distortion below 10%. A high-efficiency LED driver and 4 kV / 6 kV surge-protection design are part of the electrical specification.
The fixture operates from -40°C to +55°C and has a rated L70 life of 50,000 hours. Allow access for inspection and cleaning when choosing the mounting position.
Choose ceiling, wall, pole, pendant or pendant-chain mounting to suit the support structure. Wall mounting provides adjustment from 0° to ±60°, allowing the fixture to be aimed toward the work area. Specify the mounting kit separately from the electrical connection components.
This version has 3/4 NPT cable entry openings at both ends. Cable glands are not included. Select the connection components for the cable or conduit arrangement and provide a suitable closure for any unused entry.
Mount the fixture directly to the ceiling or an overhead support for a clean, low-profile installation.
The wall-mounting bracket offers an adjustable angle from 0° to ±60°, allowing the light direction to be set for the target area.
A pole-mounting arrangement is available when the luminaire needs to be positioned away from a wall or ceiling surface.
Use pendant mounting when the fixture needs to be suspended from a fixed overhead structure.
Two suspension points support chain mounting for installations that require additional hanging flexibility.
An emergency configuration is available when lighting is required after the normal supply fails. Quoted options include 8W for 1.5 hours and 12W for 3 hours. The emergency output is separate from the fixture’s normal 30W rating.
Select the required output and duration with the order. The final battery package and operating conditions should be confirmed for that configuration.
The linear format can be specified for service routes and work areas in oil and gas facilities, petrochemical plants, wastewater-treatment facilities, food and beverage facilities, tunnels and marine environments. Match the ordered configuration to the location’s electrical and environmental requirements.
The short body fits into layouts with limited space between structural members or equipment. Ceiling and suspended arrangements keep the light above the route; check spacing and shadows against the required light level.
Wall and pole arrangements provide alternatives where there is no suitable overhead fixing point. Position the light so equipment does not block the beam and the cable entries remain accessible for maintenance.
Power | Model | Product Length | Page Link |
|---|---|---|---|
30W | MAG-EX-LN-02P-30B | 629 mm | Current Model |
50W | MAG-EX-LN-02P-50B | 629 mm | |
40W | MAG-EX-LN-02P-40D | 1229 mm | |
50W | MAG-EX-LN-02P-50D | 1229 mm | |
60W | MAG-EX-LN-02P-60D | 1229 mm | |
75W | MAG-EX-LN-02P-75D | 1229 mm |
MAG-EX-LN-02P-30B is a replacement option for traditional industrial linear lighting, but selection should be based on the light required at the work surface, not wattage alone. Compare the 629 mm body, mounting points, supply voltage and cable route with the existing installation. Use photometric data for the selected configuration to check fixture spacing and maintained light levels.
AC100–277V at 50–60Hz and DC12–24V are separate input options for MAG-EX-LN-02P-30B. Select the driver configuration to match the supply when ordering. Do not assume that an AC unit can also operate on a low-voltage DC circuit. Include the actual supply voltage in the order, especially when replacing an existing fixture.
The 120° beam provides broad distribution for nearby work areas and circulation routes. It does not define a fixed mounting height or spacing. Mounting height, obstructions, surface reflectance and the required light level all affect the layout. Check these conditions with photometric data rather than treating beam angle as a guarantee of coverage.
The available range is 3000K–6500K, with CRI ≥70. Where the fixture is being added to an existing installation, matching the installed color temperature helps keep the area visually consistent. For a new project, state the required CCT in the lighting schedule. A higher color temperature should not be treated as proof of higher light output.
Cable glands are not included with this version. It has 3/4 NPT entry openings at both ends. Two-end entry access does not by itself establish a through-wiring rating. For a continuous run, confirm the terminal arrangement, conductor capacity and permissible circuit load, and specify the glands or conduit components required for the installation.
MAG-EX-LN-02P-30B has an IP66 enclosure and an operating temperature range of -40°C to +55°C. The installed assembly also depends on correctly selected entry components, sealed unused openings and proper assembly. Include the expected ambient temperature and cleaning conditions in the inquiry; the enclosure rating should not be treated as a chemical-resistance or immersion rating.
The rated life is 50,000 hours at L70, a lumen-maintenance reference rather than a promise that every component will run for that period without service. Plan inspection and cleaning around the site conditions, mounting access and operating hours. The standard warranty is five years; warranty terms and rated lumen-maintenance life are different measures.
Send the quantity, AC or DC supply, color temperature and mounting method through the product inquiry form. Include the cable details and any emergency-output or runtime requirement so the fixture and accessories can be quoted together.
