MAG-J-200
200W
24000 lm
110-130lm/W
AC100-277V, 50-60Hz
5000K(Provides 2700K to 6500K)
15°, 60°, 90°, 108° or 120°
-40 °C to +65 °C
IP66

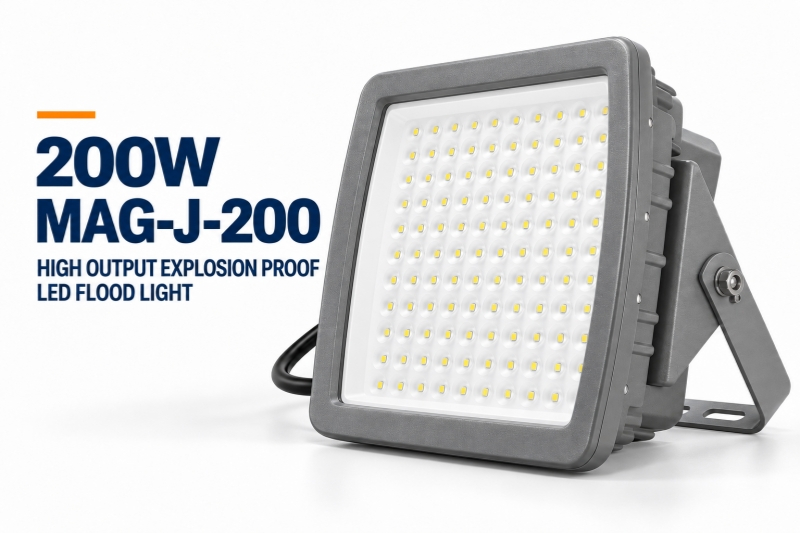

MAG-J-200 is built for industrial areas that need strong, controlled floodlighting from a single fixture. The 200W model produces 24,000 lm and offers five beam angles, from a narrow 15° beam to a wide 120° flood pattern.
Its 400 mm die-cast aluminum housing, IP66 protection and wide input range make it suitable for fixed lighting around process units, loading areas, platforms and open work zones. ATEX and IECEx configurations are available for projects with different hazardous-area requirements.
Parameter | MAG-J-200 |
|---|---|
Product type | Explosion proof LED flood light |
Rated power | 100W |
Input voltage | AC100-277V, 50-60Hz |
Luminous flux | 24,000 lm |
Luminous efficacy | 110-130 lm/W |
Color temperature | 5000K standard; 2700K to 6500K available |
CRI | ≥70 |
Beam options | 15°, 60°, 90°, 108° or 120° |
Power factor | >0.95 |
THD | <10% |
Rated lifetime | 50,000 hours, L70 |
Operating temperature | -40°C to +65°C |
Surge design | 4 kV / 6 kV |
Ingress protection | IP66 |
Housing | ADC12 die-cast aluminum |
Lens | 8 mm tempered glass, light transmission >90% |
Mechanical performance | Shock and vibration resistant |
Standard cable entry | M25 × 1.5 |
Optional cable entries | M26 × 1.5 or 3/4"-14 NPT |
Standard cable | 0.5 m three-core rubber cable with IEC (CE) certification |

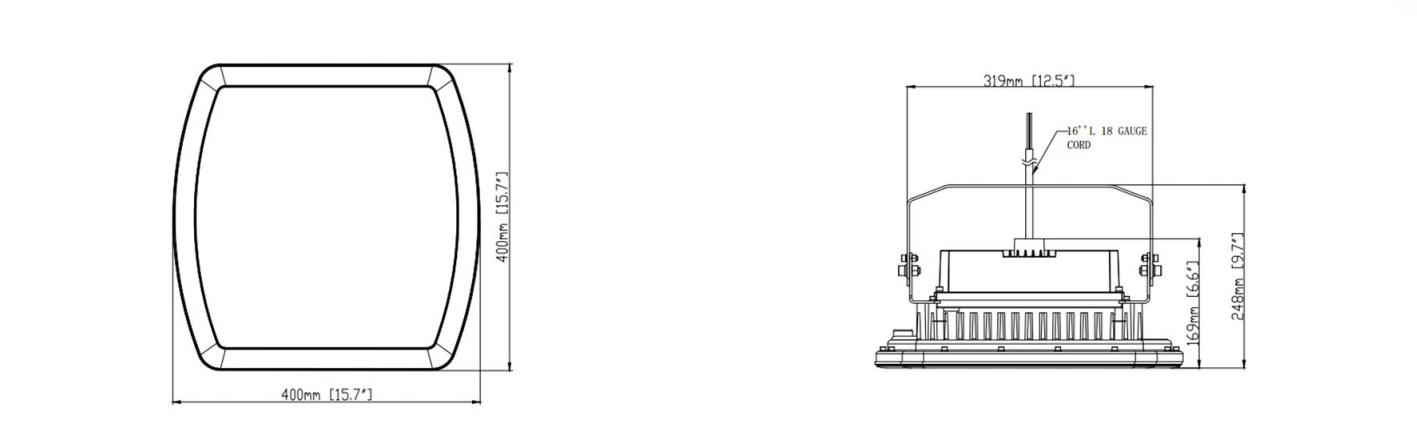

Fixture size | 400 × 400 × 169 mm / 15.7 × 15.7 × 6.6 in |
Net weight | 10.5 kg / 23.1 lb |
24,000 lm output: suitable for high-output area lighting and longer-distance aiming.
Five beam angles: choose 15°, 60°, 90°, 108° or 120° to match the layout.
Wide voltage input: operates on AC100-277V, 50-60Hz.
Industrial housing: ADC12 die-cast aluminum with tempered glass.
Outdoor protection: IP66 enclosure for dust and water-jet resistance.
Wide temperature range: designed to operate from -40°C to +65°C.
Flexible installation: ceiling, suspended, wall, U-bracket and pole arrangements are shown for the series.
MAG-J-200 delivers a declared 24,000 lm with a listed efficacy of 110-130 lm/W. The standard color temperature is 5000K, with options from 2700K to 6500K. CRI is ≥70.
The 15° beam is intended for focused, longer-distance lighting. The 60° and 90° options work well for many process and equipment areas. The 108° and 120° beams provide wider coverage at shorter mounting distances.
The fixture uses an ADC12 die-cast aluminum housing with rear cooling fins. Tempered glass protects the LED and optical system, with stated light transmission above 90%. The enclosure is rated IP66 and is described as resistant to shock and vibration.
The 200W model uses a Mean Well XLG series driver. Electrical data includes PF >0.95, THD <10% and a 4 kV / 6 kV surge design. The standard input is AC100-277V at 50-60Hz.
It supports ceiling, drop, wall, adjustable U-bracket and pole-mounted arrangements. The U-bracket is normally the most practical option when the beam needs to be aimed after installation.
M25 × 1.5 is the standard cable entry. M26 × 1.5 and 3/4"-14 NPT are available alternatives. A 0.5 m three-core rubber cable with IEC (CE) certification is listed as standard. Confirm the required thread and mounting accessories when placing the order.
MAG-J-200 weighs 10.5 kg. The mounting surface, fasteners and support structure must be suitable for the fixture weight and any wind or vibration loads at the site.
Gas: II 2G Ex eb mb op is IIC T4 Gb
Dust: II 2D Ex op is tb IIIC T95°C Db
Certificate: IEP 19ATEX 0714
Gas: Ex ec IIC T4 Gc
Certificate: IECEx UL 18.0046
Five installation drawings are available: ceiling fixing, suspended drop, wall fixing, adjustable U-bracket and pole support. The U-bracket suits positions where the beam must be aimed at a defined work zone. Ceiling and drop arrangements place the light overhead, while wall and pole supports can move it clear of nearby equipment.
Mounting hardware, support strength, corrosion protection and final aiming are project responsibilities. Include the preferred arrangement in the enquiry so the required accessory set can be confirmed.
MAG-J-200 can be considered for fixed floodlighting in:
Oil and gas refineries
Petrochemical and chemical plants
Offshore platforms and service decks
Drilling and production areas
Wastewater treatment facilities
Loading bays and transfer areas
Process equipment and pipe-rack zones
Other gas or dust hazardous industrial locations
Final selection depends on the area classification, required certification, ambient temperature, chemical exposure, supply voltage and lighting calculation.
Model | Rated Power | Declared Luminous Flux | Fixture Size | Page Link |
|---|---|---|---|---|

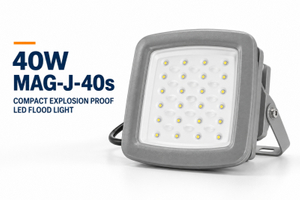

MAG-J-40s | 40W | 4,800 lm | 200 × 200 × 147 mm | |
MAG-J-100 | 100W | 12,000 lm | 300 × 300 × 165 mm | |
MAG-J-200 | 200W | 24,000 lm | 400 × 400 × 169 mm | Current Model |
Power alone does not set fixture quantity. Use the target illuminance, mounting position, beam choice and approved photometric data to compare layouts.
Include the following items with the enquiry so the configuration can be checked before quotation:
Required quantity and delivery destination
Site classification and complete required Ex marking
ATEX, IECEx or market-specific certification route
Beam angle: 15°, 60°, 90°, 108° or 120°
Color temperature from 2700K to 6500K
Cable-entry thread: M25 × 1.5, M26 × 1.5 or 3/4"-14 NPT
Ceiling, drop, wall, U-bracket or pole mounting
Lighting layout or target illuminance, when available
Required certificate copies and nameplate information
MAG-J-200 has a declared output of 24,000 lm and a listed efficacy of 110-130 lm/W. Use 24,000 lm as the nominal fixture output. Actual illuminance on the work surface depends on the selected beam angle, mounting height, aiming and site layout.
There is no single mounting height for every project. The correct height depends on the beam angle, target illuminance, area dimensions, aiming and obstructions. A lighting calculation using the selected IES file is the reliable way to set mounting height, fixture quantity and spacing.
M25 × 1.5 is standard. M26 × 1.5 and 3/4"-14 NPT are listed as options. Specify the thread that matches the project gland or conduit system. The complete entry arrangement should also match the cable diameter and hazardous-area certification requirements.
The CES-J series shows ceiling, suspended drop, wall, adjustable U-bracket and pole mounting arrangements. The U-bracket is suitable when the floodlight needs to be aimed. Confirm the required bracket or adaptor with the order because not every illustrated mounting component is necessarily included as standard.
IP66 confirms protection against dust and water jets, but it does not define the complete corrosion performance of the housing, coating, fasteners and cable gland. For offshore or chemical environments, provide the project corrosion requirement and confirm the offered finish and hardware before approval.
L70 means the light source is rated to retain 70% of its initial output at 50,000 hours under the stated test basis. It is a lumen-maintenance reference, not a guarantee that every component will operate without service for 50,000 hours. The listed product warranty is five years.
Send the required quantity, hazardous-area classification, beam angle, color temperature, cable entry and mounting method. We can then prepare the correct 200W configuration and supporting document list for your project.
