MAG-EX-LN-02P-50B
50W
12-24VDC/100-277Vac 50-60Hz
Provides 3000K to 6500K
120°
-40 °C to +55 °C
120-140lm/W
IP66
Parameter | Specification |
|---|---|
Product model | MAG-EX-LN-02P-50B |
Product type | LED explosion proof linear light |
Rated power | 50W |
Certification version | ATEX and IECEx |
Hazardous-area use stated in the datasheet | Zone 1 and Zone 21 |
Ingress protection | IP66 |
Luminous efficacy | 120-140 lm/W |
Input voltage | AC100-277V, 50-60Hz or DC12-24V |
Color temperature | 3000K to 6500K |
CRI | ≥70 |
Beam angle | 120° |
Power factor | >0.95 |
THD | <10% |
Rated lifetime | 50,000 hours, L70 |
Operating temperature | -40°C to +55°C |
Power supply | High-efficiency LED driver |
Surge protection | 4 kV / 6 kV surge-protection design |
Entry size | 3/4"-14 NPT, M25 × 1.5 or M26 × 1.5 |
Standard cable | 0.5 m three-core rubber cable with IEC (CE) certification |
Cable outlet arrangement | Cable outlets at both ends |
Housing | Aluminum alloy enclosure |
Cover | High-transmittance PC cover |
Product size | 629 × 125 × 168.7 mm |
Emergency function | Optional |

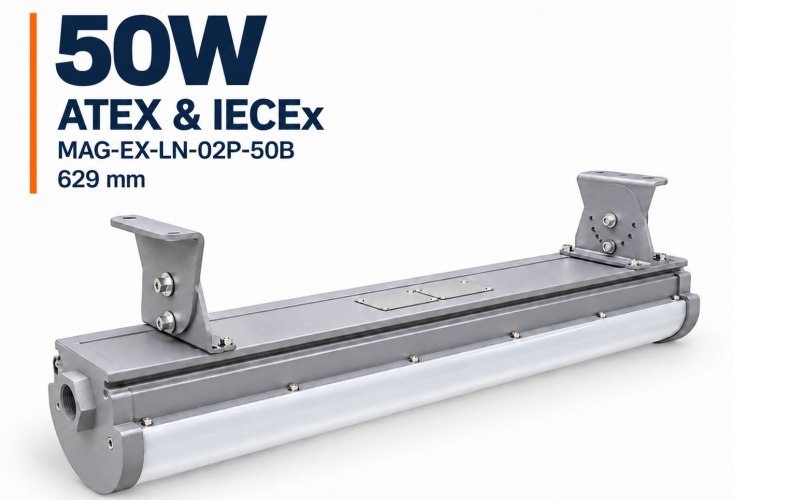

The MAG-EX-LN-02P-50B combines a 50W rating with the 629 mm B-body. Cable outlets at both ends allow the cable route to follow the installation layout. The European configuration includes two glands.
The rated luminous efficacy is 120-140 lm/W. A high-efficiency LED driver, power factor above 0.95 and THD below 10% support dependable operation in industrial electrical systems.
The 120° beam distributes light across work areas, access routes and service corridors. Color temperature can be selected from 3000K to 6500K, with CRI ≥70 for practical color recognition.
This European configuration carries ATEX and IECEx certification for Zone 1 gas and Zone 21 dust locations. The markings below help project engineers check the gas group, dust group and temperature class required for the installation.
Gas marking: II 2G Ex eb mb IIC T5 Gb
Dust marking: II 2D Ex tb IIIC T75°C Db
Ingress protection: IP66
Certificate No.: SEV 21 ATEX 0578 X
Gas marking: Ex eb mb IIC T5 Gb
Dust marking: Ex tb IIIC T75°C Db
Ingress protection: IP66
Certificate No.: IECEx SEV 21.0038X
The high-strength aluminum alloy housing supports heat transfer and resistance to shock and vibration. The fixture is rated for operation from -40°C to +55°C and includes a 4 kV / 6 kV surge-protection design.
The PC cover provides corrosion resistance, anti-glare performance and more than 90% light transmission. Together with the IP66 enclosure, it supports indoor and outdoor use in dusty, wet and marine industrial environments.
Choose the mounting arrangement that best fits the structure, lighting direction and maintenance access at the installation site.
Mount the fixture directly to the ceiling or an overhead support for a clean, low-profile installation.
The wall-mounting bracket offers an adjustable angle from 0° to ±60°, allowing the light direction to be set for the target area.
A pole-mounting arrangement is available when the luminaire needs to be positioned away from a wall or ceiling surface.
Use pendant mounting when the fixture needs to be suspended from a fixed overhead structure.
Two suspension points support chain mounting for installations that require additional hanging flexibility.
An emergency version is available for projects that require lighting during a power interruption. More than one emergency package is offered, so specify the required emergency output and operating time when requesting a quotation.
Use cases include refineries, drilling rigs and petrochemical facilities that require a certified linear luminaire for hazardous work areas, equipment routes and access points.
The IP66 enclosure and corrosion-resistant PC cover suit relevant areas in wastewater treatment plants and food and beverage facilities, subject to the site classification and project requirements.
The fixture can also be specified for marine environments, tunnels and indoor or outdoor industrial areas where flammable gases, vapors, combustible dust, fibers or flyings may be present.
Power | Model | Product Length | Page Link |
|---|---|---|---|
30W | MAG-EX-LN-02P-30B | 629 mm | |
50W | MAG-EX-LN-02P-50B | 629 mm | Current Model |
40W | MAG-EX-LN-02P-40D | 1229 mm | |
60W | MAG-EX-LN-02P-60D | 1229 mm | |
80W | MAG-EX-LN-02P-80D | 1229 mm | |
100W | MAG-EX-LN-02P-100D | 1229 mm |
To receive an accurate quotation, include the following details with your enquiry:
Input voltage
Color temperature
Cable entry
Mounting method: ceiling, wall, pole, pendant or pendant chain
Emergency function: confirm whether it is required, together with the required output and operating time
These answers cover the certification, dimensions, electrical options and ordering decisions most often checked when specifying the MAG-EX-LN-02P-50B.
The MAG-EX-LN-02P-50B is a 50W, 629 mm LED linear luminaire for Zone 1 gas and Zone 21 dust locations. The European version is available with ATEX and IECEx certification and uses an IP66 aluminum alloy enclosure with a high-transmittance PC cover.
It is intended for hazardous industrial locations including oil and gas facilities, petrochemical plants, drilling rigs, wastewater facilities, tunnels and marine environments. AC100-277V and DC12-24V input versions are available.
For gas locations, the ATEX marking is II 2G Ex eb mb IIC T5 Gb and the IECEx marking is Ex eb mb IIC T5 Gb. For dust locations, the ATEX marking is II 2D Ex tb IIIC T75°C Db and the IECEx marking is Ex tb IIIC T75°C Db.
The certificate numbers are SEV 21 ATEX 0578 X and IECEx SEV 21.0038X. Project engineers should compare the complete marking, temperature class and equipment protection level with the site specification rather than checking the words “ATEX” or “IECEx” alone.
Yes. The certification covers Zone 1 gas and Zone 21 dust environments. The gas marking includes IIC and T5, while the dust marking includes IIIC and a maximum surface-temperature marking of T75°C.
Because gas and dust classifications use different markings, the relevant marking should be checked against the actual hazardous material and zoning information for the installation area.
The MAG-EX-LN-02P-50B and MAG-EX-LN-02P-30B both use the 629 mm B-body. Their main difference is rated power: the 50B is 50W and the 30B is 30W.
Select between them according to the lighting design and specified wattage, not the body length alone. The available information lists the same 120-140 lm/W efficacy range and 120° beam angle for the series.
The 50B provides the highest wattage listed in the 629 mm B-body group. The 40D, 60D, 80D and 100D versions use a 1229 mm body.
This makes the 50B relevant when a project calls for a 50W rating and a shorter linear housing. Final selection should still consider the required lighting layout, mounting position and project specification.
Yes. Available input options are AC100-277V at 50-60Hz and DC12-24V. The required input version should be identified in the enquiry so it can be matched to the site power supply.
The electrical specification also includes a high-efficiency LED driver, power factor above 0.95, THD below 10% and a 4 kV / 6 kV surge-protection design.
Cable-entry options are 3/4"-14 NPT, M25 × 1.5 and M26 × 1.5. The quoted European configuration has cable outlets at both ends, includes two glands and uses a 0.5 m three-core rubber cable with IEC (CE) certification.
Available mounting methods include ceiling, wall, pole, pendant and pendant chain installation. The wall-mounting arrangement can be adjusted from 0° to ±60°.
Yes. The MAG-EX-LN-02P Series is designed as an LED replacement for traditional explosion proof fluorescent and explosion proof tri-proof lamps. The 50W model provides a 120° beam, selectable 3000K-6500K color temperature and L70 lifetime of 50,000 hours.
For retrofit work, confirm the existing mounting points, supply voltage, cable-entry thread and required light distribution before selecting the final configuration.
Emergency operation is optional. More than one emergency package is available, so the enquiry should state the required emergency output and operating time instead of requesting only an “emergency version.”
The order should also confirm input voltage, color temperature, cable-entry thread and mounting method so the emergency and standard fixture requirements can be reviewed together.
