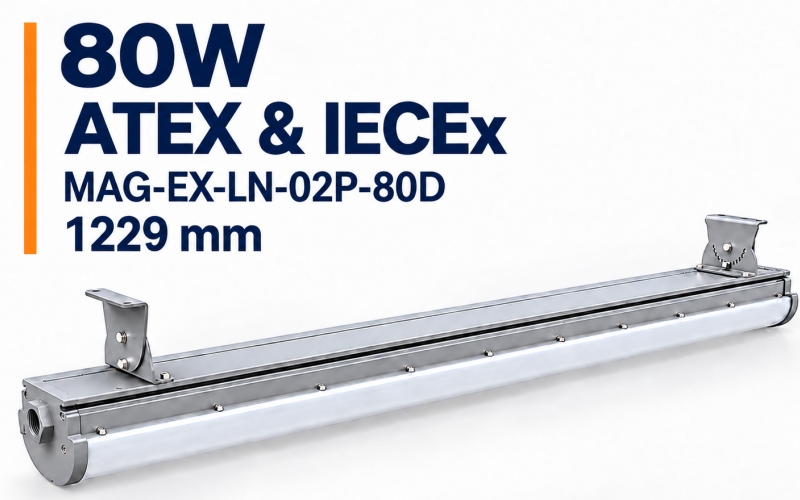

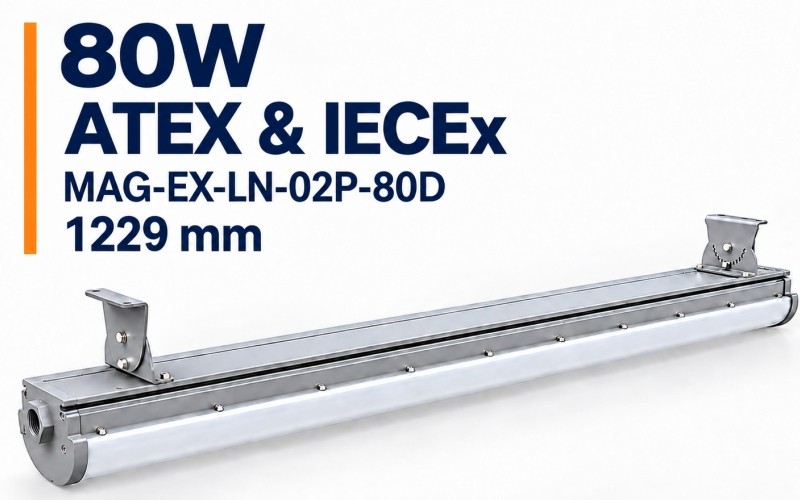

MAG-EX-LN-02P-80D
80W
120-140 lm/W
12-24VDC//100-277Vac 50-60Hz
Provides 3000K to 6500K
120°
-40 °C to +55 °C
IP66
ATEX and IECEx
Parameter | Specification |
|---|---|
Product model | MAG-EX-LN-02P-80D |
Product type | Explosion proof LED linear luminaire |
Rated power | 80W |
Length class | 4 foot |
Certification | ATEX and IECEx |
Hazardous area classification | Zone 1 and Zone 21 |
Ingress protection | IP66 |
Luminous efficacy | 120-140 lm/W |
Input voltage | AC100-277V, 50-60Hz or DC12-24V |
Color temperature | 3000K to 6500K |
CRI | ≥70 |
Beam angle | 120° |
Power factor | >0.95 |
THD | <10% |
Rated lifetime | 50,000 hours, L70 |
Operating temperature | -40°C to +55°C |
Surge protection | 4 kV / 6 kV surge-protection design |
Entry size | 3/4"-14 NPT, M25 × 1.5 or M26 × 1.5 |
Standard cable | 0.5 m three-core rubber cable with IEC (CE) certification |
Cable outlet arrangement | Cable outlets at both ends |
Housing | Aluminum alloy enclosure |
Cover | High-transmittance PC cover |
Product size | 1229 × 125 × 168.7 mm / 48.4 × 4.9 × 6.6 in |
Emergency function | Optional |
Certified for hazardous areas: ATEX and IECEx options for Zone 1 gas and Zone 21 dust locations.
Efficient general lighting: 80W output with 120-140 lm/W efficacy and a wide 120° beam.
Made for demanding sites: IP66 aluminum housing, corrosion-resistant PC cover, and -40°C to +55°C operation.
Flexible electrical configurations: AC100-277V or DC12-24V input, with three cable-entry thread options.
Multiple installation methods: ceiling, wall, pole, pendant, and pendant-chain mounting.
Optional emergency operation: emergency output and duration are configured to the project requirement.
The European 80D configuration is available with ATEX and IECEx certification for Zone 1 gas and Zone 21 dust environments. Check the complete gas or dust marking against the site classification before ordering.
Gas marking: II 2G Ex eb mb IIC T5 Gb
Dust marking: II 2D Ex tb IIIC T75°C Db
Ingress protection: IP66
Certificate No.: SEV 21 ATEX 0578 X
Gas marking: Ex eb mb IIC T5 Gb
Dust marking: Ex tb IIIC T75°C Db
Ingress protection: IP66
Certificate No.: IECEx SEV 21.0038X
The 1229 mm linear body provides broad, even illumination for process walkways, pipe racks, service corridors, equipment areas, and access routes. It is also suitable for other hazardous industrial environments when the area classification and full Ex marking match the project requirement.
Typical applications include refineries, petrochemical facilities, drilling rigs, wastewater treatment plants, food and beverage plants, tunnels, and marine facilities.
The fixture delivers 120-140 lm/W with a 120° beam angle. Color temperatures from 3000K to 6500K are available, allowing the light appearance to be matched to the working area. Final fixture spacing and quantity should be based on the project lighting design and the approved photometric data for the selected configuration.

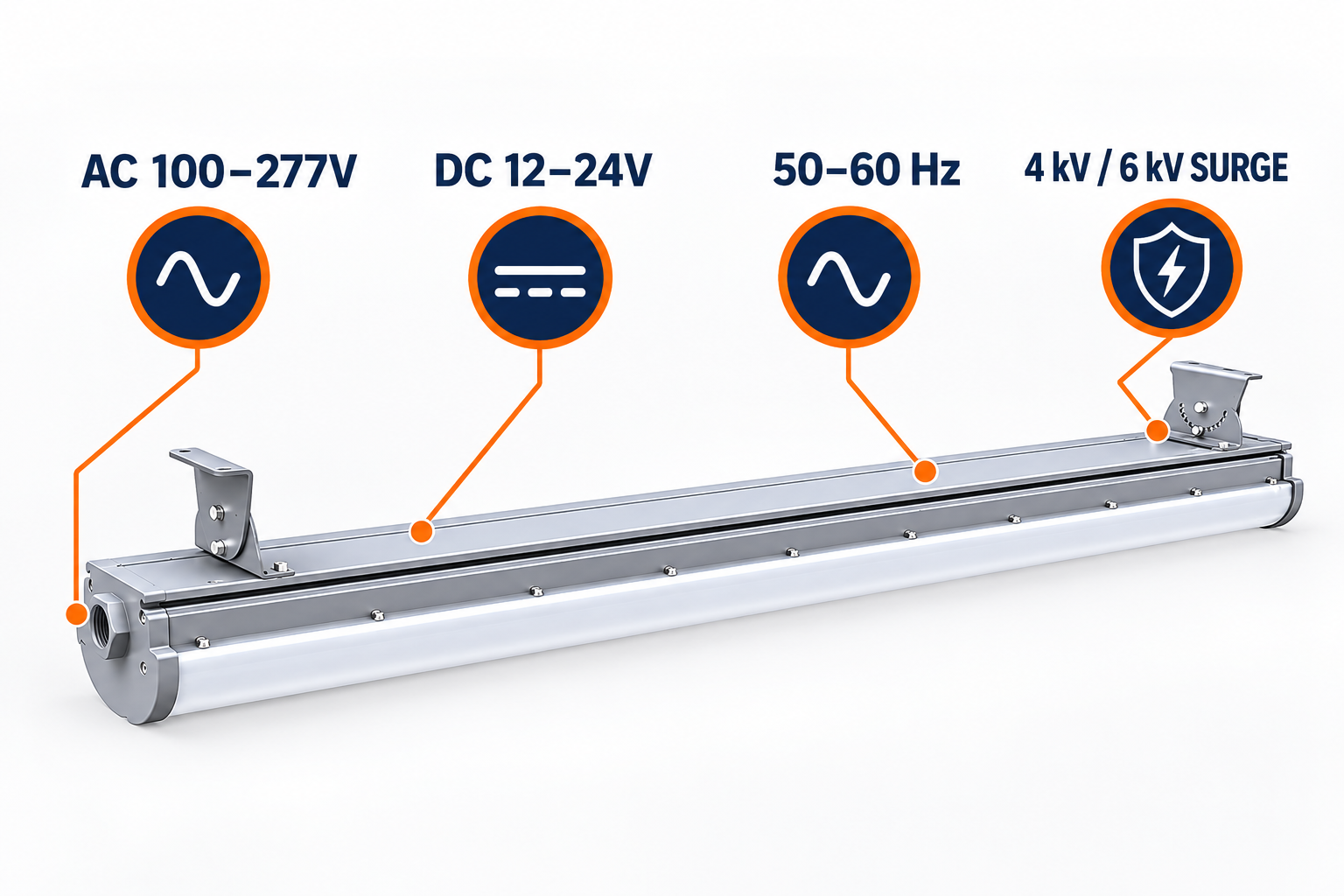

Choose either AC100-277V, 50-60Hz or DC12-24V input. Available cable entries are 3/4"-14 NPT, M25 × 1.5, and M26 × 1.5. The European configuration includes two cable glands and a 0.5 m three-core rubber cable with IEC (CE) certification.
The aluminum housing and PC cover are designed for industrial environments. The cover offers more than 90% light transmission, corrosion resistance, and reduced glare. The fixture is rated IP66, resistant to shock and vibration, and suitable for ambient temperatures from -40°C to +55°C.
An emergency version is available as an option. Emergency output and operating duration are selected separately and should be included in the enquiry.
Select the mounting arrangement according to the supporting structure, required light direction and maintenance access.
Mount the fixture directly to the ceiling or an overhead support for a clean, low-profile installation.
The wall-mounting bracket offers an adjustable angle from 0° to ±60°, allowing the light direction to be set for the target area.
A pole-mounting arrangement is available when the luminaire needs to be positioned away from a wall or ceiling surface.
Use pendant mounting when the fixture needs to be suspended from a fixed overhead structure.
Two suspension points support chain mounting for installations that require additional hanging flexibility.
The 80D can be specified for hazardous work areas and access routes in oil and gas refineries, drilling rigs and petrochemical facilities when its certification markings match the site requirements.
The IP66 enclosure and corrosion-resistant PC cover support relevant wet or dusty locations in wastewater treatment and food and beverage facilities, subject to the project classification.
The fixture is also suitable for marine environments, tunnels and industrial routes where flammable gases, vapors, combustible dust, fibers or flyings may be present.
Select the wattage according to the lighting plan and the body length according to the available installation space.
Power | Model | Product Length | Page |
|---|---|---|---|
30W | MAG-EX-LN-02P-30B | 629 mm | |
50W | MAG-EX-LN-02P-50B | 629 mm | |
40W | MAG-EX-LN-02P-40D | 1229 mm | |
60W | MAG-EX-LN-02P-60D | 1229 mm | |
80W | MAG-EX-LN-02P-80D | 1229 mm | Current Model |
100W | MAG-EX-LN-02P-100D | 1229 mm |
The European configuration is available with ATEX and IECEx certification for Zone 1 gas and Zone 21 dust areas. The complete gas or dust marking must match the classification of the installation location.
No. AC100-277V and DC12-24V are separate order configurations. Please specify the required input when requesting a quotation.
Available options are 3/4"-14 NPT, M25 × 1.5, and M26 × 1.5. Select the thread that matches the project cable gland and connection plan.
Mounting hardware depends on the selected installation method. State whether the fixture will be ceiling, wall, pole, pendant, or pendant-chain mounted so the correct parts can be confirmed.
Yes. Emergency operation is optional. Please provide the required emergency output and operating duration with the enquiry.
Please provide the quantity, area classification or required Ex marking, input voltage, color temperature, cable-entry thread, and mounting method. Include any emergency requirement and the project lighting schedule if available.
Send us your hazardous-area requirement, input voltage, color temperature, cable entry, mounting method and emergency configuration. We will help you confirm the suitable model for your project.
