MAG-EX-LN-02P-60D
60W
120-140 lm/W
12-24VDC//100-277Vac 50-60Hz
Provides 3000K to 6500K
120°
-40 °C to +55 °C
IP66
ATEX and IECEx
Parameter | Specification |
|---|---|
Product model | MAG-EX-LN-02P-60D |
Product type | Explosion proof LED linear luminaire |
Rated power | 60W |
Length class | 4 foot |
Certification | ATEX and IECEx |
Hazardous area classification | Zone 1 and Zone 21 |
Ingress protection | IP66 |
Luminous efficacy | 120-140 lm/W |
Input voltage | AC100-277V, 50-60Hz or DC12-24V |
Color temperature | 3000K to 6500K |
CRI | ≥70 |
Beam angle | 120° |
Power factor | >0.95 |
THD | <10% |
Rated lifetime | 50,000 hours, L70 |
Operating temperature | -40°C to +55°C |
Surge protection | 4 kV / 6 kV surge-protection design |
Entry size | 3/4"-14 NPT, M25 × 1.5 or M26 × 1.5 |
Standard cable | 0.5 m three-core rubber cable with IEC (CE) certification |
Cable outlet arrangement | Cable outlets at both ends |
Housing | Aluminum alloy enclosure |
Cover | High-transmittance PC cover |

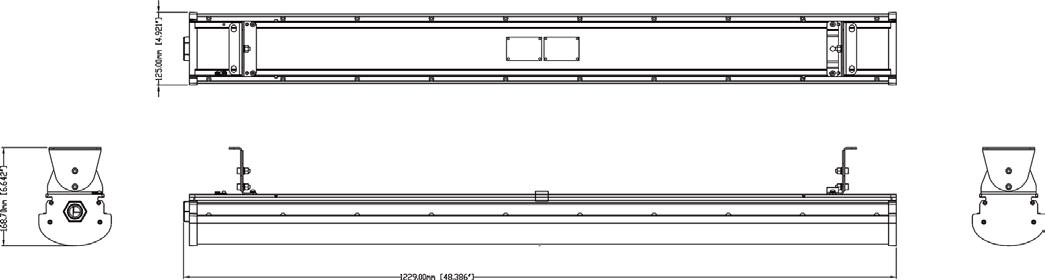

Product size | 1229 × 125 × 168.7 mm / 48.4 × 4.9 × 6.6 in |
Emergency function | Optional |

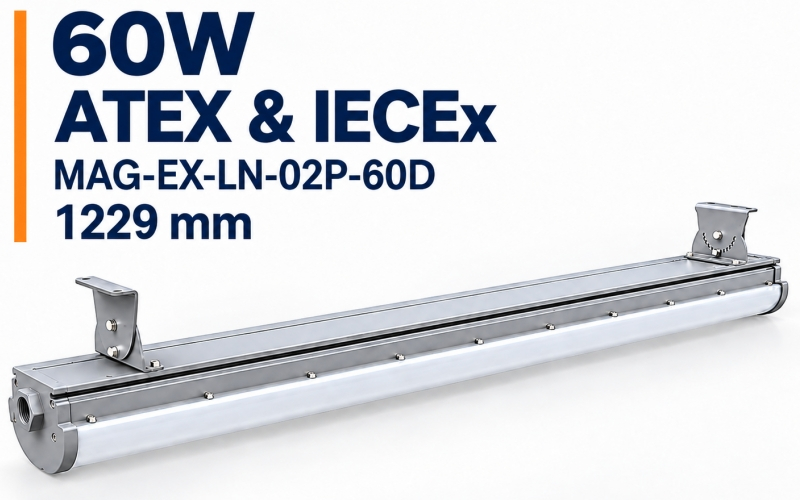

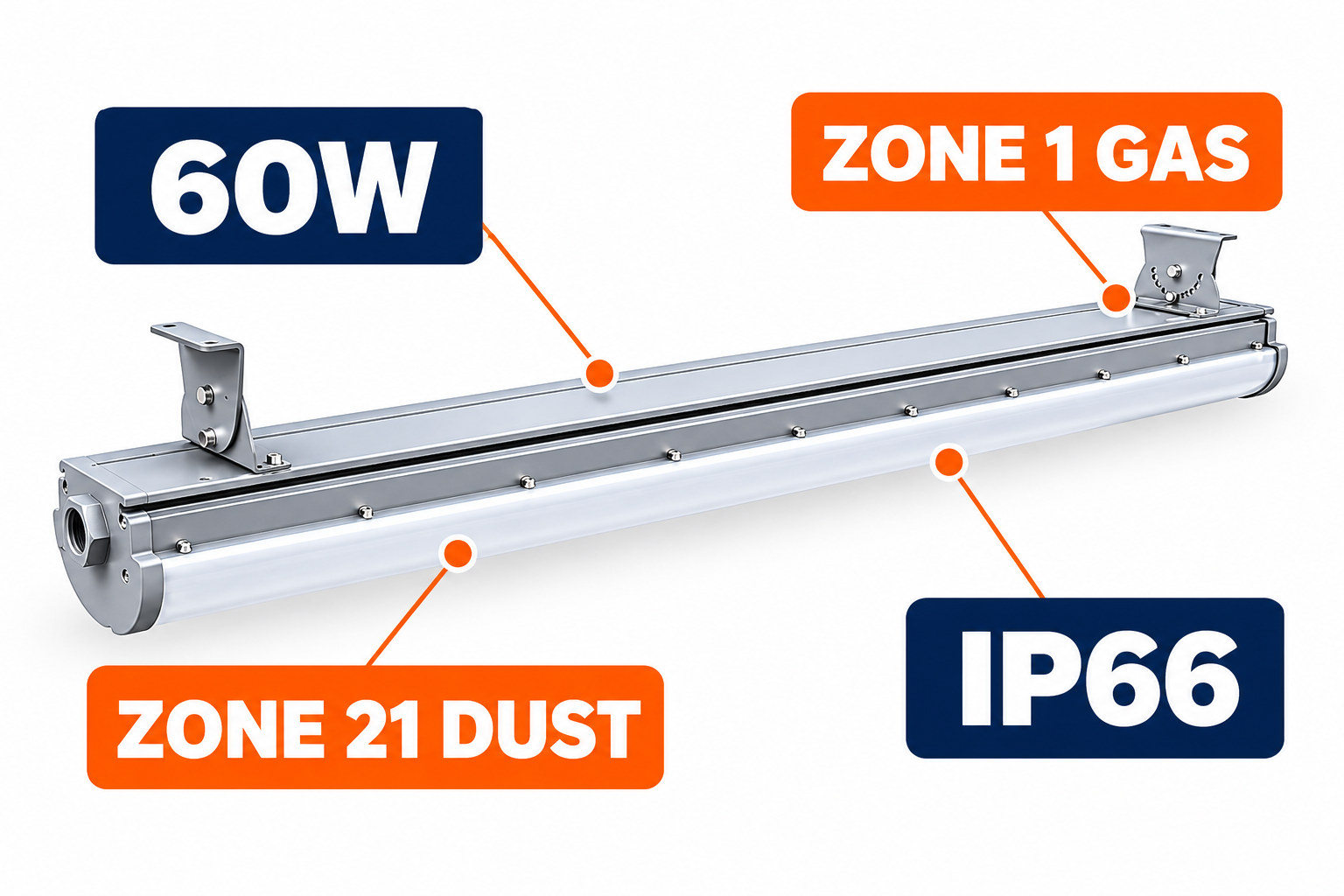

The MAG-EX-LN-02P-60D pairs a 60W rating with a 1229 mm linear housing for Zone 1 gas and Zone 21 dust locations. It gives project teams a clearly identified model when both wattage and fixture length are specified in the lighting schedule.
Cable outlets are provided at both ends, and the European configuration includes two glands. Entry threads can be specified as 3/4"-14 NPT, M25 × 1.5 or M26 × 1.5.
The AC version operates from 100-277V at 50-60Hz, allowing the 60W luminaire to be specified for different industrial AC power systems within this input range.
A DC12-24V version is also available. The required AC or DC configuration should be identified before quotation because it is part of the ordered electrical specification.
The high-efficiency LED driver has a power factor above 0.95 and THD below 10%. The electrical design includes 4 kV / 6 kV surge protection, and the rated lifetime is L70 at 50,000 hours.
The 60D has a specified luminous-efficacy range of 120-140 lm/W. Project lighting calculations should use approved photometric data for the ordered 60W configuration rather than estimating a final lumen value from the efficacy range alone.
The 120° beam supports broad distribution across work areas, access routes and service corridors. Color temperature can be selected from 3000K to 6500K, with CRI ≥70 for practical color recognition.
The European 60D configuration is available with ATEX and IECEx certification for Zone 1 gas and Zone 21 dust environments. Check the complete gas or dust marking against the site classification before ordering.
Gas marking: II 2G Ex eb mb IIC T5 Gb
Dust marking: II 2D Ex tb IIIC T75°C Db
Ingress protection: IP66
Certificate No.: SEV 21 ATEX 0578 X
Gas marking: Ex eb mb IIC T5 Gb
Dust marking: Ex tb IIIC T75°C Db
Ingress protection: IP66
Certificate No.: IECEx SEV 21.0038X
The high-strength aluminum alloy enclosure supports heat transfer and resistance to shock and vibration. The high-transmittance PC cover provides corrosion resistance, anti-glare performance and more than 90% light transmission.
The IP66 rating provides protection against dust ingress and powerful water jets. Marine environments are included among the listed applications, and the operating-temperature range is -40°C to +55°C.
Select the mounting arrangement according to the supporting structure, required light direction and maintenance access.
Mount the fixture directly to the ceiling or an overhead support for a clean, low-profile installation.
The wall-mounting bracket offers an adjustable angle from 0° to ±60°, allowing the light direction to be set for the target area.
A pole-mounting arrangement is available when the luminaire needs to be positioned away from a wall or ceiling surface.
Use pendant mounting when the fixture needs to be suspended from a fixed overhead structure.
Two suspension points support chain mounting for installations that require additional hanging flexibility.
An emergency version is available for projects that require illumination during a power interruption. More than one emergency package is offered, so state the required emergency output and operating time in the quotation request.
The 60D can be specified for hazardous work areas and access routes in oil and gas refineries, drilling rigs and petrochemical facilities when its certification markings match the site requirements.
The IP66 enclosure and corrosion-resistant PC cover support relevant wet or dusty locations in wastewater treatment and food and beverage facilities, subject to the project classification.
The fixture is also suitable for marine environments, tunnels and industrial routes where flammable gases, vapors, combustible dust, fibers or flyings may be present.
Compare wattage and body length before selecting the model for a lighting layout.
Power | Model | Product Length | Page |
|---|---|---|---|

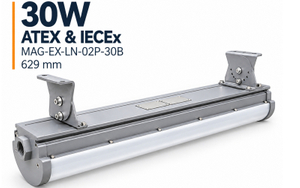

30W | MAG-EX-LN-02P-30B | 629 mm | |
50W | MAG-EX-LN-02P-50B | 629 mm | |
40W | MAG-EX-LN-02P-40D | 1229 mm | |
60W | MAG-EX-LN-02P-60D | 1229 mm | Current Model |
80W | MAG-EX-LN-02P-80D | 1229 mm | |
100W | MAG-EX-LN-02P-100D | 1229 mm |
These answers cover the hazardous-area markings, electrical options, D-body selection and ordering information most often checked for the MAG-EX-LN-02P-60D.
The MAG-EX-LN-02P-60D is a 60W explosion proof LED linear luminaire for Zone 1 gas and Zone 21 dust locations. It uses the 1229 mm D-body and is available in a European ATEX and IECEx configuration.
Key specifications include IP66 protection, 120-140 lm/W efficacy, a 120° beam angle, AC100-277V or DC12-24V input and five mounting methods.
The European certification covers Zone 1 gas and Zone 21 dust environments. Gas and dust hazards have separate protection markings, so the applicable marking must be matched to the hazardous material and zoning information for the site.
Both models use the same 1229 × 125 × 168.7 mm D-body. The difference is rated power: the 60D is 60W and the 40D is 40W.
Because the housing dimensions are the same, select between them from the project wattage and approved lighting layout rather than physical length.
The AC version accepts 100-277V at 50-60Hz. The driver has a power factor above 0.95 and THD below 10%, with a 4 kV / 6 kV surge-protection design.
Yes. A DC12-24V input version is available. State the required DC voltage range in the enquiry so it is not confused with the AC100-277V version.
These environments are included among the listed applications for the series. The IP66 enclosure provides protection against dust and powerful water jets, and the PC cover is corrosion resistant.
Confirm that the complete gas or dust marking, temperature classification and ambient range of -40°C to +55°C match the actual installation conditions.
Entry options are 3/4"-14 NPT, M25 × 1.5 and M26 × 1.5. The European quotation includes two glands, cable outlets at both ends and a standard 0.5 m three-core rubber cable with IEC (CE) certification.
Mounting options include ceiling, wall, pole, pendant and pendant chain. The wall arrangement can be adjusted from 0° to ±60°.
The product measures 1229 × 125 × 168.7 mm and weighs 7.7 kg net. One unit is packed in a 1380 × 185 × 145 mm carton with a gross weight of 8.5 kg.
Yes. Emergency operation is optional. More than one emergency package is offered, so the enquiry should state the required emergency output and operating time.
Include quantity, gas or dust classification, AC or DC input, color temperature, cable-entry size, mounting method and emergency requirement. If emergency operation is needed, also state the required output and operating time.
This information allows the 60W ATEX/IECEx, electrical and mechanical configuration to be checked before quotation.
Send us your hazardous-area requirement, input voltage, color temperature, cable entry, mounting method and emergency configuration. We will help you confirm the suitable model for your project.
