MAG-J-40s
40W
4800 lm
110-130lm/W
AC100-277V, 50-60Hz
5000K(Provides 2700K to 6500K)
15°, 60°, 90°, 108° or 120°
-40 °C to +65 °C
IP66

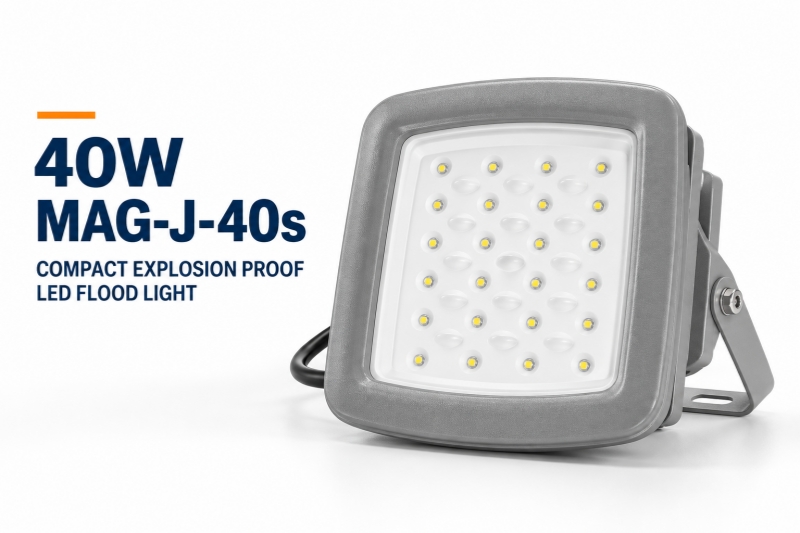

MAG-J-40s delivers 4,800 lm from a 200 × 200 mm floodlight body. The compact format suits locations where the available mounting space is limited but the lighting plan still calls for a certified hazardous-area fixture.
Five beam choices cover focused equipment lighting as well as wider general illumination. A die-cast aluminum housing, 8 mm tempered glass and IP66 protection give the fixture the mechanical build expected for fixed industrial service.
Parameter | MAG-J-40s |
|---|---|
Product type | Explosion proof LED flood light |
Rated power | 40W |
Input voltage | AC100-277V, 50-60Hz |
Luminous flux | 4,800 lm |
Luminous efficacy | 110-130 lm/W |
Color temperature | 5000K standard; 2700K to 6500K available |
CRI | ≥70 |
Beam options | 15°, 60°, 90°, 108° or 120° |
Power factor | >0.95 |
THD | <10% |
Rated lifetime | 50,000 hours, L70 |
Operating temperature | -40°C to +65°C |
Surge design | 4 kV / 6 kV |
Ingress protection | IP66 |
Housing | ADC12 die-cast aluminum |
Lens | 8 mm tempered glass, light transmission >90% |
Mechanical performance | Shock and vibration resistant |
Standard cable entry | M25 × 1.5 |
Optional cable entries | M26 × 1.5 or 3/4"-14 NPT |
Standard cable | 0.5 m three-core rubber cable with IEC (CE) certification |
Fixture size | 200 × 200 × 147 mm / 7.8 × 7.8 × 5.7 in |
Net weight | 4 kg / 8.8 lb |
Compact 40W format: 200 × 200 × 147 mm fixture with a 4 kg net weight.
Declared output: 4,800 lm with 110-130 lm/W luminous efficacy.
Five beam choices: 15°, 60°, 90°, 108° and 120°.
Wide-range input: AC100-277V, 50-60Hz with a Mean Well HLG series driver.
Industrial enclosure: IP66 ADC12 die-cast aluminum body and 8 mm tempered glass.
Temperature capability: -40°C to +65°C operating range.
Connection options: M25 × 1.5 standard entry; M26 × 1.5 and 3/4"-14 NPT optional.
Installation flexibility: ceiling, drop, wall, U-bracket and pole arrangements.

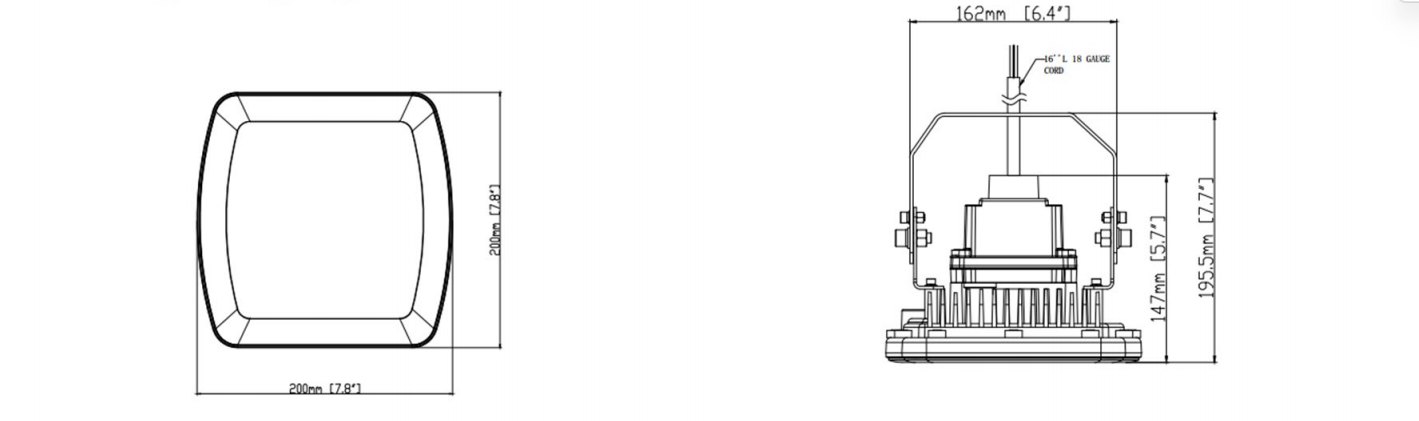

The square housing measures 200 mm across and 147 mm deep. That smaller footprint is useful on pipe racks, equipment skids, access platforms and structural members where a larger floodlight would obstruct nearby equipment or require heavier supports.
At 4 kg net weight, the fixture is easier to position on compact brackets than the higher-wattage models in the range.

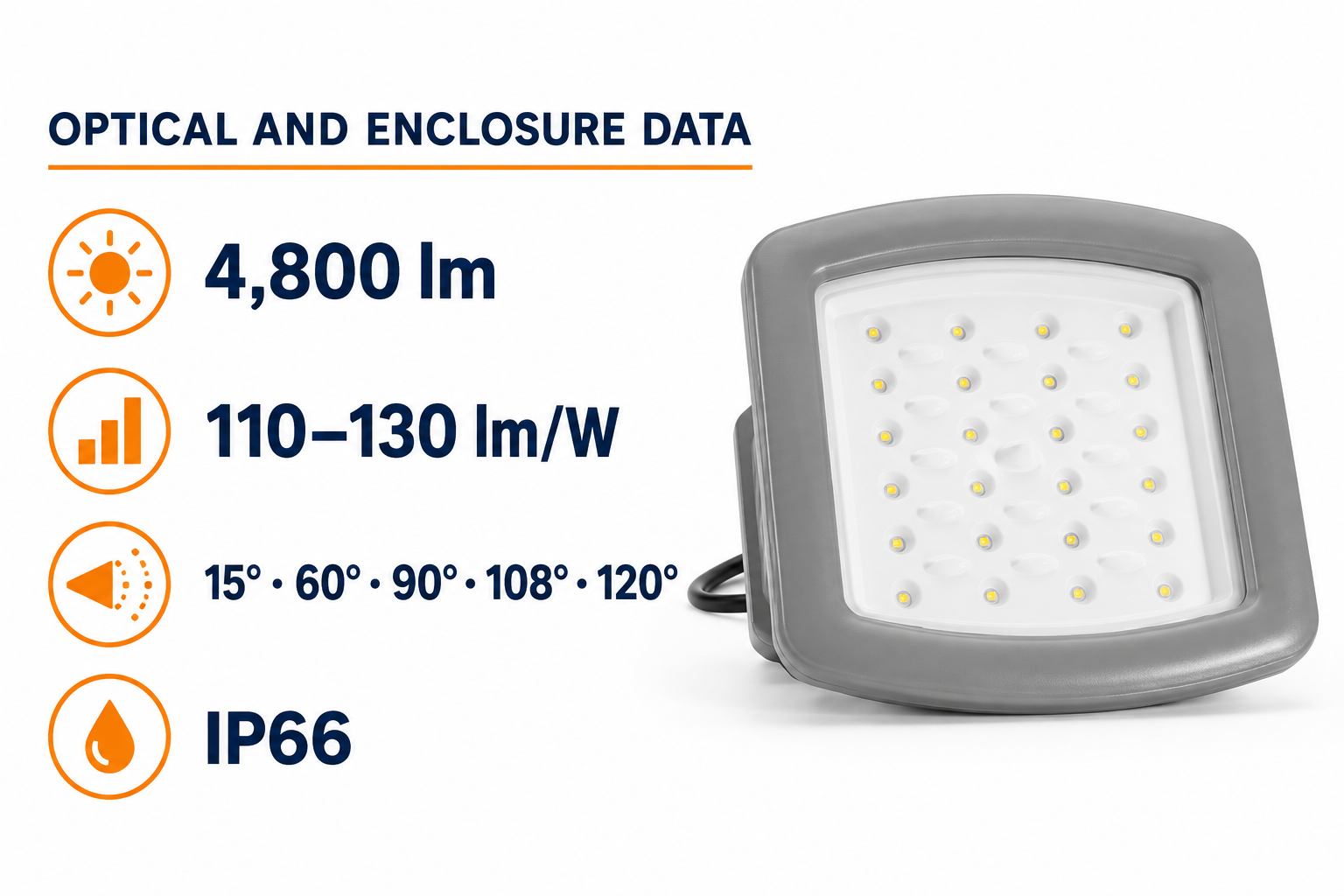

The 40W model is rated at 4,800 lm. Beam selection changes where that light is placed: 15° supports a tighter throw, 60° and 90° cover medium-width work zones, and 108° or 120° spread light across broader areas.
5000K is the standard color temperature. Project-specific orders can be specified from 2700K to 6500K, with CRI ≥70.

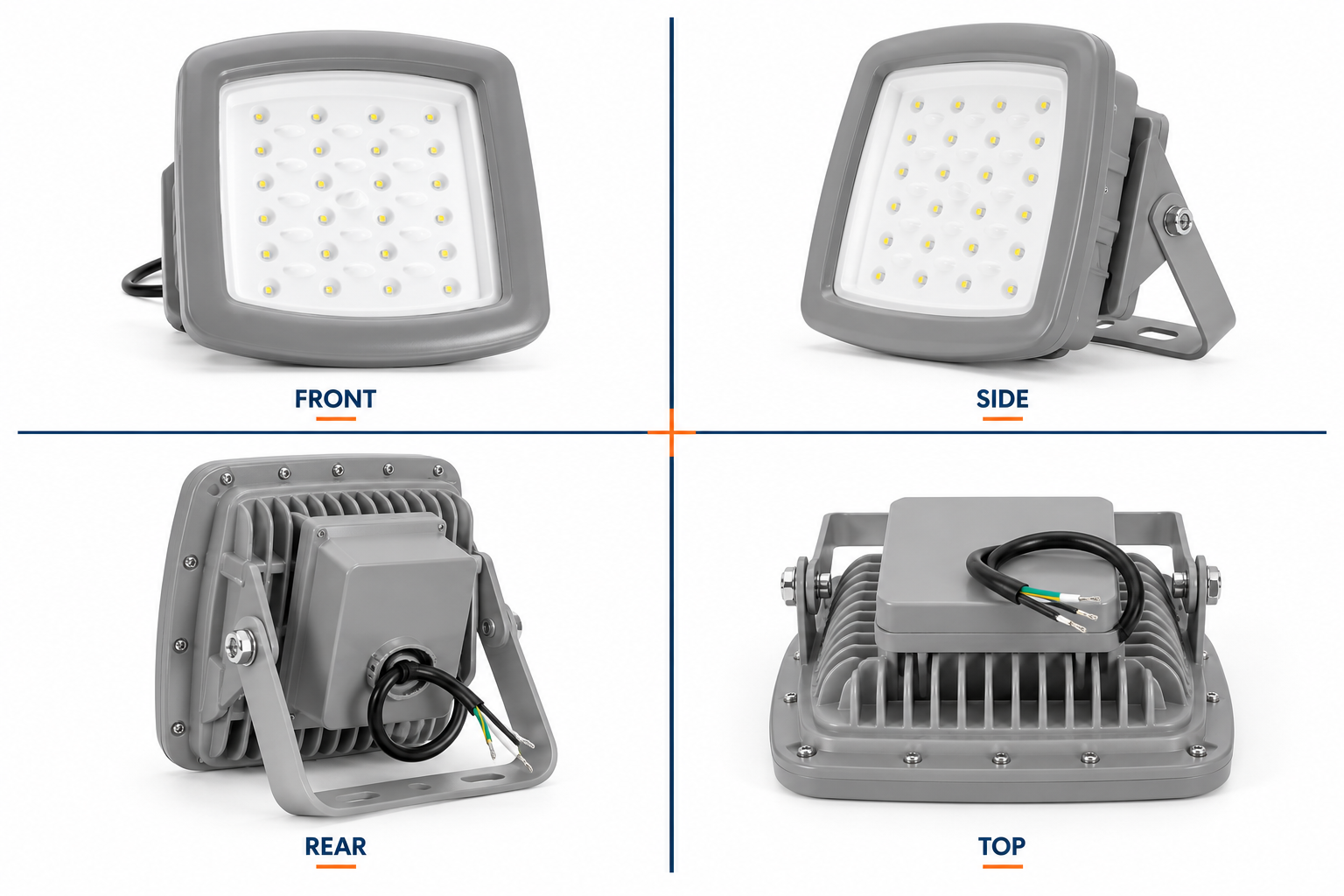

The body is ADC12 die-cast aluminum, paired with an 8 mm tempered-glass lens. Glass transmission is specified above 90%. The enclosure is rated IP66 and the construction is described as resistant to shock and vibration.
The stated operating range is -40°C to +65°C. Confirm the permitted ambient temperature against the required certification marking and nameplate before installing the fixture in a classified location.
MAG-J-40s operates from AC100-277V at 50-60Hz. The 40W configuration uses a Mean Well HLG series driver, with power factor above 0.95, THD below 10% and a 4 kV / 6 kV surge design.
M25 × 1.5 is the standard cable entry. M26 × 1.5 and 3/4"-14 NPT can be specified for projects using a different connection standard. The standard lead is a 0.5 m three-core rubber cable with IEC (CE) certification.
Gas: II 2G Ex eb mb op is IIC T4 Gb
Dust: II 2D Ex op is tb IIIC T95°C Db
Certificate: IEP 19ATEX 0714
Gas: Ex ec IIC T4 Gc
Certificate: IECEx UL 18.0046

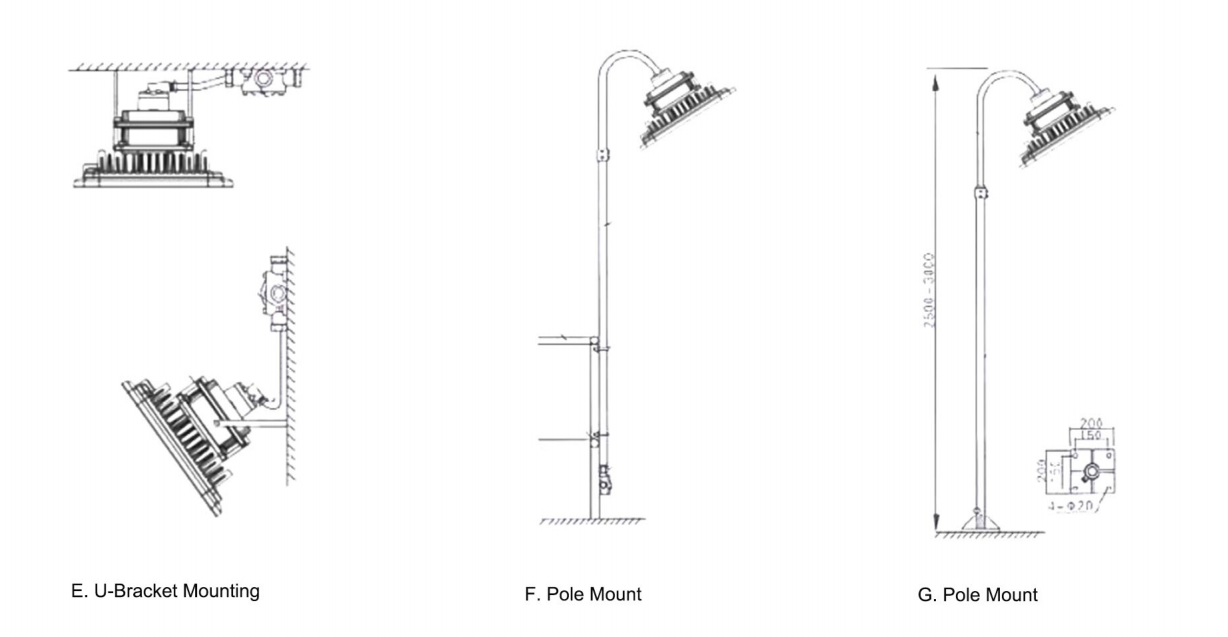

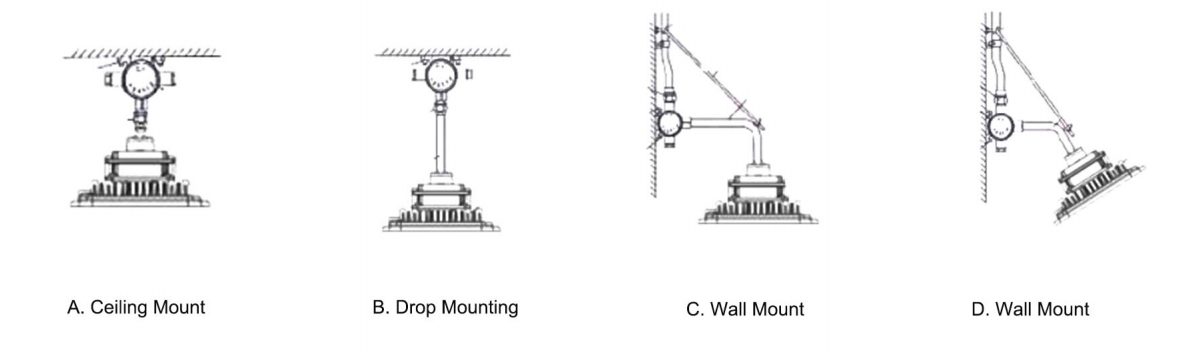

Available mounting illustrations cover ceiling, drop, wall, U-bracket and pole installations. Select the arrangement according to the support structure, aiming requirement and cable route.
Ceiling mount: direct attachment below a horizontal support.
Drop mount: suspended position below overhead steelwork.
Wall mount: installation on a vertical structural face.
U-bracket mount: adjustable aiming for floodlighting duties.
Pole mount: stand-off installation on a suitable pole or support.

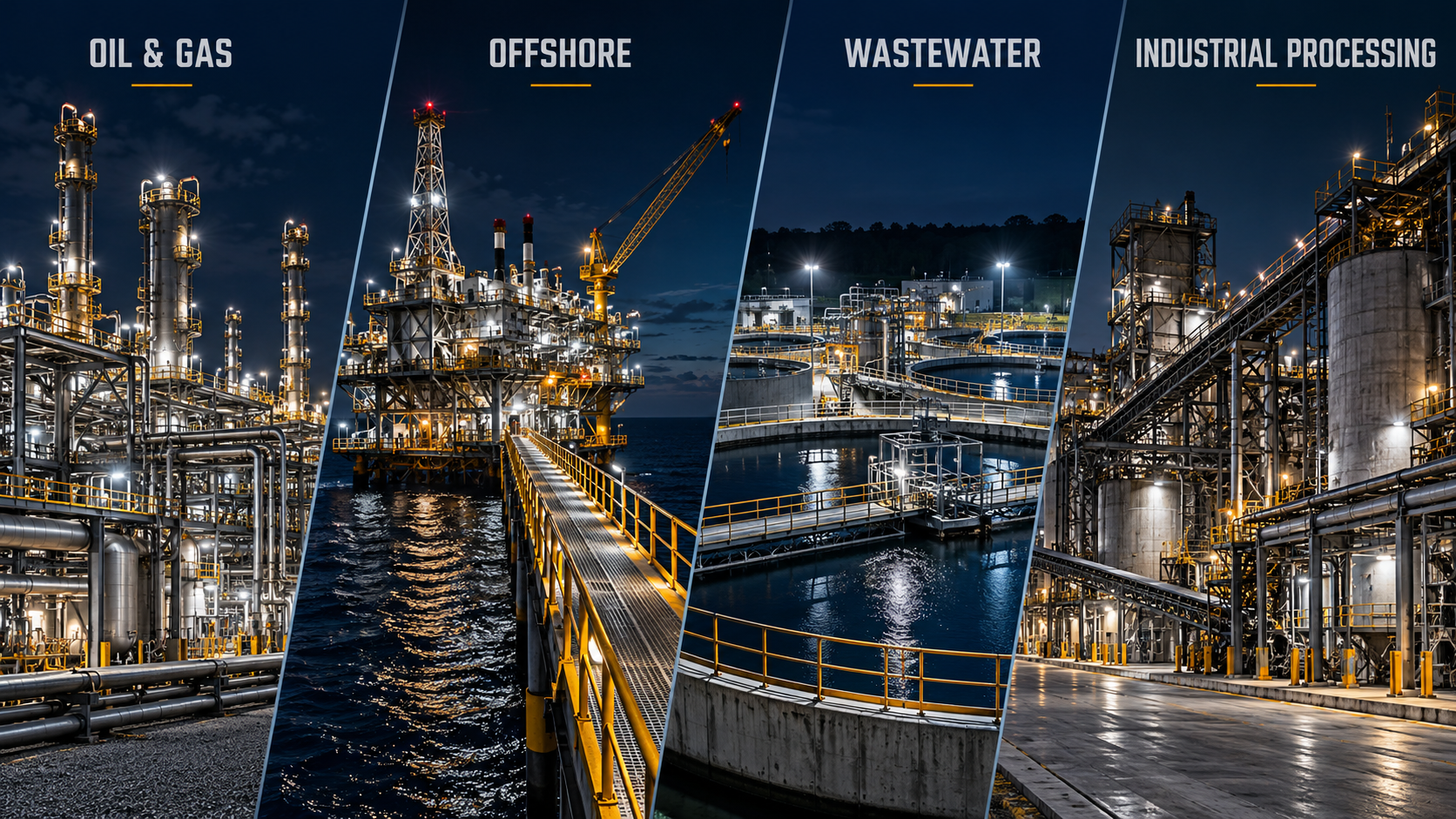

The compact housing and selectable beam make MAG-J-40s suitable for evaluation in fixed lighting positions such as:
Oil and gas processing areas
Offshore and marine industrial facilities
Wastewater treatment plants
Petrochemical and general process installations
Equipment skids, platforms and access routes
Suitability depends on the site classification, full Ex marking, ambient temperature, supply voltage, corrosion conditions and installation method.
The three planned models address different output and housing-size requirements. MAG-J-40s is the compact option; MAG-J-100 and MAG-J-200 are the higher-output choices.
Model | Rated Power | Declared Luminous Flux | Fixture Size | Page Link |
|---|---|---|---|---|
MAG-J-40s | 40W | 4,800 lm | 200 × 200 × 147 mm | Current Model |
MAG-J-100 | 100W | 12,000 lm | 300 × 300 × 165 mm | View 100W model |
MAG-J-200 | 200W | 24,000 lm | 400 × 400 × 169 mm | View 200W model |
Include the following items with the enquiry so the configuration can be checked before quotation:
Required quantity and delivery destination
Site classification and complete required Ex marking
ATEX, IECEx or market-specific certification route
Beam angle: 15°, 60°, 90°, 108° or 120°
Color temperature from 2700K to 6500K
Cable-entry thread: M25 × 1.5, M26 × 1.5 or 3/4"-14 NPT
Ceiling, drop, wall, U-bracket or pole mounting
Lighting layout or target illuminance, when available
Required certificate copies and nameplate information
The declared luminous flux is 4,800 lm, with luminous efficacy specified at 110-130 lm/W.
Use 15° for a narrow throw, 60° or 90° for medium-width equipment and work areas, and 108° or 120° for broader general lighting. Final selection should follow a lighting calculation using the approved photometric file.
No. 5000K is standard, while color temperatures from 2700K to 6500K are available. The CRI is at least 70.
The listed input is AC100-277V at 50-60Hz. The driver for this 40W model is identified as Mean Well HLG series.
M25 × 1.5 is standard. M26 × 1.5 and 3/4"-14 NPT are optional. Specify the required thread with the order so it matches the project cable gland or conduit system.
The enclosure is rated IP66 and the stated operating range is -40°C to +65°C. The installation review should also check the certification marking, permitted ambient, corrosion exposure and cable-entry sealing.
No emergency package is confirmed for the standard MAG-J-40s quotation. If emergency operation is required, request a separate technical confirmation before including it in the project specification.
Send the hazardous-area classification, quantity, beam angle, color temperature, cable-entry thread and mounting method. The required certification documents can then be checked against the proposed configuration before quotation.
