MAG-EX-LN-02P-30B
30W
120-140lm/W
12-24VDC/100-277Vac 50-60Hz
Provides 3000K to 6500K
120°
-40 °C to +55 °C
IP66
Parameter | Specification |
|---|---|
Product model | MAG-EX-LN-02P-30B |
Product type | LED explosion proof linear light |
Rated power | 30W |
Certification version | ATEX and IECEx |
Hazardous-area use stated in the datasheet | Zone 1 and Zone 21 |
Ingress protection | IP66 |
Luminous efficacy | 120-140 lm/W |
Input voltage | AC100-277V, 50-60Hz or DC12-24V |
Color temperature | 3000K to 6500K |
CRI | ≥70 |
Beam angle | 120° |
Power factor | >0.95 |
THD | <10% |
Rated lifetime | 50,000 hours, L70 |
Operating temperature | -40°C to +55°C |
Power supply | High-efficiency LED driver |
Surge protection | 4 kV / 6 kV surge-protection design |
Entry size | 3/4"-14 NPT, M25 × 1.5 or M26 × 1.5 |
Standard cable | 0.5 m three-core rubber cable with IEC (CE) certification |
Cable outlet arrangement | Cable outlets at both ends |
Housing | Aluminum alloy enclosure |
Cover | High-transmittance PC cover |

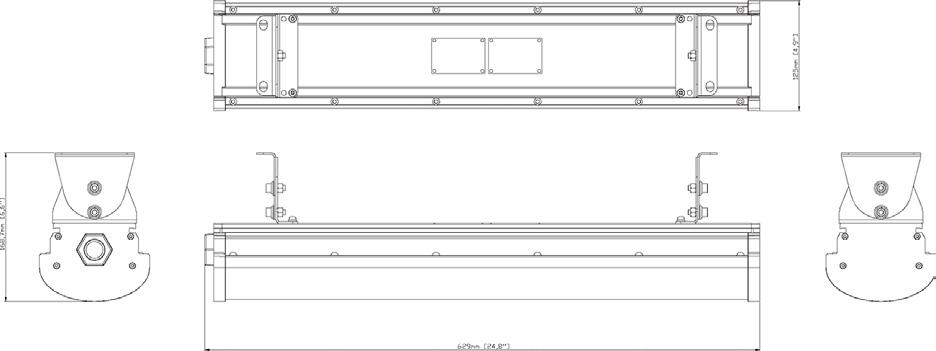

Product size | 629 × 125 × 168.7 mm |
Emergency function | Optional |

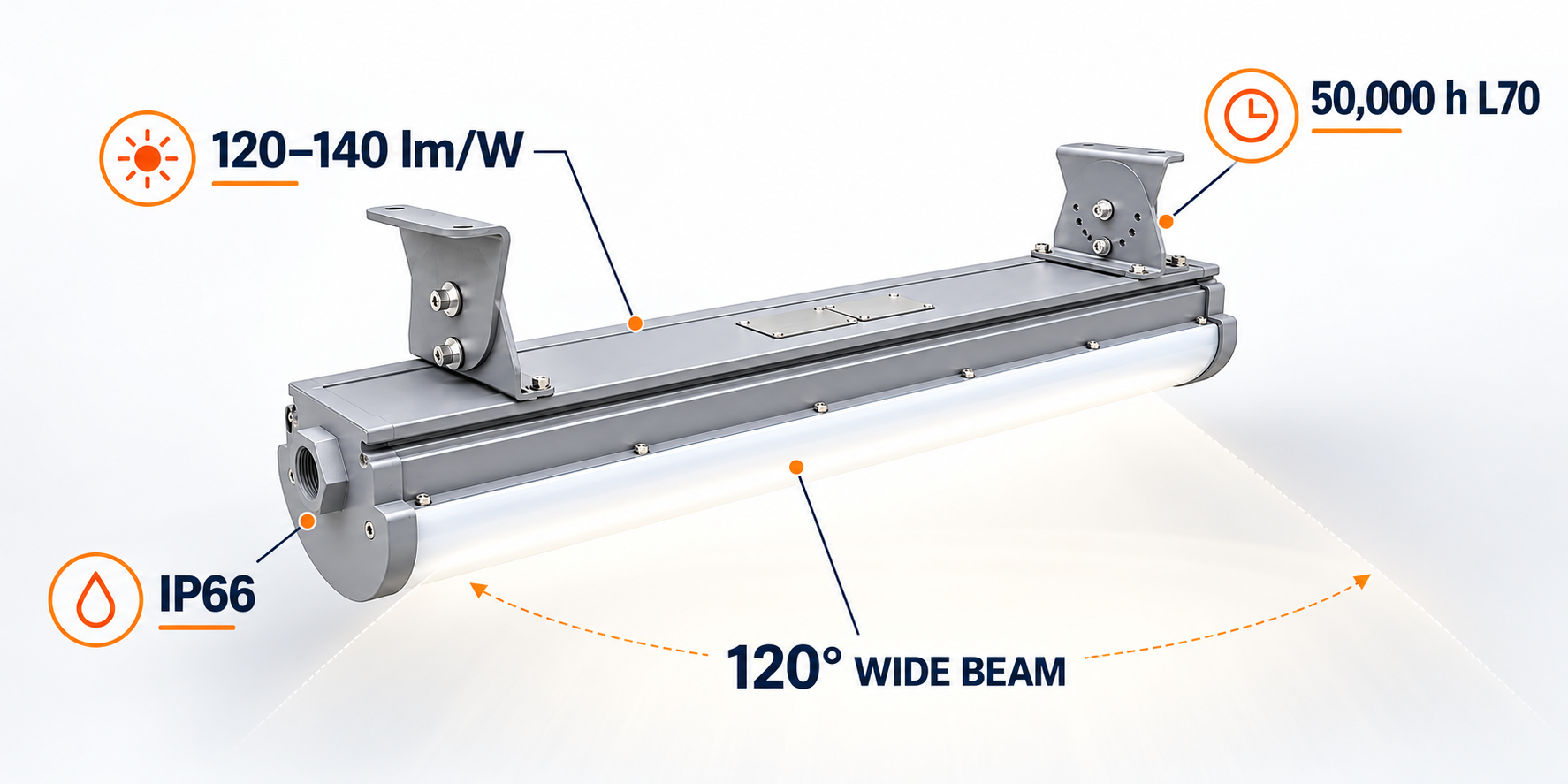

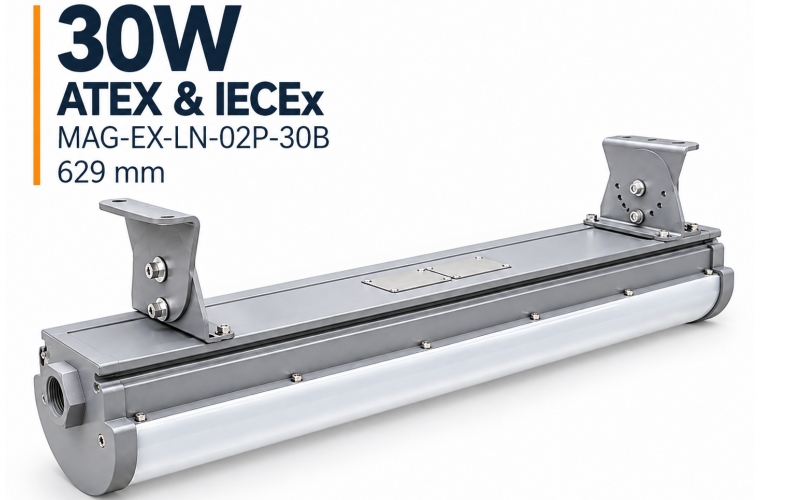

The MAG-EX-LN-02P-30B pairs a 30W rating with a compact 629 mm body. Cable entries at both ends make cable routing more flexible, and the European configuration includes two glands.
For retrofit projects, its linear housing offers an LED alternative to traditional explosion proof fluorescent and tri-proof fixtures. The 120° beam angle distributes light across work areas, access routes and general industrial spaces.
With a luminous efficacy of 120-140 lm/W, the 30W model provides energy-efficient general lighting while keeping power demand low. The LED technology is LM80 certified for long-term performance.
Select a color temperature between 3000K and 6500K to match the visual requirements of the project. CRI ≥70 supports practical color recognition, while the 120° beam angle provides broad, even coverage. The high-transmittance PC cover also reduces direct exposure to the LED light source.
The European version is available with ATEX and IECEx certification for Zone 1 gas and Zone 21 dust environments. Use the markings and certificate numbers below when checking the fixture against your project requirements.
Gas marking: II 2G Ex eb mb IIC T5 Gb
Dust marking: II 2D Ex tb IIIC T75°C Db
Ingress protection: IP66
Certificate No.: SEV 21 ATEX 0578 X
Gas marking: Ex eb mb IIC T5 Gb
Dust marking: Ex tb IIIC T75°C Db
Ingress protection: IP66
Certificate No.: IECEx SEV 21.0038X

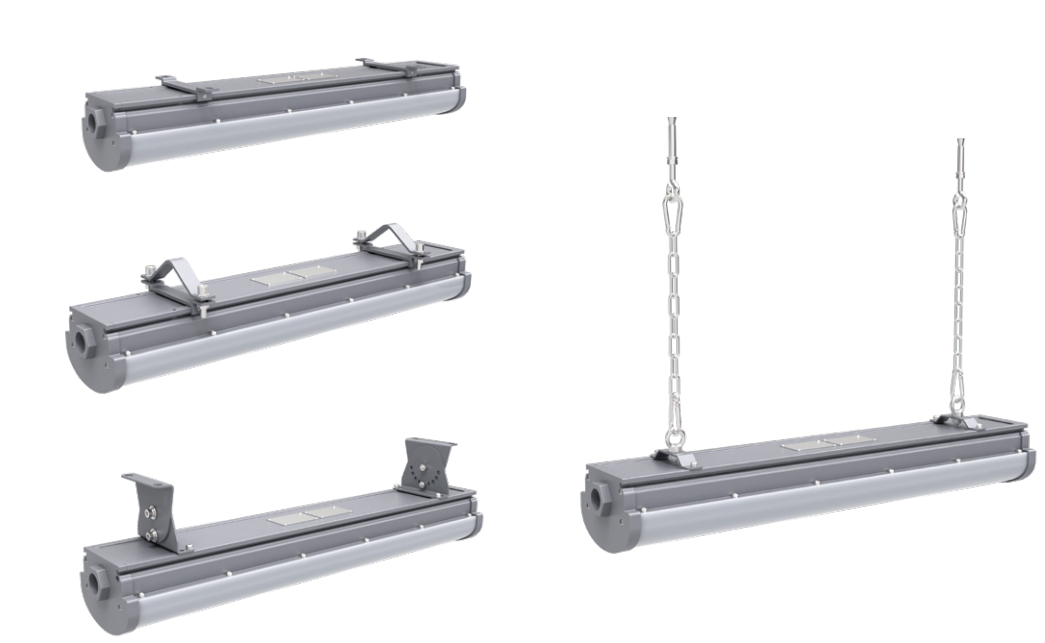

Choose the mounting arrangement that best fits the structure, lighting direction and maintenance access at the installation site.

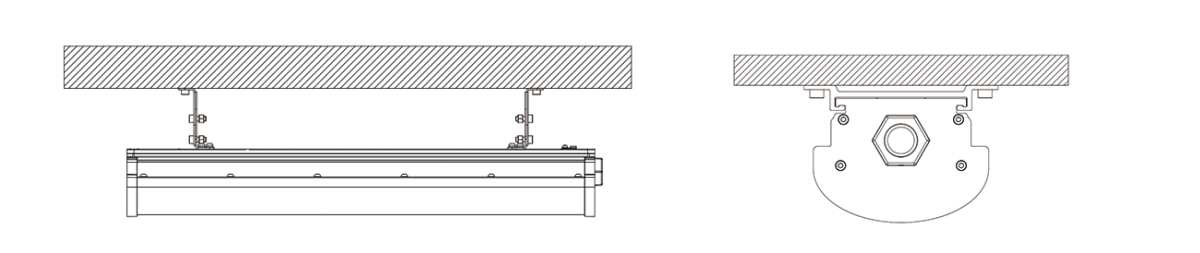

Mount the fixture directly to the ceiling or an overhead support for a clean, low-profile installation.

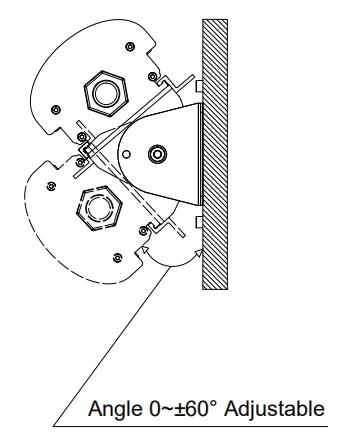

The wall-mounting bracket offers an adjustable angle from 0° to ±60°, allowing the light direction to be set for the target area.

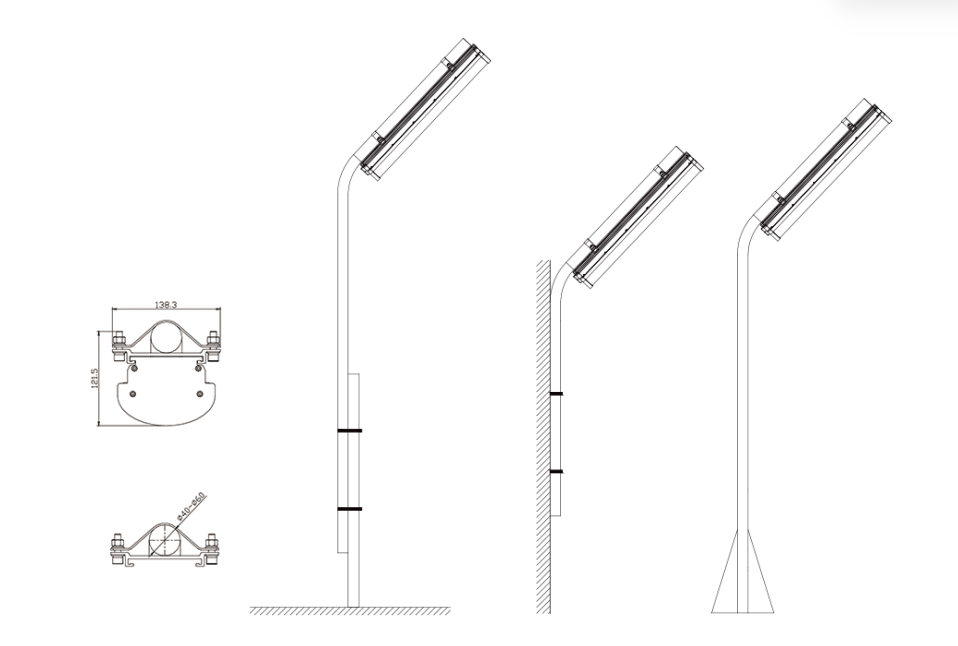

A pole-mounting arrangement is available when the luminaire needs to be positioned away from a wall or ceiling surface.

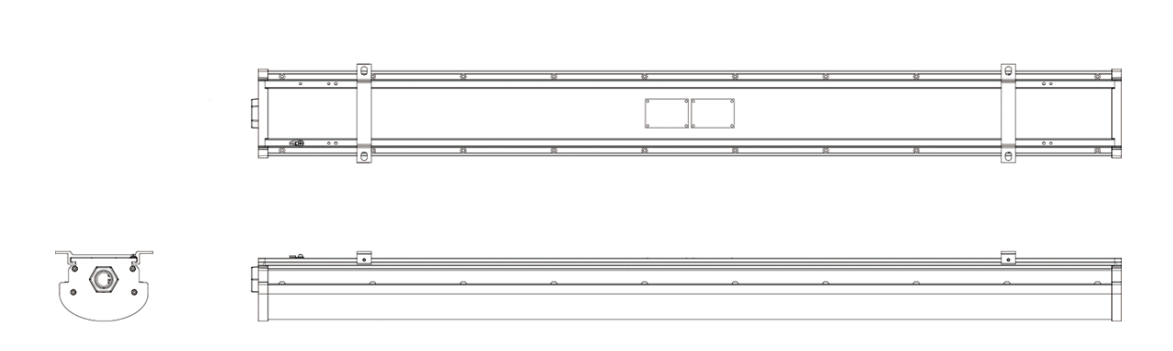

Use pendant mounting when the fixture needs to be suspended from a fixed overhead structure.

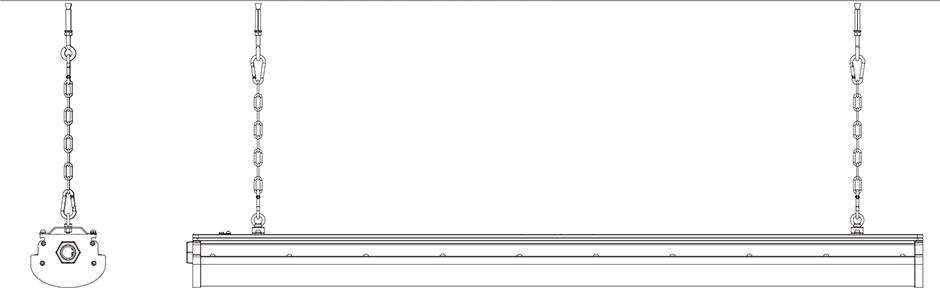

Two suspension points support chain mounting for installations that require additional hanging flexibility.
Add an emergency version when the project requires continued illumination during a power interruption. More than one emergency package is available, so include the required emergency output and operating time in your quotation request.

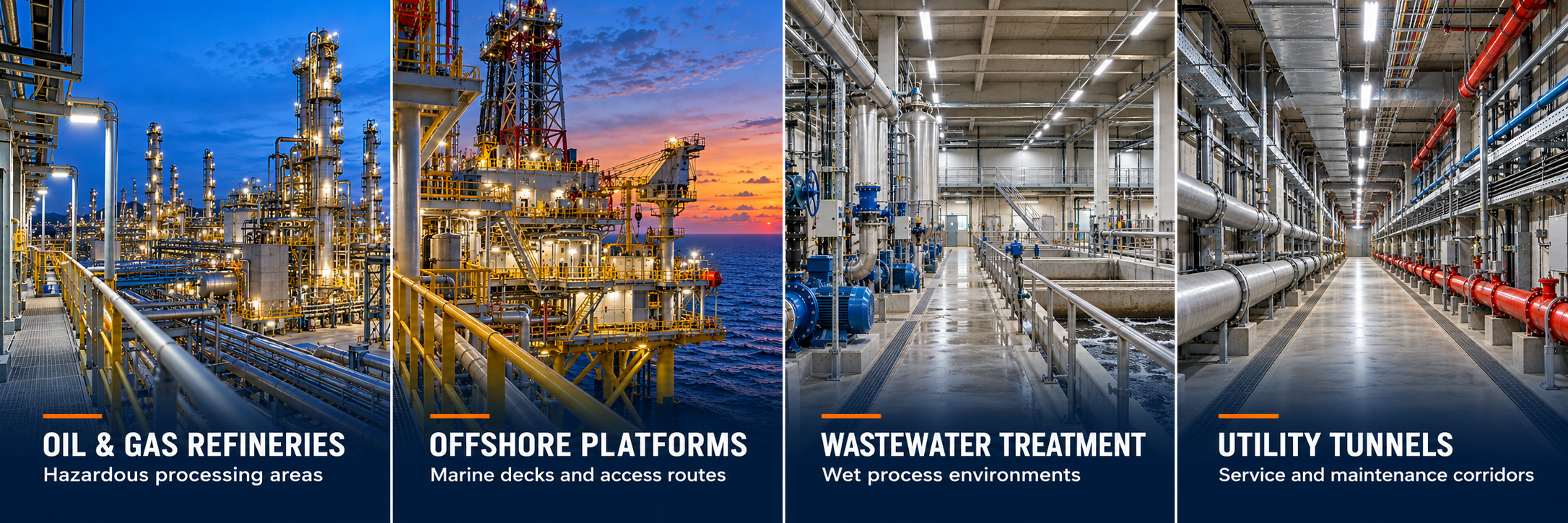

Suitable application areas include oil and gas refineries, drilling rigs and petrochemical facilities where certified linear lighting is required for hazardous zones.
The IP66 enclosure and corrosion-resistant PC cover make the fixture suitable for demanding areas in wastewater treatment and food and beverage facilities.
The fixture can also be used for tunnel lighting, marine environments, and indoor or outdoor industrial areas where flammable gases, vapors, combustible dust, fibers or flyings may be present.
Power | Model | Product Length | Page Link |
|---|---|---|---|
30W | MAG-EX-LN-02P-30B | 629 mm | Current Model |

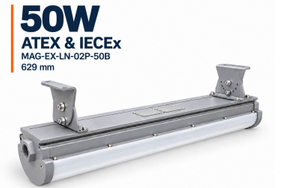

50W | MAG-EX-LN-02P-50B | 629 mm | |

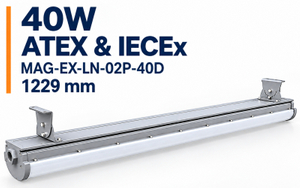

40W | MAG-EX-LN-02P-40D | 1229 mm | |

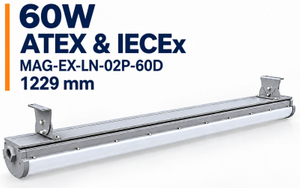

60W | MAG-EX-LN-02P-60D | 1229 mm | |

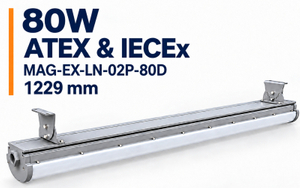

80W | MAG-EX-LN-02P-80D | 1229 mm | |

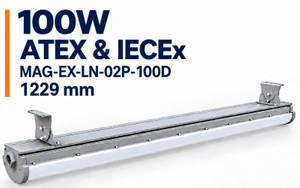

100W | MAG-EX-LN-02P-100D | 1229 mm |
To receive an accurate quotation, include the following details with your enquiry:
Input voltage
Color temperature
Cable entry
Mounting method: ceiling, wall, pole, pendant or pendant chain
Emergency function: confirm whether it is required, together with the required output and operating time
Yes. This page covers the ATEX and IECEx configuration of the MAG-EX-LN-02P-30B. The supplied specification lists ATEX certificate number SEV 21 ATEX 0578 X and IECEx certificate number IECEx SEV 21.0038X for the series.
The MAG-EX-LN-02P-30B is designed for Zone 1 gas and Zone 21 dust environments.
The MAG-EX-LN-02P-30B is rated at 30W and measures 629 × 125 × 168.7 mm.
Choose AC100-277V at 50-60Hz or DC12-24V to match the project power supply.
Yes. The series is designed as an LED replacement for traditional explosion proof fluorescent and tri-proof fixtures.
Available options include ceiling, wall, pole, pendant and pendant chain mounting.
Yes. Emergency operation is optional. Confirm the required emergency output and operating time when requesting a quotation.
Send us your required voltage, color temperature, cable entry, mounting method and emergency configuration. We will help you confirm the right model for your project.
