9,500–10,000 lm
At least 30,000 hours
LED
100w
IP65

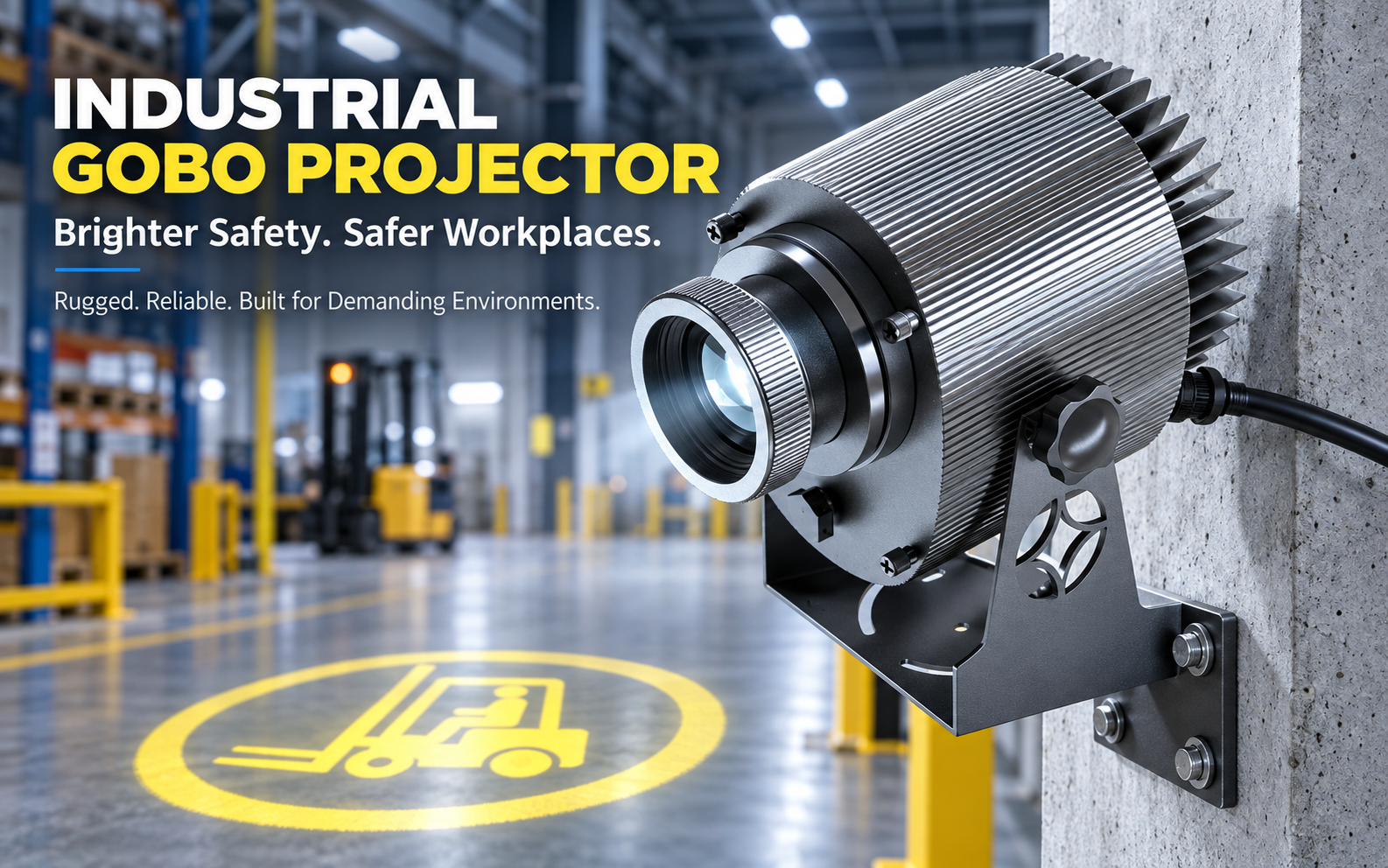

When a warehouse or factory has long aisles, busy crossings and changing work zones, safety cues need to be easy to see and simple to update. The 100W LED gobo projector turns approved symbols, logos and directions into visible floor projections—helping teams communicate site rules without relying only on painted markings.
Place familiar safety symbols at crossings, entrances and route changes to guide quick decisions.
Replace the 37 mm gobo to update projected symbols or branding without replacing the projector.
Keep projected images visible and unobstructed. Check ambient light, surface condition and lens selection on site.

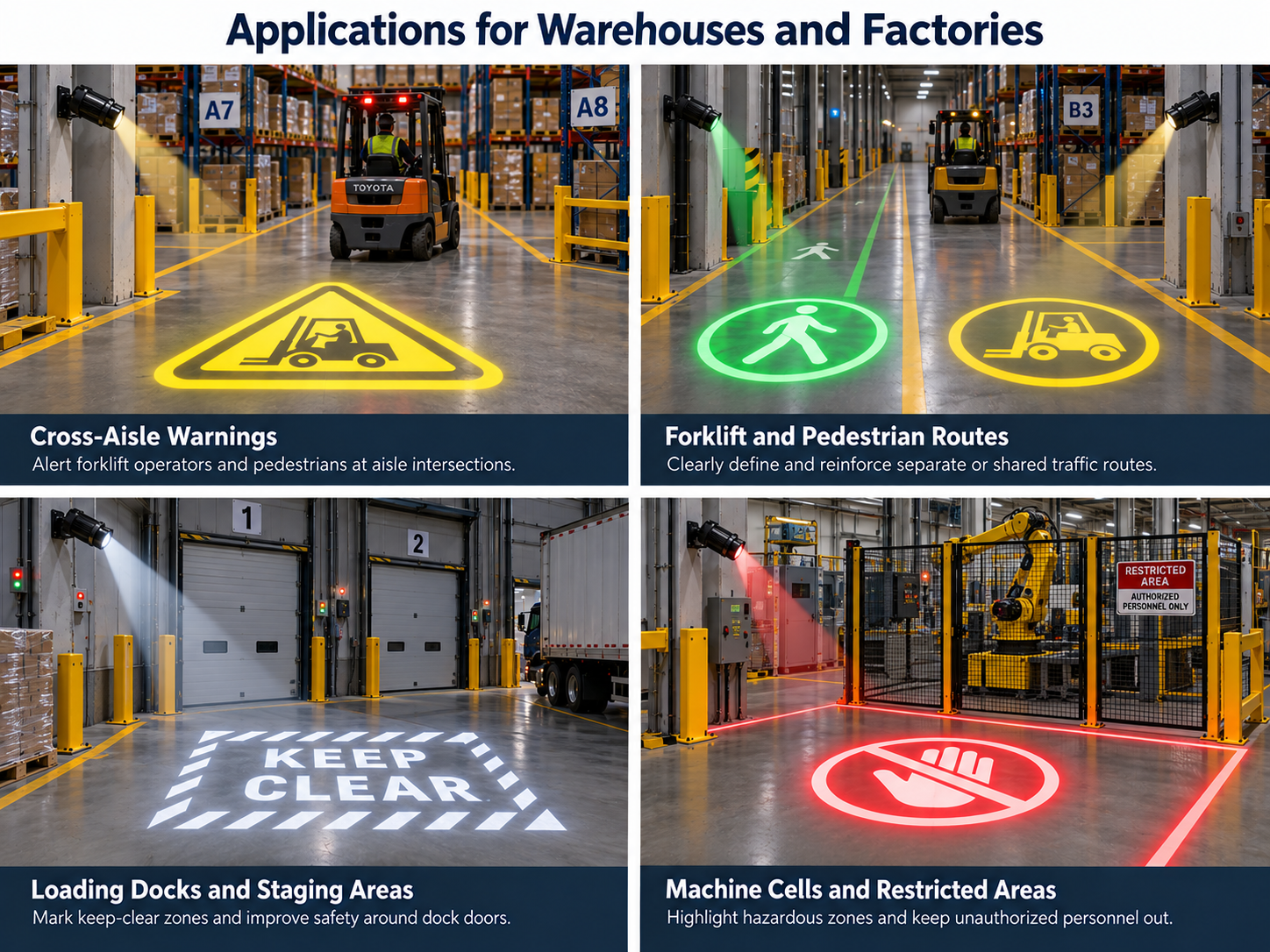

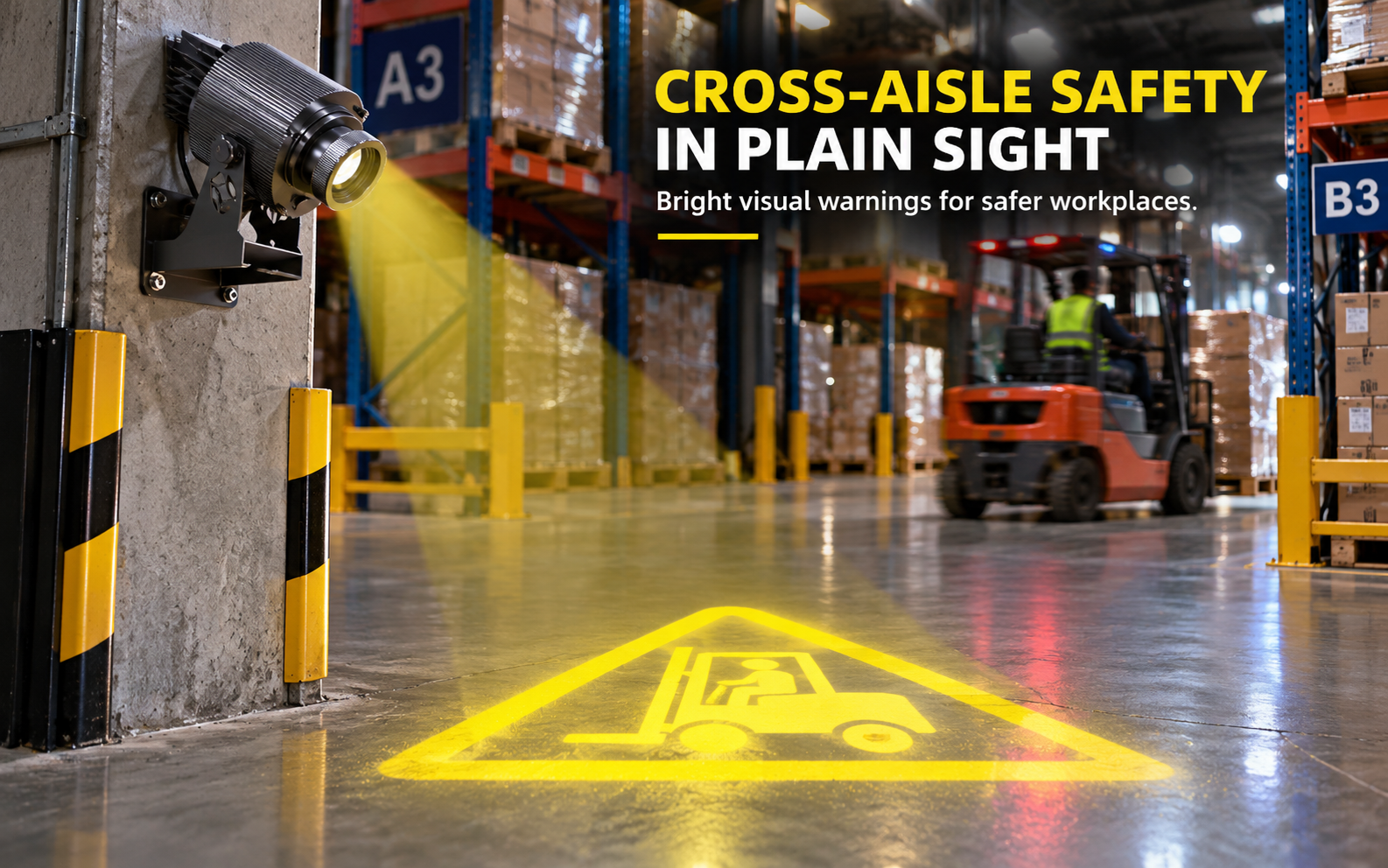

Project warning or direction symbols at forklift crossings and aisle intersections.
Use floor symbols to reinforce traffic routes and mark shared crossings.
Project keep-clear zones or temporary boundaries around docks and changing storage areas.

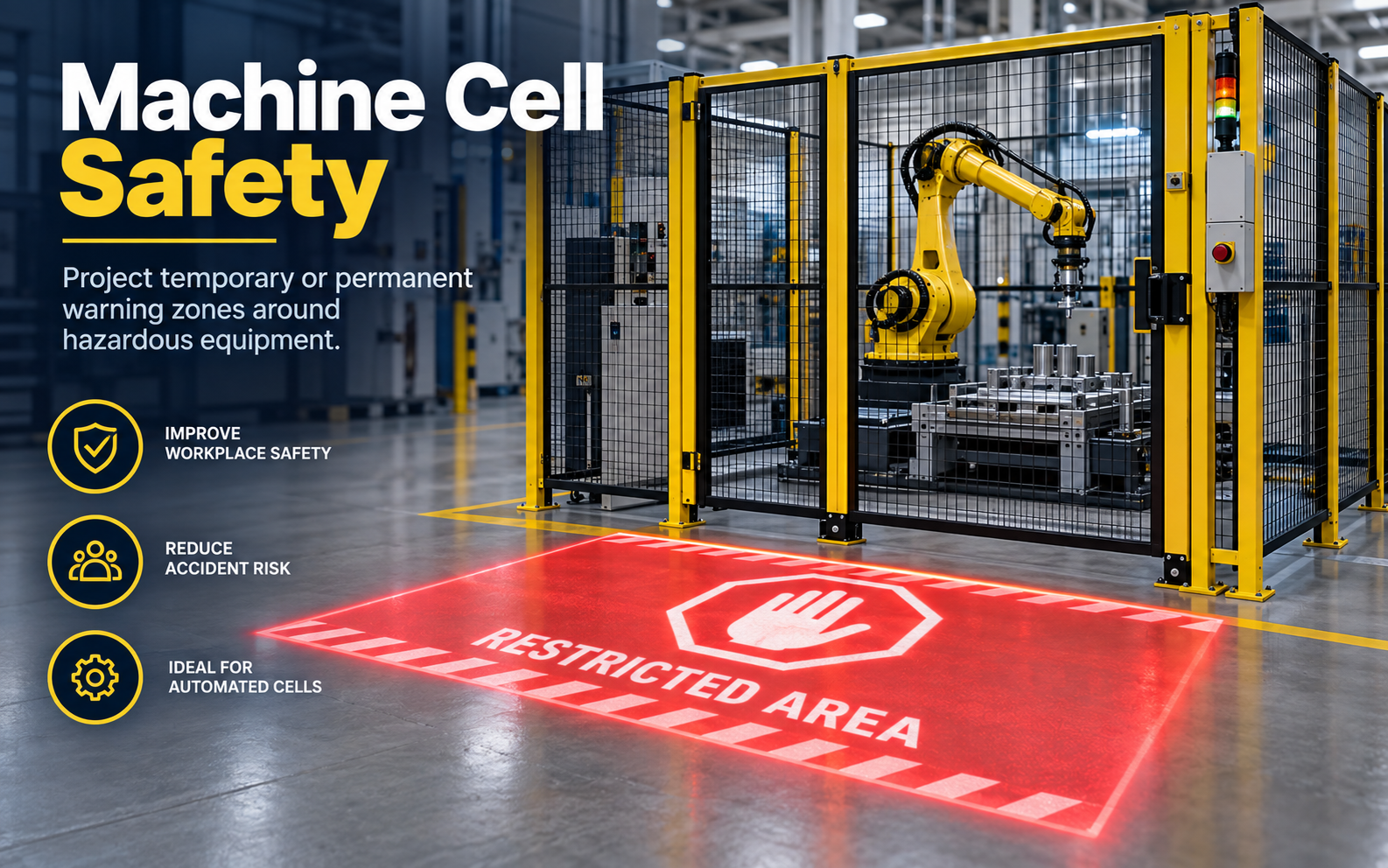

Mark work-zone boundaries with projected symbols, alongside required guards and safety procedures.
The values below summarize the listed configuration. Projection visibility varies with the selected lens, image artwork, target surface and ambient light.
Specification | 100W LED Gobo Projector |
|---|---|
LED source | OSRAM LED |
Rated power | 100W |
Luminous flux | 9,500–10,000 lm |
LED service life | ≥30,000 hours |
Recommended projection distance | 1–26 m |
Gobo size | 37 mm, replaceable |
Lens options | 11° / 17° / 28° standard / 36° / 53° |
Protection rating | IP65 |
Operating temperature | −40°C to +60°C |
Bracket adjustment | 0–180° |
Housing and finish | Cold-forged aluminum; silver-white or black |
Power supply | Constant-current power supply |
Fixture weight | Maximum 1.6 kg |
Optional effects | Water ripple / pattern / special effects; confirm configuration w |
If you are selecting equipment for multiple zones, compare the listed output and recommended distance as a starting point—not as a substitute for testing the projected image at the site.
Power | Luminous flux | Recommended projection distance |
|---|---|---|
35W | 3,000–3,500 lm | 1–9 m |
50W | 4,500–5,000 lm | 1–16 m |
80W | 7,500–8,000 lm | 1–23 m |
100W | 9,500–10,000 lm | 1–26 m |
120W | 11,500–12,000 lm | 1–30 m |
With over 10 years of experience, we support visual safety projects for warehouses, logistics and industrial facilities.
Our R&D team supports product development and project-specific customization.
Products are checked before shipment, with CE and RoHS compliance available as applicable.
Flexible production supports bulk orders, with lead times confirmed for each project.
We serve distributors, safety integrators and customers across North America, Europe, Southeast Asia and the Middle East.
Our team provides technical guidance, responsive support and warranty service.
For a practical recommendation, send the site photo, mounting position, lens-to-surface distance, desired projected image size, ambient-light conditions and the symbol or logo artwork. This gives the team the information needed to review the lens and gobo configuration for your facility.
