11,500–12,000 lm
At least 30,000 hours
LED
120w
IP65
Designed for industrial projection projects that call for strong listed output, flexible optics and graphics that can be updated over time.

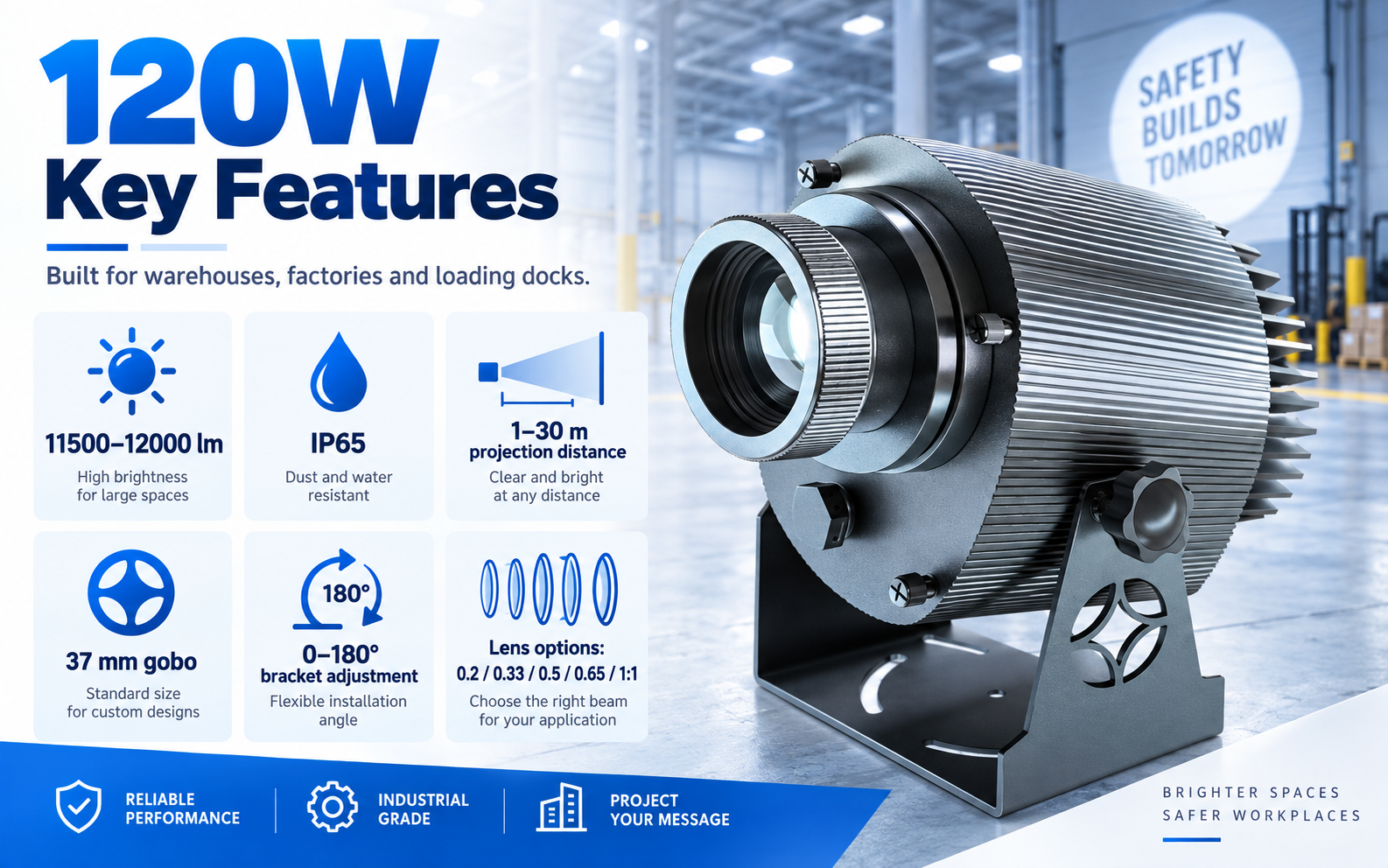

At 11,500–12,000 lm, the 120W model is the highest-output option in this projector range, with a recommended projection distance of 1–30 m. The final image depends on lens, artwork, surface and ambient light.
The 37 mm gobo is replaceable, allowing a new logo or safety graphic without replacing the complete projector.
A 28° lens is listed as standard, with 11°, 17°, 36° and 53° options for different projection geometries.
The adjustable 0–180° bracket helps aim the projection. Cold-forged aluminum housing and IP65 protection are specified for industrial installations.
The listed LED service life is at least 30,000 hours. Actual service life depends on operating and installation conditions.
Water-ripple, pattern and special-effect options are available for the product family; confirm the chosen configuration with the order.

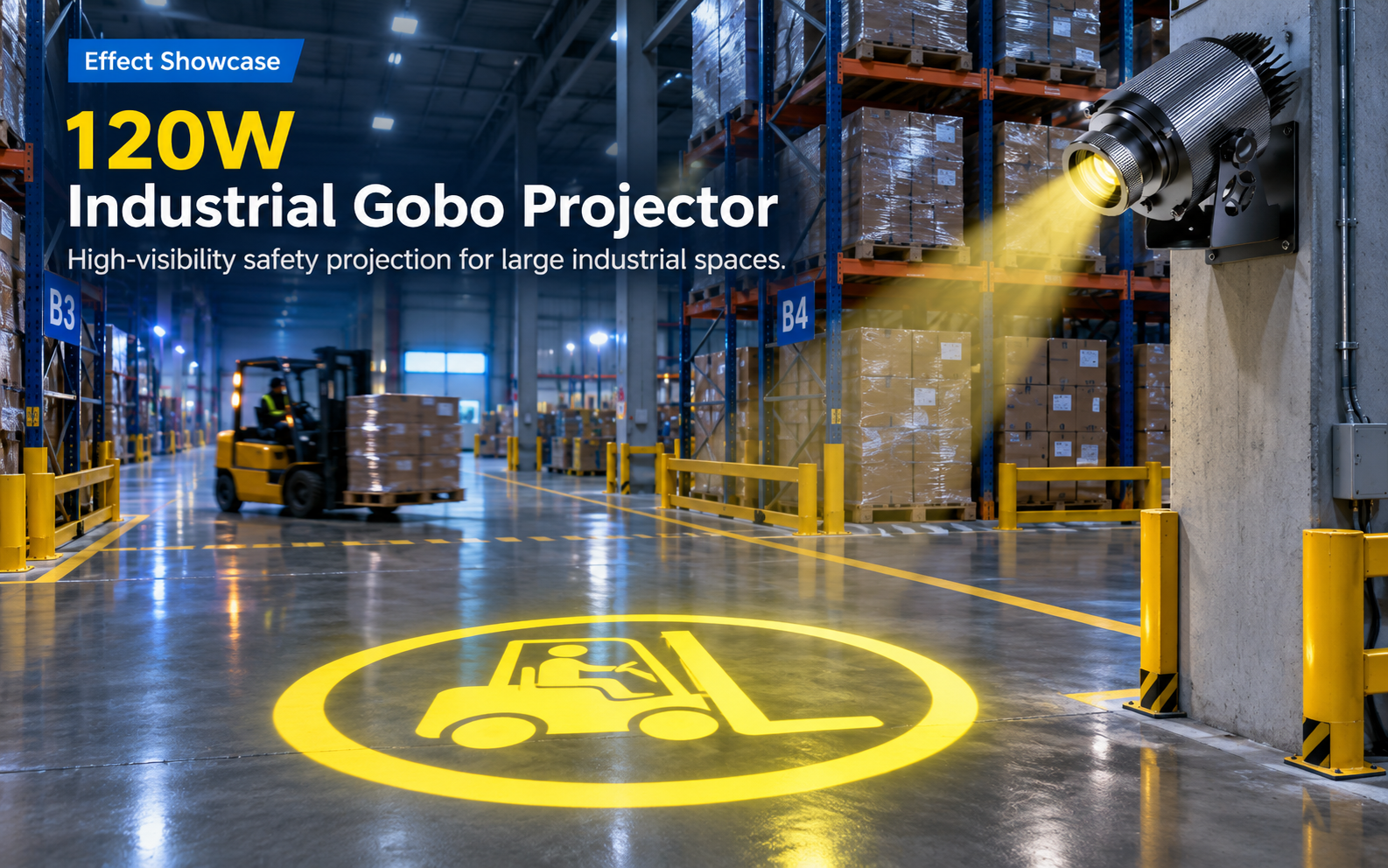

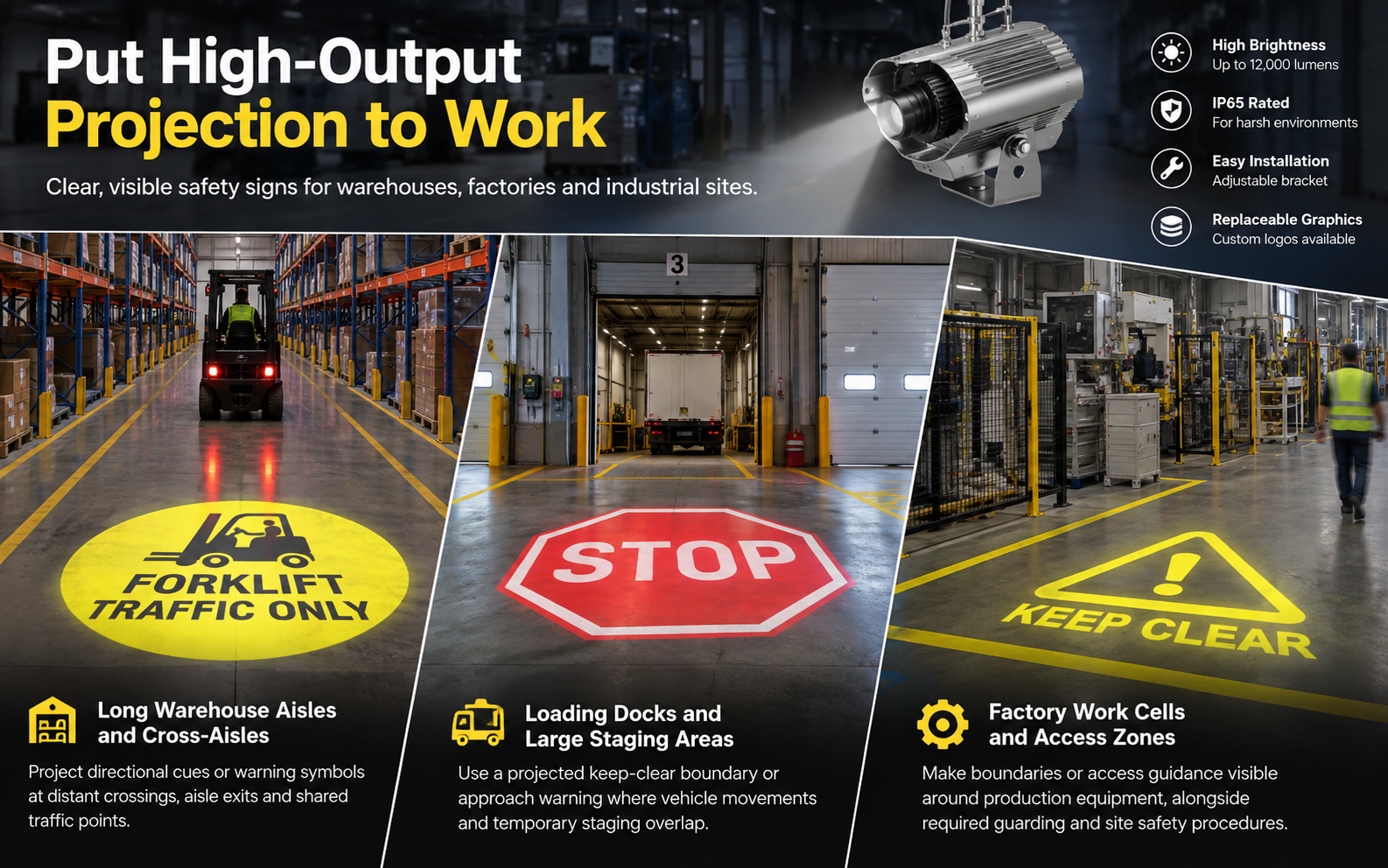

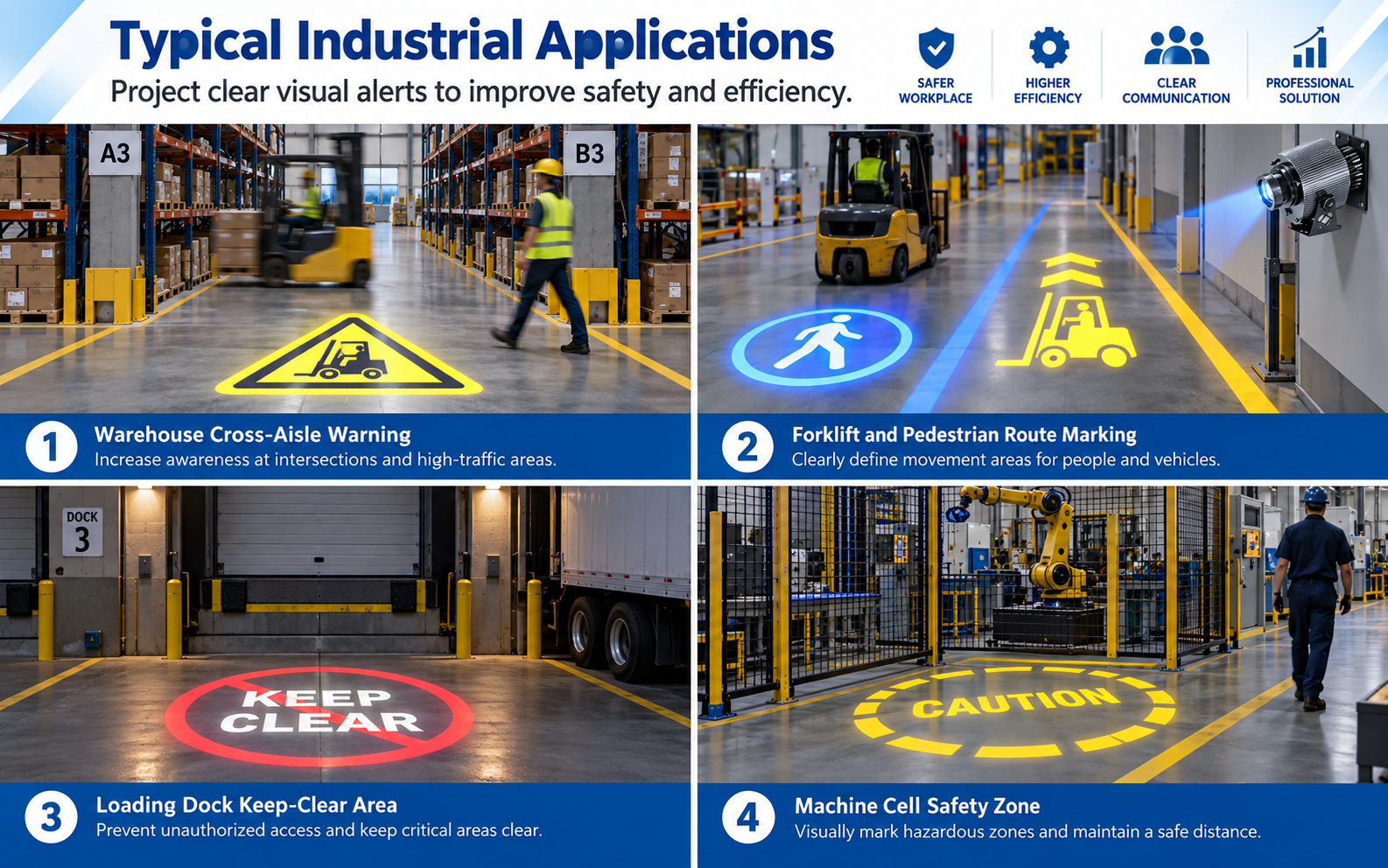

Project directional cues or warning symbols at distant crossings, aisle exits and shared traffic points.
Use a projected keep-clear boundary or approach warning where vehicle movements and temporary staging overlap.
Make boundaries or access guidance visible around production equipment, alongside required guarding and site safety procedures.

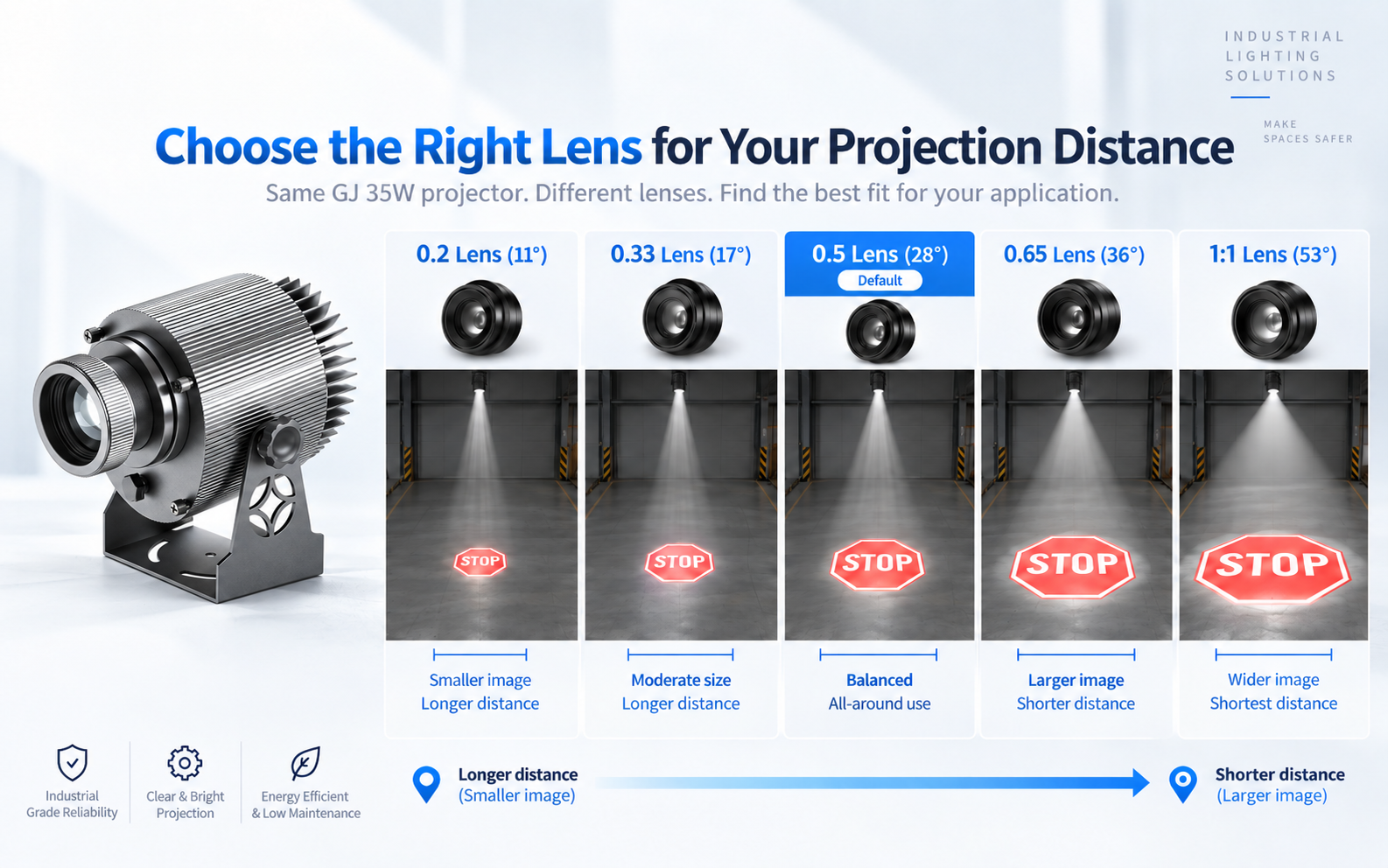

At the same projection distance, a lower ratio creates a smaller image, while a higher ratio covers a wider area.
0.2 (11°): smallest image
0.33 (17°): narrow coverage
0.5 (28°): standard lens
0.65 (36°): wider coverage
1:1 (53°): widest image
Specification | 35W | 50W | 80W | 100W | 120W |
|---|---|---|---|---|---|
luminous flux | 3,000–3,500 lm | 4,500–5,000 lm | 7,500–8,000 lm | 9,500–10,000 lm | 11,500–12,000 lm |
LED service life | ≥30,000 h | ≥30,000 h | ≥30,000 h | ≥30,000 h | ≥30,000 h |
Recommended projection distance | 1–9 m | 1–16 m | 1–23 m | 1–26 m | 1–30 m |
Gobo size | 37 mm | 37 mm | 37 mm | 37 mm | 37 mm |
Lens options | 11° / 17° / 28° standard / 36° / 53° | ||||
Bracket adjustment | 0–180° | ||||
Available effects | Water ripple / pattern / special effects | ||||
Housing finish | Silver-white or black | ||||
It has listed luminous flux of 11,500–12,000 lm and a recommended projection distance of 1–30 m. Actual visibility varies by lens, artwork, surface and ambient light.
Yes. The 37 mm gobo is replaceable. Confirm the compatible gobo specification and artwork before ordering.
The projector is IP65-rated. It must not be immersed in water, and installation conditions should suit the mounting and electrical connection.
The listed information specifies a constant-current power supply but does not state mains input voltage. Confirm the required input voltage and wiring arrangement for your market.
Tell us what you need to project and where it will be installed. Share the target distance, desired image size and artwork, and our team can discuss a suitable 120W configuration with you.
