3,000-3,500 lm
At least 30,000 hours
Osram LED
35w
Make an entrance easier to find, give a wall a distinct visual identity, or introduce a seasonal motif without adding a permanent sign. This compact LED gobo projector is intended for focused projections at shorter distances. It can display a suitable logo, direction symbol or decorative pattern on a wall or floor, indoors or outdoors
The 35W Osram LED provides 3,000–3,500 lm for clear logo, directional and decorative projections while keeping power consumption modest.
A replaceable 37 mm gobo and five lens options—11°, 17°, 28°, 36° and 53°—support different graphics, projection distances and image sizes. One projector can serve multiple applications.

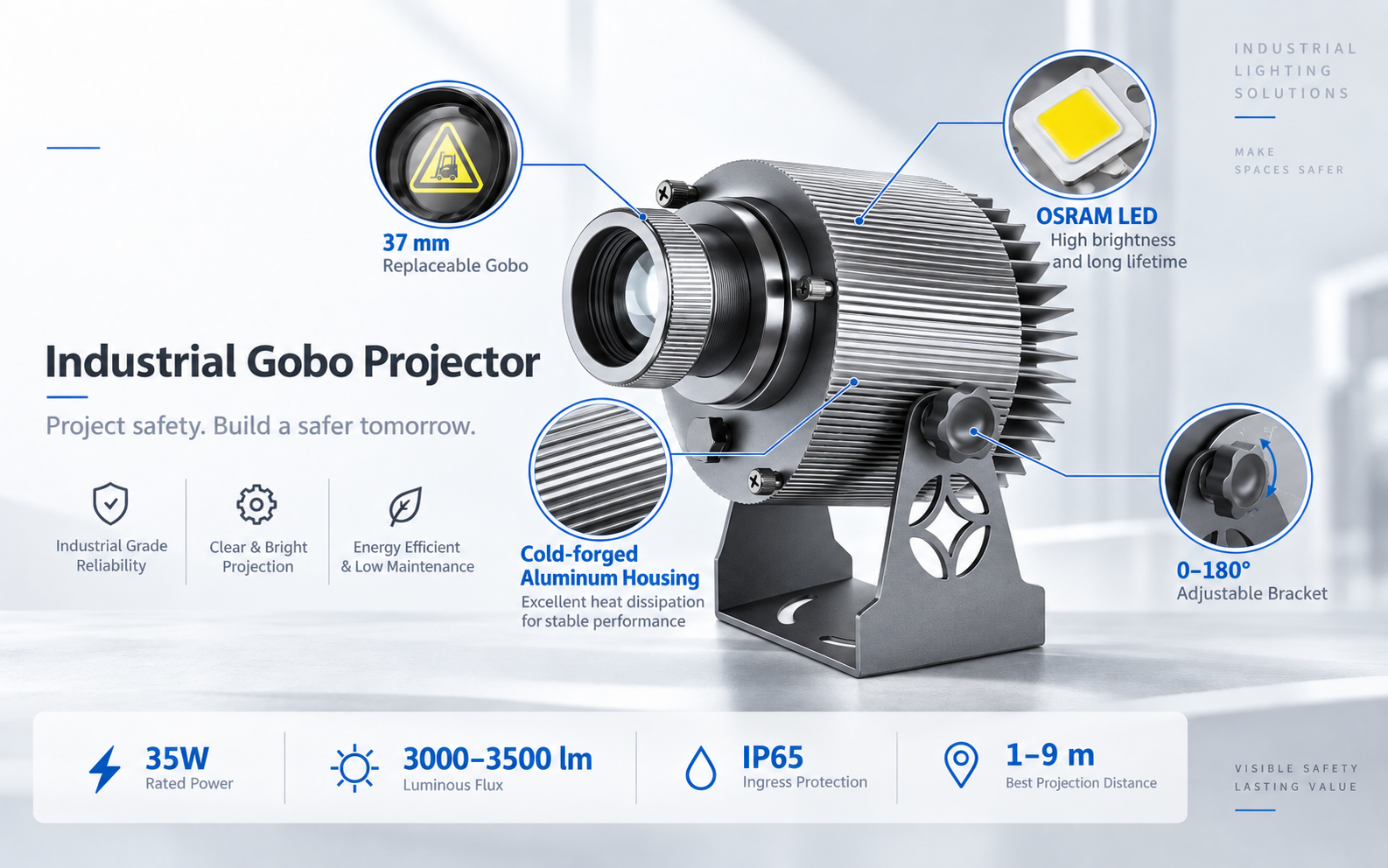

IP65 protection, a cold-forged aluminum housing, an adjustable 0–180° bracket and a 30,000-hour LED life help reduce maintenance, energy and replacement costs. This makes it a practical and budget-friendly projection

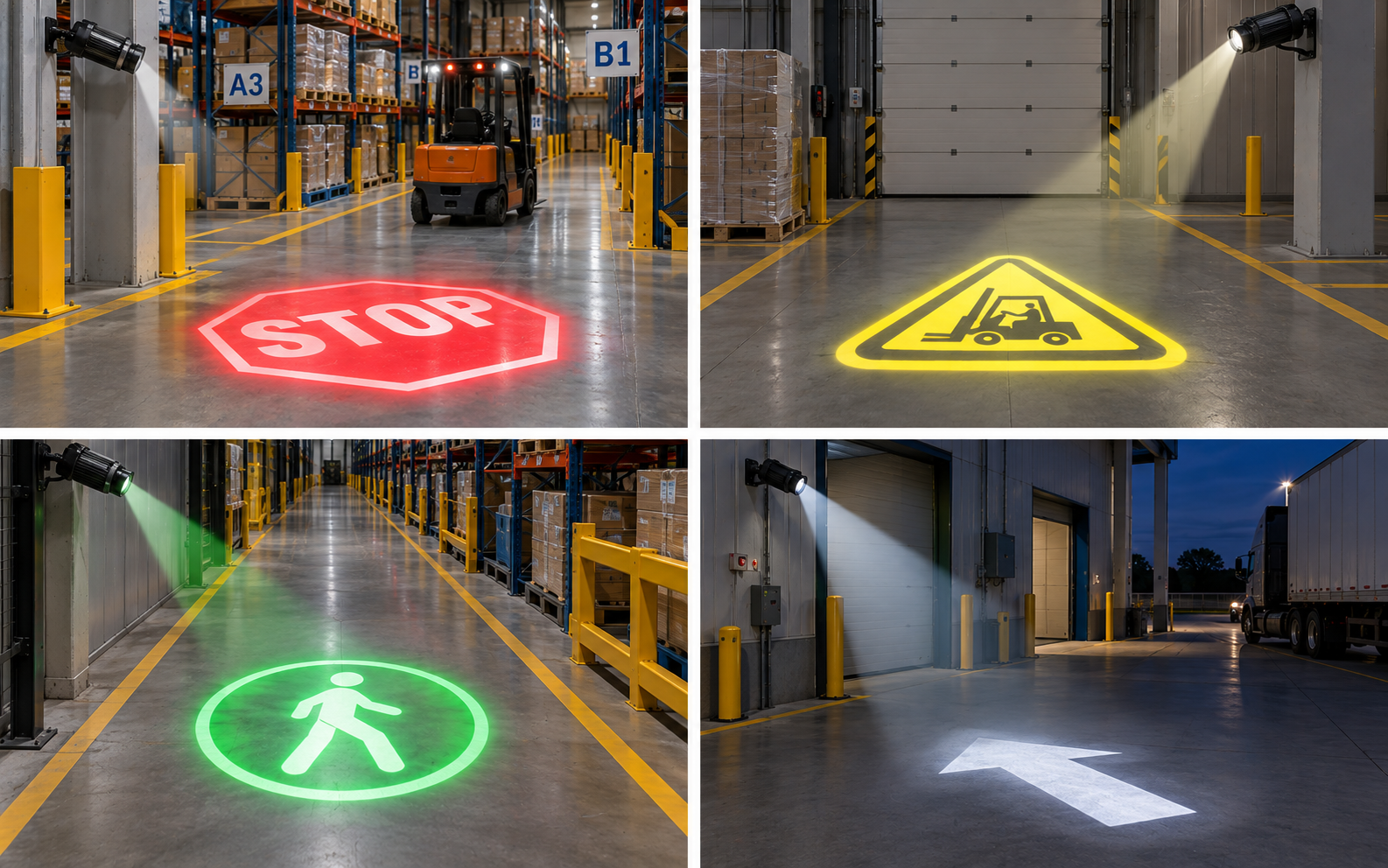

A projected mark can identify an entrance or reception point while leaving the architecture visible. At a hotel doorway, retail entrance or exhibition check-in.

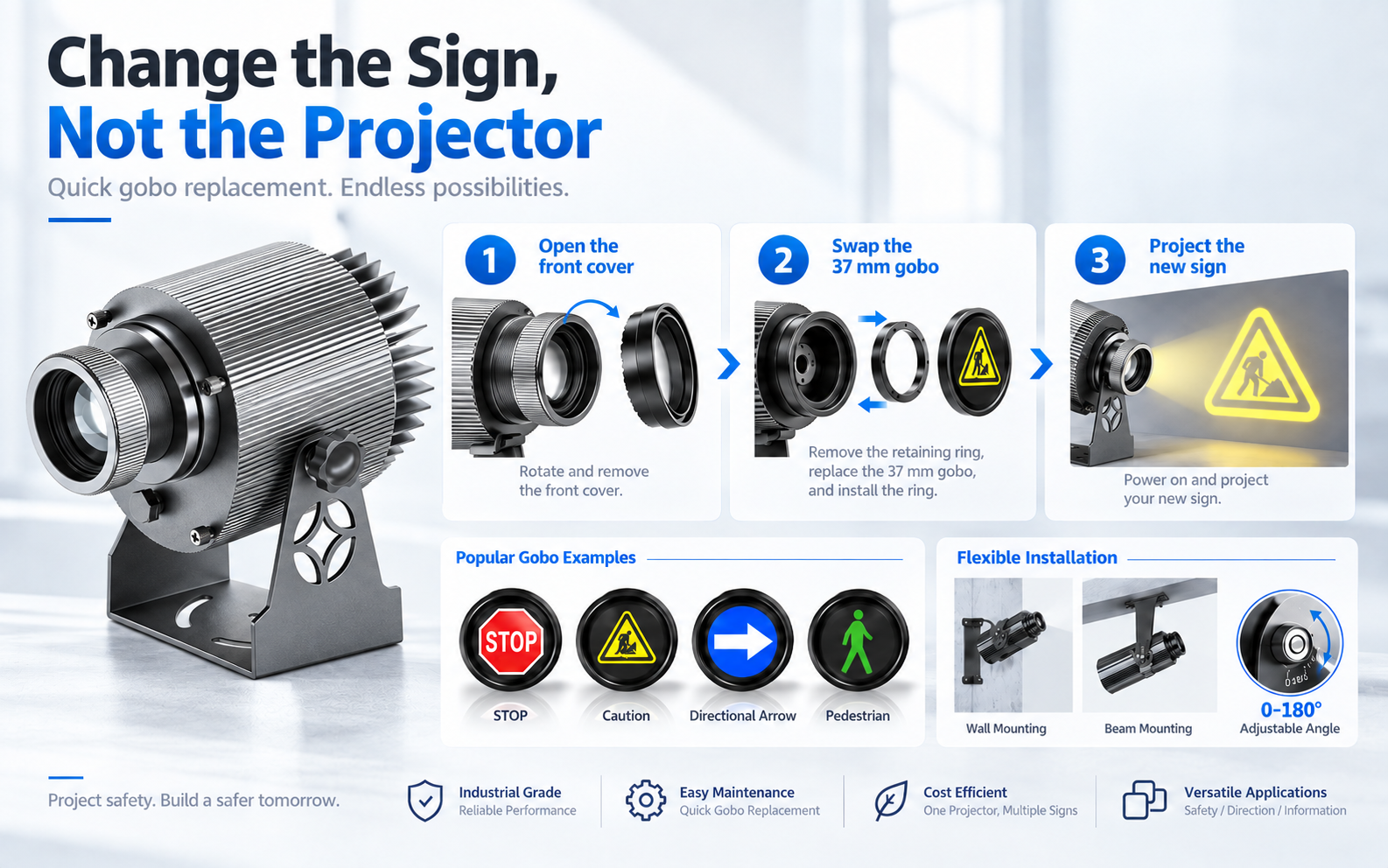

The 37 mm gobo can be replaced when a campaign, event or wayfinding message changes.
Pattern, water-ripple and other special effects are available options.
Choose the output level that matches your projection distance, image size and ambient light. All five versions use a replaceable 37 mm gobo, five lens options and a 0-180° adjustable bracket.
Specification | 35W | 50W | 80W | 100W | 120W |
|---|---|---|---|---|---|
Listed luminous flux | 3,000-3,500 lm | 4,500-5,000 lm | 7,500-8,000 lm | 9,500-10,000 lm | 11,500-12,000 lm |
LED service life | ≥30,000 h | ≥30,000 h | ≥30,000 h | ≥30,000 h | ≥30,000 h |
Recommended distance | 1-9 m | 1-16 m | 1-23 m | 1-26 m | 1-30 m |
Gobo size | 37 mm | 37 mm | 37 mm | 37 mm | 37 mm |
Lens options | 11° / 17° / 28° standard / 36° / 53° | ||||
Bracket adjustment | 0-180° | ||||
Available effects | Water ripple / pattern / special effects | ||||
Housing finish | Silver-white or black | ||||
All versions use an Osram LED, cold-forged aluminum housing and constant-current power supply. Confirm the required input voltage, lens and effect configuration before ordering.
Yes. The projector is IP65-rated for indoor and outdoor use, but it must not be immersed in water.
The recommended projection distance is 1–9 m. The final image size depends on the lens, artwork, surface and ambient light.
The 28° lens is standard. Other lenses and special effects are optional and should be confirmed when ordering.
Yes. The 37 mm gobo is replaceable. Confirm the artwork and gobo material before production.
Send the artwork or motif, mounting distance, desired image width, surface photo, ambient lighting conditions and whether the installation is indoors or outdoors. We can then review the lens choice, gobo and finish for your project and prepare a configuration-specific quotation.
