12,000–14,000 lm
30,000 h
150w
IP65
1
2 Years
Project floor or wall safety signs—without paint or tape.
Project warning signs in busy aisles and loading areas without paint or tape that can wear under traffic.
IP65 protection, active cooling and a high-output LED support use in demanding factories.
Replace the 63 mm gobo with a new warning, direction or logo without replacing the projector.

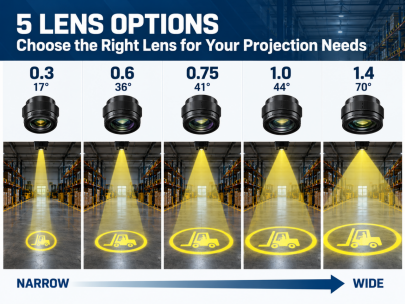

Five lens options help match image size to projection distance.
12,000–14,000 lm supports clear graphics; visibility depends on ambient light and the surface.
A copper heat pipe and 90 mm fan help dissipate heat during extended use.

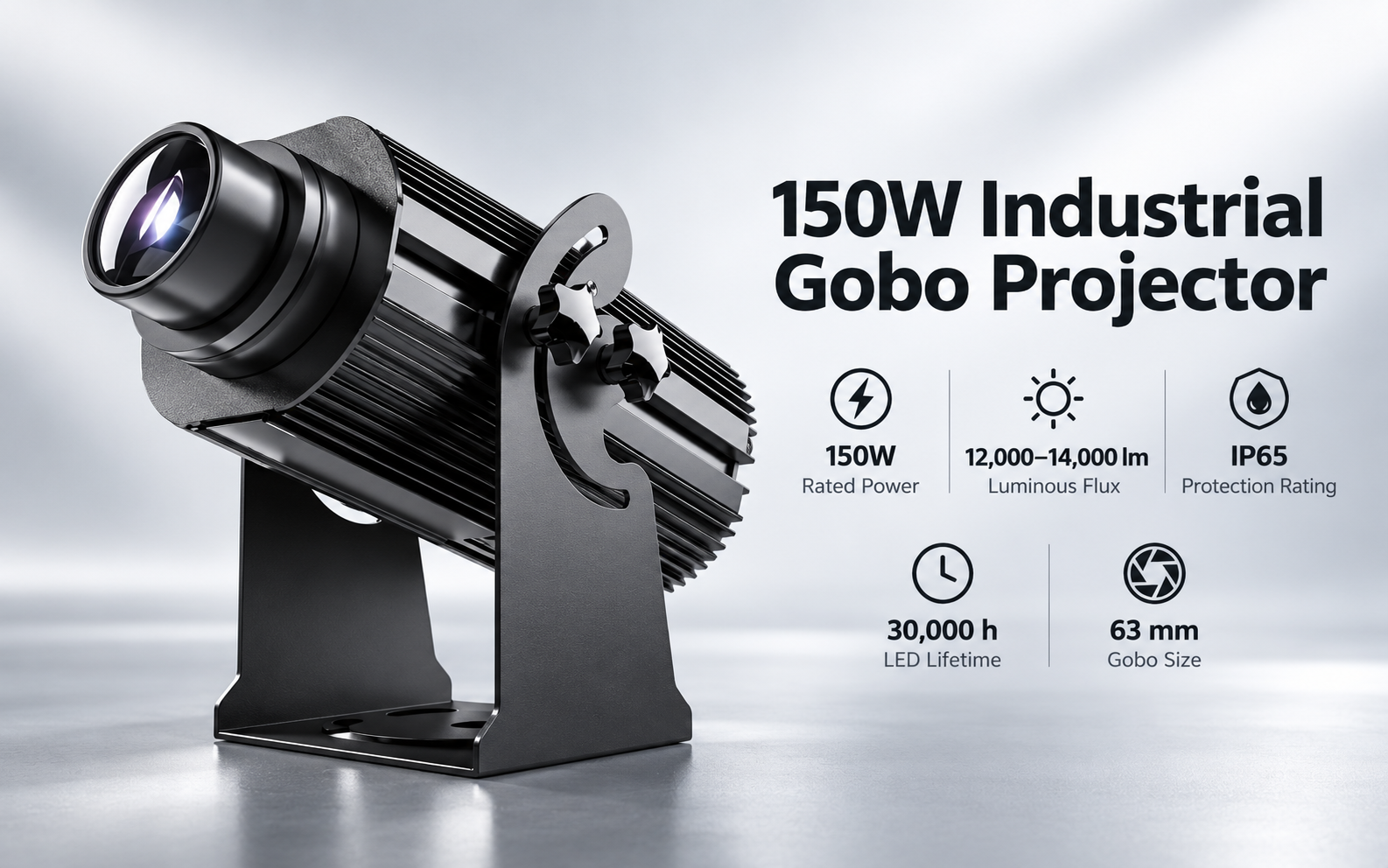

Specification | Details |
|---|---|
Rated power | 150W |
Luminous flux | 12,000–14,000 lm |
LED lifetime | 30,000 hours |
Protection rating | IP65 |
Gobo size | 63 mm, replaceable |
Lens options | 17° / 36° / 41° / 44° / 70° |
Recommended projection distance | 1–30 m |
Operating temperature | −40°C to +60°C |
Warranty | 2 years |
The projected image avoids floor traffic and cleaning equipment. Replace the gobo to update the graphic.
No repainting or peeling tape
Replaceable 63 mm gobo for new safety graphics
Suitable for aisles, crossings, loading areas and restricted zones
Watch the product video on YouTube →
Narrower lenses suit longer projection distances; wider lenses create larger images at shorter distances.
Yes. The replaceable 63 mm gobo lets you update the projected graphic without replacing the projector.
Its IP65 enclosure is suitable for many outdoor installations. Do not immerse the projector in water.
The specified LED lifetime is 30,000 hours. Actual service life depends on operating conditions.
Send your projection distance, image size, installation environment and target surface. Our team can recommend a suitable configuration.
