4,500–5,000 lm
At least 30,000 hours
50w
IP65
Create visible logos, directional signs and decorative patterns on walls or floors without paint, vinyl or permanent signage. The 50W version is designed for commercial spaces that need more projection reach while keeping the installation simple.
The 50W output is suited to projection distances up to 16 m, making it practical for warehouse aisles, larger entrances, corridors and open commercial areas.

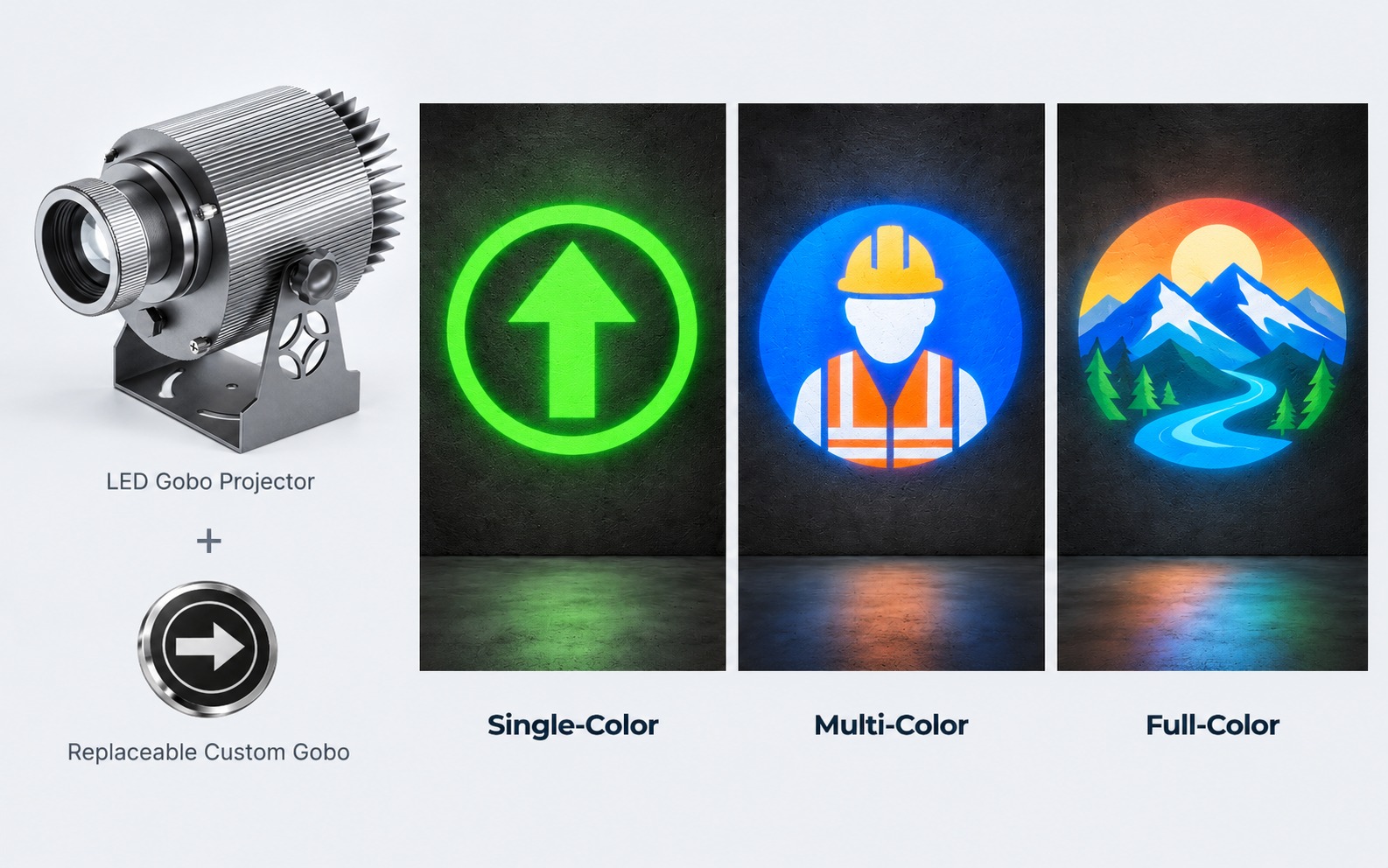

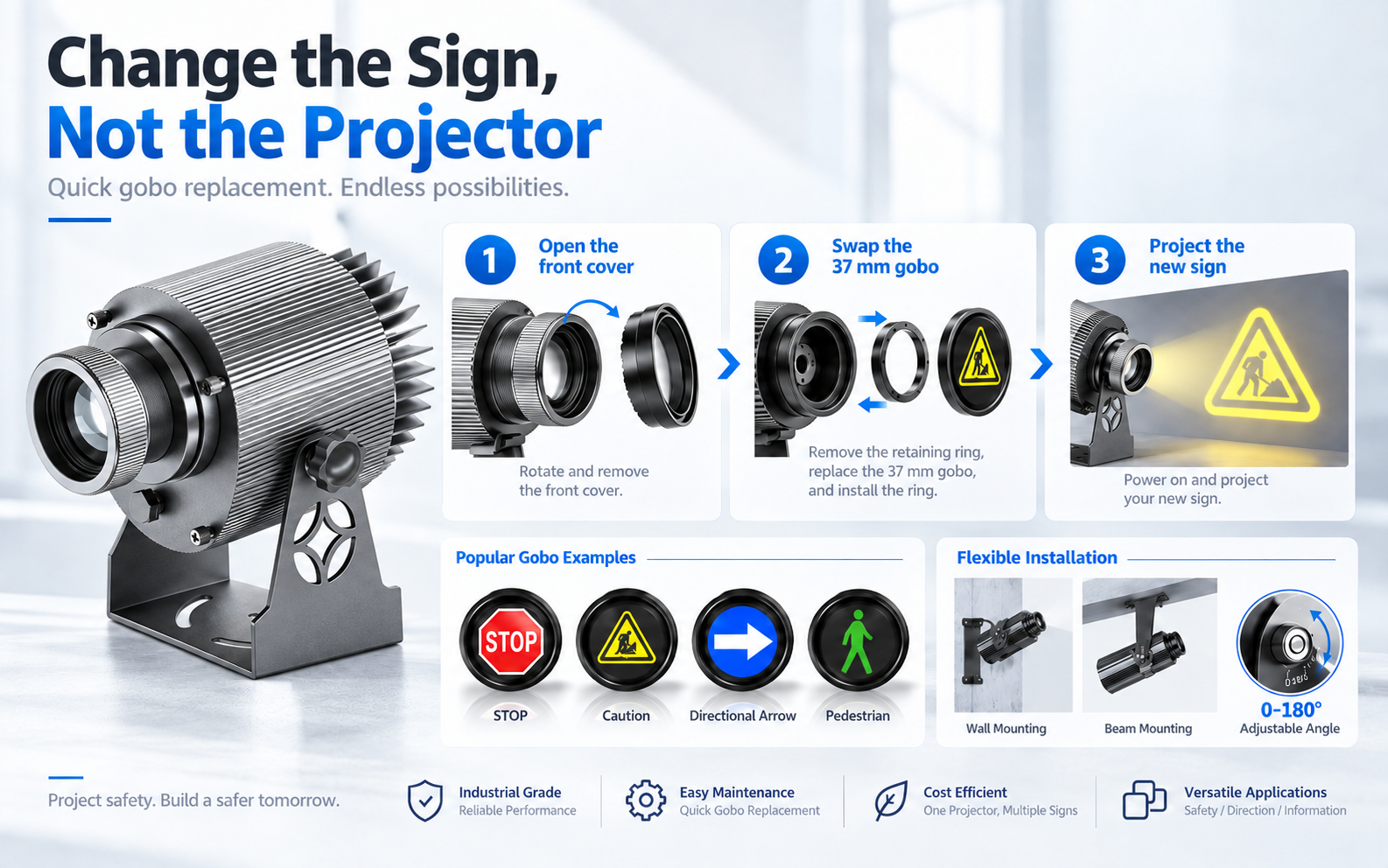

The replaceable 37 mm gobo lets you change a logo, arrow, warning symbol or seasonal pattern without replacing the complete projector.
Five lens choices and a 0–180° adjustable bracket help match the image size and projection direction to the site.

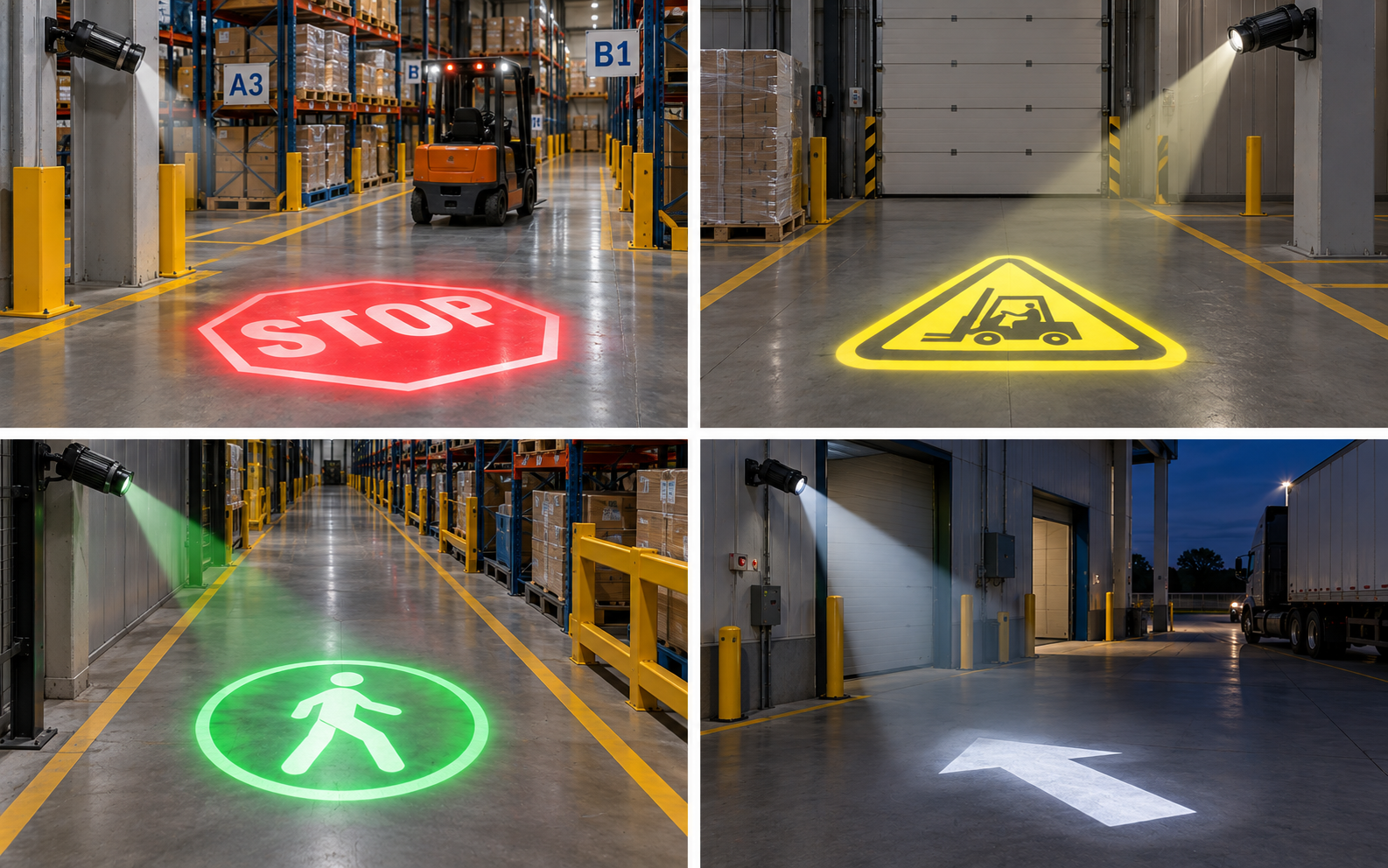

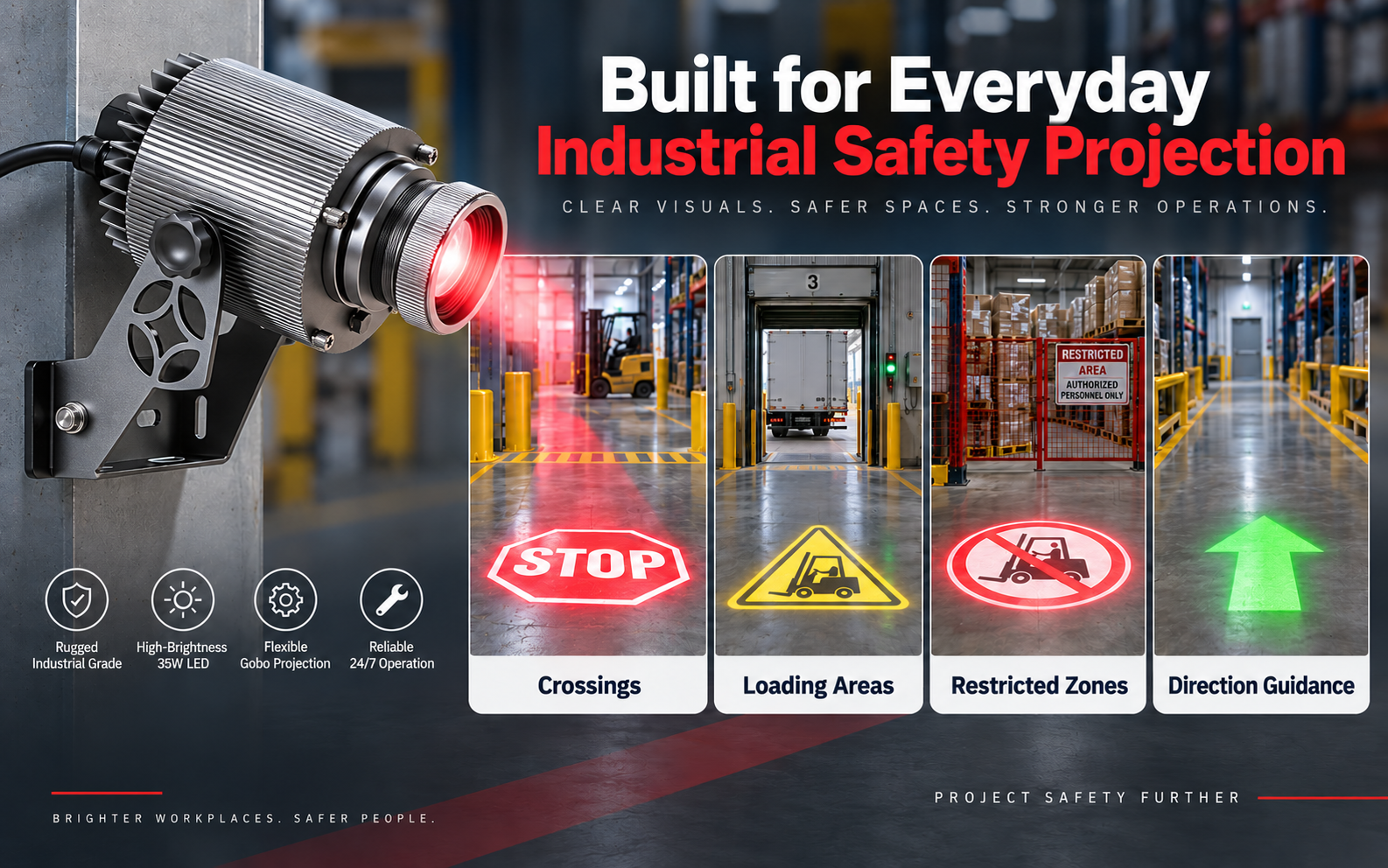

Project forklift warnings, stop symbols or lane markers onto floors near intersections, loading points and mixed-traffic zones.
Display a logo or welcome graphic on a wall or floor to make an entrance easier to identify and update.

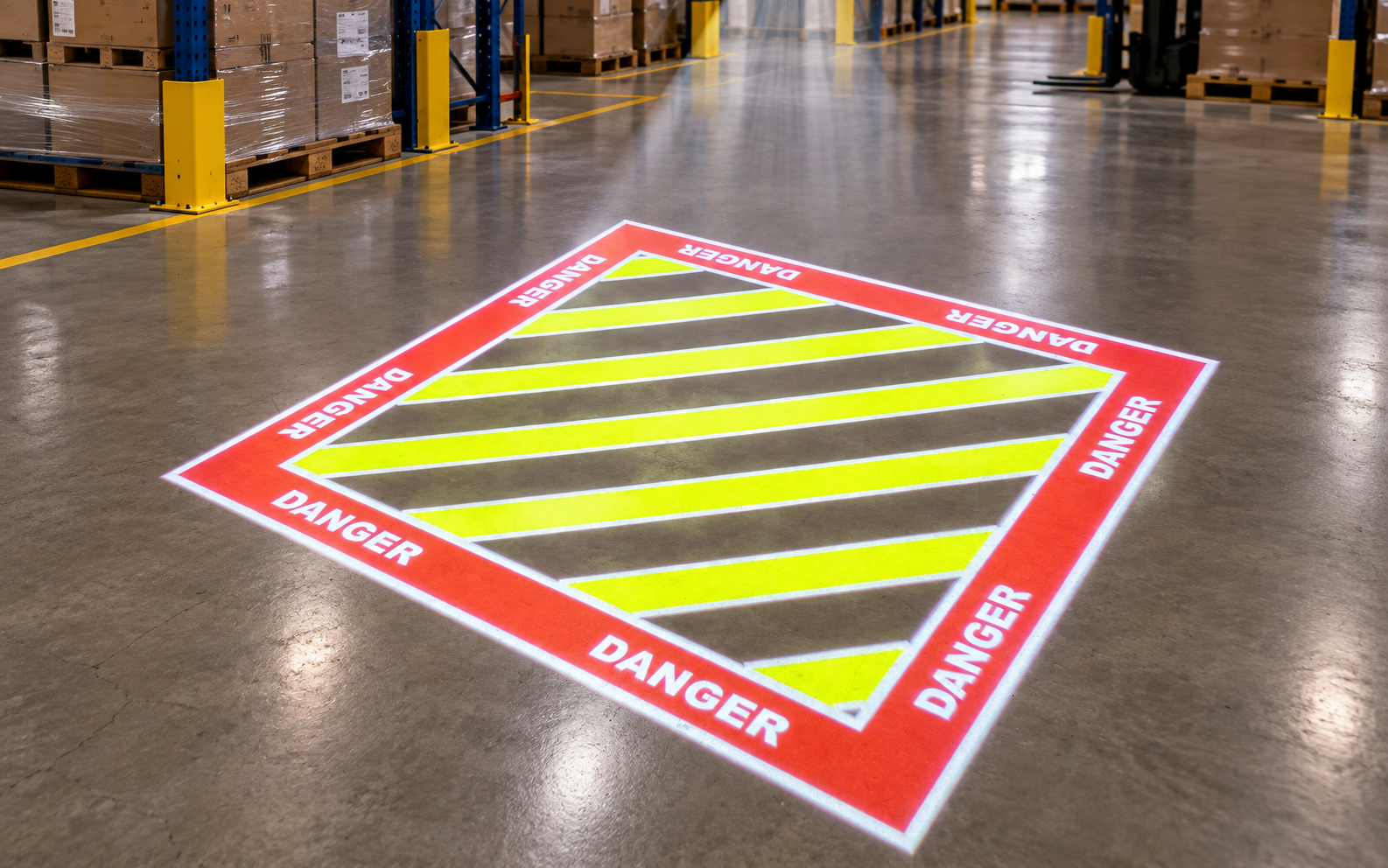

Use projected symbols to identify work zones, access limits and equipment areas without covering the floor with paint or tape.

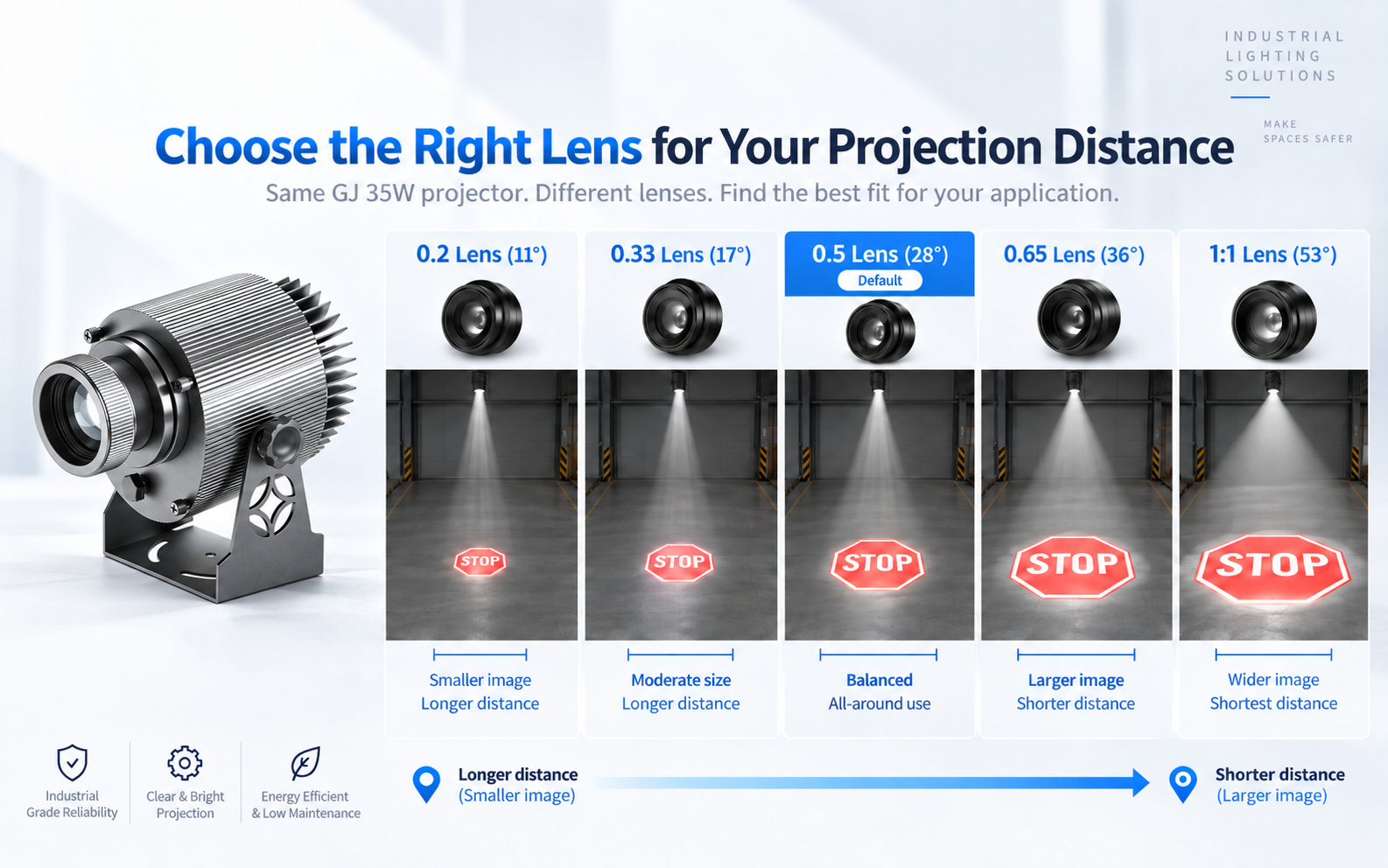

Measure from the projector lens to the target surface, then decide the required image width. A narrower lens keeps the image smaller at the same distance, while a wider lens covers more area.
The available options are 11°, 17°, 28° standard, 36° and 53°. Confirm the lens against the mounting distance, image size, surface and ambient light before ordering.
Choose the output level that matches your projection distance, image size and ambient light.
Specification | 35W | 50W | 80W | 100W | 120W |
|---|---|---|---|---|---|
Listed luminous flux | 3,000–3,500 lm | 4,500–5,000 lm | 7,500–8,000 lm | 9,500–10,000 lm | 11,500–12,000 lm |
LED service life | ≥30,000 h | ≥30,000 h | ≥30,000 h | ≥30,000 h | ≥30,000 h |
Recommended projection distance | 1–9 m | 1–16 m | 1–23 m | 1–26 m | 1–30 m |
Gobo size | 37 mm | 37 mm | 37 mm | 37 mm | 37 mm |
Lens options | 11° / 17° / 28° standard / 36° / 53° | ||||
Bracket adjustment | 0–180° | ||||
Available effects | Water ripple / pattern / special effects | ||||
Housing finish | Silver-white or black | ||||
Yes. The projector is IP65-rated for indoor and outdoor use, but it must not be immersed in water.
The recommended projection distance for the 50W version is 1–16 m. The final image depends on the lens, artwork, surface and ambient light.
The 28° lens is standard. Other lenses and special effects should be confirmed with the order.
Yes. The 37 mm gobo is replaceable. Provide the artwork and confirm the compatible gobo specification before production.
Send us the artwork, mounting distance, desired image width, surface photo and installation environment. We can help review the lens and gobo configuration for your project.
