27,000–30,000 lm
LED
300w
IP65

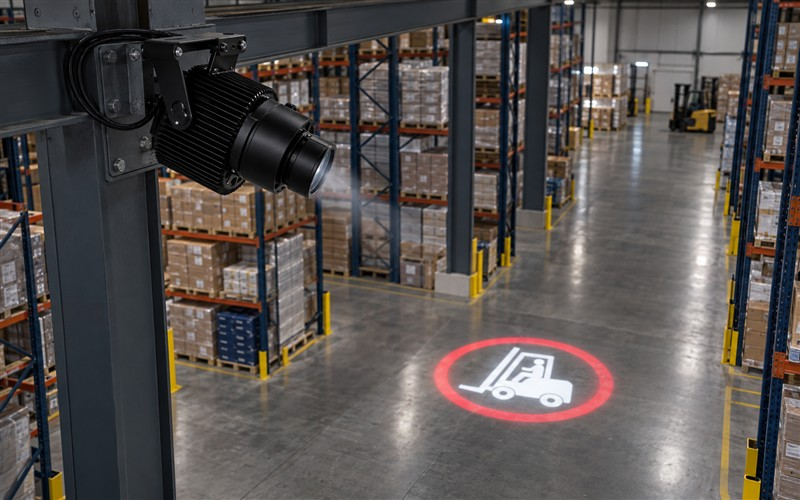

Designed for large warehouses, loading areas and factory floors, this 300W LED gobo projector combines 27,000–30,000 lm listed output with lens options for different throw distances. Project a warning, direction or custom graphic where a facility needs a visible cue—without relying on a printed floor decal.
For a large site, projection is not only about brightness. The graphic needs to reach the intended surface, remain legible from the relevant approach and fit the facility’s operating layout. The 300W configuration pairs high listed luminous flux with a six-element optical lens system, replaceable graphics and active cooling.
27,000–30,000 lm provides a high-output option for large industrial projection projects. Visibility still depends on ambient light, surface and image size.
Five lens ratios and beam angles let buyers configure a narrower or wider projection to suit the measured installation distance.
A copper heat pipe and 90 mm booster fan support heat dissipation; the listed LED service life is 30,000 hours.

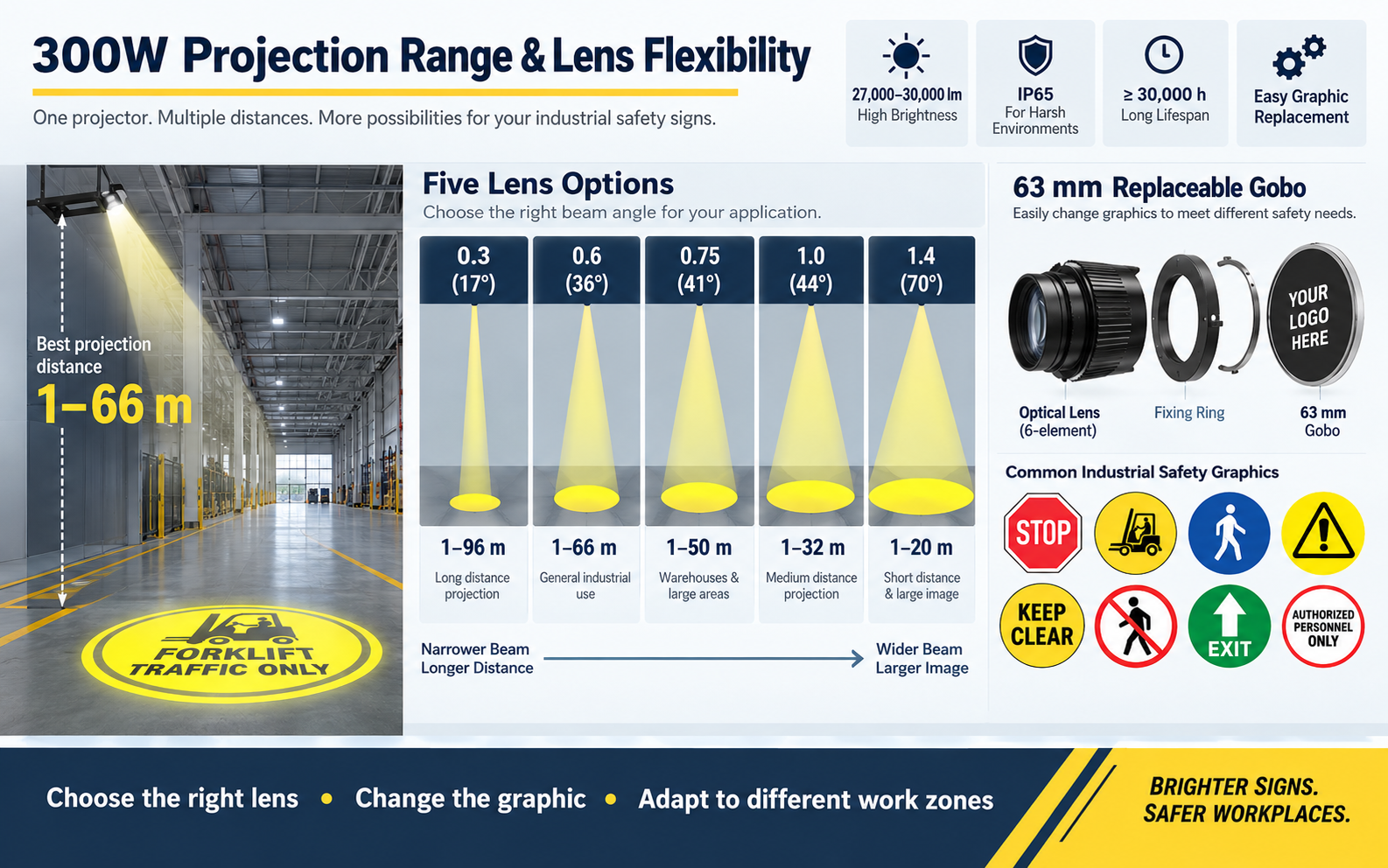

Start with the distance from the planned lens position to the target surface, then compare the matching lens ratio. A narrow beam generally produces a smaller image at the same distance; a wider beam generally covers more area.
Lens ratio | Beam angle | Distance | Typical projection character |
|---|---|---|---|
0.3 (factory default) | 17° | 1–96 m | Narrower beam for a more concentrated image |
0.6 | 36° | 1–66 m | Mid-range coverage |
0.75 | 41° | 1–50 m | Broader image at shorter throws |
1.0 | 44° | 1–32 m | Wider coverage for closer targets |
1.4 | 70° | 1–20 m | Widest listed beam angle |

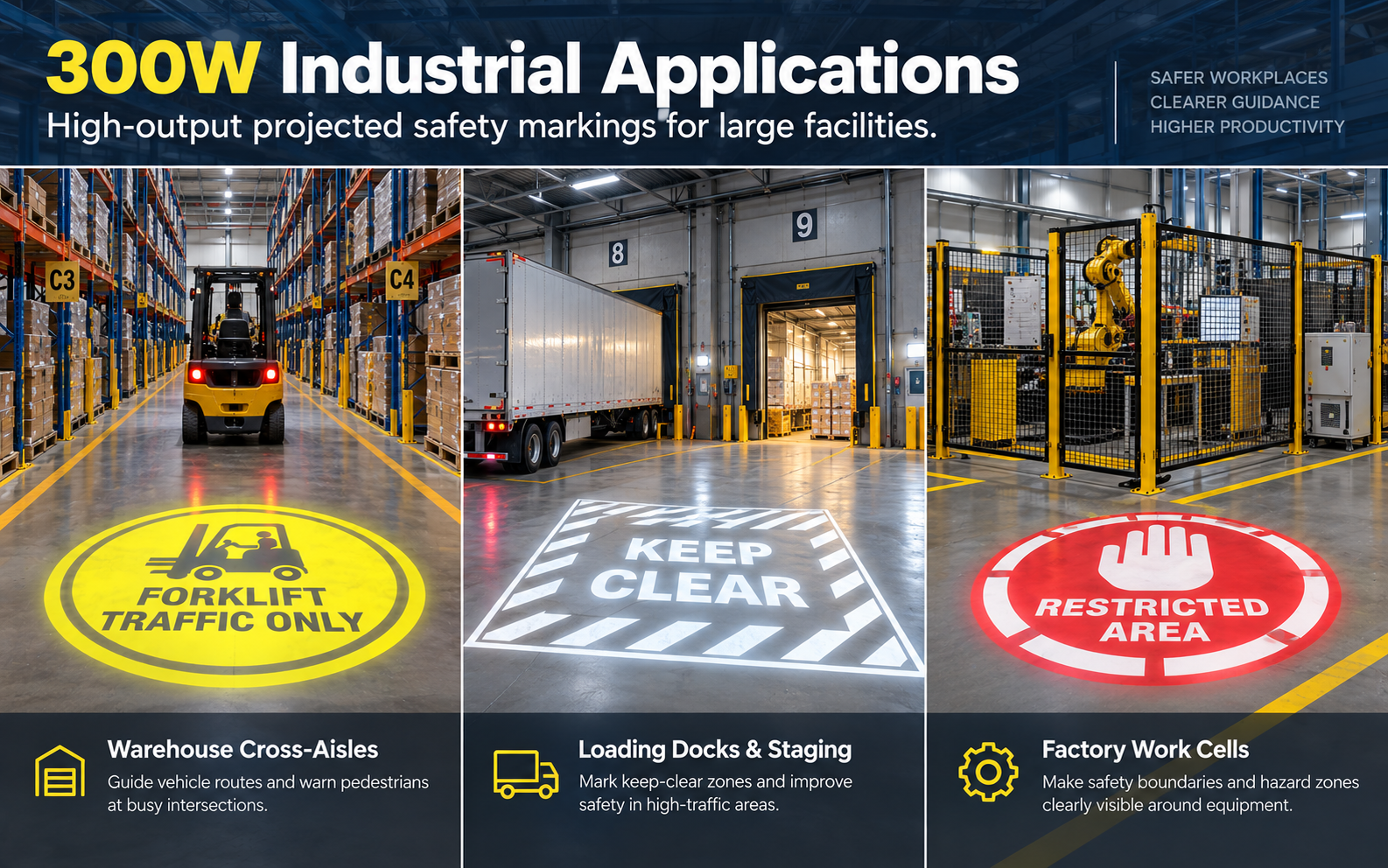

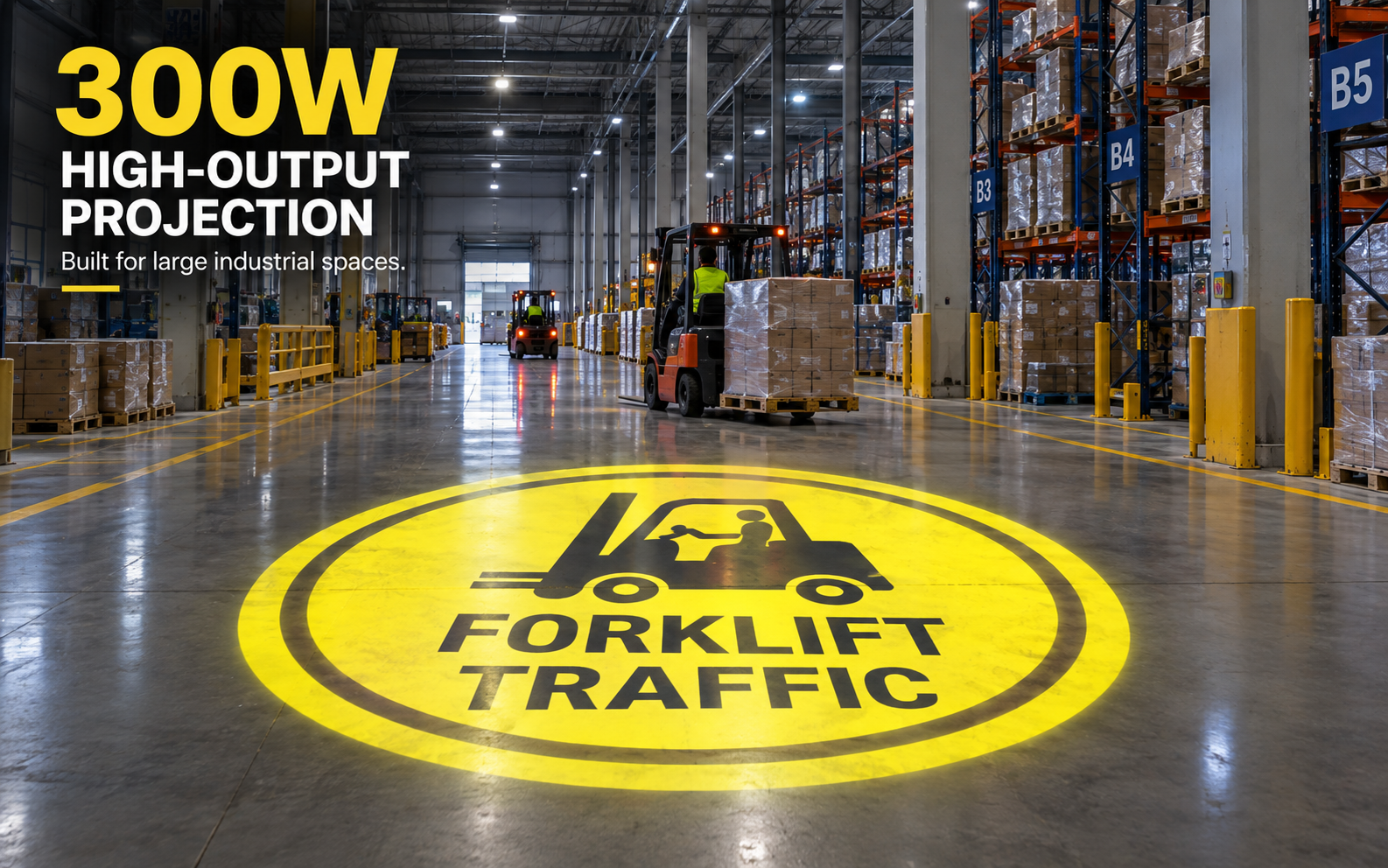

Project warning or direction symbols at forklift crossings, aisle exits and shared routes.
Mark dock approaches and keep-clear zones. Check visibility with doors, trailers and stored goods in place.
Project reminders near crane routes and machine cells, alongside required guarding and safety procedures.
Specification | Details |
|---|---|
Rated power | 300W |
Luminous flux | 27,000–30,000 lm |
LED lifetime | 30,000 hours |
Protection rating | IP65 |

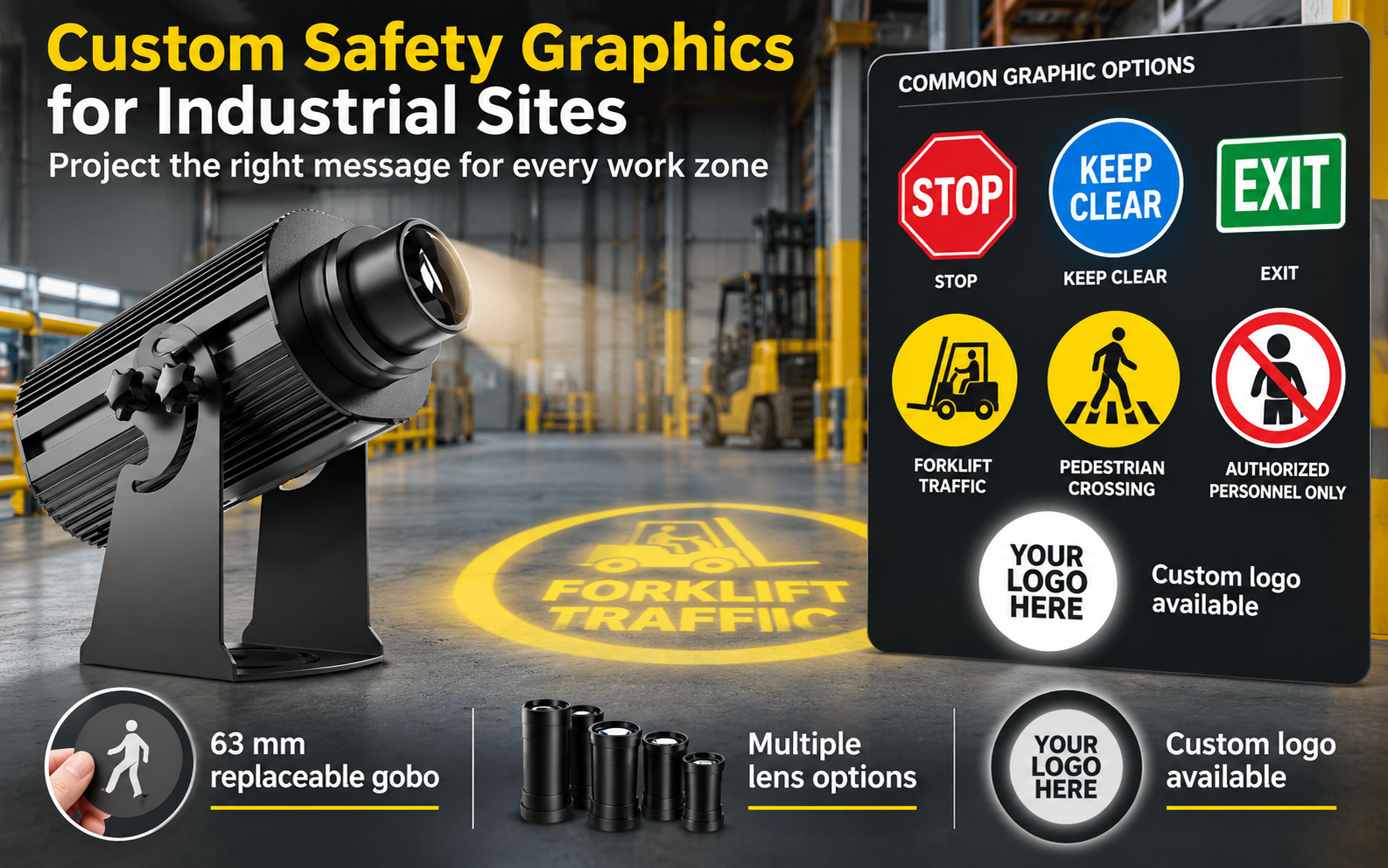

Gobo | 63 mm, replaceable |
Lens options | 17° / 36° / 41° / 44° / 70° |
Recommended projection distance | 1–66 m |
Cooling system | Copper heat pipe and 90 mm fan |
Power supply | Mean Well constant-current power supply |
Operating temperature | −40°C to +60°C |
Fixture weight | 7.3 kg |
Planning a long-throw warning, direction or logo projection? Send the site distance, mounting position, target image size and artwork. Our team can review the lens and configuration with you before quotation.
