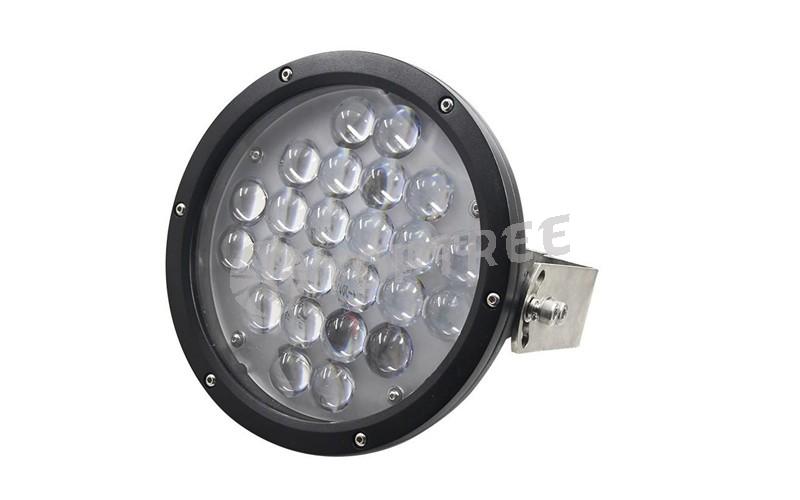

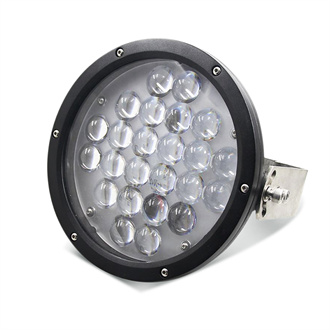

TPN120
9 Inch
Red / Blue
Spot / Line
120W(Blue) / 72W(Red)
1PCS
CE, RoHS, LVD, ISO, Patents
Project safety. Illuminate zones. Prevent accidents.
Designed for overhead cranes and hoists, the TPN120 instantly marks the area under a suspended load with a bright spot or line beam, using high-intensity red or blue LEDs to alert personnel and vehicles in noisy or busy environments
| Wattage | 120W (Blue) / 72W(Red) | Working Temperature | -45-80℃ |
| Current Draw | 10A@12V, 0.5A@24V | Bracket Adjustment | 150 degree up/down |
| Operating Voltage | 10-48V | Cable Length | 3 meters (9.84') |
| Beam Pattern | Spot/Line | Connectivity | cable |
| Lens Material | PC | Lifetime | 50000 Hours |
| Housing Material | Aluminium Alloy | Approval | CE RoHS |
| IP Rating | IP67 | Warranty | 2 Years |
In the world of industrial safety, one size does not fit all. That's why we engineered the Toptree 120W crane warning light to be a powerful and versatile workhorse. With a massive 12,000-lumen output, it delivers exceptional brightness, while its selectable beam pattern allows you to customize your safety signaling to your exact needs.

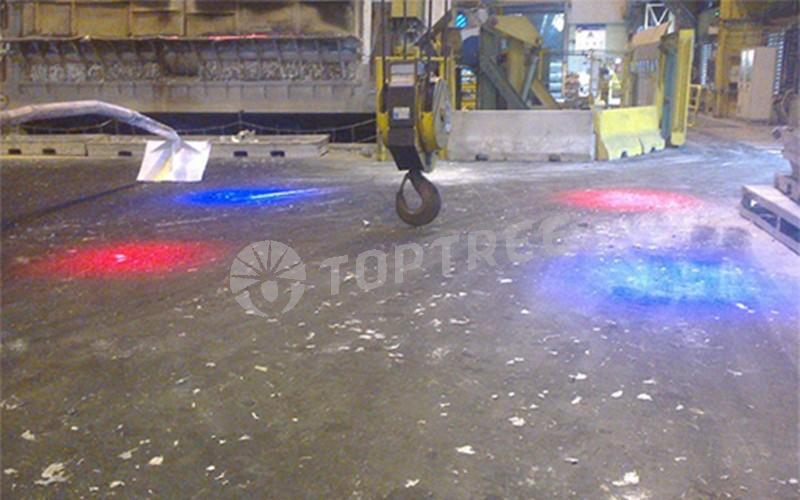

● Choose the Spot Beam: Project a brilliant, focused circle of light to serve as an unmissable warning point, ideal for pinpointing hook location from extreme heights.
● Choose the Line Beam: Cast a long, sharp line on the floor to define safe walkways, mark "No-Go Zones," or create a clear perimeter around your operational area.
 Crane Warning Spotlight |  Crane Warning Spotlight |  Crane Zone Light |  Crane Zone Light |
These aren't just bright lights; they are robust safety tools designed to survive and thrive in the harshest conditions.
● Intense Illumination: High output ensures your warning signal cuts through dust, steam, and bright ambient light with ease.
● Engineered for Toughness: The die-cast aluminum housing acts as both a protective shell and an efficient heat sink. Combined with an IP67 rating, this light is fully protected against dust and water immersion.
● Flexible & Powerful: The ability to choose between a spot or line beam in one powerful package means you can use the same model for different applications across your facility, simplifying inventory and maintenance.
● Wide Temperature Range: Certified to operate flawlessly in extreme temperatures from -40°C to 80°C, making it suitable for everything from cold storage facilities to hot steel mills.
● Dual Beam Patterns – Switch between spot for hook-point precision or line for lane and perimeter marking using simple lens change.

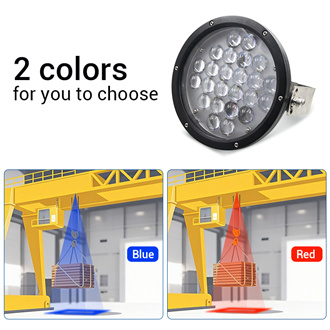

● Color Options – Choose high-visibility red or blue LEDs based on your facility’s safety standards.
● Robust Design – Die-cast aluminum housing with IP67 rating, capable of withstanding dust, water, vibration, and extreme environments (–45 °C to +80 °C).
● Effortless Installation – 150° adjustable mounting bracket and 3 m cable make installation fast; connects to 10–48 V DC power, with optional AC converter accessory.
The Toptree Crane Warning Light is the perfect choice for any application requiring precise load control and operating in high-risk environments:

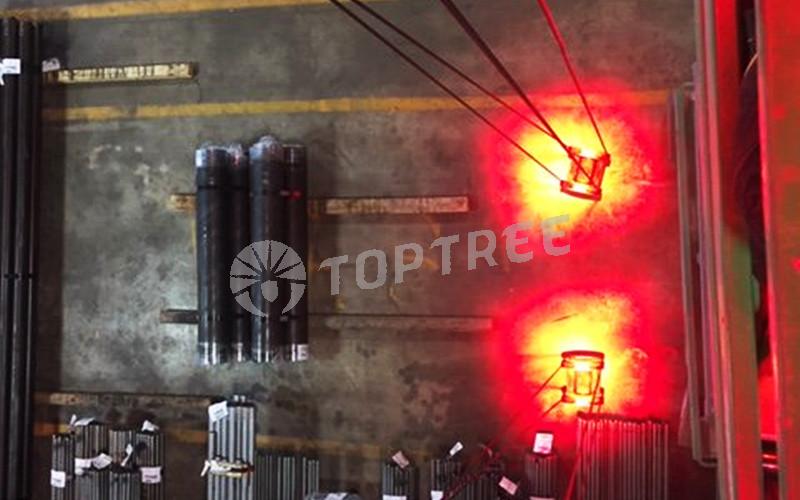

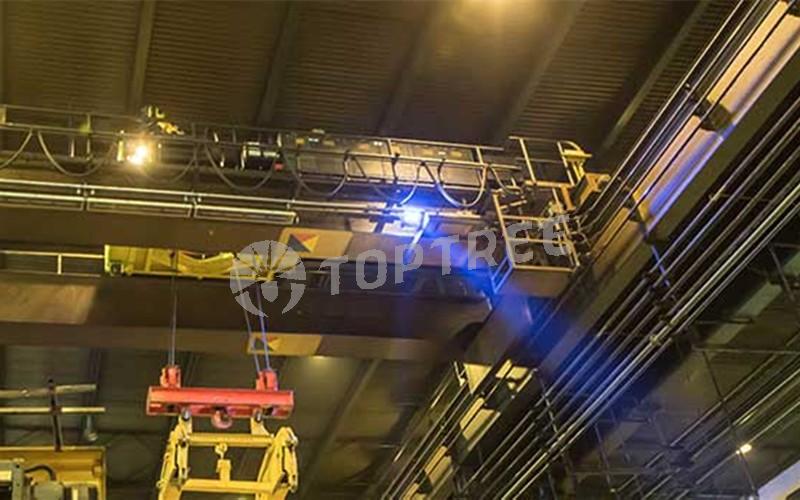

● Factories and production lines with bridge/overhead cranes

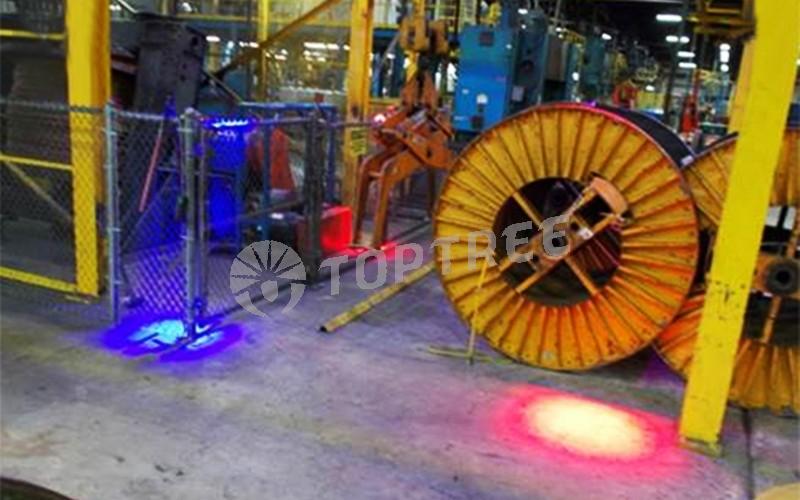

● Warehouses with heavy traffic and blind corners
● Shipyards, steel mills, and manufacturing plants
● Temporary construction sites or large maintenance workshops
Toptree’s Overhead Crane Safety Lights are developed and manufactured to meet the highest international safety and quality standards. We are proud to offer a range of certifications that ensure reliability, performance, and compliance in industrial environments.
We are proud to hold:
○ Appearance Design Patent Certificates
○ Utility Model Patent Certificates
○ ISO Quality Management System Certification
○ RoHS Compliance for environmental safety
○ CE & LVD Certifications for EU market standards
Built for Industrial Use
Our certifications are not just paperwork—they reflect our commitment to:
★ Worker safety in hazardous environments
★ Product durability under harsh operating conditions
★ Full support for safety audits and compliance inspections
Utility Model Patent Certificate
Design Patent Certificate
Quality Management System Certification
CE Certification
LVD Certification
RoHS Compliance
1. What is the TPN120 crane warning light used for?
It’s used on overhead cranes to project a red or blue spot or line on the floor, clearly marking the danger zone beneath a moving load and improving safety for pedestrians and workers.
2. Do overhead cranes need warning lights?
Yes, absolutely. In noisy industrial environments where audible alarms are often ineffective, overhead crane warning lights are critical. They provide a clear, unmissable visual signal on the floor, showing everyone the exact location and travel path of the hook, which is essential for preventing serious accidents.

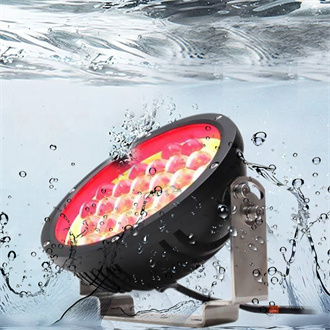

3. Can this light be used outdoors?
Yes. With an IP67 waterproof rating, it is fully protected from dust and rain. It also works in extreme temperatures from –45°C to +80°C.
4. What’s the difference between spot and line beams?
○ Spot beam: A circular light for tracking crane hooks.
○ Line beam: A straight beam to mark danger zones.
5. Why choose Red vs. Blue for the warning light? Which is better?
Both colors are highly effective. The choice often depends on the color of your facility's floor and ambient lighting. Blue often appears slightly brighter to the human eye and stands out well on concrete floors. Red is universally associated with "danger" or "stop" and provides excellent contrast on lighter-colored or dusty floors. We recommend testing a sample in your environment, but both are proven to significantly enhance safety.
6. Can this light withstand harsh industrial environments (heat, dust, vibration)?
Yes, absolutely. It's specifically designed for these conditions. The die-cast aluminum housing provides excellent durability and heat dissipation, while the IP67 rating means it's completely sealed against dust and water. It is also engineered to be shock and vibration-resistant, ensuring reliable performance in demanding environments like steel mills and foundries.
7. What is the lifespan of the LED, and is there a warranty?
The high-quality CREE LEDs used in our lights have a rated lifespan of over 50,000 hours, ensuring years of maintenance-free operation. We stand by our quality with a 1-year warranty that covers any manufacturing defects.
8. How many warning lights do I need for one crane?
For most applications, one spot light per hoist/hook is sufficient to clearly mark its position. However, for very large cranes or for creating a larger safety zone, some customers choose to install two or four lights.
9. What is the recommended mounting height?
The light is effective at a wide range of heights. The ideal mounting height is typically between 15 to 30 feet (5 to 10 meters). At this range, the spot on the floor remains bright and well-defined. The adjustable bracket allows you to fine-tune the angle for optimal visibility at any height.
10. Do you offer OEM or customized products?
Yes, we provide OEM and ODM customization, including private labeling, custom light colors, beam patterns, and packaging.
1. Industry-Leading Expertise
With over 10 years of experience in industrial safety solutions, we specialize in developing advanced visual warning systems for warehouses, logistics, and hazardous zones.
2. In-House R&D and Engineering
We own a professional R&D team focused on lighting technology, ensuring continuous innovation and customization capability for clients with different safety needs.
3. Certified Quality and Compliance
All products meet international safety and quality standards (CE, RoHS, etc.). Every unit undergoes strict QC testing before shipment.
4. Scalable Production Capacity
We operate a modern manufacturing facility with scalable production lines, supporting bulk orders and fast lead times without compromising quality.
5. Global Client Base
Trusted by Fortune 500 companies, regional distributors, and safety integrators across North America, Europe, Southeast Asia, and the Middle East.
6. Reliable After-Sales Service
Our dedicated support team offers fast response, technical guidance, and warranty support to ensure long-term satisfaction.
At our manufacturing facilities, we employ a range of advanced testing equipment to guarantee the highest product quality and reliability. Each piece of equipment plays a vital role in inspecting, measuring, and validating product performance before shipment.
Drop and Vibration Test
EMC Test
Hi-Low Test
IP69K Standard
Lumen Test
Optical test Dark Room
Salt Spray Test
SMT
UV Accelerated Weathering Tester
Vehicle lighting test system for DOT
Have questions or need a custom quote? Our expert team is here to help you find the perfect warehouse and pedestrian safety laser solutions tailored to your needs. Contact us today for fast, professional service and support.
Changzhou Toptree Auto Lamp Co.,Ltd
Phone: +86 519 8119 3809
Email: info@toptreesafety.com
WhatsApp: +86-15051960989
We look forward to partnering with you to enhance workplace safety.
North American Master Distributor for US and Canada
Website: www.forklifttrainingsystems.com
Email: info@forklifttrainingsystem.com
Phone: 614-583-5749
