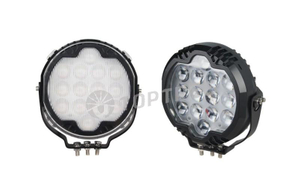

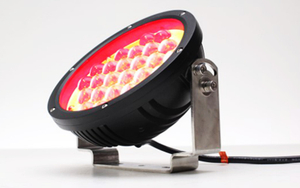

TPN140
7 Inch
Red / Blue
140W
Spot / Line
1PCS
CE, RoHS, LVD, ISO, Patents
The Universal Safety Line for Your Mobile Equipment. Define clear, visible boundaries for forklifts, cranes, and AGVs to create a safer, more organized workplace.
| Wattage | 140W | Working Temperature | -45-80℃ |
| Current Draw | 11.6A@12V, 5.8A@24V | Bracket Adjustment | 150 degree up/down |
| Operating Voltage | 10-32V | Cable Length | 3 meters (9.84') |
| Beam Pattern | Spot/Line | Connectivity | cable |
| Lens Material | PC | Lifetime | 50000 Hours |
| Housing Material | Aluminium Alloy | Approval | CE RoHS |
| IP Rating | IP67 | Warranty | 2 Years |
In a dynamic warehouse or factory, danger moves. Whether it's a lift turning a blind corner or a crane moving a load overhead, the risk to pedestrians is constant. The Toptree Safety Zone Light is the versatile solution designed to address these diverse challenges.
By projecting a sharp, crisp line on the floor, this light creates an intuitive visual barrier that alerts pedestrians to keep a safe distance. Its balanced design makes it the go-to choice for a wide range of mobile equipment.
 |  |  |  |
○ High-Visibility Beam – Bright LED provides bright spot or linear illumination for warning zones.
○ Dual Stream Functionality – Projects spot under hooks or line along walkways and vehicle lanes .
○ Compact & Robust – Die‑cast aluminum body with polycarbonate lens; IP67 rated for dust and water resistance; operable from –45°C to +80°C.
○ Flexible Mounting – 150° tilt bracket allows precise beam positioning.
How it works: Mount one light on each side of the equipment's overhead guard.

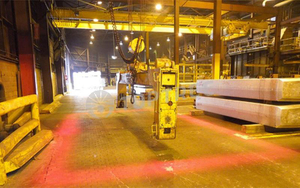

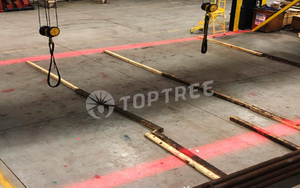

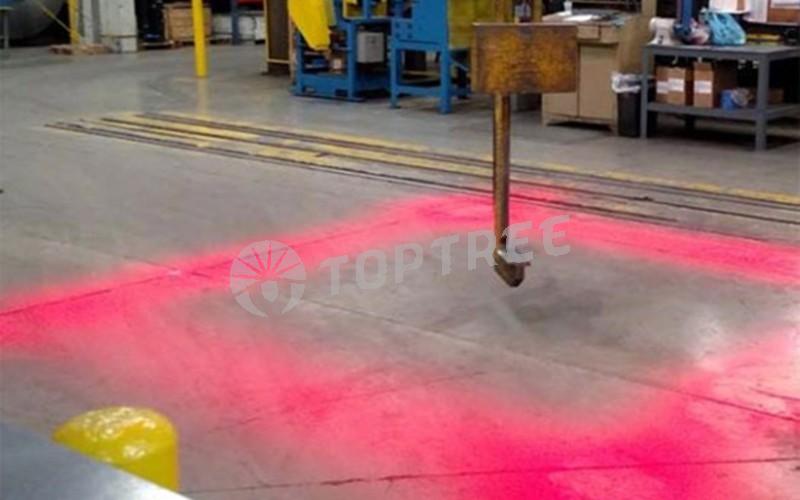

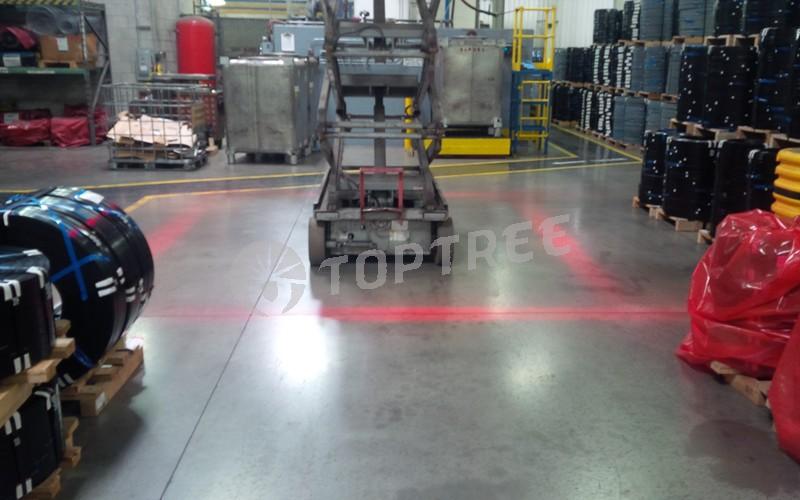

The result: Bright red lines are projected on the floor, parallel to the equipment. This creates a clear visual boundary that shows pedestrians the exact safe distance to keep from the equipment, dramatically reducing the risk of injuries and collisions.
The 7-Inch Crane & Lift Truck Safety Zone Light is ideal for enhancing safety in various industrial environments:

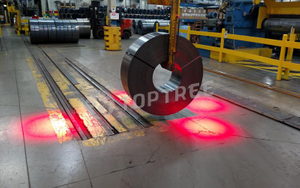

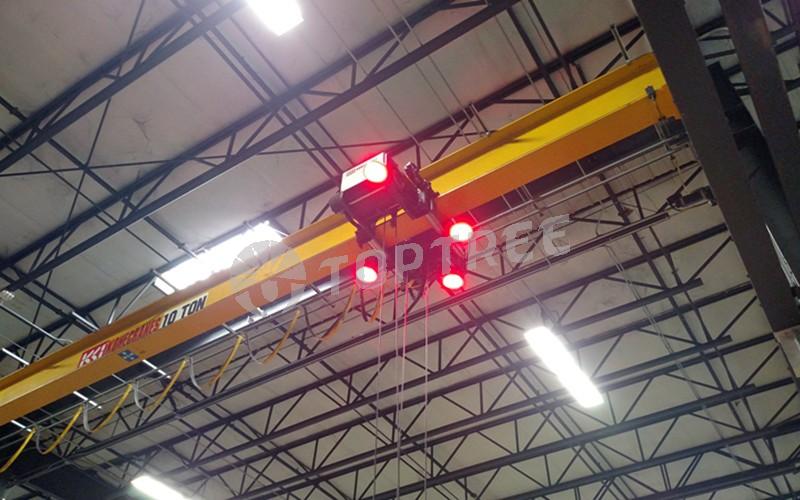

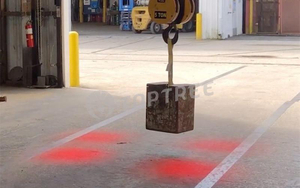

○ Overhead Cranes – Marks load path or hook position with a bright spot or line.

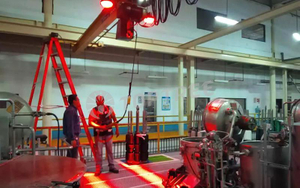

○ Bridge & Gantry Cranes – Defines travel zones and keeps pedestrians clear.
○ Forklifts & Lift Trucks – Outlines movement direction and work area boundaries.
○ Warehouses & Logistics Centers – Warns workers and reduces collision risk.

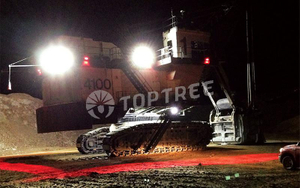

○ Construction & Fabrication Yards – Improves visibility around mobile equipment.
○ Shipyards & Ports – Provides clear visual alerts in crowded or noisy areas.
○ Steel Mills & Foundries – Performs well in dusty, high-temp environments.
○ Energy & Chemical Sites – Suitable for hazardous zones with proper setup.
Toptree’s Overhead Crane Safety Lights are developed and manufactured to meet the highest international safety and quality standards. We are proud to offer a range of certifications that ensure reliability, performance, and compliance in industrial environments.
We are proud to hold:
○ Appearance Design Patent Certificates
○ Utility Model Patent Certificates
○ ISO Quality Management System Certification
○ RoHS Compliance for environmental safety
○ CE & LVD Certifications for EU market standards
Built for Industrial Use
Our certifications are not just paperwork—they reflect our commitment to:
★ Worker safety in hazardous environments
★ Product durability under harsh operating conditions
★ Full support for safety audits and compliance inspections
Utility Model Patent Certificate
Design Patent Certificate
Quality Management System Certification
CE Certification
LVD Certification
RoHS Compliance
1. How many 140W lights are needed to create a full "Safety Zone"?
To create a complete rectangular "box" around the hazard area, you will need four (4) lights. Each light is mounted on one side/corner of the crane, projecting one side of the box. For creating parallel safety lanes along the crane's travel path, you would need two (2) lights.
2. Do overhead cranes need warning lights?
Yes, absolutely. In noisy industrial environments where audible alarms are often ineffective, overhead crane warning lights are critical. They provide a clear, unmissable visual signal on the floor, showing everyone the exact location and travel path of the hook, which is essential for preventing serious accidents.
3. How adjustable is the beam?
With a 150° adjustable bracket and interchangeable lens, you can easily fine-tune orientation and beam type.
4. What's the difference between spot and line beams?

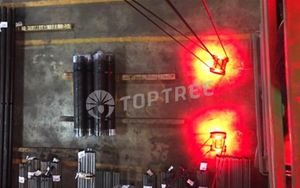

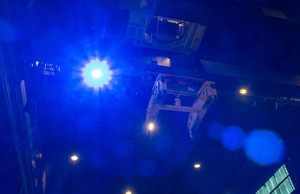

○Spot beam: A circular light for tracking crane hooks.
○Line beam: A straight beam to mark danger zones.
5. Why choose Red vs. Blue for the warning light? Which is better?
Both colors are highly effective. The choice often depends on the color of your facility's floor and ambient lighting. Blue often appears slightly brighter to the human eye and stands out well on concrete floors. Red is universally associated with "danger" or "stop" and provides excellent contrast on lighter-colored or dusty floors. We recommend testing a sample in your environment, but both are proven to significantly enhance safety.
6. Can this light withstand harsh industrial environments (heat, dust, vibration)?
Yes, absolutely. It's specifically designed for these conditions. The die-cast aluminum housing provides excellent durability and heat dissipation, while the IP67 rating means it's completely sealed against dust and water. It is also engineered to be shock and vibration-resistant, ensuring reliable performance in demanding environments like steel mills and foundries.
7. What is the lifespan of the LED, and is there a warranty?
The high-quality CREE LEDs used in our lights have a rated lifespan of over 50,000 hours, ensuring years of maintenance-free operation. We stand by our quality with a 1-year warranty that covers any manufacturing defects.
8. Can the beam color be customized?
Yes. We offer red and blue options by default, but custom colors (e.g., green, white) can be arranged for bulk or OEM orders.
9. What is the recommended mounting height?
The light is effective at a wide range of heights. The ideal mounting height is typically between 15 to 30 feet (5 to 10 meters). At this range, the spot on the floor remains bright and well-defined. The adjustable bracket allows you to fine-tune the angle for optimal visibility at any height.
10. Do you offer OEM or customized products?
Yes, we provide OEM and ODM customization, including private labeling, custom light colors, beam patterns, and packaging.
1. Industry-Leading Expertise
With over 10 years of experience in industrial safety solutions, we specialize in developing advanced visual warning systems for warehouses, logistics, and hazardous zones.
2. In-House R&D and Engineering
We own a professional R&D team focused on lighting technology, ensuring continuous innovation and customization capability for clients with different safety needs.
3. Certified Quality and Compliance
All products meet international safety and quality standards (CE, RoHS, etc.). Every unit undergoes strict QC testing before shipment.
4. Scalable Production Capacity
We operate a modern manufacturing facility with scalable production lines, supporting bulk orders and fast lead times without compromising quality.
5. Global Client Base
Trusted by Fortune 500 companies, regional distributors, and safety integrators across North America, Europe, Southeast Asia, and the Middle East.
6. Reliable After-Sales Service
Our dedicated support team offers fast response, technical guidance, and warranty support to ensure long-term satisfaction.
At our manufacturing facilities, we employ a range of advanced testing equipment to guarantee the highest product quality and reliability. Each piece of equipment plays a vital role in inspecting, measuring, and validating product performance before shipment.
Drop and Vibration Test
EMC Test
Hi-Low Test
IP69K Standard
Lumen Test
Optical test Dark Room
Salt Spray Test
SMT
UV Accelerated Weathering Tester
Vehicle lighting test system for DOT
Have questions or need a custom quote? Our expert team is here to help you find the perfect warehouse and pedestrian safety laser solutions tailored to your needs. Contact us today for fast, professional service and support.
Changzhou Toptree Auto Lamp Co.,Ltd
Phone: +86 519 8119 3809
Email: info@toptreesafety.com
WhatsApp: +86-15051960989
We look forward to partnering with you to enhance workplace safety.
