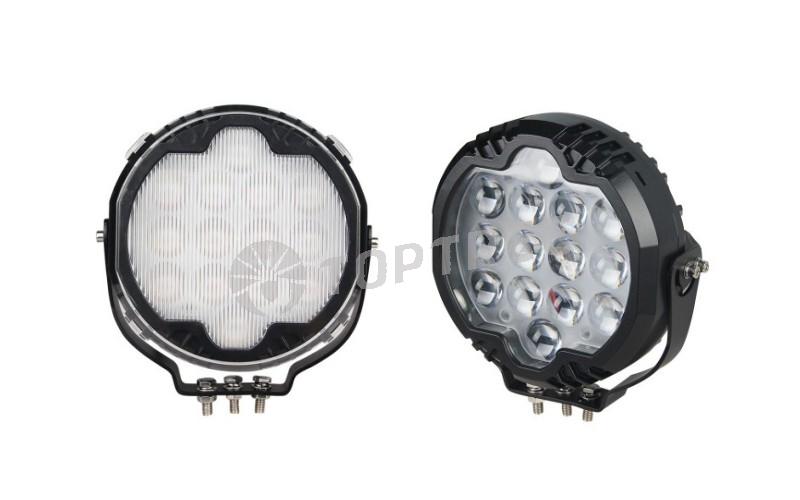

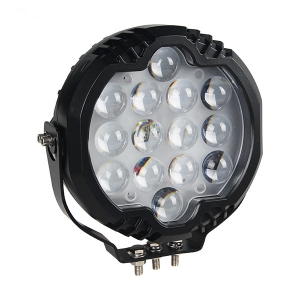

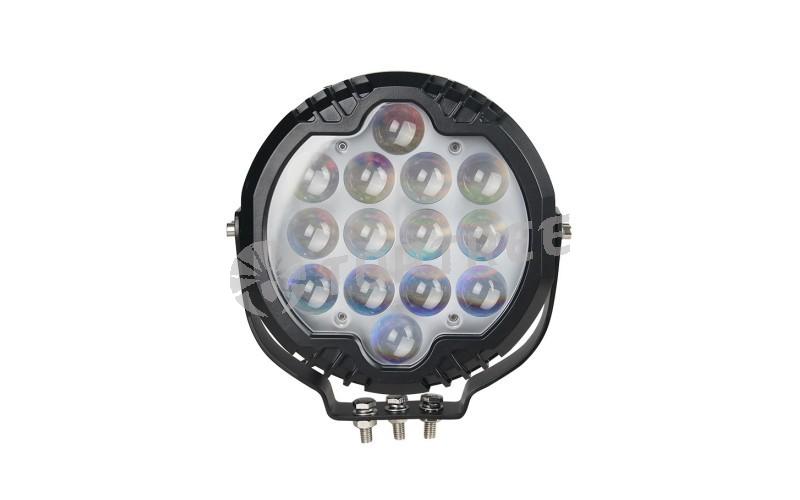

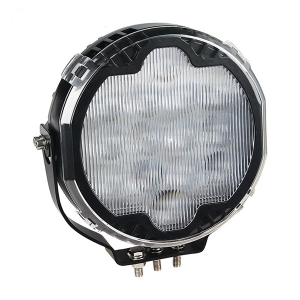

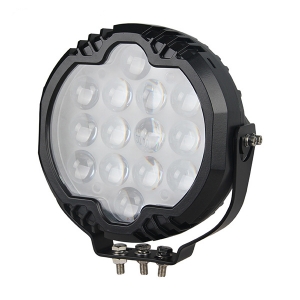

TPN140
7 Inch
140W
Red / Blue
Spot / Line
1PCS
CE, RoHS, LVD, ISO, Patents
From a single warning point to a complete safety perimeter. Discover Toptree's comprehensive range of crane safety spotlights and line lights, engineered to provide the ultimate visual protection for your pedestrians.
| Wattage | 140W | Working Temperature | -45-80℃ |
| Current Draw | 11.6A@12V, 5.8A@24V | Bracket Adjustment | 150 degree up/down |
| Operating Voltage | 10-32V | Cable Length | 3 meters (9.84') |
| Beam Pattern | Spot/Line | Connectivity | cable |
| Lens Material | PC | Lifetime | 50000 Hours |
| Housing Material | Aluminium Alloy | Approval | CE RoHS |
| IP Rating | IP67 | Warranty | 2 Years |
In any industrial environment, moving overhead cranes pose one of the greatest risks to workers on the ground. Audible alarms are often lost in the ambient noise. Toptree's system of crane warning lights for pedestrians provides a direct, unmissable visual language of safety that everyone can understand, dramatically reducing the risk of tragic accidents.
We offer a suite of specialized lights designed to work independently or together, creating a layered safety strategy for your facility.
 Crane Spot Lights |  Crane Spot Lights |  Crane Zone Lights |  Crane Zone Lights |
Function:

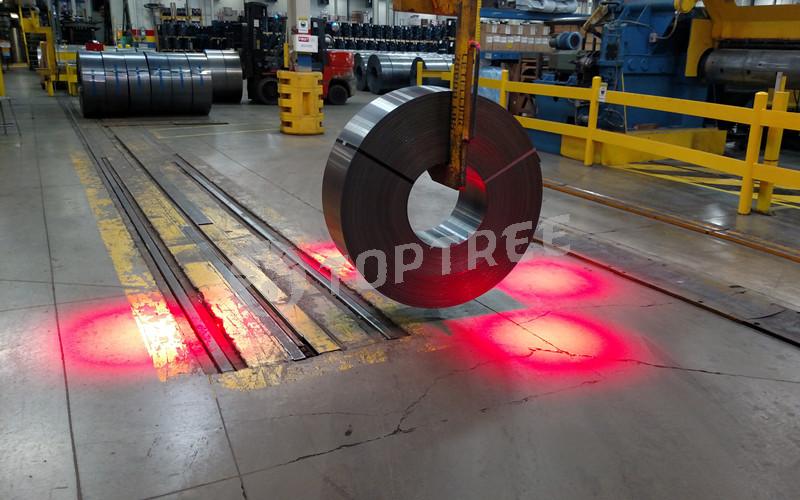

This is the foundational component of crane safety. A crane safety spotlight projects a single, bright, concentrated beam (typically red or blue) onto the floor directly beneath the hook.
Benefit:
It provides a clear, pinpoint location of the immediate overhead hazard. Pedestrians can instantly see where the danger is and maintain a safe distance.
Best For:
All standard crane operations as a primary warning device.
 |  |  |  |
Function:

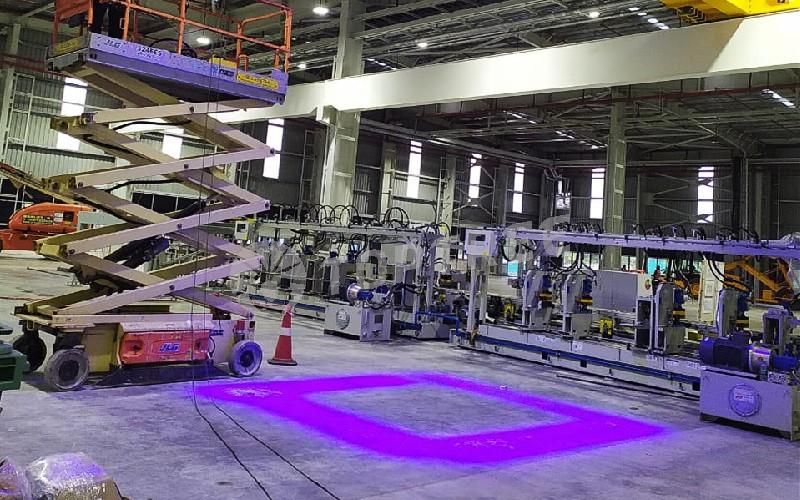

A crane safety line light casts a long, sharp, straight line on the ground. By using multiple units, you can "draw" a complete "No-Go Zone" or safety perimeter around the crane's operational area.
Benefit:
It establishes a clear, visible boundary, telling pedestrians where not to go. This is essential for managing traffic flow and preventing encroachment into hazardous zones.
Best For:
Creating safety perimeters, defining walkways, and establishing clear danger zones in high-traffic areas.
 |  |  |  |
● Two Projection Options: Choose between a line beam (to mark hazardous zones) or a spot beam (to indicate crane hook location).
● High Visibility Colors: Red and blue LED beams are clearly visible on various floor surfaces, indoors or outdoors.
● Purpose-Built Safety: Ideal as a crane warning light for pedestrians, especially in loud or low-visibility environments where sirens or alarms may go unnoticed.
● Durable Industrial Design: Rugged die-cast aluminum housing with IP67 waterproof rating ensures reliable performance in harsh environments.
● Easy Installation: Comes with adjustable mounting brackets for simple installation on overhead crane girders or trolleys.
● Overhead crane zones in warehouses, factories, and assembly areas
● Outdoor cranes at ports, shipyards, steel yards, and container yards
● Facilities requiring pedestrian safety warnings in crane loading/unloading areas
● Environments with high ambient noise, where audio alarms are insufficient

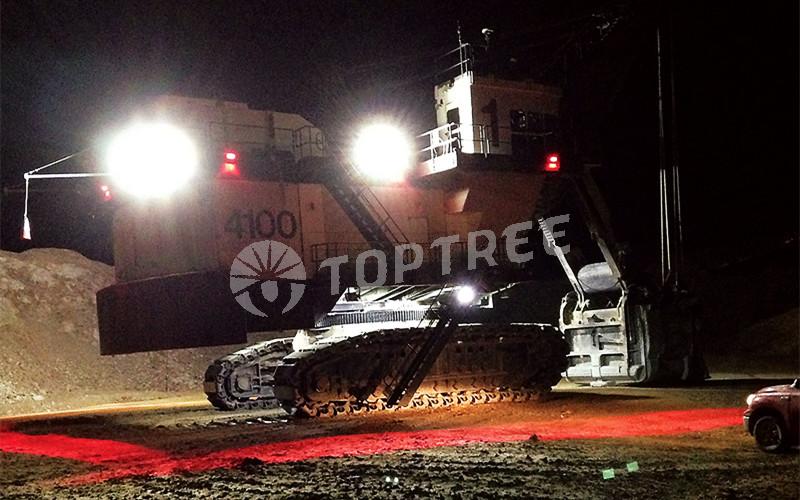

The Toptree crane safety line light helps define a visual boundary, while the crane safety spotlight marks exact hook movement — both significantly reducing the risk of pedestrian collisions.
 |  |  | |
Toptree’s Overhead Crane Safety Lights are developed and manufactured to meet the highest international safety and quality standards. We are proud to offer a range of certifications that ensure reliability, performance, and compliance in industrial environments.
We are proud to hold:
○ Appearance Design Patent Certificates
○ Utility Model Patent Certificates
○ ISO Quality Management System Certification
○ RoHS Compliance for environmental safety
○ CE & LVD Certifications for EU market standards
Built for Industrial Use
Our certifications are not just paperwork—they reflect our commitment to:
★ Worker safety in hazardous environments
★ Product durability under harsh operating conditions
★ Full support for safety audits and compliance inspections
Utility Model Patent Certificate
Design Patent Certificate
Quality Management System Certification
CE Certification
LVD Certification
RoHS Compliance
1. What is the most important type of crane warning light to start with?
The crane safety spotlight is the most fundamental and essential starting point. It directly addresses the primary hazard by pinpointing the hook's location. We recommend all cranes be equipped with at least a spotlight.
2. How do I choose between a spot light and a line light?
You don't have to choose—they serve different purposes! A spotlight marks a point. A line light marks a boundary. For comprehensive safety, many facilities use both. If you can only choose one, a spotlight is for marking the hook, while a line light is for marking a path or zone.
3. How do these lights enhance safety?
They alert both pedestrians and crane operators to live load areas, helping prevent collisions and positioning errors, especially where audible alarms fall short.
4. What’s the difference between spot and line beams?
○Spot beam: A circular light for tracking crane hooks.
○Line beam: A straight beam to mark danger zones.
5. Why are these lights specifically important as "warning lights for pedestrians"?
Because pedestrians are the most vulnerable group in a crane environment. They may be distracted, wearing hearing protection, or new to the site. A bright, moving visual warning on the floor bypasses noise and other distractions, communicating directly with the person at risk in a way an alarm cannot.
6. Are these lights durable for outdoor use?
Absolutely. Rugged, waterproof (IP67), and designed for –40°C to +85°C, they perform reliably in harsh conditions.
7. How bright do my crane lights need to be?
It depends on your facility's ceiling height and ambient lighting. We offer a full range of products, and our experts can help you choose the right power level for your needs.
8. Are Toptree's crane lights easy to install?
Yes, all our crane warning lights are designed for easy installation. They feature adjustable mounting brackets and wide voltage ranges to be compatible with virtually any overhead crane system.
9. What is the recommended mounting height?
The light is effective at a wide range of heights. The ideal mounting height is typically between 15 to 30 feet (5 to 10 meters). At this range, the spot on the floor remains bright and well-defined. The adjustable bracket allows you to fine-tune the angle for optimal visibility at any height.
10. Do you offer OEM or customized products?
Yes, we provide OEM and ODM customization, including private labeling, custom light colors, beam patterns, and packaging.
1. Industry-Leading Expertise
With over 10 years of experience in industrial safety solutions, we specialize in developing advanced visual warning systems for warehouses, logistics, and hazardous zones.
2. In-House R&D and Engineering
We own a professional R&D team focused on lighting technology, ensuring continuous innovation and customization capability for clients with different safety needs.
3. Certified Quality and Compliance
All products meet international safety and quality standards (CE, RoHS, etc.). Every unit undergoes strict QC testing before shipment.
4. Scalable Production Capacity
We operate a modern manufacturing facility with scalable production lines, supporting bulk orders and fast lead times without compromising quality.
5. Global Client Base
Trusted by Fortune 500 companies, regional distributors, and safety integrators across North America, Europe, Southeast Asia, and the Middle East.
6. Reliable After-Sales Service
Our dedicated support team offers fast response, technical guidance, and warranty support to ensure long-term satisfaction.
At our manufacturing facilities, we employ a range of advanced testing equipment to guarantee the highest product quality and reliability. Each piece of equipment plays a vital role in inspecting, measuring, and validating product performance before shipment.
Drop and Vibration Test
EMC Test
Hi-Low Test
IP69K Standard
Lumen Test
Optical test Dark Room
Salt Spray Test
SMT
UV Accelerated Weathering Tester
Vehicle lighting test system for DOT
Have questions or need a custom quote? Our expert team is here to help you find the perfect warehouse and pedestrian safety laser solutions tailored to your needs. Contact us today for fast, professional service and support.
Changzhou Toptree Auto Lamp Co.,Ltd
Phone: +86 519 8119 3809
Email: info@toptreesafety.com
WhatsApp: +86-15051960989
We look forward to partnering with you to enhance workplace safety.
