TPN140
7 Inch
Red / Blue
Spot / Line
140W
1PCS
CE, RoHS, LVD, ISO, Patents
Create a complete, 360° visual safety boundary. This 140W Safety Zone Line Light is the essential component for establishing clear and effective "No-Go Zones" around your mobile equipment.
| Wattage | 140W | Working Temperature | -45-80℃ |
| Current Draw | 11.6A@12V, 5.8A@24V | Bracket Adjustment | 150 degree up/down |
| Operating Voltage | 10-32V | Cable Length | 3 meters (9.84') |
| Beam Pattern | Spot/Line | Connectivity | cable |
| Lens Material | PC | Lifetime | 50000 Hours |
| Housing Material | Aluminium Alloy | Approval | CE RoHS |
| IP Rating | IP67 | Warranty | 2 Years |

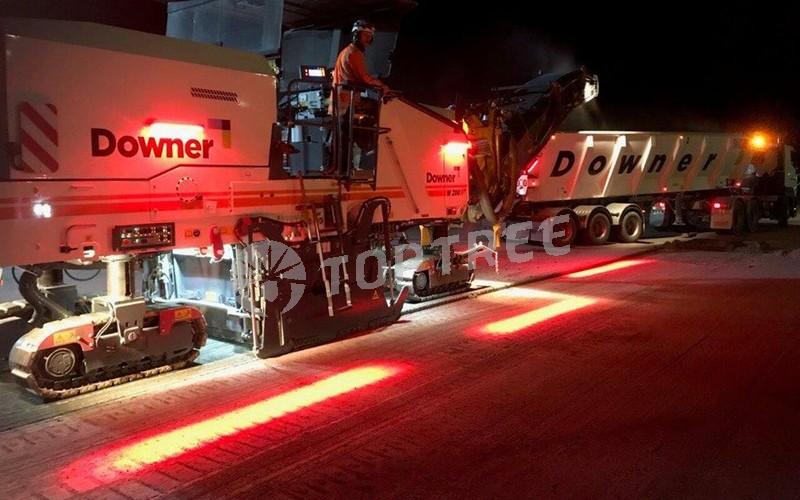

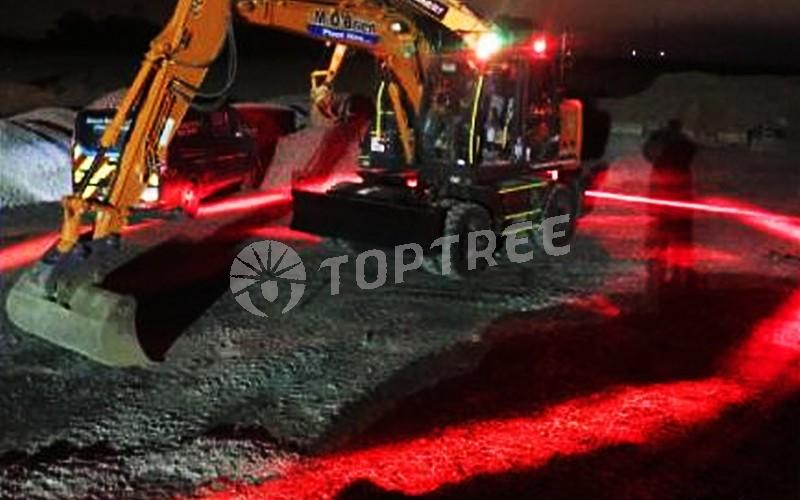

A single warning light can mark a hazard, but a true safety system defines a perimeter. The Toptree Safety Zone Line Light is designed to work as part of a system. By strategically mounting multiple units, you can project a series of bright, straight lines on the floor to form a complete, enclosed "box" or "zone" around a crane's load area or a forklift.
This proactive approach creates an unmistakable visual barrier, clearly communicating to pedestrians the exact safe distance they need to maintain, which is proven to dramatically reduce workplace accidents.
 |  |  |  |
● The System Builder
This light is the fundamental building block. Use four units to create a full rectangular zone, or two units to define a safe walkway. It gives you the flexibility to design the exact safety perimeter your facility needs.
● Optimal & Efficient Brightness
The 140W power output is perfectly balanced for this application. It projects a sharp, crisp line that is highly visible in standard indoor environments without creating excessive glare or consuming unnecessary power.
● Industrial-Grade Durability
Built to last with a die-cast aluminum housing and a tough PC lens. Its IP67 rating ensures it is fully sealed against dust and water, ready to withstand the rigors of daily industrial use.

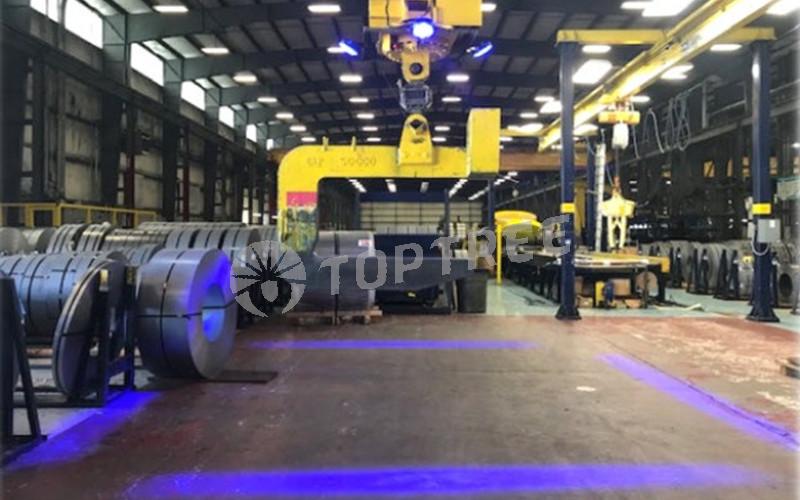

This is the most common and effective implementation:
Mount Four Lights: Install four of the line lights on the equipment (e.g., on the crane's trolley), with one facing each direction (front, back, left, right).
Project the Lines: Aim each light downwards to project a straight line on the floor.
The Result: The four projected lines connect at the corners to form a complete, closed rectangular "No-Go Zone" that moves with the equipment, providing total 360° protection.
 |  |  |  |

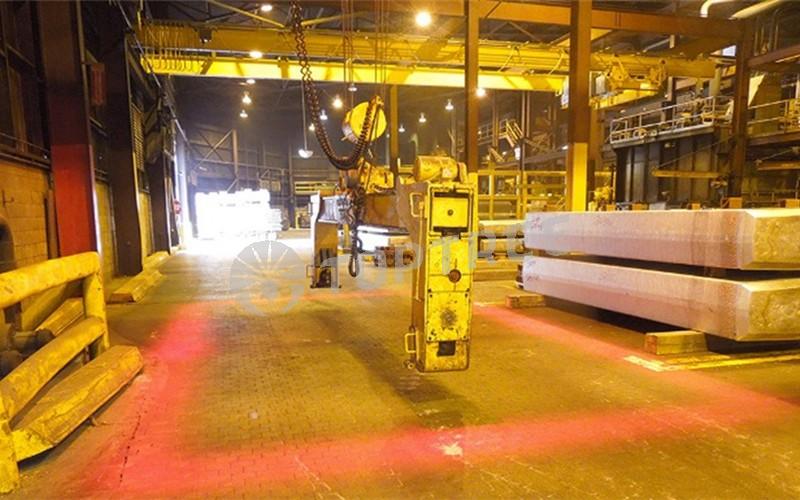

○ Factories & Warehouses – For overhead bridge or gantry cranes
○ Construction Sites – Enhance safety around crane lifting zones
○ Shipping Yards & Terminals – Guide operators and alert ground crews
○ Maintenance & Fabrication Workshops – Mark operational zones during overhead lifts
Toptree’s Overhead Crane Safety Lights are developed and manufactured to meet the highest international safety and quality standards. We are proud to offer a range of certifications that ensure reliability, performance, and compliance in industrial environments.
We are proud to hold:
○ Appearance Design Patent Certificates
○ Utility Model Patent Certificates
○ ISO Quality Management System Certification
○ RoHS Compliance for environmental safety
○ CE & LVD Certifications for EU market standards
Built for Industrial Use
Our certifications are not just paperwork—they reflect our commitment to:
★ Worker safety in hazardous environments
★ Product durability under harsh operating conditions
★ Full support for safety audits and compliance inspections
Utility Model Patent Certificate
Design Patent Certificate
Quality Management System Certification
CE Certification
LVD Certification
RoHS Compliance
1. How many 140W lights are needed to create a full "Safety Zone"?
To create a complete rectangular "box" around the hazard area, you will need four (4) lights. Each light is mounted on one side/corner of the crane, projecting one side of the box. For creating parallel safety lanes along the crane's travel path, you would need two (2) lights.
2. Do overhead cranes need warning lights?
Yes, absolutely. In noisy industrial environments where audible alarms are often ineffective, overhead crane warning lights are critical. They provide a clear, unmissable visual signal on the floor, showing everyone the exact location and travel path of the hook, which is essential for preventing serious accidents.
3. So a single light only projects one straight line?
Yes, that is correct. Each unit projects one single, straight line. The "Safety Zone" is the result of combining multiple lights together to form a complete perimeter.
4. What’s the difference between spot and line beams?
○Spot beam: A circular light for tracking crane hooks.
○Line beam: A straight beam to mark danger zones.
5. Why choose Red vs. Blue for the warning light? Which is better?
Both colors are highly effective. The choice often depends on the color of your facility's floor and ambient lighting. Blue often appears slightly brighter to the human eye and stands out well on concrete floors. Red is universally associated with "danger" or "stop" and provides excellent contrast on lighter-colored or dusty floors. We recommend testing a sample in your environment, but both are proven to significantly enhance safety.
6. Can this light withstand harsh industrial environments (heat, dust, vibration)?
Yes, absolutely. It's specifically designed for these conditions. The die-cast aluminum housing provides excellent durability and heat dissipation, while the IP67 rating means it's completely sealed against dust and water. It is also engineered to be shock and vibration-resistant, ensuring reliable performance in demanding environments like steel mills and foundries.
7. What is the main benefit of creating a full "zone" instead of just using one spotlight?
A single spotlight marks the hook's position, which is good. But a full safety zone marks the entire hazardous area, including the space the load might swing or the area the vehicle occupies. It provides a much larger, clearer, and more comprehensive safety instruction to pedestrians, leaving no room for misinterpretation.
8. How many warning lights do I need for one crane?
For most applications, one spot light per hoist/hook is sufficient to clearly mark its position. However, for very large cranes or for creating a larger safety zone, some customers choose to install two or four lights.
9. What is the recommended mounting height?
The light is effective at a wide range of heights. The ideal mounting height is typically between 15 to 30 feet (5 to 10 meters). At this range, the spot on the floor remains bright and well-defined. The adjustable bracket allows you to fine-tune the angle for optimal visibility at any height.
10. Do you offer OEM or customized products?
Yes, we provide OEM and ODM customization, including private labeling, custom light colors, beam patterns, and packaging.
1. Industry-Leading Expertise
With over 10 years of experience in industrial safety solutions, we specialize in developing advanced visual warning systems for warehouses, logistics, and hazardous zones.
2. In-House R&D and Engineering
We own a professional R&D team focused on lighting technology, ensuring continuous innovation and customization capability for clients with different safety needs.
3. Certified Quality and Compliance
All products meet international safety and quality standards (CE, RoHS, etc.). Every unit undergoes strict QC testing before shipment.
4. Scalable Production Capacity
We operate a modern manufacturing facility with scalable production lines, supporting bulk orders and fast lead times without compromising quality.
5. Global Client Base
Trusted by Fortune 500 companies, regional distributors, and safety integrators across North America, Europe, Southeast Asia, and the Middle East.
6. Reliable After-Sales Service
Our dedicated support team offers fast response, technical guidance, and warranty support to ensure long-term satisfaction.
At our manufacturing facilities, we employ a range of advanced testing equipment to guarantee the highest product quality and reliability. Each piece of equipment plays a vital role in inspecting, measuring, and validating product performance before shipment.
Drop and Vibration Test
EMC Test
Hi-Low Test
IP69K Standard
Lumen Test
Optical test Dark Room
Salt Spray Test
SMT
UV Accelerated Weathering Tester
Vehicle lighting test system for DOT
Have questions or need a custom quote? Our expert team is here to help you find the perfect warehouse and pedestrian safety laser solutions tailored to your needs. Contact us today for fast, professional service and support.
Changzhou Toptree Auto Lamp Co.,Ltd
Phone: +86 519 8119 3809
Email: info@toptreesafety.com
WhatsApp: +86-15051960989
We look forward to partnering with you to enhance workplace safety.
