TPN120
9 Inch
Red / Blue
Spot / Line
120W(Blue) / 72W(Red)
1PCS
CE, RoHS, LVD, ISO, Patents
Move beyond audible alarms that get lost in the noise. The Toptree Crane Spot Light projects a high-intensity beam onto the floor, creating a "Safety Halo" around the hook for an unmissable and intuitive visual warning.
| Wattage | 120W (Blue) / 72W(Red) | Working Temperature | -45-80℃ |
| Current Draw | 10A@12V, 0.5A@24V | Bracket Adjustment | 150 degree up/down |
| Operating Voltage | 10-48V | Cable Length | 3 meters (9.84') |
| Beam Pattern | Spot/Line | Connectivity | cable |
| Lens Material | PC | Lifetime | 50000 Hours |
| Housing Material | Aluminium Alloy | Approval | CE RoHS |
| IP Rating | IP67 | Warranty | 2 Years |

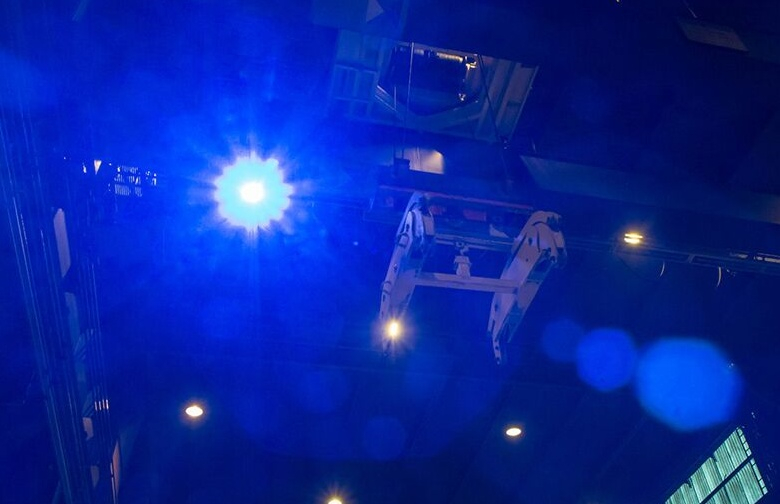

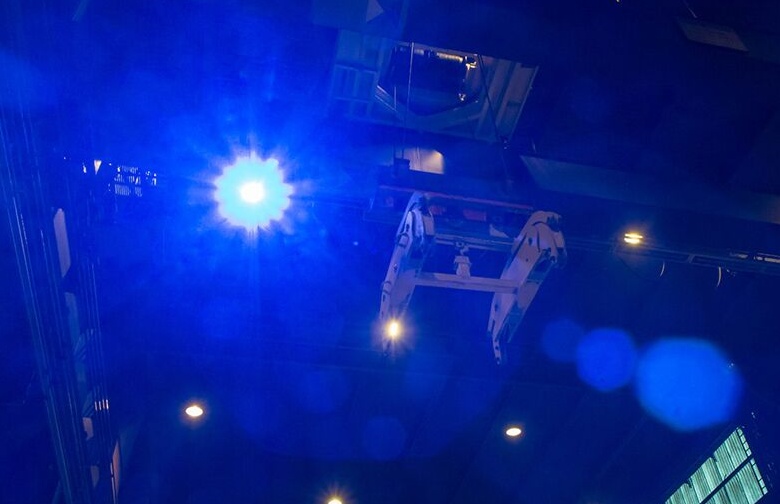

In any dynamic industrial setting, the overhead crane hook is a primary moving hazard. Its path and load present a constant risk to ground personnel. Traditional buzzers and alarms are often ineffective in loud plants, where workers can suffer from "alarm fatigue" and tune them out.
The Toptree Overhead Crane Spot Light was engineered as the definitive solution. It acts like a precision pointer, casting a solid, circular spot of light directly below the crane hook. This beam pinpoints the single most critical point of danger, forcing everyone's attention to this mobile "focal point of safety" and enabling the most effective form of accident prevention.
 |  |  |  |
● Pinpoint Hazard Identification:

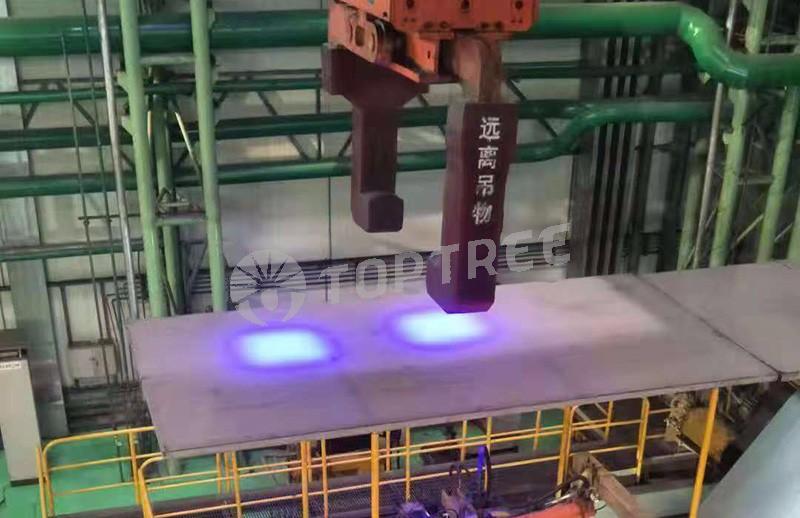

The light beam lands precisely where the hook is, providing a 100% accurate visual indicator of its location. Workers can instantly judge a safe distance with just a glance at the floor.
● Intuitive Motion Tracking:
A moving spot of light is the ultimate directional cue. Its travel path clearly illustrates the hook's direction and speed, eliminating guesswork and improving situational awareness.
● Superior Brightness & Penetration:
Powered by a 72W CREE LED array, it blasts an incredible 12,000 lumens onto the floor. This intense beam easily cuts through industrial dust and steam and remains highly visible even on brightly lit concrete.
● Engineered for Harsh Environments:
With an IP67 waterproof and dustproof rating, a rugged die-cast aluminum housing, and a durable PC lens, this light is built to withstand intense vibration, impacts, and extreme temperatures for long-lasting, reliable operation.
● A High-Return Safety Investment:
Proactively prevents costly workplace injuries and equipment damage, reducing downtime and making it one of the most cost-effective safety upgrades for any facility.
● Focused Intensity: Unlike a line light that spreads its energy over a large area, a spot light concentrates all its power into a single point. This results in much higher on-the-ground intensity and a greater visual impact for the same power consumption.
● Reduced Visual Clutter: In complex work environments, multiple warning lines can be distracting. A single, crisp, moving spot provides the cleanest, most effective warning signal.
● Universal Versatility: Whether used in high-bay or low-bay applications, the spot light's angle can be easily adjusted to ensure the beam on the floor is clear, focused, and appropriately sized.

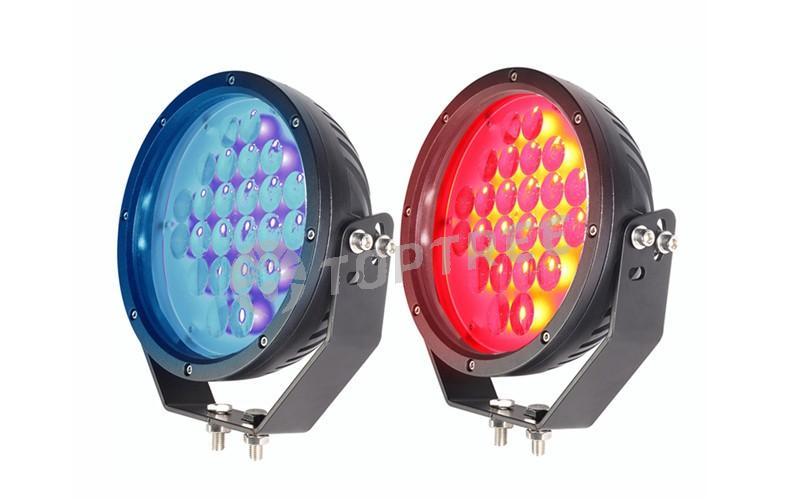

Hardware that Performs
- Light Source: 24 High-Intensity CREE LEDs
- Housing: Die-cast aluminum with oversized fins for superior heat dissipation
- Lens: Hardened Polycarbonate (PC) material for scratch and impact resistance
- Bracket: 304 Stainless Steel with 150 degrees of vertical tilt adjustment

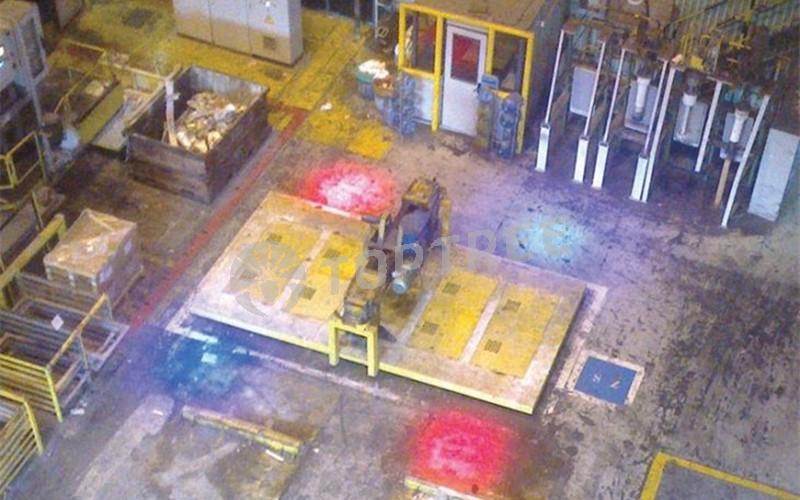

The Toptree Crane Spot Light is the perfect choice for any application requiring precise load control and operating in high-risk environments:
○ Factories and production lines with bridge/overhead cranes
○ Warehouses with heavy traffic and blind corners
○ Shipyards, steel mills, and manufacturing plants
○ Temporary construction sites or large maintenance workshops
Toptree’s Overhead Crane Safety Lights are developed and manufactured to meet the highest international safety and quality standards. We are proud to offer a range of certifications that ensure reliability, performance, and compliance in industrial environments.
We are proud to hold:
○ Appearance Design Patent Certificates
○ Utility Model Patent Certificates
○ ISO Quality Management System Certification
○ RoHS Compliance for environmental safety
○ CE & LVD Certifications for EU market standards
Built for Industrial Use
Our certifications are not just paperwork—they reflect our commitment to:
★ Worker safety in hazardous environments
★ Product durability under harsh operating conditions
★ Full support for safety audits and compliance inspections
Utility Model Patent Certificate
Design Patent Certificate
Quality Management System Certification
CE Certification
LVD Certification
RoHS Compliance
1. What is the spot light on a crane?
An overhead crane spot light is a powerful LED safety device that projects a bright, focused circle of light onto the floor directly below the crane's hook. This moving spot acts as a clear visual warning, instantly showing pedestrians the hook's exact location and travel path. It is a highly effective tool for preventing accidents in noisy environments where audible alarms may be missed.
2. Do overhead cranes need warning lights?
Yes, absolutely. In noisy industrial environments where audible alarms are often ineffective, overhead crane warning lights are critical. They provide a clear, unmissable visual signal on the floor, showing everyone the exact location and travel path of the hook, which is essential for preventing serious accidents.
3. What color options are available?
Toptree crane spot lights are available in red and blue, both highly visible in industrial environments.
4. What’s the difference between spot and line beams?
○ Spot beam: A circular light for tracking crane hooks.
○ Line beam: A straight beam to mark danger zones.
5. Why choose Red vs. Blue for the warning light? Which is better?
Both colors are highly effective. The choice often depends on the color of your facility's floor and ambient lighting. Blue often appears slightly brighter to the human eye and stands out well on concrete floors. Red is universally associated with "danger" or "stop" and provides excellent contrast on lighter-colored or dusty floors. We recommend testing a sample in your environment, but both are proven to significantly enhance safety.
6. Can this light withstand harsh industrial environments (heat, dust, vibration)?
Yes, absolutely. It's specifically designed for these conditions. The die-cast aluminum housing provides excellent durability and heat dissipation, while the IP67 rating means it's completely sealed against dust and water. It is also engineered to be shock and vibration-resistant, ensuring reliable performance in demanding environments like steel mills and foundries.
7. What is the lifespan of the LED, and is there a warranty?
The high-quality CREE LEDs used in our lights have a rated lifespan of over 50,000 hours, ensuring years of maintenance-free operation. We stand by our quality with a 1-year warranty that covers any manufacturing defects.
8. How many warning lights do I need for one crane?
For most applications, one spot light per hoist/hook is sufficient to clearly mark its position. However, for very large cranes or for creating a larger safety zone, some customers choose to install two or four lights.
9. What is the recommended mounting height?
The light is effective at a wide range of heights. The ideal mounting height is typically between 15 to 30 feet (5 to 10 meters). At this range, the spot on the floor remains bright and well-defined. The adjustable bracket allows you to fine-tune the angle for optimal visibility at any height.
10. Do you offer OEM or customized products?
Yes, we provide OEM and ODM customization, including private labeling, custom light colors, beam patterns, and packaging.
1. Industry-Leading Expertise
With over 10 years of experience in industrial safety solutions, we specialize in developing advanced visual warning systems for warehouses, logistics, and hazardous zones.
2. In-House R&D and Engineering
We own a professional R&D team focused on lighting technology, ensuring continuous innovation and customization capability for clients with different safety needs.
3. Certified Quality and Compliance
All products meet international safety and quality standards (CE, RoHS, etc.). Every unit undergoes strict QC testing before shipment.
4. Scalable Production Capacity
We operate a modern manufacturing facility with scalable production lines, supporting bulk orders and fast lead times without compromising quality.
5. Global Client Base
Trusted by Fortune 500 companies, regional distributors, and safety integrators across North America, Europe, Southeast Asia, and the Middle East.
6. Reliable After-Sales Service
Our dedicated support team offers fast response, technical guidance, and warranty support to ensure long-term satisfaction.
At our manufacturing facilities, we employ a range of advanced testing equipment to guarantee the highest product quality and reliability. Each piece of equipment plays a vital role in inspecting, measuring, and validating product performance before shipment.
Drop and Vibration Test
EMC Test
Hi-Low Test
IP69K Standard
Lumen Test
Optical test Dark Room
Salt Spray Test
SMT
UV Accelerated Weathering Tester
Vehicle lighting test system for DOT
Have questions or need a custom quote? Our expert team is here to help you find the perfect warehouse and pedestrian safety laser solutions tailored to your needs. Contact us today for fast, professional service and support.
Changzhou Toptree Auto Lamp Co.,Ltd
Phone: +86 519 8119 3809
Email: info@toptreesafety.com
WhatsApp: +86-15051960989
We look forward to partnering with you to enhance workplace safety.
North American Master Distributor for US and Canada
Website: www.forklifttrainingsystems.com
Email: info@forklifttrainingsystem.com
Phone: 614-583-5749
