English
TPN120
9 Inch
Red / Blue
Spot / Line
120W(Blue) / 72W(Red)
1PCS
CE, RoHS, LVD, ISO, Patents
Prevent pedestrian injuries and asset damage with a revolutionary safety system that projects a clear red or blue safety line on the floor, indicating the precise position of the crane hook and load.
| Wattage | 120W (Blue) / 72W(Red) | Working Temperature | -45-80℃ |
| Current Draw | 10A@12V, 0.5A@24V | Bracket Adjustment | 150 degree up/down |
| Operating Voltage | 10-48V | Cable Length | 3 meters (9.84') |
| Beam Pattern | Spot/Line | Connectivity | cable |
| Lens Material | PC | Lifetime | 50000 Hours |
| Housing Material | Aluminium Alloy | Approval | CE RoHS |
| IP Rating | IP67 | Warranty | 2 Years |
In busy factories, warehouses, ports, or construction sites, overhead cranes are essential for productivity, but they also pose significant safety risks. Traditional audible alarms and buzzers are often ineffective, easily drowned out by the constant noise of an industrial environment. Operator blind spots and pedestrian inattentiveness can lead to catastrophic collisions between personnel and machinery.
Are you looking for a more intuitive, more effective way to enhance crane safety?
The TOPTREE Crane Load Indicator Lights were engineered precisely for this challenge. This is not just a light; it's a proactive, visual safety warning system designed to prevent accidents before they happen.
Our advanced LED safety lights provide an unambiguous visual warning to anyone on the ground by projecting a high-intensity red or blue line/spot around the hook or load. This moving projection clearly defines the hazardous zone, allowing every worker to instantly gauge the hook's exact location, direction, and speed.
1. Ultimate Safety Enhancement to Eliminate Accidents
● Overcomes Auditory Blind Spots: In noisy settings, a visual warning is far more effective than sound. Our crane warning light ensures every worker, even those wearing hearing protection, receives the safety alert.
● Clearly Defines Hazard Zones: The moving beam dynamically marks the safe distance from the suspended load, warning pedestrians and vehicles to keep clear and drastically reducing the risk of being struck or crushed.
● Improves Operator Awareness: Assists the crane operator in positioning the hook with greater precision, especially during delicate operations, boosting both efficiency and safety.
2. Superior Performance, Built for Harsh Industrial Environments
● High-Intensity LEDs: We use high quality LED chips to ensure the projected beam is bright, crisp, and long-range, maintaining excellent visibility in both daylight and dimly lit indoor conditions.
● Robust and Durable: The die-cast aluminum alloy housing provides superior heat dissipation and impact resistance. A toughened PC lens is abrasion-resistant and built to withstand the rigors of any industrial site.
● All-Weather Protection (IP67): With a certified IP67 rating for dust and water resistance, this light is perfectly suited for harsh indoor and outdoor conditions, including rain, snow, and dust.
3. Easy Installation & Universal Compatibility
● Flexible Mounting Bracket: Comes equipped with an adjustable stainless steel bracket, allowing for easy installation on the crane trolley or hook block and simple adjustment to the optimal projection angle.
● Color Options (Red/Blue): Available in Red or Blue to provide the best contrast against your specific floor color and ambient lighting conditions, maximizing visibility.
 |  |  |  |

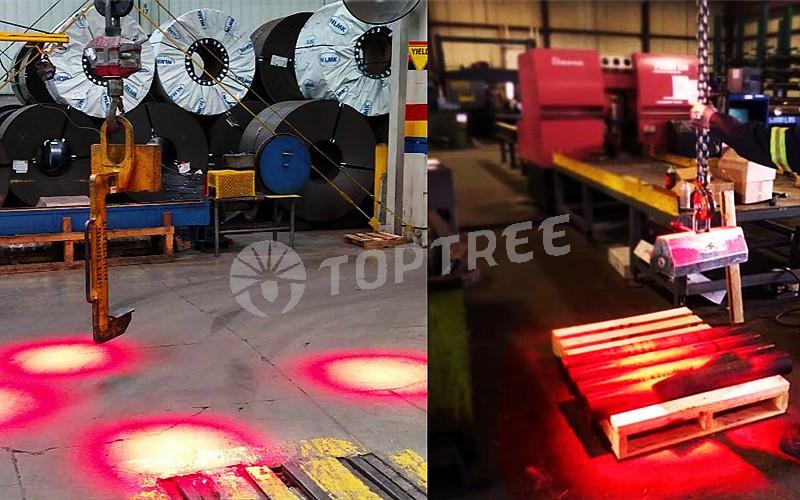

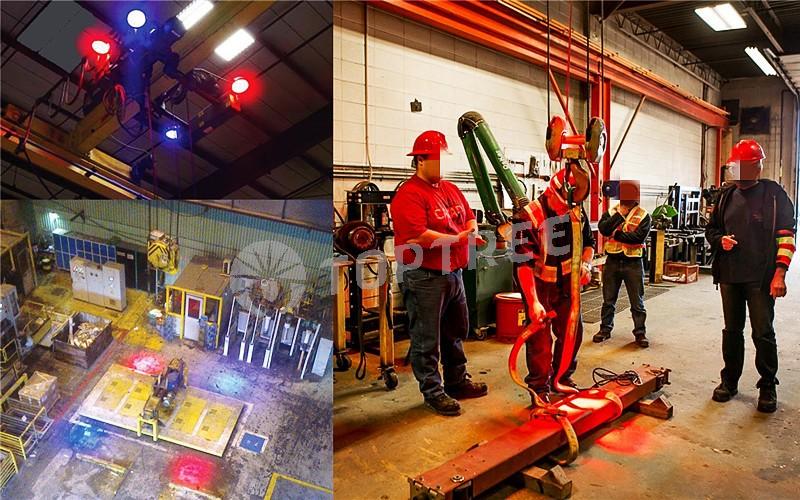

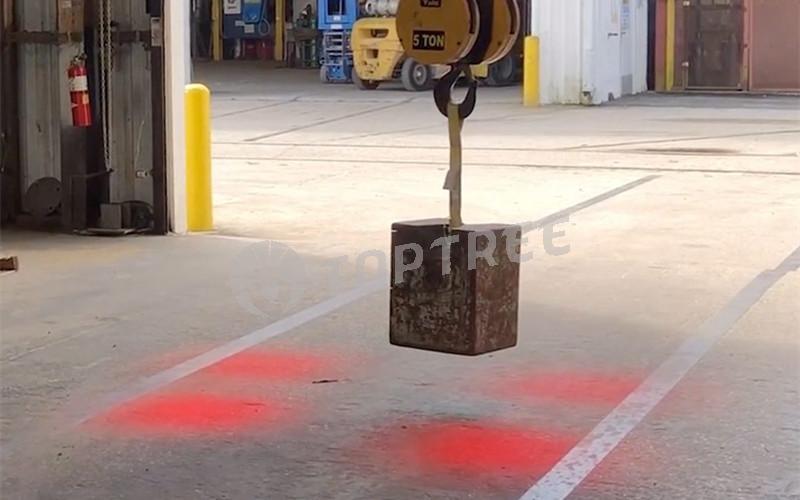

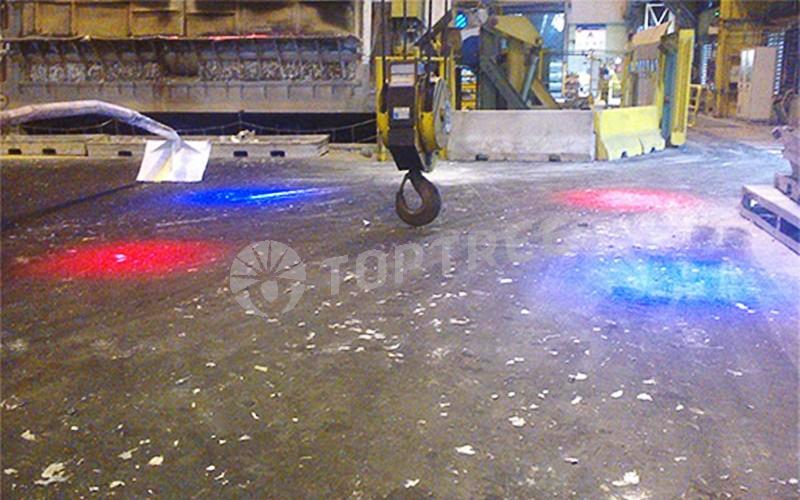

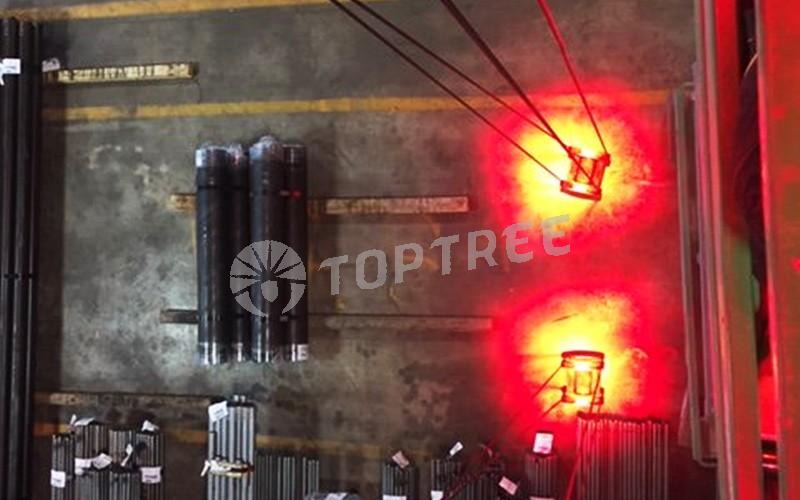

The TOPTREE Crane Hook Position Light is mounted on the crane's trolley, aimed directly downwards. It projects a distinct line or a circular spot onto the floor, which moves in perfect sync with the crane. When a load is lifted, this light projection represents the exact position beneath the load, creating a moving "no-go" zone for all ground personnel.
Our LED crane safety lights are the ideal solution for elevating safety standards in these environments and more:
● Steel Mills & Metallurgy: Providing critical visual guidance for overhead cranes in high-heat, high-noise environments.
● Manufacturing & Assembly Lines: Protecting assembly workers operating beneath bridge cranes.
● Warehousing & Logistics Centers: Preventing collisions between forklifts, personnel, and gantry cranes moving goods.
● Construction Sites: Improving safety around mobile and tower cranes.
Toptree’s Overhead Crane Safety Lights are developed and manufactured to meet the highest international safety and quality standards. We are proud to offer a range of certifications that ensure reliability, performance, and compliance in industrial environments.
We are proud to hold:
○ Appearance Design Patent Certificates
○ Utility Model Patent Certificates
○ ISO Quality Management System Certification
○ RoHS Compliance for environmental safety
○ CE & LVD Certifications for EU market standards
Built for Industrial Use
Our certifications are not just paperwork—they reflect our commitment to:
★ Worker safety in hazardous environments
★ Product durability under harsh operating conditions
★ Full support for safety audits and compliance inspections
Utility Model Patent Certificate
Design Patent Certificate
Quality Management System Certification
CE Certification
LVD Certification
RoHS Compliance
1. Should I choose a red light or a blue light for my crane?
The choice depends on your facility's floor color and ambient lighting. Blue light typically offers excellent contrast on most indoor concrete floors. Red light can be more prominent in brighter conditions or on certain colored surfaces. We recommend choosing the color that provides the highest contrast for your specific environment. Our experts can help you decide.
2. Do overhead cranes need warning lights?
Yes, absolutely. In noisy industrial environments where audible alarms are often ineffective, overhead crane warning lights are critical. They provide a clear, unmissable visual signal on the floor, showing everyone the exact location and travel path of the hook, which is essential for preventing serious accidents.
3. How many load indicator lights are needed for one crane?
For most standard bridge or gantry cranes, we recommend installing two lights—one on each side of the trolley. This projects two parallel lines, creating a rectangular "safety zone." For larger cranes or applications requiring 360-degree warning, four lights may be necessary to fully enclose the area.
4. What’s the difference between spot and line beams?
○Spot beam: A circular light for tracking crane hooks.
○Line beam: A straight beam to mark danger zones.
5. How difficult is it to install this light?
Installation is very straightforward. The light includes an adjustable stainless steel bracket. Simply secure it to a suitable location on the crane's trolley and connect the wires to the crane's 9-60V DC power supply. The process can typically be completed quickly by a qualified electrician.
6. Can this light be used outdoors? How durable is it?
Absolutely. The light has an IP67 dustproof and waterproof rating, meaning it is completely sealed against dust and can withstand rain and snow. The robust die-cast aluminum housing and impact-resistant PC lens ensure long-term, reliable performance in harsh outdoor and industrial conditions, with a lifespan exceeding 50,000 hours.
7. What is the lifespan of the LED, and is there a warranty?
The high-quality CREE LEDs used in our lights have a rated lifespan of over 50,000 hours, ensuring years of maintenance-free operation. We stand by our quality with a 1-year warranty that covers any manufacturing defects.
8. What is the advantage of this visual warning light over a traditional audible alarm?
The key advantages are its intuitiveness and effectiveness. In noisy industrial environments, audible alarms are easily missed or ignored. A moving, high-intensity light beam provides an unmissable visual cue that not only warns of danger but also precisely indicates the location and travel path of the hazard (the hook/load). This is something an audible alarm cannot do, making it far more effective at preventing accidents, especially in areas with heavy foot traffic.
9. What is the recommended mounting height?
The light is effective at a wide range of heights. The ideal mounting height is typically between 15 to 30 feet (5 to 10 meters). At this range, the spot on the floor remains bright and well-defined. The adjustable bracket allows you to fine-tune the angle for optimal visibility at any height.
10. Do you offer OEM or customized products?
Yes, we provide OEM and ODM customization, including private labeling, custom light colors, beam patterns, and packaging.
1. Industry-Leading Expertise
With over 10 years of experience in industrial safety solutions, we specialize in developing advanced visual warning systems for warehouses, logistics, and hazardous zones.
2. In-House R&D and Engineering
We own a professional R&D team focused on lighting technology, ensuring continuous innovation and customization capability for clients with different safety needs.
3. Certified Quality and Compliance
All products meet international safety and quality standards (CE, RoHS, etc.). Every unit undergoes strict QC testing before shipment.
4. Scalable Production Capacity
We operate a modern manufacturing facility with scalable production lines, supporting bulk orders and fast lead times without compromising quality.
5. Global Client Base
Trusted by Fortune 500 companies, regional distributors, and safety integrators across North America, Europe, Southeast Asia, and the Middle East.
6. Reliable After-Sales Service
Our dedicated support team offers fast response, technical guidance, and warranty support to ensure long-term satisfaction.
At our manufacturing facilities, we employ a range of advanced testing equipment to guarantee the highest product quality and reliability. Each piece of equipment plays a vital role in inspecting, measuring, and validating product performance before shipment.
Drop and Vibration Test
EMC Test
Hi-Low Test
IP69K Standard
Lumen Test
Optical test Dark Room
Salt Spray Test
SMT
UV Accelerated Weathering Tester
Vehicle lighting test system for DOT
