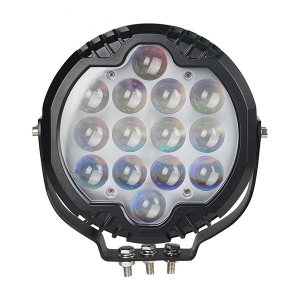

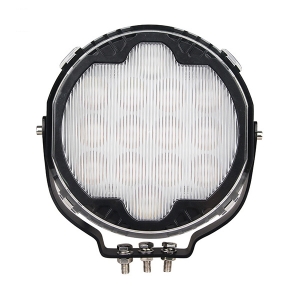

TPN140
7 Inch
140W
Red / Blue
Spot / Line
1PCS
CE, RoHS, LVD, ISO, Patents
Engineered with a massive 140W of power, the TPN140 projects an intensely bright Spot or Line beam, cutting through bright ambient light and covering extreme distances to ensure safety in the most demanding industrial environments.
| Wattage | 140W | Working Temperature | -45-80℃ |
| Current Draw | 11.6A@12V, 5.8A@24V | Bracket Adjustment | 150 degree up/down |
| Operating Voltage | 10-32V | Cable Length | 3 meters (9.84') |
| Beam Pattern | Spot/Line | Connectivity | cable |
| Lens Material | PC | Lifetime | 50000 Hours |
| Housing Material | Aluminium Alloy | Approval | CE RoHS |
| IP Rating | IP67 | Warranty | 2 Years |
In vast, high-bay warehouses, sprawling steel mills, or sun-drenched outdoor ports, standard safety lights simply aren't enough. Their beams become weak, diffused, or completely invisible from extreme heights and in bright daylight, creating a false sense of security and leaving your ground personnel vulnerable. When maximum safety is non-negotiable, you need a solution with unparalleled power.
Introducing the TOPTREE TPN140 Heavy-Duty Crane Warning Light. This is not just an upgrade; it's the definitive safety projection system for challenging environments where visibility is paramount.
The TPN140 was designed from the ground up for one purpose: to deliver an unmissably bright visual warning where other lights fail.
1. Unrivaled Brightness with 140W of Power
● Cuts Through Daylight:
The immense output ensures the projected spot or line remains sharp and conspicuous even in bright, outdoor conditions.
● Extreme Height Projection:
Maintain a clear, focused beam from high mounting heights, making it perfect for the highest industrial ceilings.
● Maximum Pedestrian Awareness:
The intense brightness commands attention, ensuring every person on the floor is instantly aware of the crane hook's presence and movement, eliminating guesswork and hesitation.
2. Engineered for the Toughest Jobs
● Advanced LED Technology:
Utilizes high-performance LEDs for exceptional brightness, efficiency, and a market-leading lifespan of over 50,000 hours.
● Superior Thermal Management:
The robust die-cast aluminum housing features an oversized heat sink, ensuring the light runs cool and maintains peak performance during long operational shifts.
● IP67 Waterproof & Indestructible:
Fully sealed against dust and water, and built with a shock-resistant PC lens, the TPN140 is ready for the harshest weather and toughest industrial abuse.
3. Flexible Safety Projection (Spot or Line)
● Focused Spotlight:
Projects a single, concentrated spot on the floor to precisely mark the position of the crane hook. Ideal for pinpoint accuracy.
● Sharp Line Beam:
Creates a clear, straight line on the ground to establish a definitive "no-go" zone or safe pathway. Perfect for defining boundaries along the crane's path
 |  |  |  |
The 7-Inch Crane Safety Light is ideal for enhancing safety in various industrial environments:
● High-Bay Warehouses & Distribution Centers: Where cranes operate far above the floor.
● Steel Mills and Foundries: To penetrate through smoke, steam, and bright ambient light from molten metal.
● Outdoor Container Ports & Shipyards: For clear visibility during daytime loading and unloading operations.
● Large-Scale Manufacturing Plants: To cover vast operational areas with a single, powerful light source.
● Mining Operations: Where durability and extreme brightness are critical for safety.
Toptree’s Overhead Crane Safety Lights are developed and manufactured to meet the highest international safety and quality standards. We are proud to offer a range of certifications that ensure reliability, performance, and compliance in industrial environments.
We are proud to hold:
○ Appearance Design Patent Certificates
○ Utility Model Patent Certificates
○ ISO Quality Management System Certification
○ RoHS Compliance for environmental safety
○ CE & LVD Certifications for EU market standards
Built for Industrial Use
Our certifications are not just paperwork—they reflect our commitment to:
★ Worker safety in hazardous environments
★ Product durability under harsh operating conditions
★ Full support for safety audits and compliance inspections
Utility Model Patent Certificate
Design Patent Certificate
Quality Management System Certification
CE Certification
LVD Certification
RoHS Compliance
1. How many 140W lights are needed to create a full "Safety Zone"?
To create a complete rectangular "box" around the hazard area, you will need four (4) lights. Each light is mounted on one side/corner of the crane, projecting one side of the box. For creating parallel safety lanes along the crane's travel path, you would need two (2) lights.
2. Do overhead cranes need warning lights?
Yes, absolutely. In noisy industrial environments where audible alarms are often ineffective, overhead crane warning lights are critical. They provide a clear, unmissable visual signal on the floor, showing everyone the exact location and travel path of the hook, which is essential for preventing serious accidents.
3. How adjustable is the beam?
With a 150° adjustable bracket and interchangeable lens, you can easily fine-tune orientation and beam type.
4. What’s the difference between spot and line beams?
○ Spot beam: A circular light for tracking crane hooks.
○ Line beam: A straight beam to mark danger zones.
5. Why choose Red vs. Blue for the warning light? Which is better?
Both colors are highly effective. The choice often depends on the color of your facility's floor and ambient lighting. Blue often appears slightly brighter to the human eye and stands out well on concrete floors. Red is universally associated with "danger" or "stop" and provides excellent contrast on lighter-colored or dusty floors. We recommend testing a sample in your environment, but both are proven to significantly enhance safety.
6. Can this light withstand harsh industrial environments (heat, dust, vibration)?
Yes, absolutely. It's specifically designed for these conditions. The die-cast aluminum housing provides excellent durability and heat dissipation, while the IP67 rating means it's completely sealed against dust and water. It is also engineered to be shock and vibration-resistant, ensuring reliable performance in demanding environments like steel mills and foundries.
7. What is the lifespan of the LED, and is there a warranty?
The high-quality CREE LEDs used in our lights have a rated lifespan of over 50,000 hours, ensuring years of maintenance-free operation. We stand by our quality with a 1-year warranty that covers any manufacturing defects.
8. Can the beam color be customized?
Yes. We offer red and blue options by default, but custom colors (e.g., green, white) can be arranged for bulk or OEM orders.
9. What is the recommended mounting height?
The light is effective at a wide range of heights. The ideal mounting height is typically between 15 to 30 feet (5 to 10 meters). At this range, the spot on the floor remains bright and well-defined. The adjustable bracket allows you to fine-tune the angle for optimal visibility at any height.
10. Do you offer OEM or customized products?
Yes, we provide OEM and ODM customization, including private labeling, custom light colors, beam patterns, and packaging.
1. Industry-Leading Expertise
With over 10 years of experience in industrial safety solutions, we specialize in developing advanced visual warning systems for warehouses, logistics, and hazardous zones.
2. In-House R&D and Engineering
We own a professional R&D team focused on lighting technology, ensuring continuous innovation and customization capability for clients with different safety needs.
3. Certified Quality and Compliance
All products meet international safety and quality standards (CE, RoHS, etc.). Every unit undergoes strict QC testing before shipment.
4. Scalable Production Capacity
We operate a modern manufacturing facility with scalable production lines, supporting bulk orders and fast lead times without compromising quality.
5. Global Client Base
Trusted by Fortune 500 companies, regional distributors, and safety integrators across North America, Europe, Southeast Asia, and the Middle East.
6. Reliable After-Sales Service
Our dedicated support team offers fast response, technical guidance, and warranty support to ensure long-term satisfaction.
At our manufacturing facilities, we employ a range of advanced testing equipment to guarantee the highest product quality and reliability. Each piece of equipment plays a vital role in inspecting, measuring, and validating product performance before shipment.
Drop and Vibration Test
EMC Test
Hi-Low Test
IP69K Standard
Lumen Test
Optical test Dark Room
Salt Spray Test
SMT
UV Accelerated Weathering Tester
Vehicle lighting test system for DOT
Have questions or need a custom quote? Our expert team is here to help you find the perfect warehouse and pedestrian safety laser solutions tailored to your needs. Contact us today for fast, professional service and support.
Changzhou Toptree Auto Lamp Co.,Ltd
Phone: +86 519 8119 3809
Email: info@toptreesafety.com
WhatsApp: +86-15051960989
We look forward to partnering with you to enhance workplace safety.
