TPN120
9 Inch
Red / Blue
Spot / Line
120W(Blue) / 72W(Red)
1PCS
CE, RoHS, LVD, ISO, Patents
The essential, cost-effective solution for equipping your crane with reliable visual alerts. Our safety warning lights provide a clear and focused beam to protect pedestrians and prevent accidents in any standard industrial setting.
| Wattage | 120W (Blue) / 72W(Red) | Working Temperature | -45-80℃ |
| Current Draw | 10A@12V, 0.5A@24V | Bracket Adjustment | 150 degree up/down |
| Operating Voltage | 10-48V | Cable Length | 3 meters (9.84') |
| Beam Pattern | Spot/Line | Connectivity | cable |
| Lens Material | PC | Lifetime | 50000 Hours |
| Housing Material | Aluminium Alloy | Approval | CE RoHS |
| IP Rating | IP67 | Warranty | 2 Years |
In busy and noisy industrial settings, an audible alarm is not enough. You need a powerful visual signal that commands attention. The Toptree Overhead Crane Spot Light is designed to be that signal. It projects a single, intensely bright circle of light onto the floor, moving in perfect sync with the crane hook.

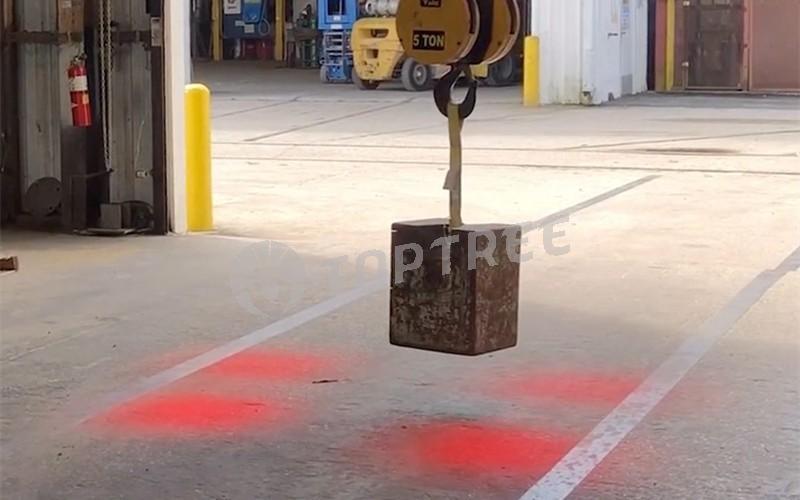

This moving spot acts as an unambiguous focal point of danger, allowing every worker on the ground to instantly gauge their distance from the overhead hazard, dramatically reducing the risk of accidents and improving overall workplace safety.
This model is the perfect upgrade for facilities requiring superior brightness and performance.
● Powerful & Focused Beam:
Powered by 24 CREE LEDs, it ensures a sharp, highly visible spot on the floor, even from significant heights or in well-lit areas.
● Built for Industrial Demands:
A robust die-cast aluminum housing and an IP67 waterproof and dustproof rating mean this LED crane safety light is engineered to withstand vibration, impact, and harsh environmental conditions.
● Superior Heat Dissipation:
The oversized cooling fins on the housing are crucial for a high-power light. They ensure the LEDs operate at optimal temperatures, guaranteeing a long 50,000+ hour lifespan and consistent brightness without fading.
● Simple, Secure Installation:
The included stainless steel bracket allows for easy mounting and a wide range of angle adjustments, ensuring you can aim the overhead crane spot light precisely where it's needed.
 |  |  |  |
The superior performance of the Overhead Crane Spot Light makes it the go-to solution for:

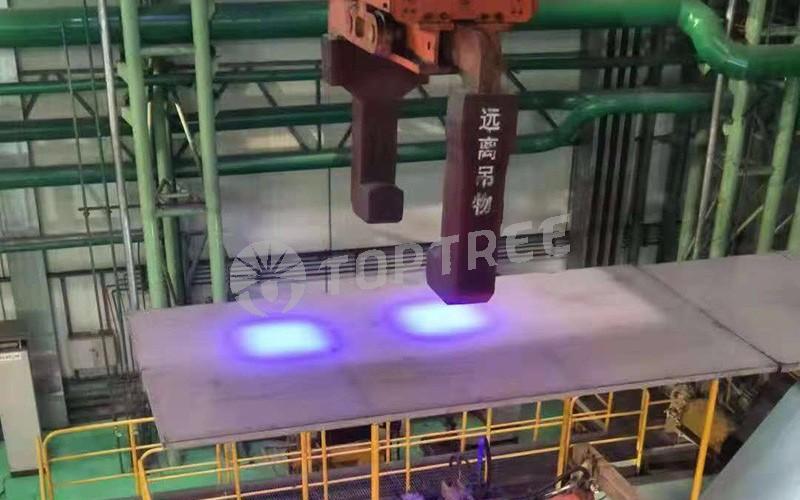

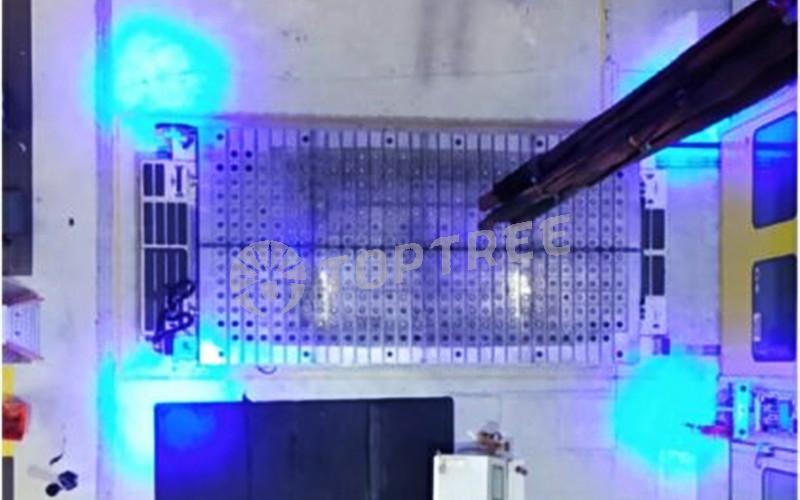

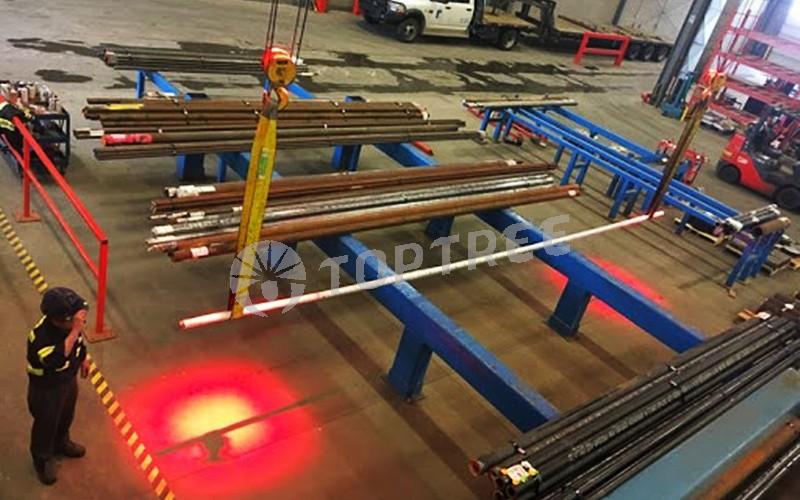

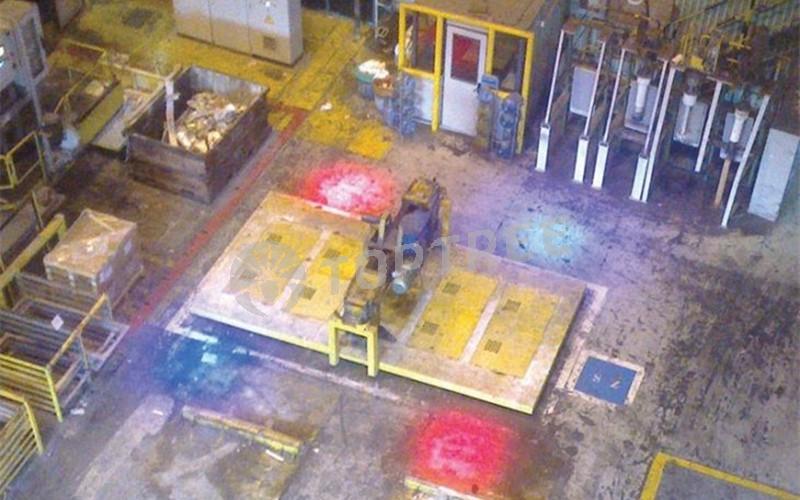

● High-Bay Facilities: Its powerful beam can easily project a clear spot from high ceilings.
● Brightly Lit Environments: The high-intensity output cuts through ambient light to remain visible.
● Steel Mills, Paper Mills, and Manufacturing Plants: Where a reliable and powerful visual warning is a non-negotiable safety requirement.
● Any operation looking for a significant safety upgrade from basic warning lights.
 |  |  |  |
1. Mount the unit to the crane beam or trolley using the included adjustable bracket.
2. Connect to power (or use power converter if needed).
3. Aim the beam to project a spot directly beneath the hook or within the load zone.
Toptree’s Overhead Crane Safety Lights are developed and manufactured to meet the highest international safety and quality standards. We are proud to offer a range of certifications that ensure reliability, performance, and compliance in industrial environments.
We are proud to hold:
○ Appearance Design Patent Certificates
○ Utility Model Patent Certificates
○ ISO Quality Management System Certification
○ RoHS Compliance for environmental safety
○ CE & LVD Certifications for EU market standards
Built for Industrial Use
Our certifications are not just paperwork—they reflect our commitment to:
★ Worker safety in hazardous environments
★ Product durability under harsh operating conditions
★ Full support for safety audits and compliance inspections
Utility Model Patent Certificate
Design Patent Certificate
Quality Management System Certification
CE Certification
LVD Certification
RoHS Compliance
1. What is an overhead crane safety warning light?
It is an LED light mounted on a crane to project visual warnings (spot or line) on the floor, helping to keep workers clear of hazardous areas.
2. Do overhead cranes need warning lights?
Yes, absolutely. In noisy industrial environments where audible alarms are often ineffective, overhead crane warning lights are critical. They provide a clear, unmissable visual signal on the floor, showing everyone the exact location and travel path of the hook, which is essential for preventing serious accidents.
3. What’s the difference between spot and line beams?
Spot beams mark hook locations; line beams indicate travel zones or no-go areas.
4. Do they replace audible alarms?
No. They complement audio alarms by offering visual safety alerts, especially helpful in loud environments.
5. Are these overhead crane safety warning lights difficult to install and maintain?
Not at all. They are designed for easy installation and are virtually maintenance-free. They come with a simple, adjustable mounting bracket. Once installed, the long-lifespan LEDs (over 50,000 hours) mean you can essentially "set it and forget it," knowing you have a reliable safety system in place.
6. Can I install this light on any type of crane?
Yes. It’s designed for overhead cranes, bridge cranes, gantry cranes, and other lifting systems with adjustable mounting brackets for easy setup.
7. What is the lifespan of the LED, and is there a warranty?
The high-quality CREE LEDs used in our lights have a rated lifespan of over 50,000 hours, ensuring years of maintenance-free operation. We stand by our quality with a 1-year warranty that covers any manufacturing defects.
8. How many warning lights do I need for one crane?
For most applications, one spot light per hoist/hook is sufficient to clearly mark its position. However, for very large cranes or for creating a larger safety zone, some customers choose to install two or four lights.
9. What is the recommended mounting height?
The light is effective at a wide range of heights. The ideal mounting height is typically between 15 to 30 feet (5 to 10 meters). At this range, the spot on the floor remains bright and well-defined. The adjustable bracket allows you to fine-tune the angle for optimal visibility at any height.
10. Do you offer OEM or customized products?
Yes, we provide OEM and ODM customization, including private labeling, custom light colors, beam patterns, and packaging.
1. Industry-Leading Expertise
With over 10 years of experience in industrial safety solutions, we specialize in developing advanced visual warning systems for warehouses, logistics, and hazardous zones.
2. In-House R&D and Engineering
We own a professional R&D team focused on lighting technology, ensuring continuous innovation and customization capability for clients with different safety needs.
3. Certified Quality and Compliance
All products meet international safety and quality standards (CE, RoHS, etc.). Every unit undergoes strict QC testing before shipment.
4. Scalable Production Capacity
We operate a modern manufacturing facility with scalable production lines, supporting bulk orders and fast lead times without compromising quality.
5. Global Client Base
Trusted by Fortune 500 companies, regional distributors, and safety integrators across North America, Europe, Southeast Asia, and the Middle East.
6. Reliable After-Sales Service
Our dedicated support team offers fast response, technical guidance, and warranty support to ensure long-term satisfaction.
At our manufacturing facilities, we employ a range of advanced testing equipment to guarantee the highest product quality and reliability. Each piece of equipment plays a vital role in inspecting, measuring, and validating product performance before shipment.
Drop and Vibration Test
EMC Test
Hi-Low Test
IP69K Standard
Lumen Test
Optical test Dark Room
Salt Spray Test
SMT
UV Accelerated Weathering Tester
Vehicle lighting test system for DOT
Have questions or need a custom quote? Our expert team is here to help you find the perfect warehouse and pedestrian safety laser solutions tailored to your needs. Contact us today for fast, professional service and support.
Changzhou Toptree Auto Lamp Co.,Ltd
Phone: +86 519 8119 3809
Email: info@toptreesafety.com
WhatsApp: +86-15051960989
We look forward to partnering with you to enhance workplace safety.
